Price: $3,000-5,000 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: 5-20m³/h
Power: Electric Motor (Low Energy Consumption)
Screening surface: 3.57m² (0.8m x 2.0m Drum)
Weight: max. 1085kg
Application areas: Soil, Sand, Gravel, Stones, Compost, Woodchips, Green cuttings, Construction waste, Substitute fuels ,Slag, Coal, Glass, etc.
Factory Direct Shipping to Oceania, EU, and the US, Globally
Compact Stationary Screening Machine for Nurseries, Landscapers & Municipalities — High Efficiency at a Fraction of the Cost.

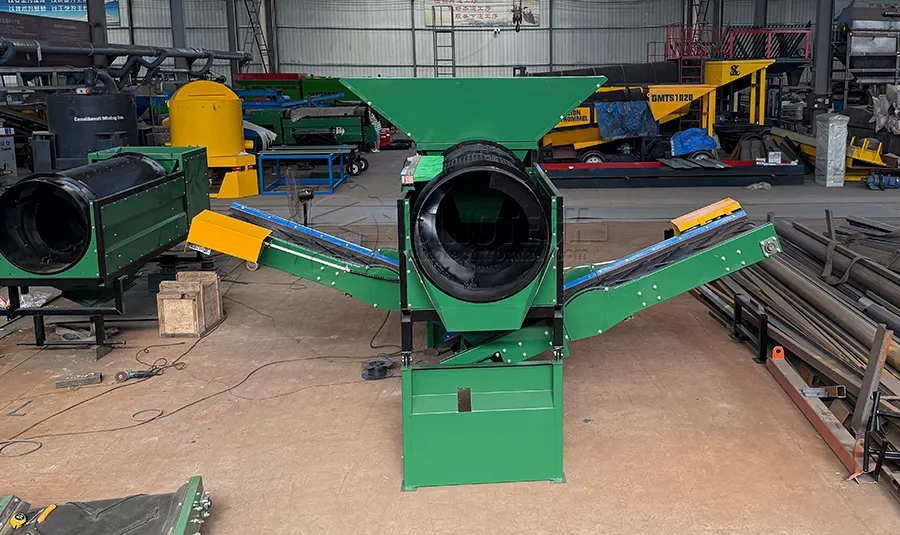

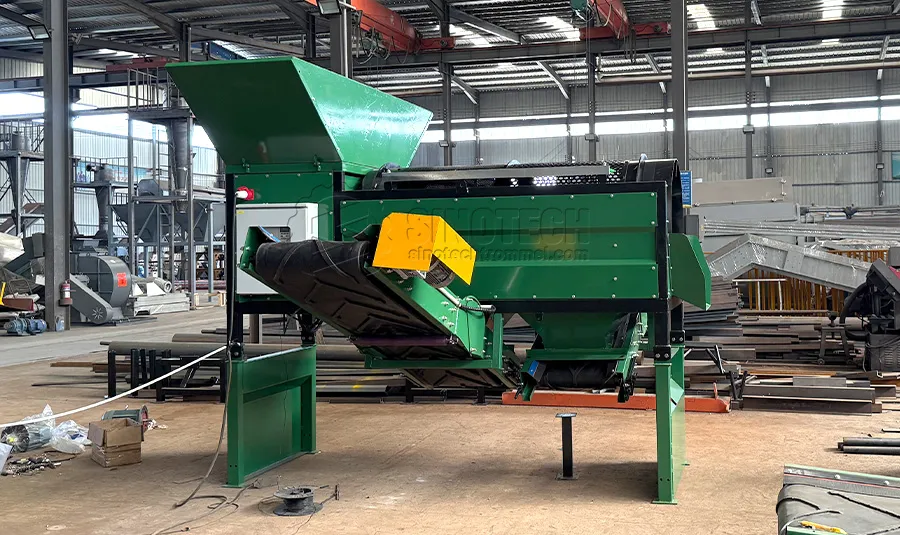

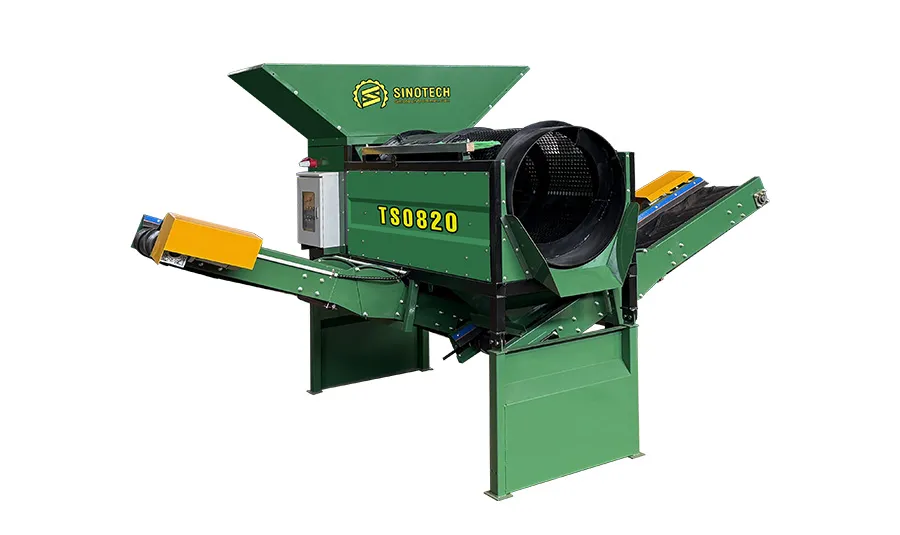

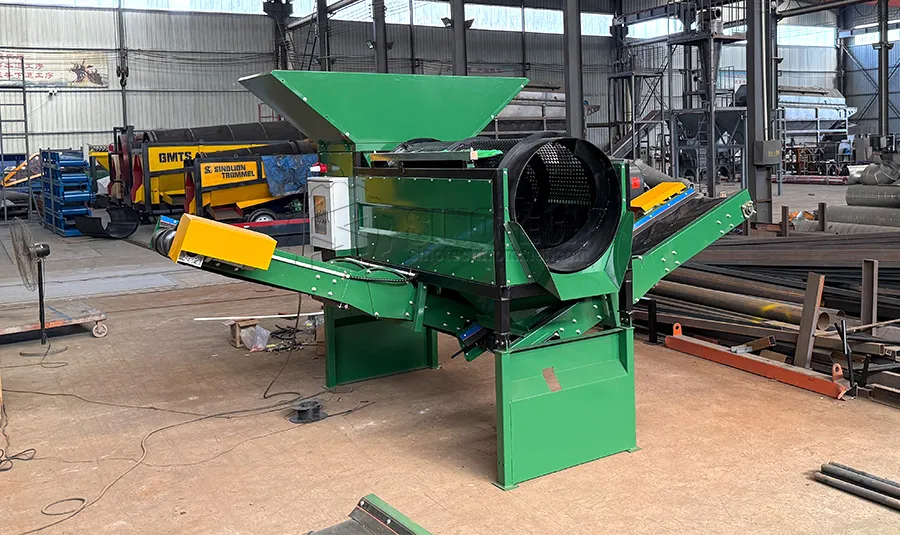

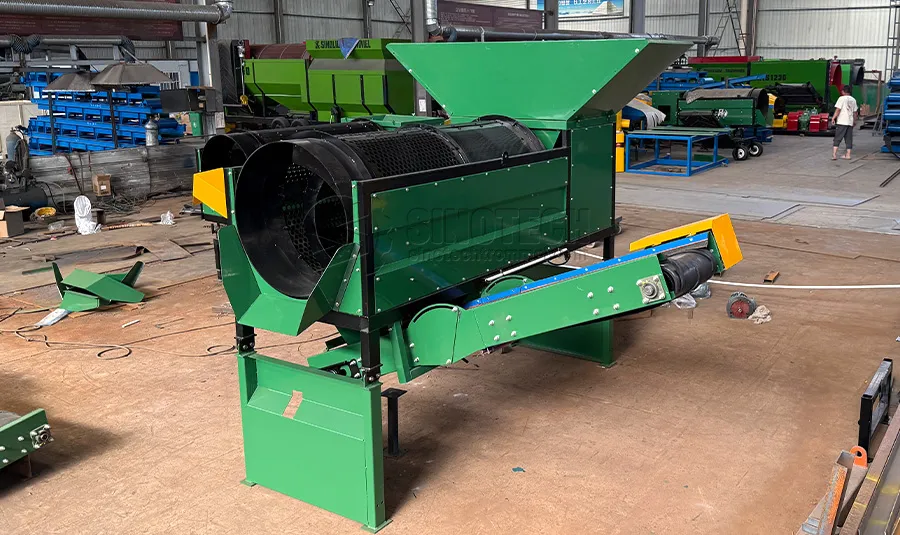

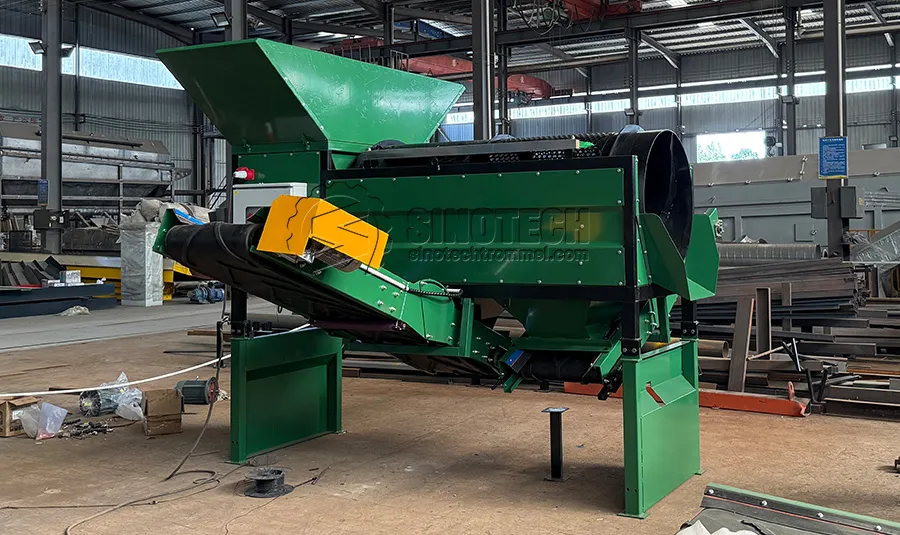

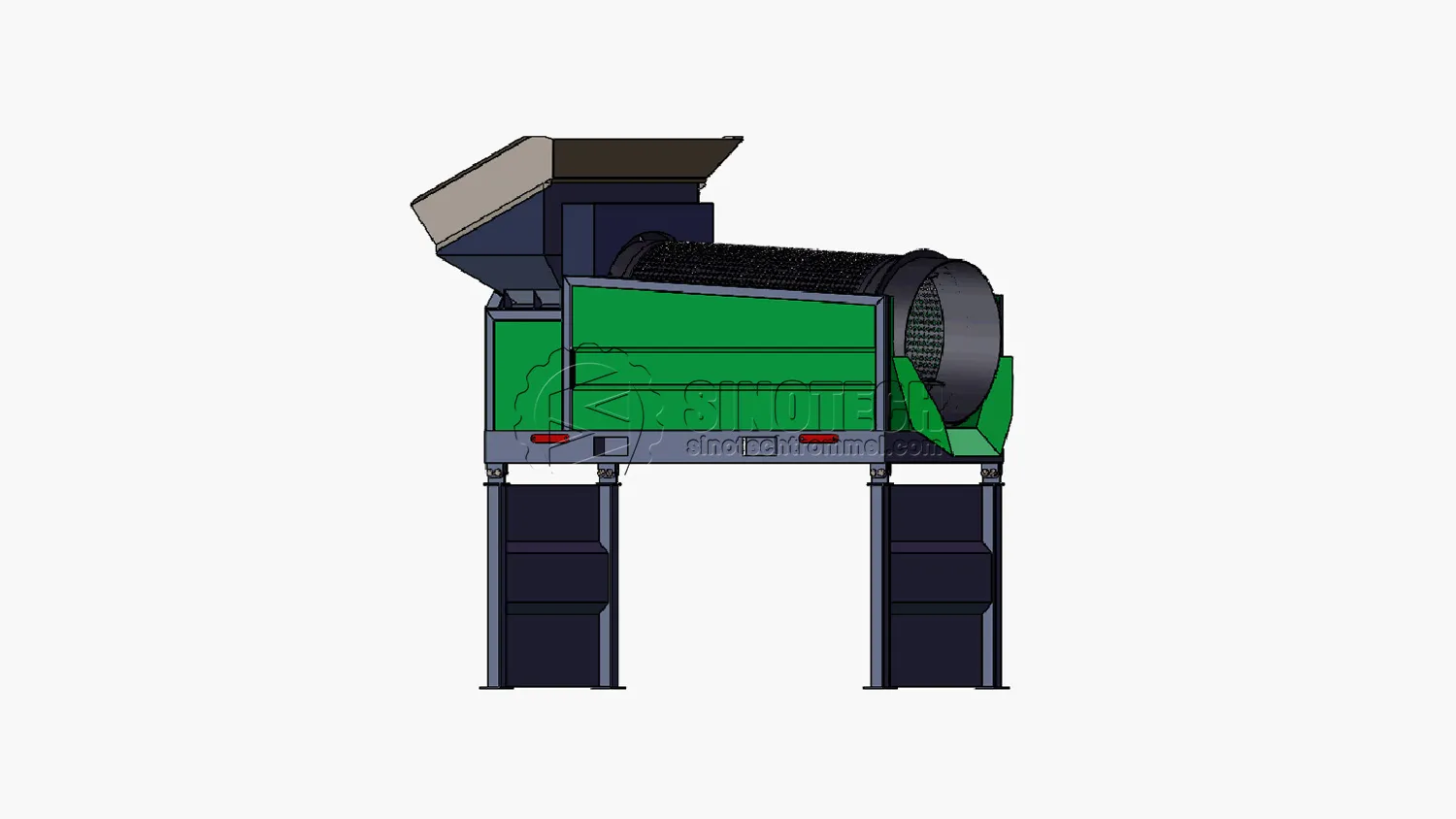

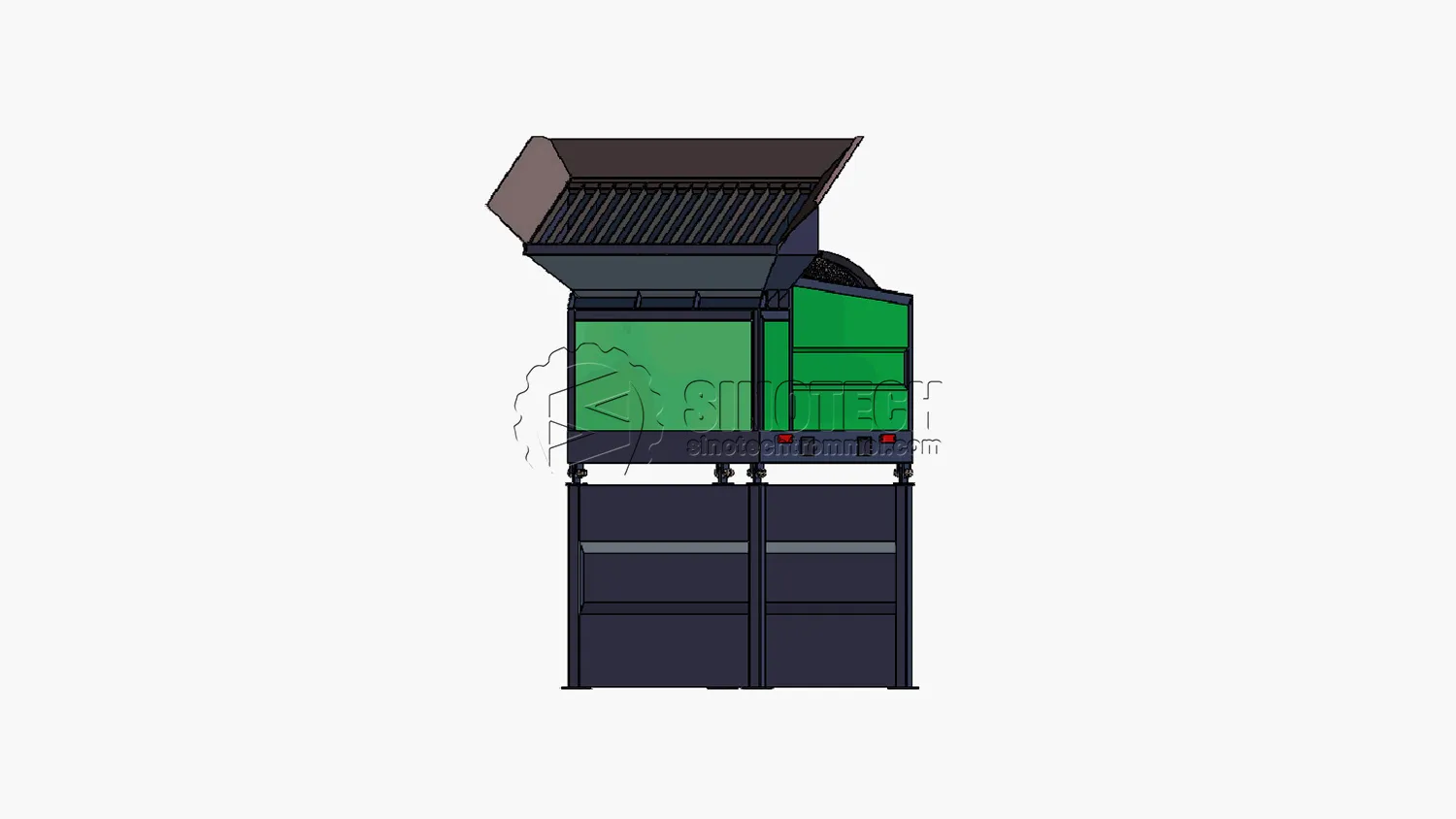

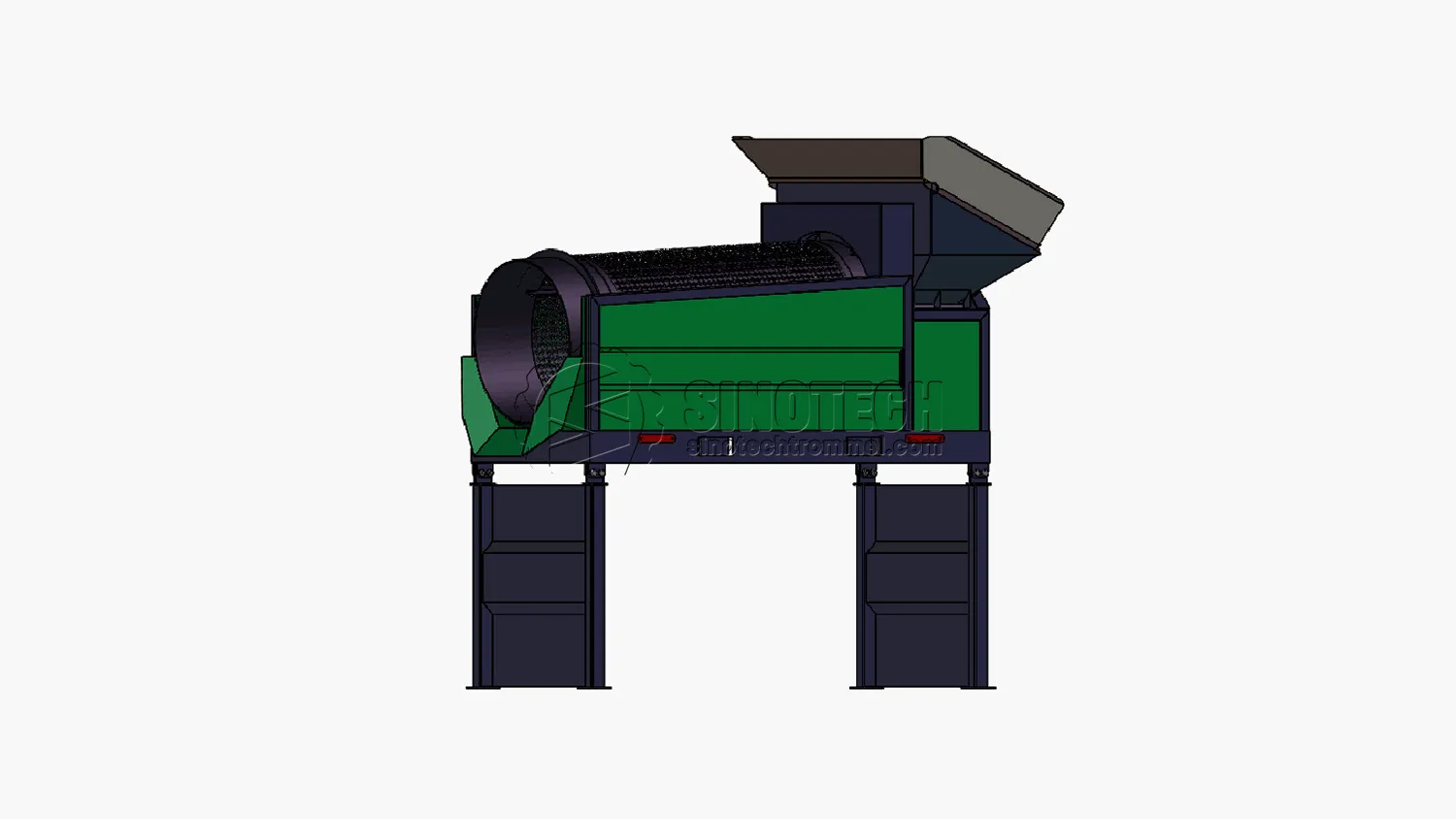

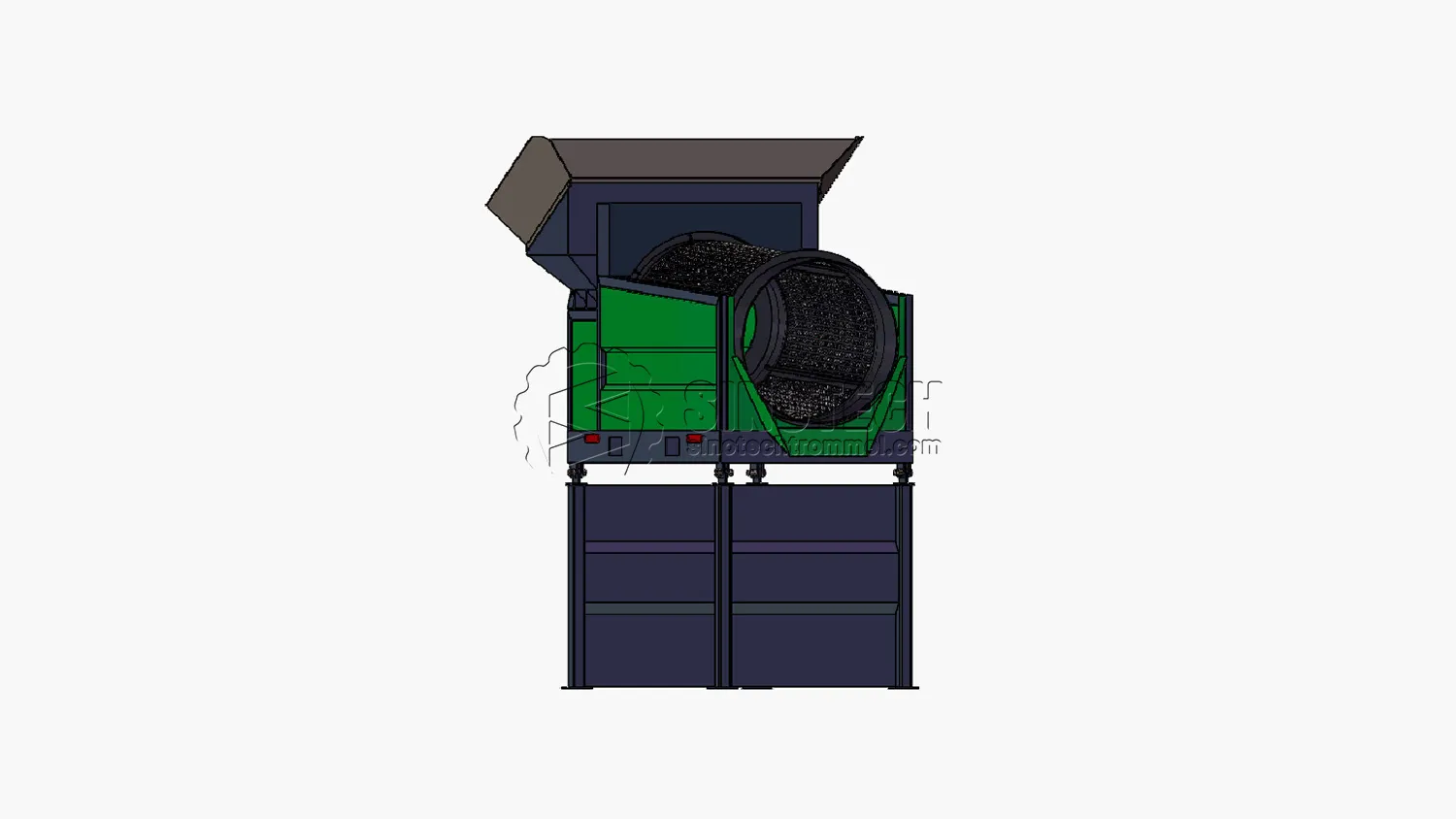

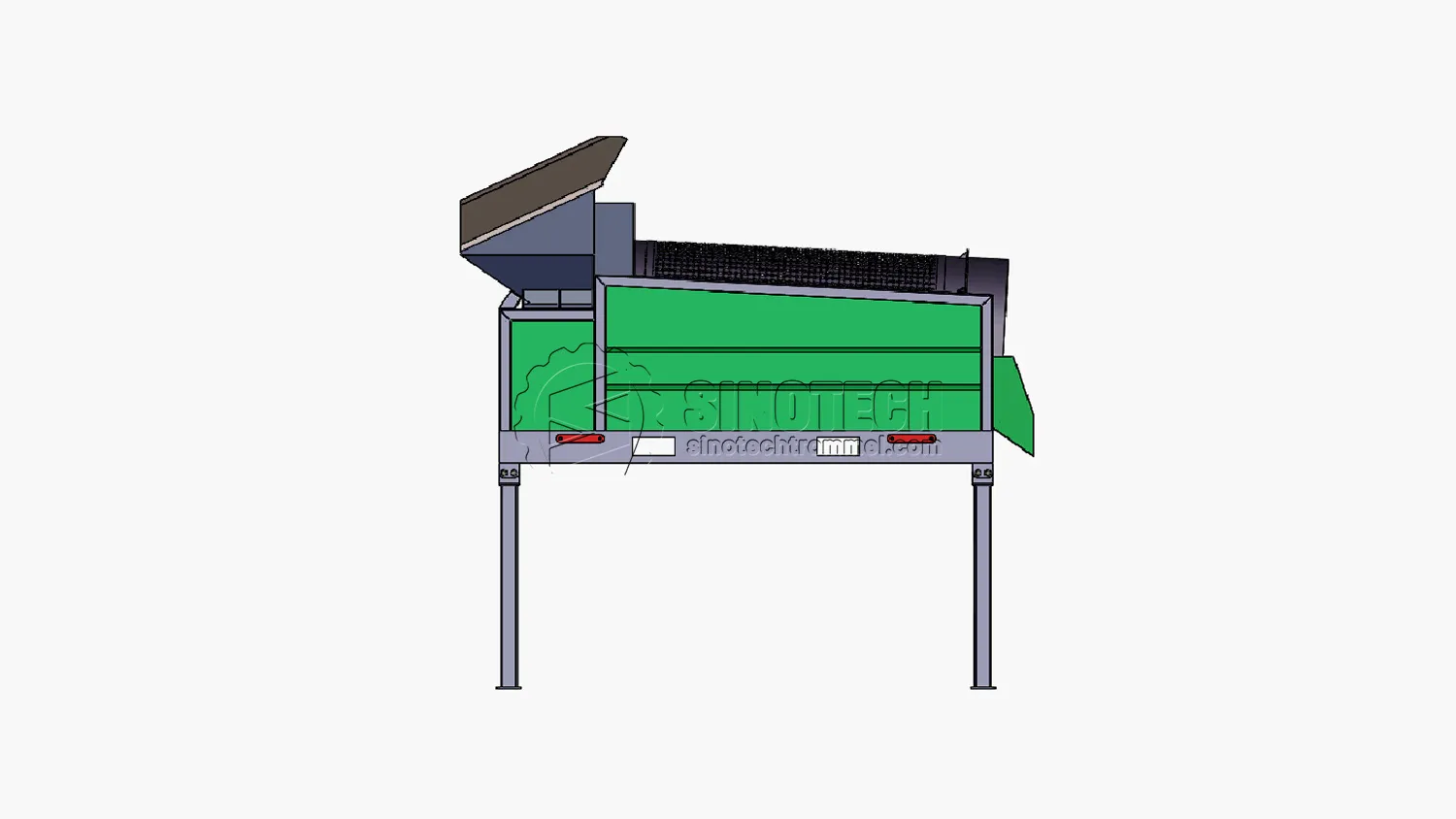

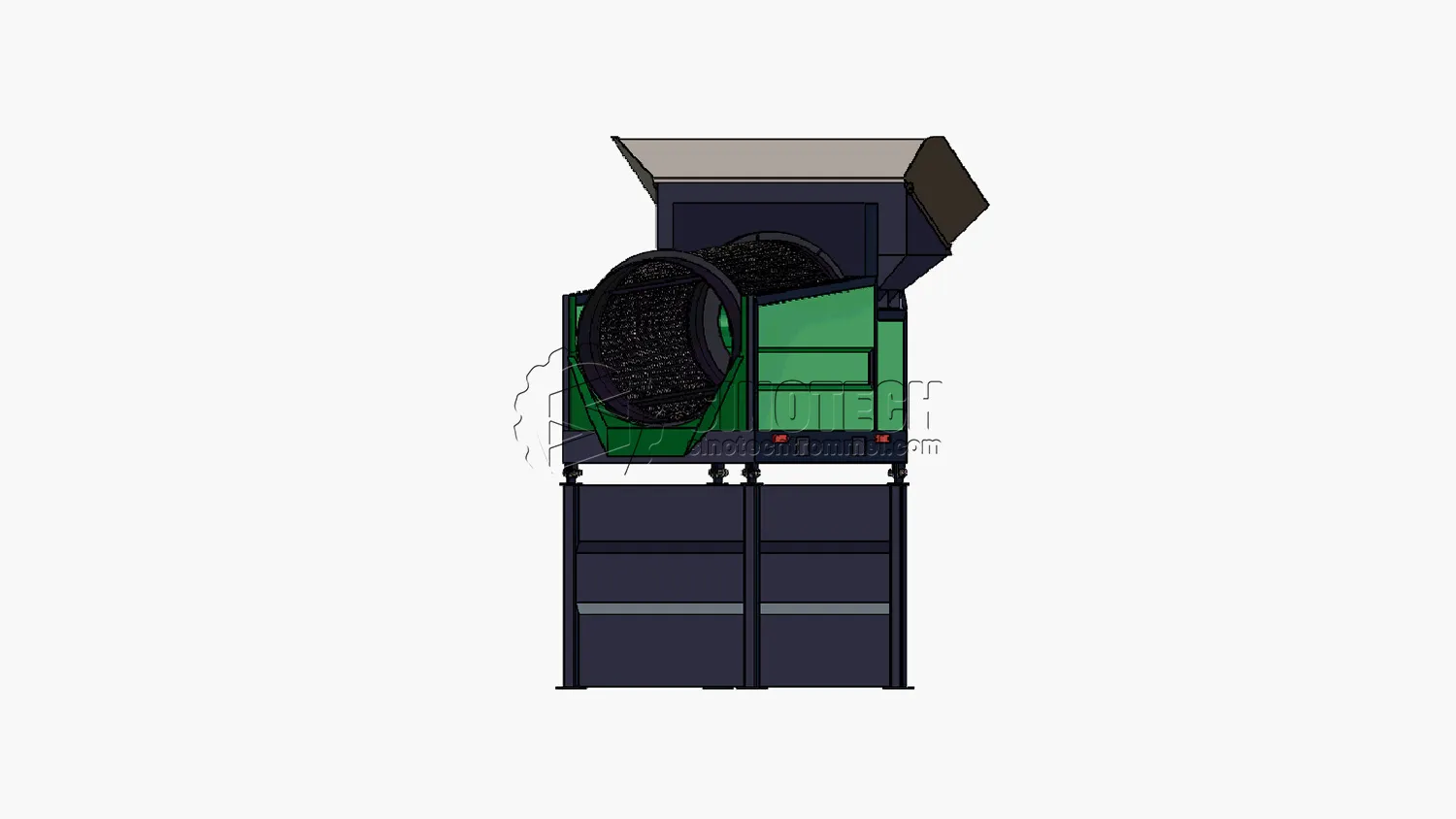

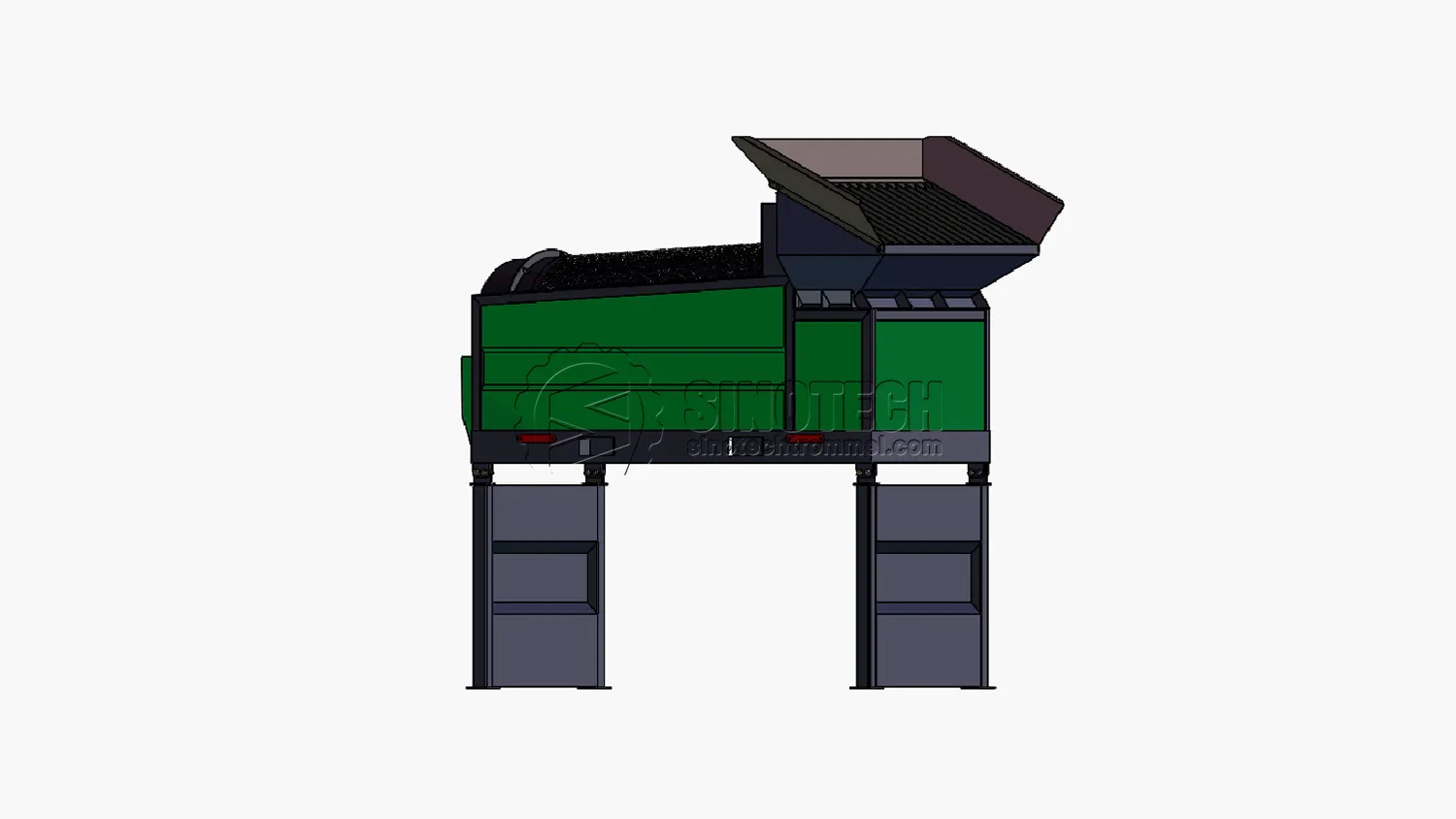

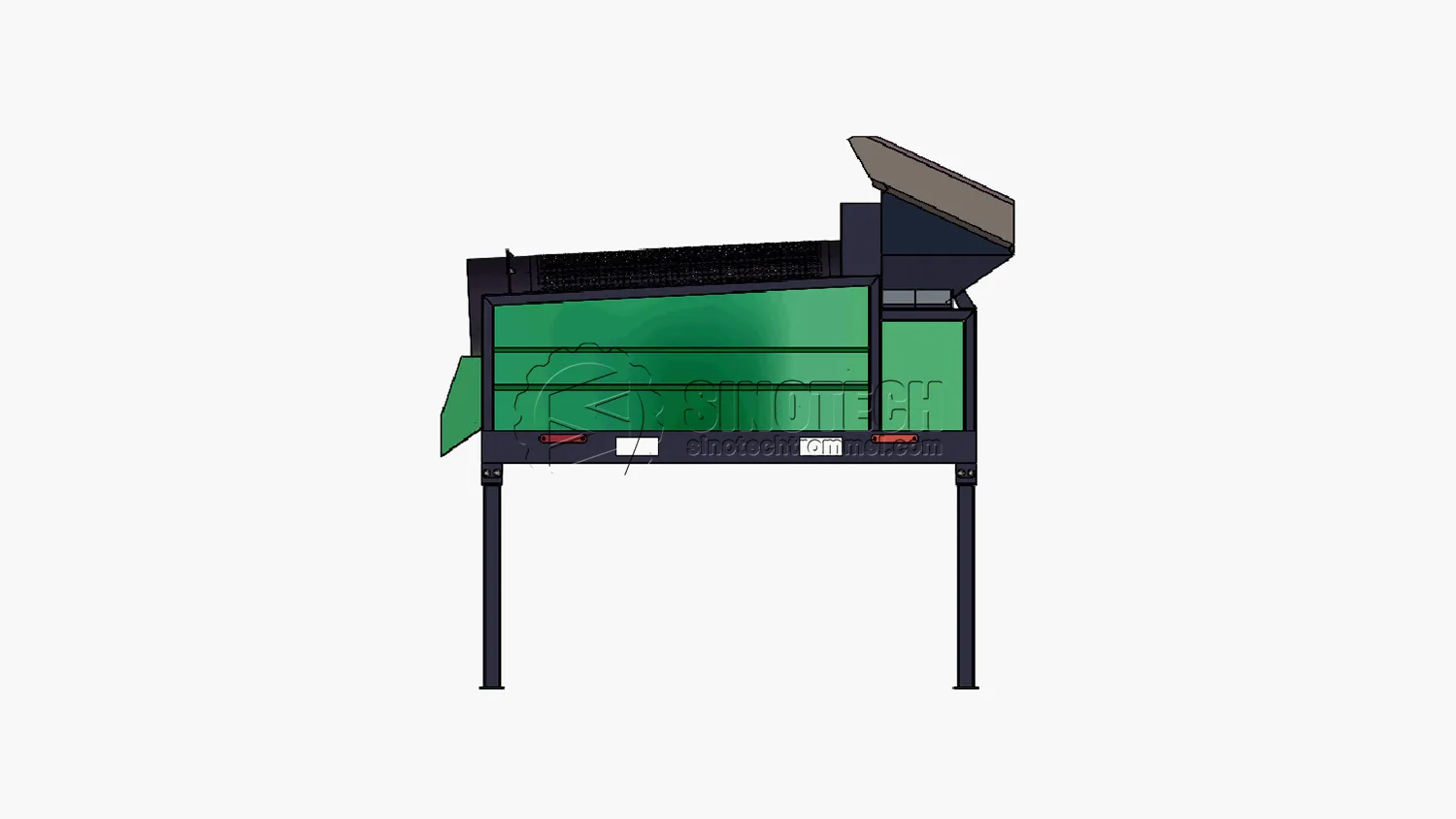

The TS0820 Static Trommel Screen is the ultimate entry-level solution for material separation. Developed as a cost-effective alternative to our wheeled WTS0820, it utilizes a stable skid-mounted frame, making it the ideal choice for nurseries, worm farms, and sites with tight workspaces.
Powered by a quiet electric motor and hardened gear reducer, this machine delivers professional-grade results for topsoil, compost, worm castings, and gravel. Its low weight (1085kg) allows for easy transport. Unlike mobile units, the TS0820 focuses purely on processing power, offering you premium screening capabilities at an economical price point.
The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 5-20 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 800 | |
| Trommel length (mm) | 2000 | |
| Screening area approximately (m²) | ≈3.57 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 1680 |
| Feed hopper width (mm) | 880 | |
| Volume (m³) | ≈0.25 | |
| Transportation dimensions | Transportation status length (mm) | 2720 |
| Transportation status width (mm) | 1300 | |
| Transportation status height (mm) | 1350 | |
| Weight (kg) | ≈1085 | |
Compact & Efficient: Space-saving design delivers high screening performance.
Lightweight Build: Easy to transport and position anywhere you need it.
Cost-Effective Solution: Low investment makes it ideal for small-scale projects.
Perfect for Gardens & Home Use: Designed for soil, compost, and light aggregate screening.
User-Friendly Operation: Simple controls for quick start and minimal training.
Easy Screen Replacement: Fast swap design reduces downtime and boosts productivity.
