Price: $3,000-5,200 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 5-20 m³/h (6.5-26 yd³/h)
Diesel or Electric Power
Screen Aperture: 2-120 mm (0.08-4.75 in, Custom drum)
Weight: approx. 1085 kg (2390 lbs)
Comprehensive 1-year global warranty & lifetime online technical support.
Processed materials: Topsoil, Compost, Woodchips & Green Waste, Sand and Gravel, Small Aggregates, Light Construction Debris.
Factory direct shipping to Oceania, EU, and the US, globally
Highly Efficient Electric Trommel Screen for Professional Composting, Construction & Soil Separation — Easy One-Person Operation.

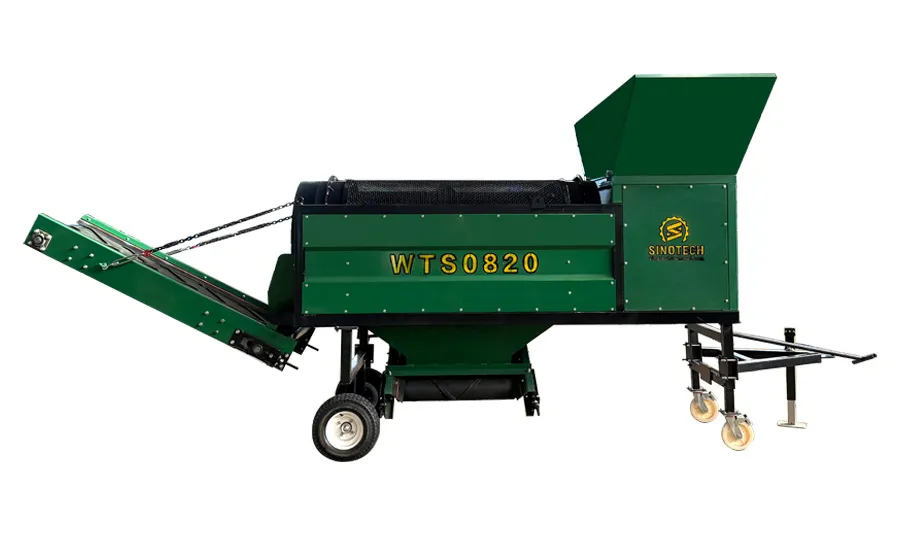

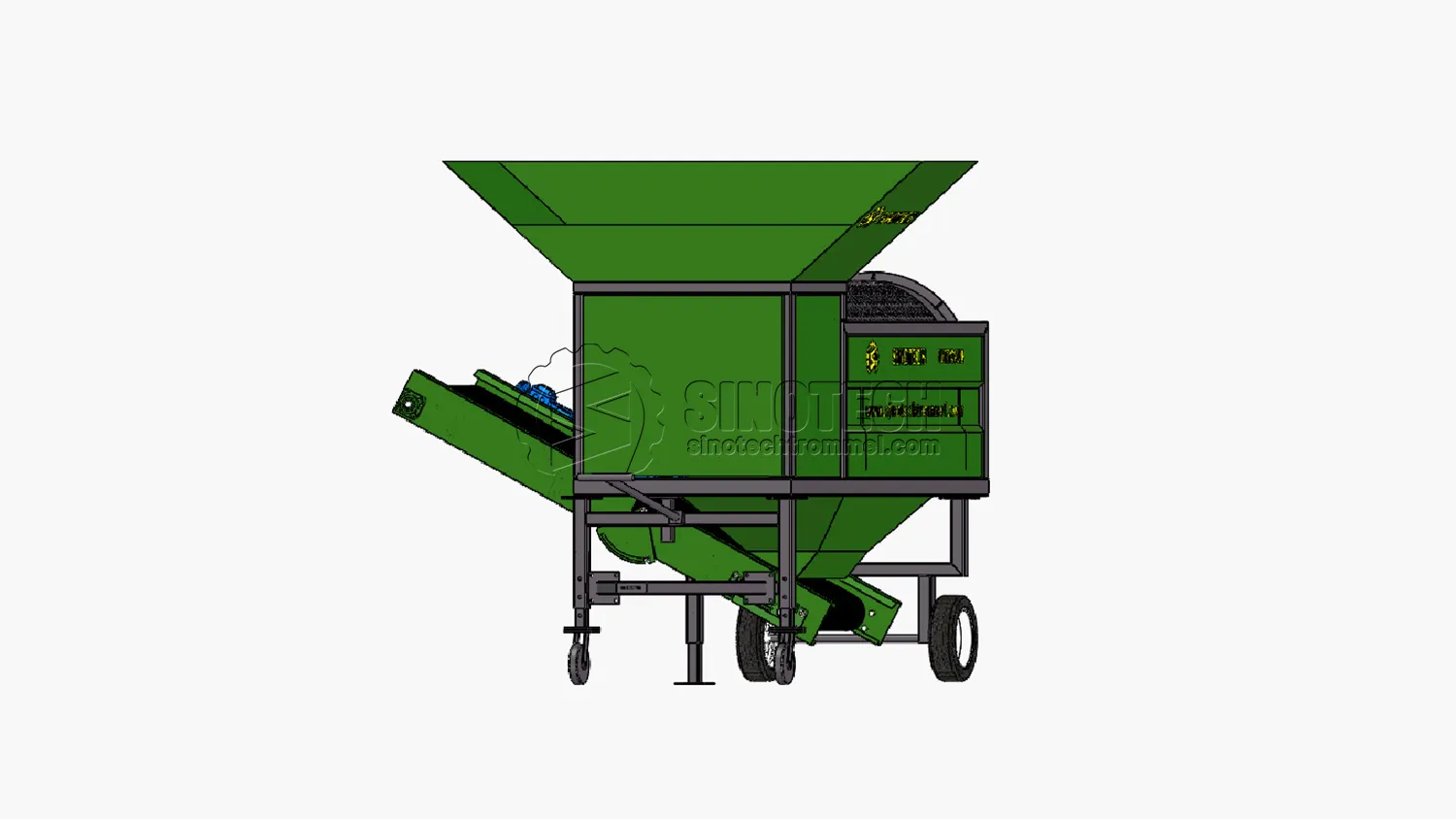

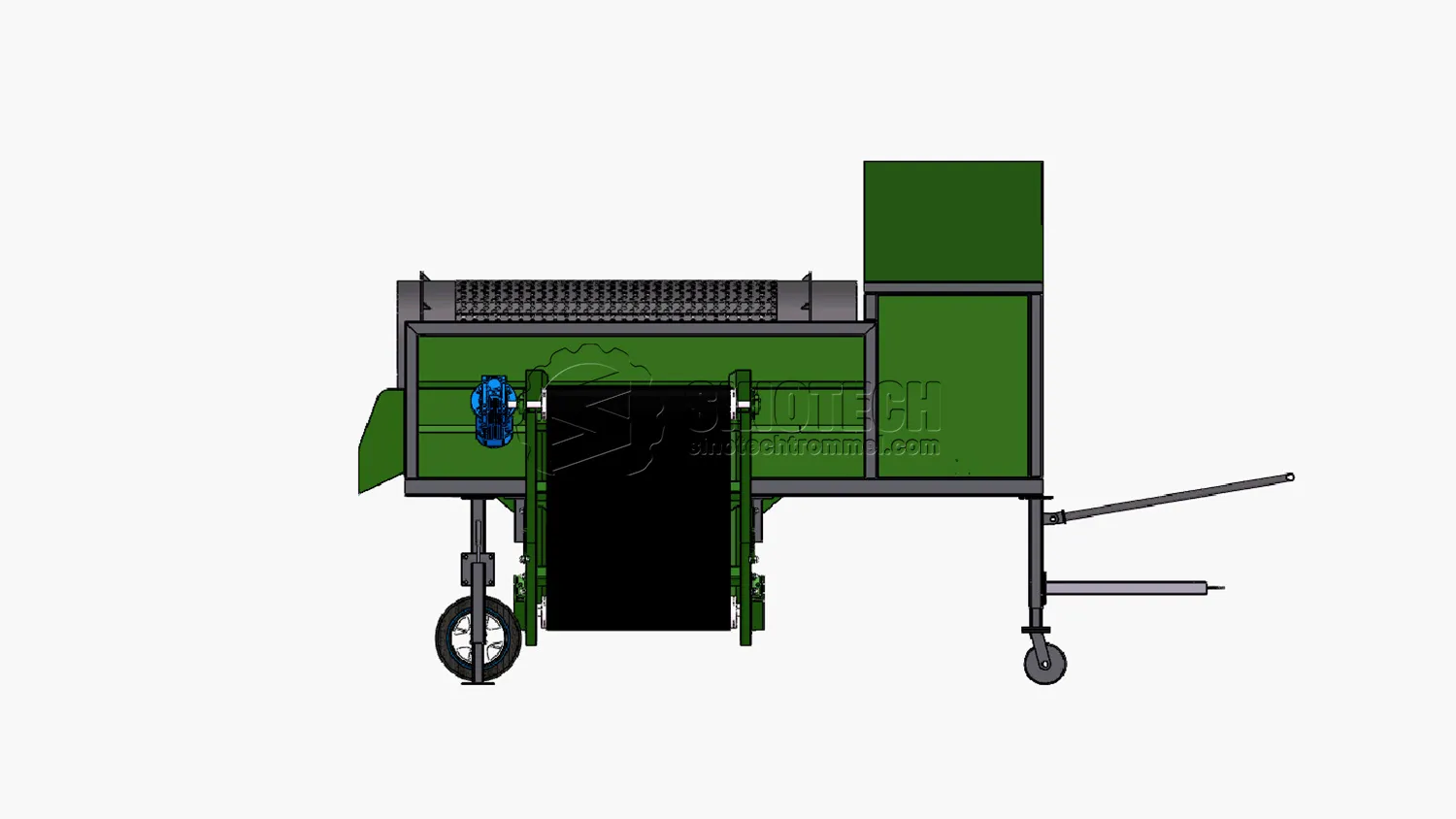

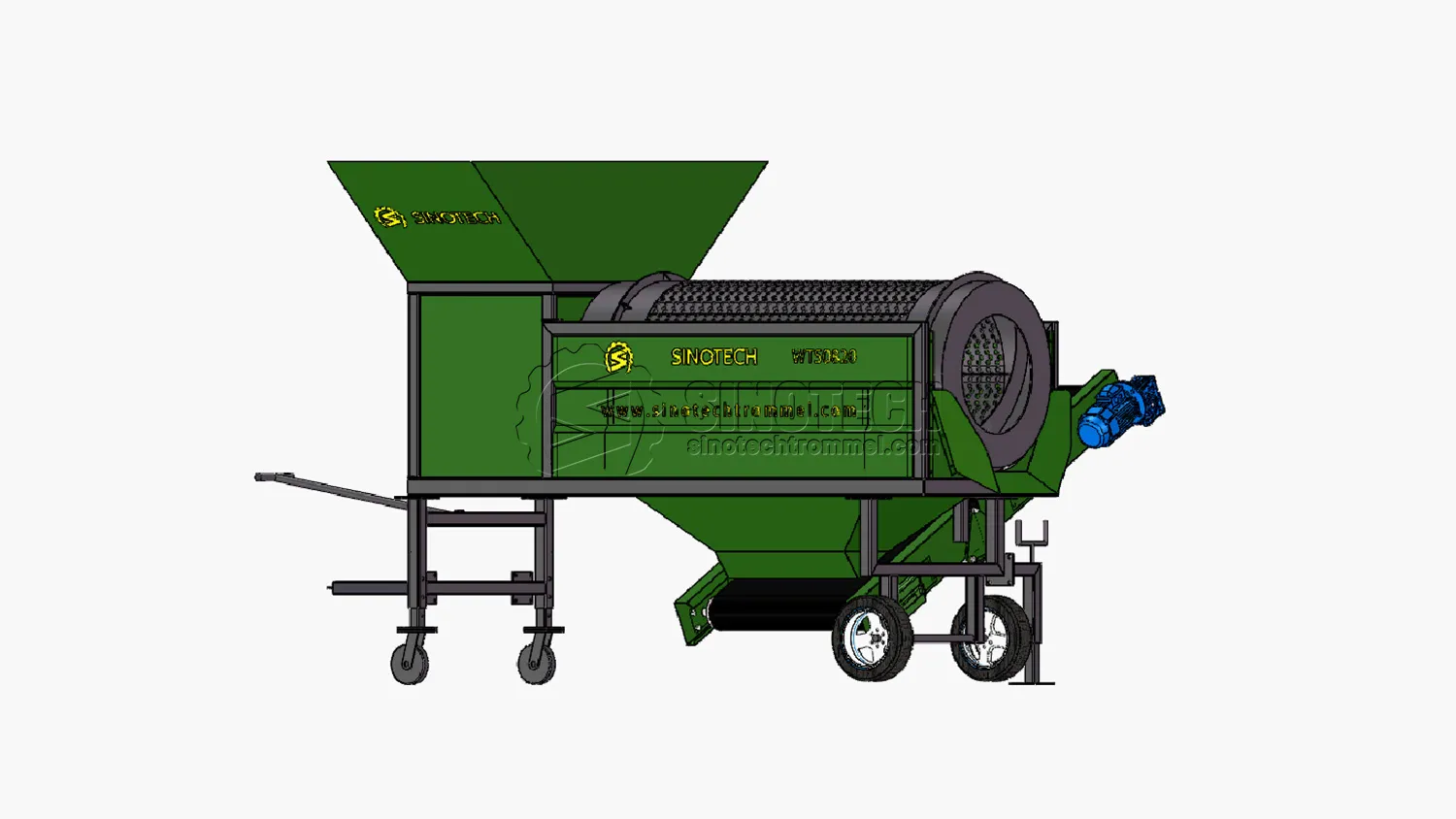

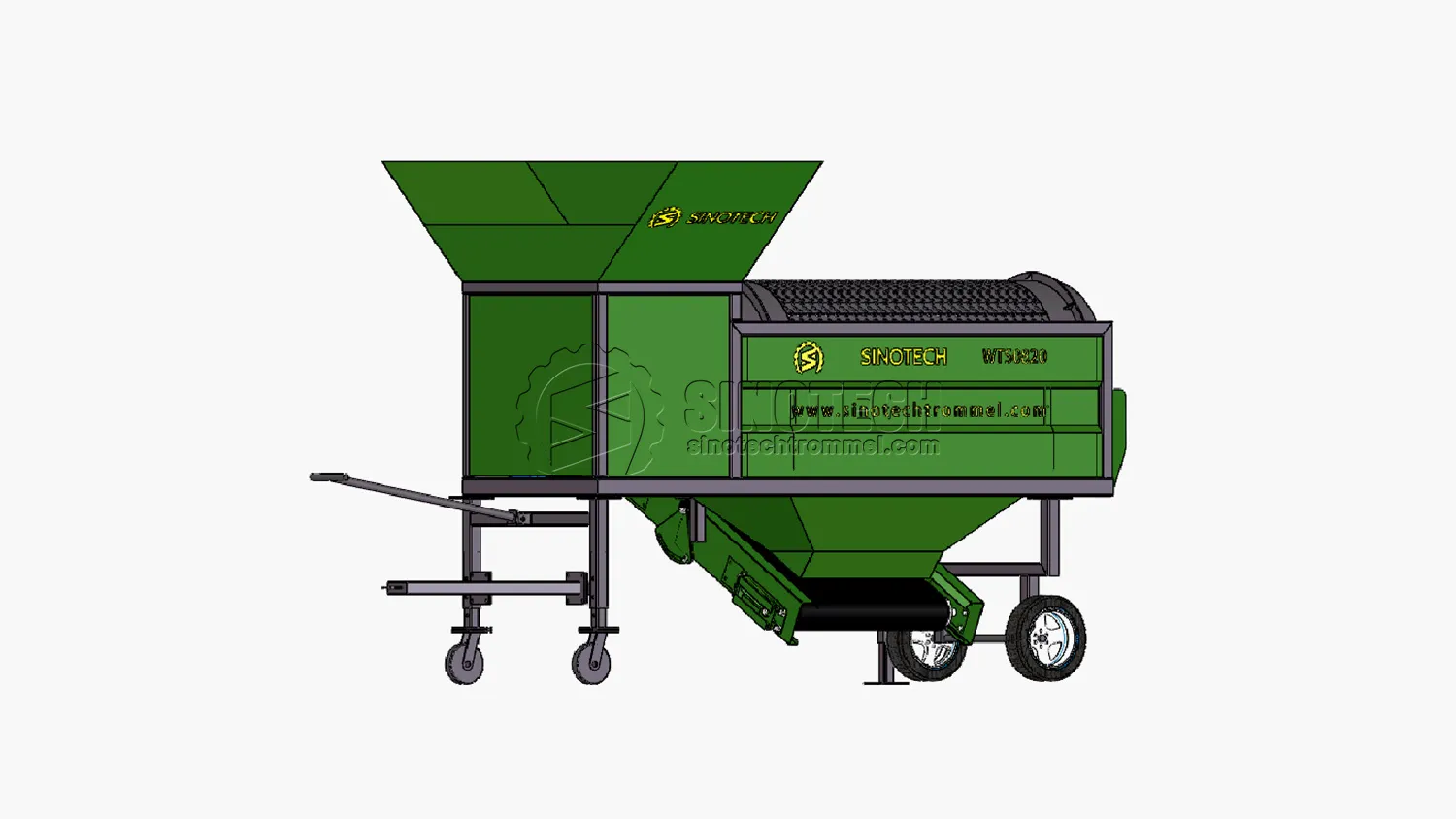

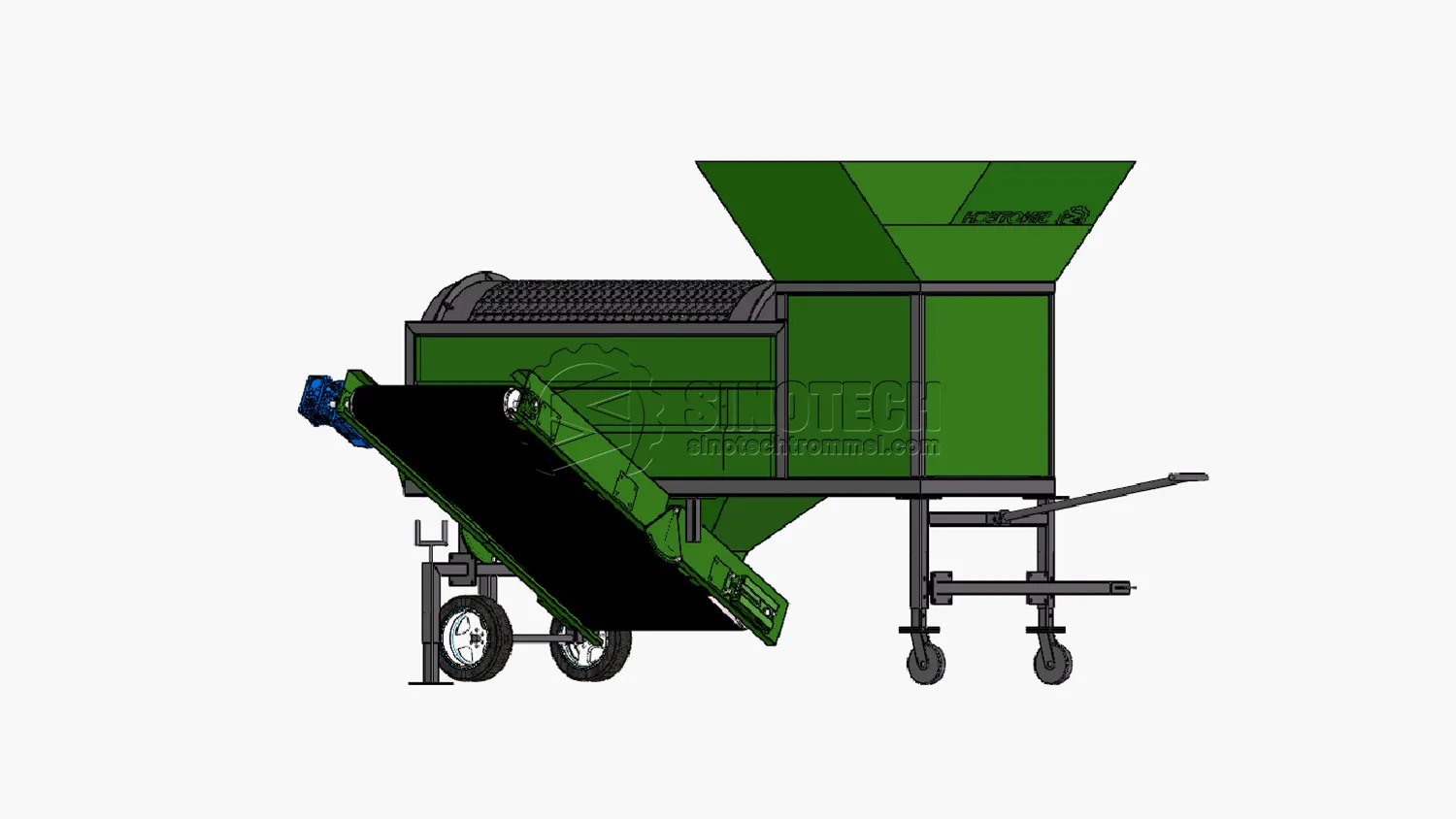

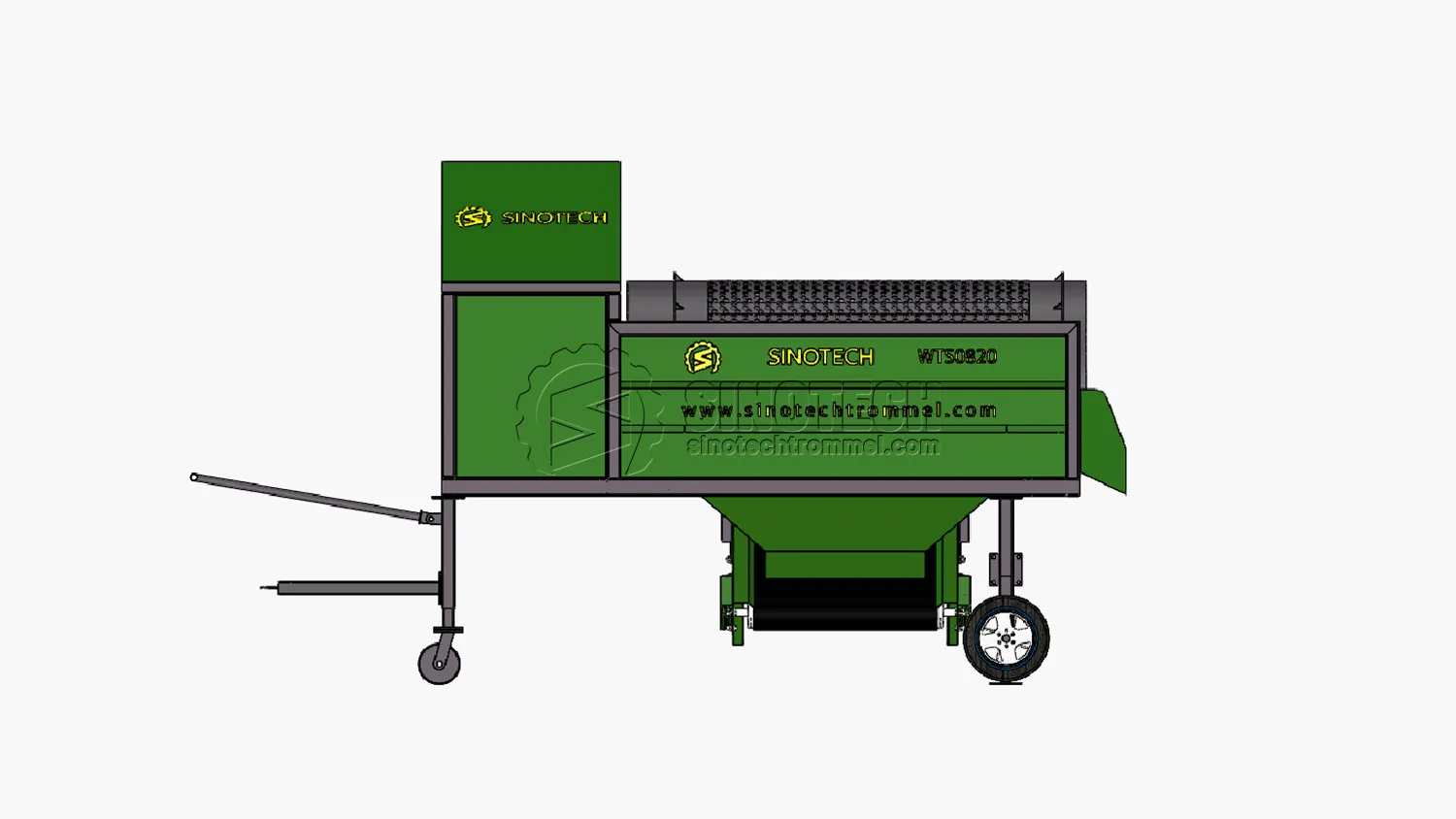

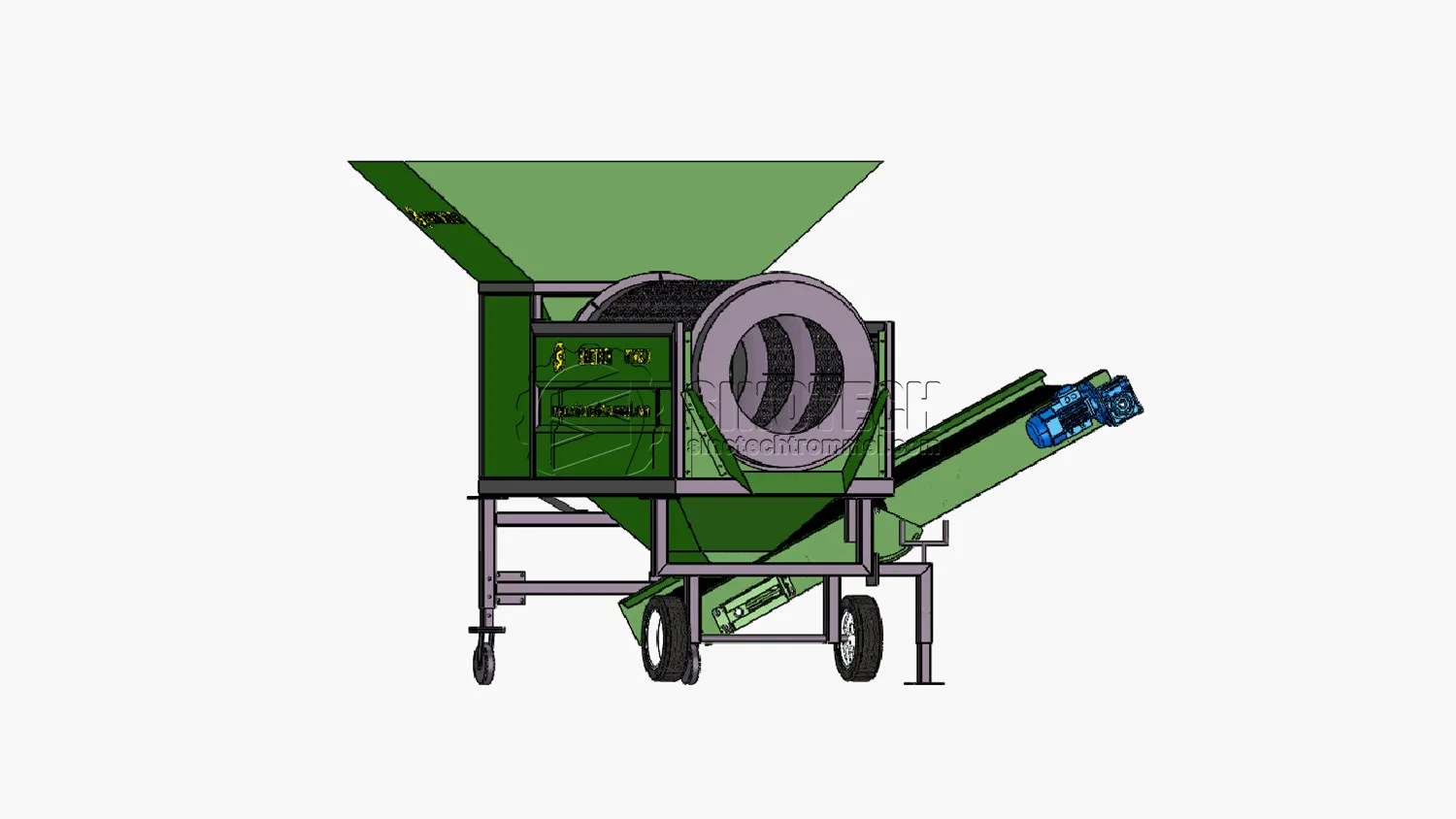

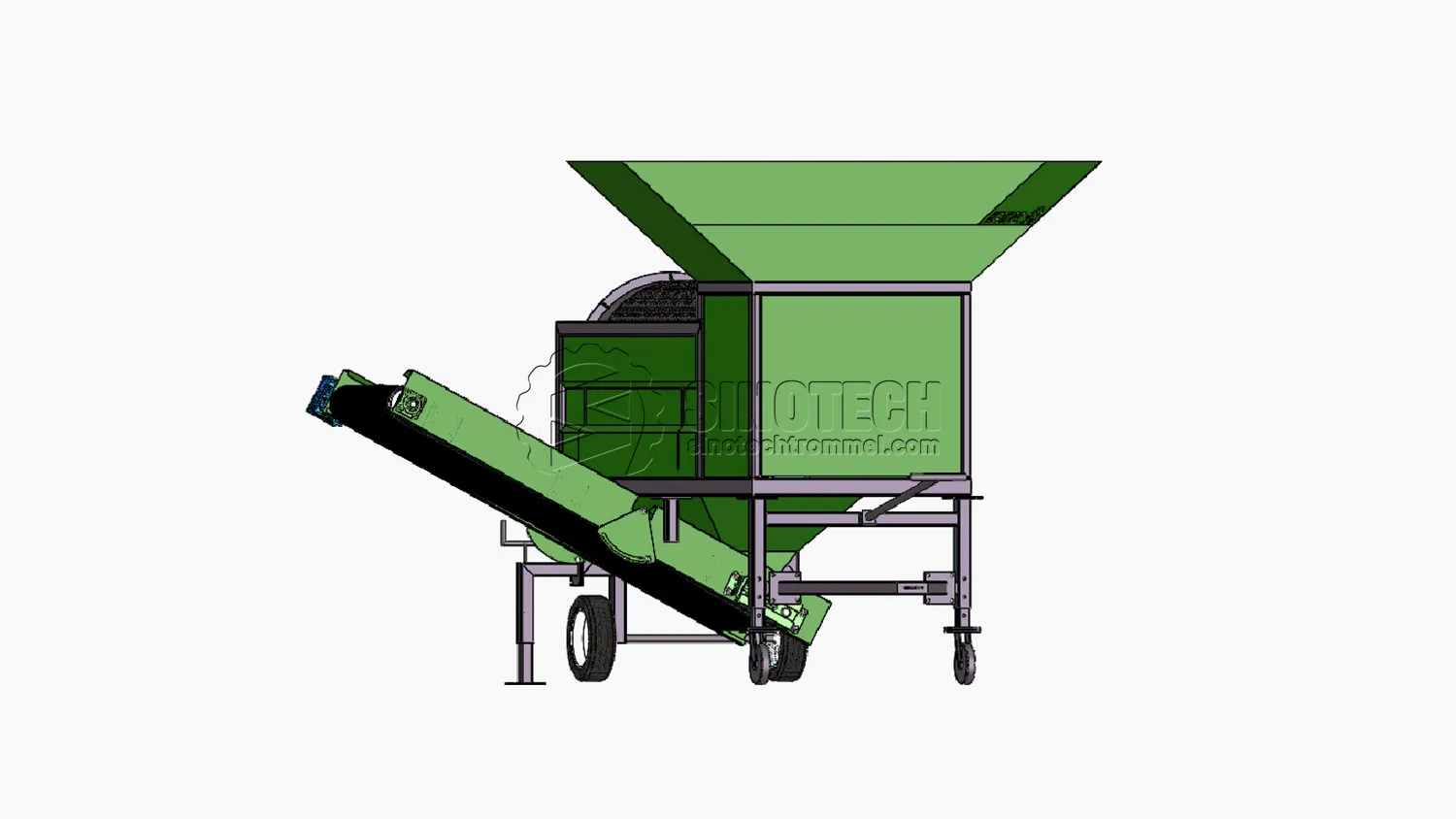

The trommels, scalping screens, WTS0820 Small Trommel Screen is a versatile solution widely used in composting, construction, and agriculture. This compact and portable screen is specifically designed for high-performance soil, sand, and gravel screening.

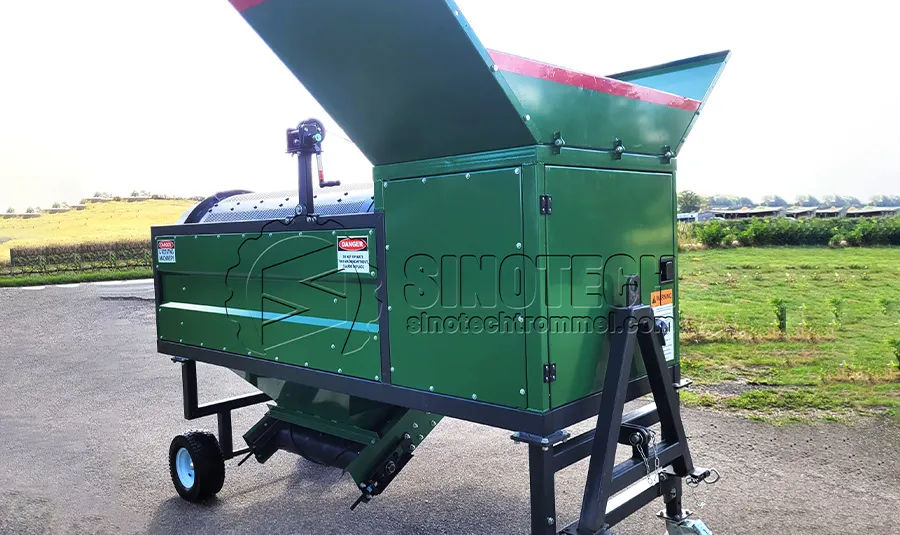

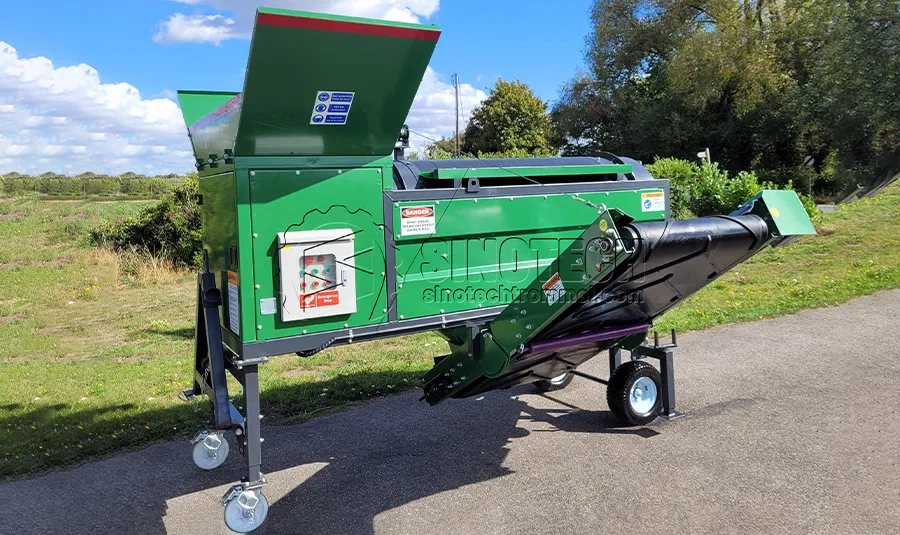

Featuring a fully enclosed, waterproof design, the WTS0820 is built for durability in any weather. With its electric motor and hardened gear reducer, it operates smoothly with minimal noise. Thanks to its two tires and universal wheels, this small dirt trommel can be easily moved and fixed by a single person, making on-site material separation more efficient than ever.

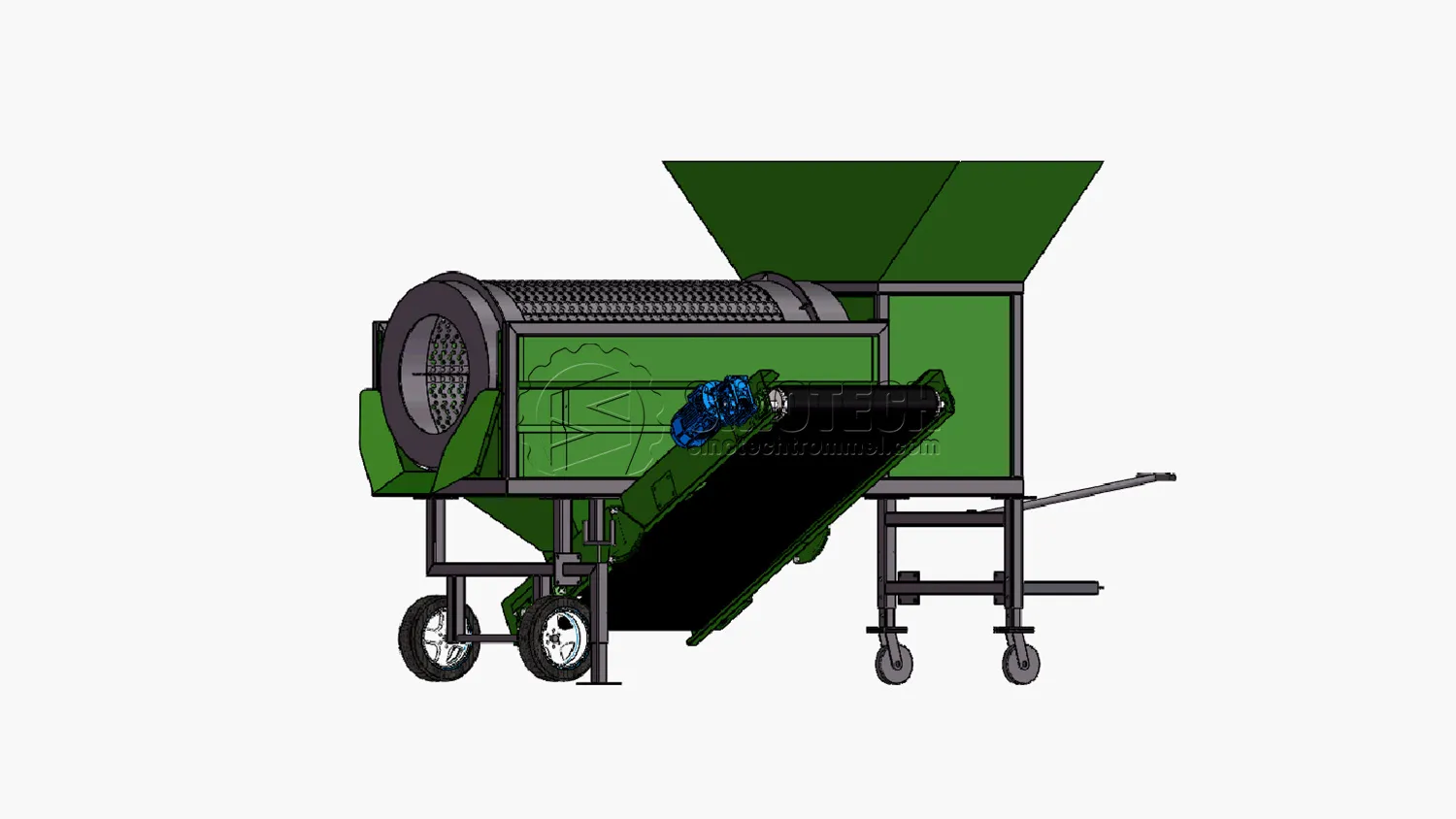

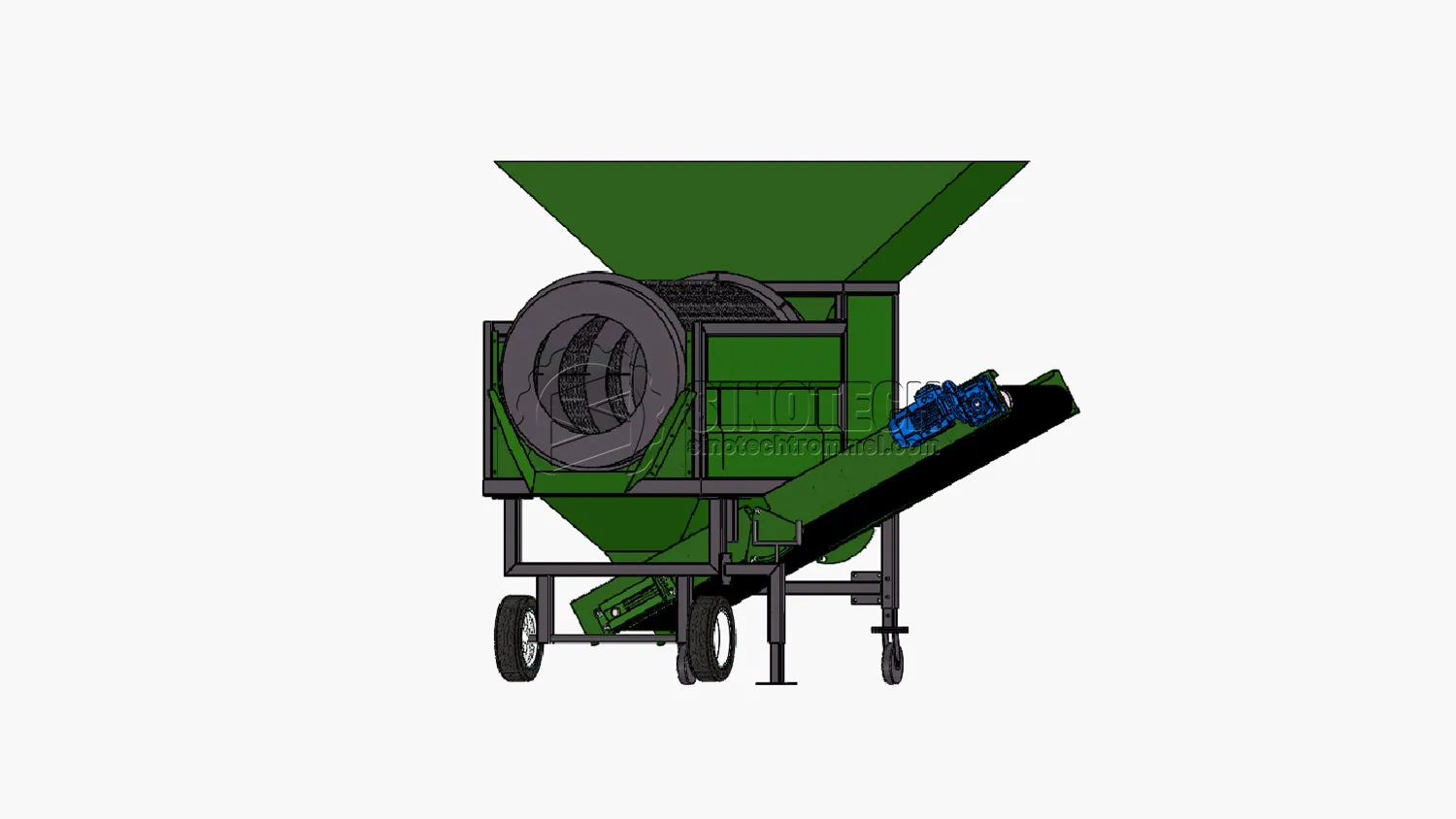

The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 5-20 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 800 | |
| Trommel length (mm) | 2000 | |
| Screening area approximately (m²) | ≈3.57 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2200 |
| Feed hopper width (mm) | 780 | |
| Volume (m³) | ≈0.85 | |
| Transportation dimensions | Transportation status length (mm) | 2900 |
| Transportation status width (mm) | 1400 | |
| Transportation status height (mm) | 1400 | |
| Weight (kg) | ≈1085 | |

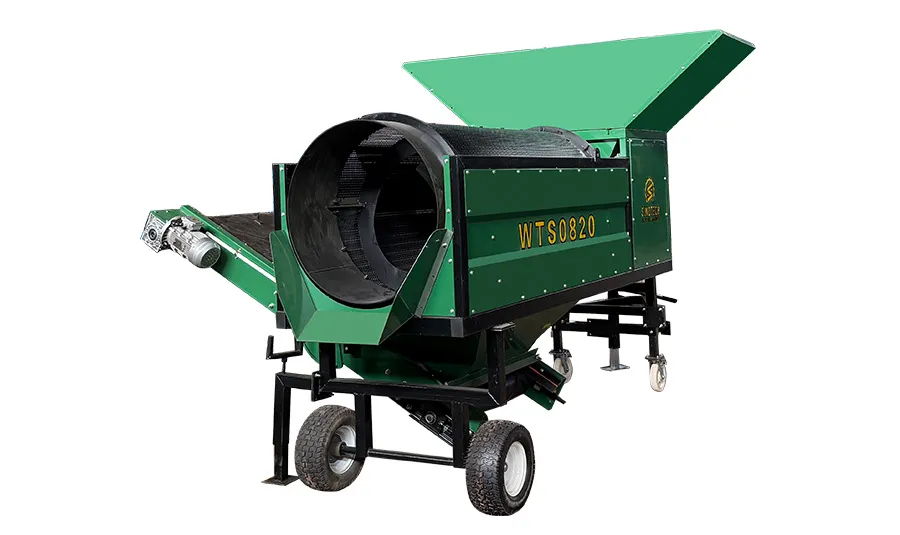

Spiral Drum & Screen: The screen’s interior features a spiral design to move material forward, ensuring a more even and thorough screening process.
Durable Construction: Made with a steel plate punching screen, it offers superior corrosion resistance, high toughness, and a long service life.
Easy Mobility: The front of the equipment is fitted with a traction system, two tires, and a universal wheel for effortless movement between sites.

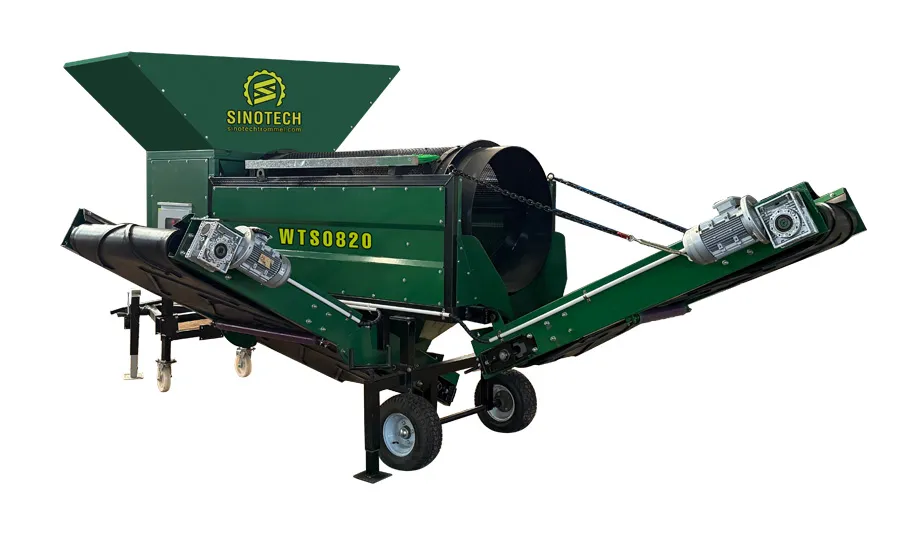

Efficient Conveyors: The side conveyor folds away with a handle for easy storage, while the discharge conveyor’s herringbone belt enhances friction to improve material transport.
Self-Cleaning Brushes: High-quality flocking nylon brushes work continuously to clean the screen, effectively preventing it from clogging during operation.

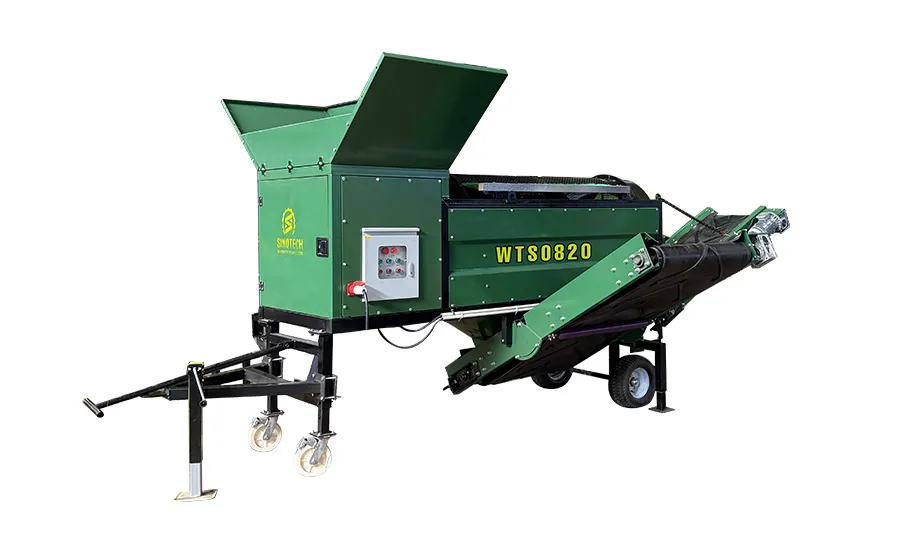

Smart Control: A frequency conversion control cabinet is included, allowing you to easily adjust the drum speed and precisely control the machine's functions.
