Price: $10,100-11,700 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 15-40 m³/h
Diesel or Electric Power
Screening surface: 5.7 m²
Weight: approx. 3000 kg
Processed materials: Compost, Concrete, Gravel, Rock, Sand, Soil, Topsoil, Wood, Woodchip, etc.
Factory Direct Shipping to Oceania, EU, and the US, Globally

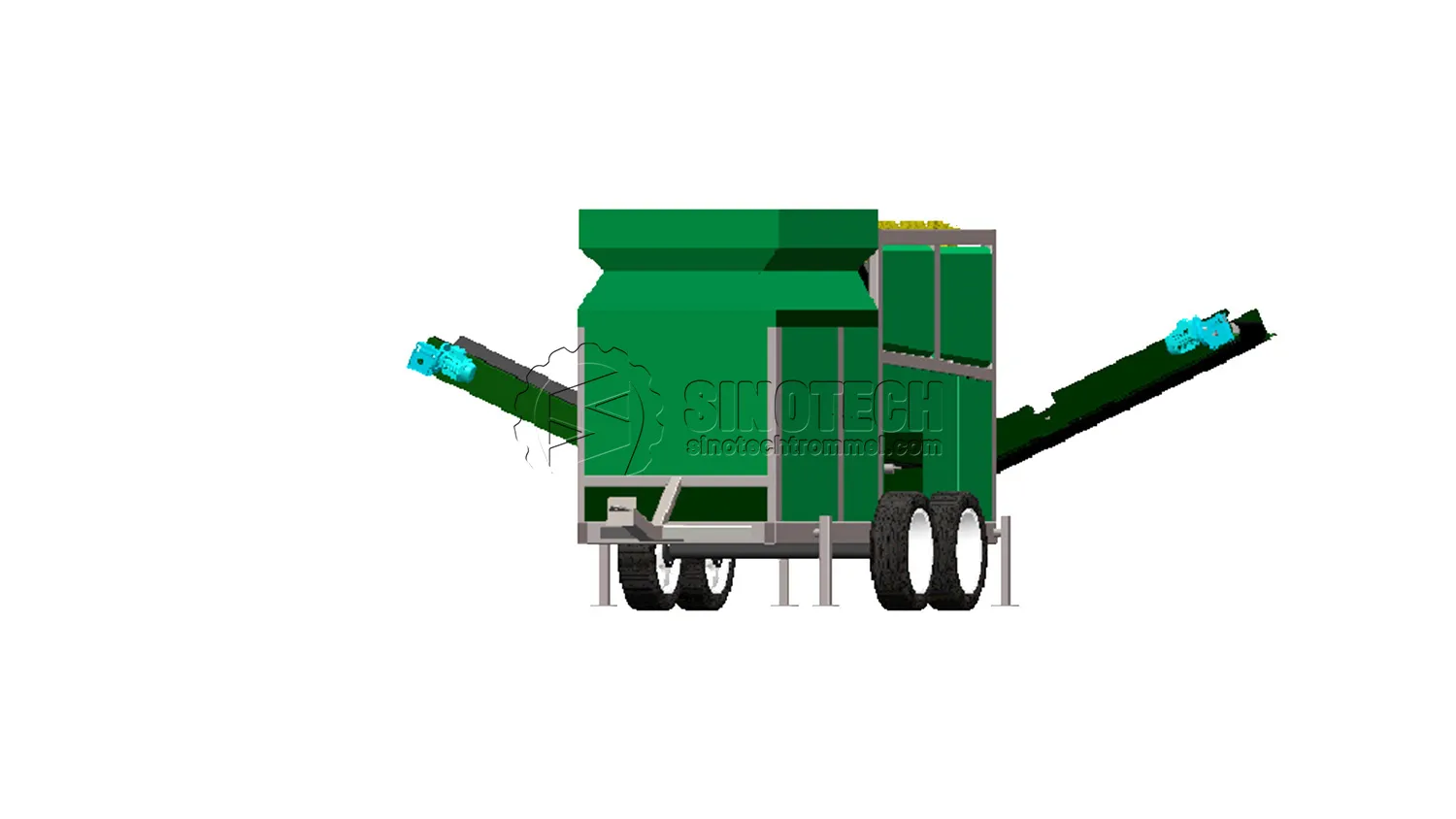

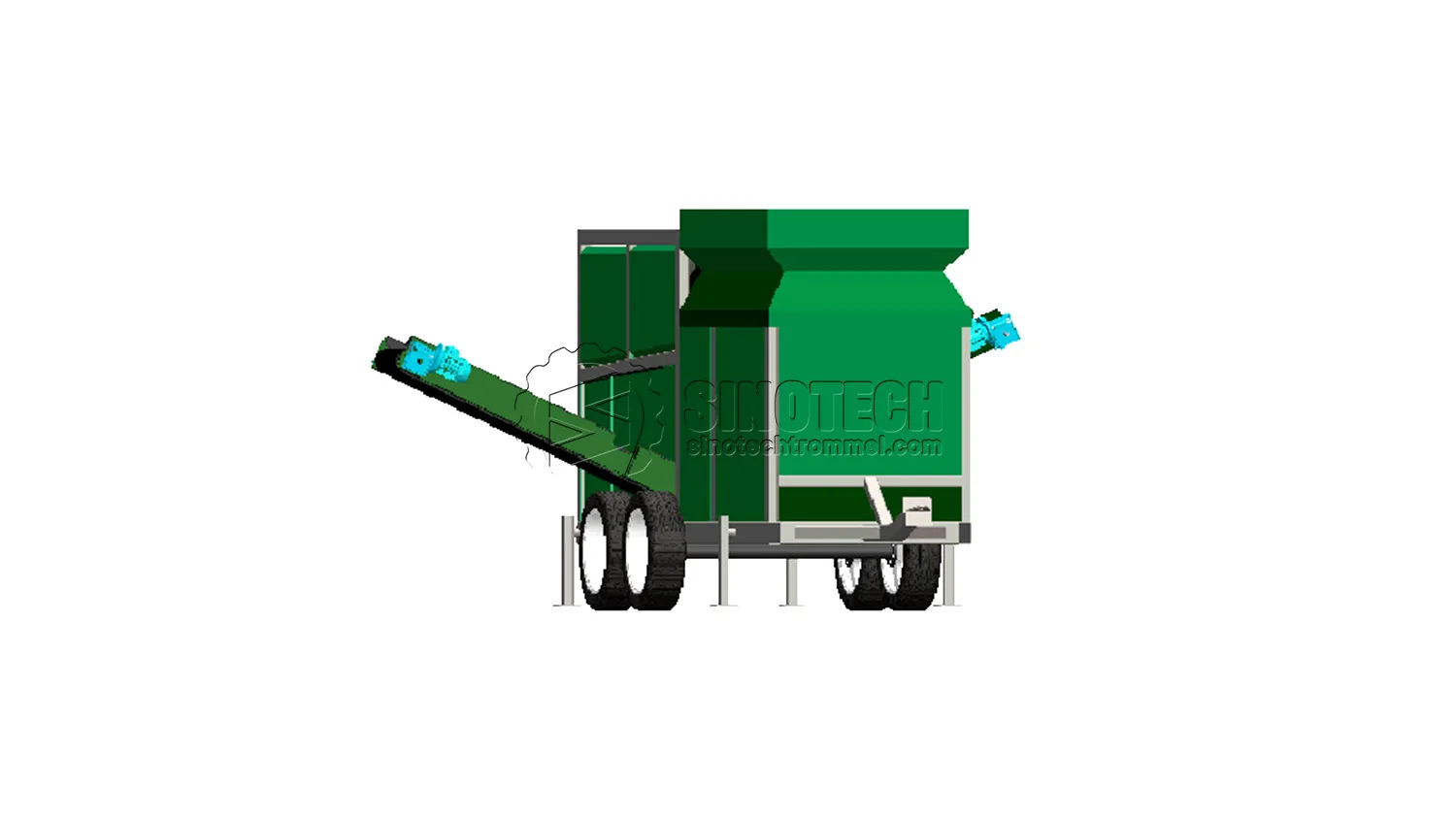

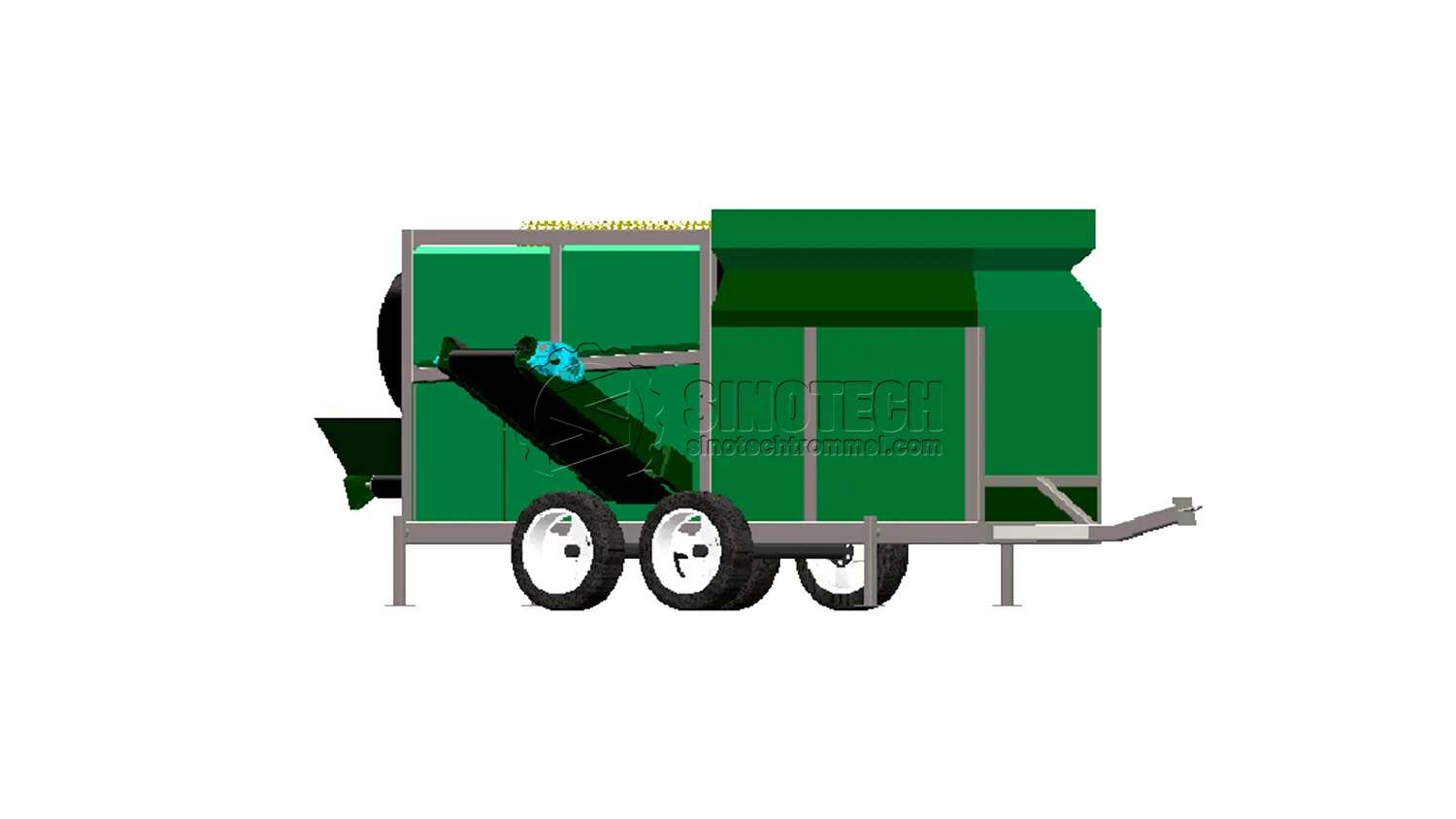

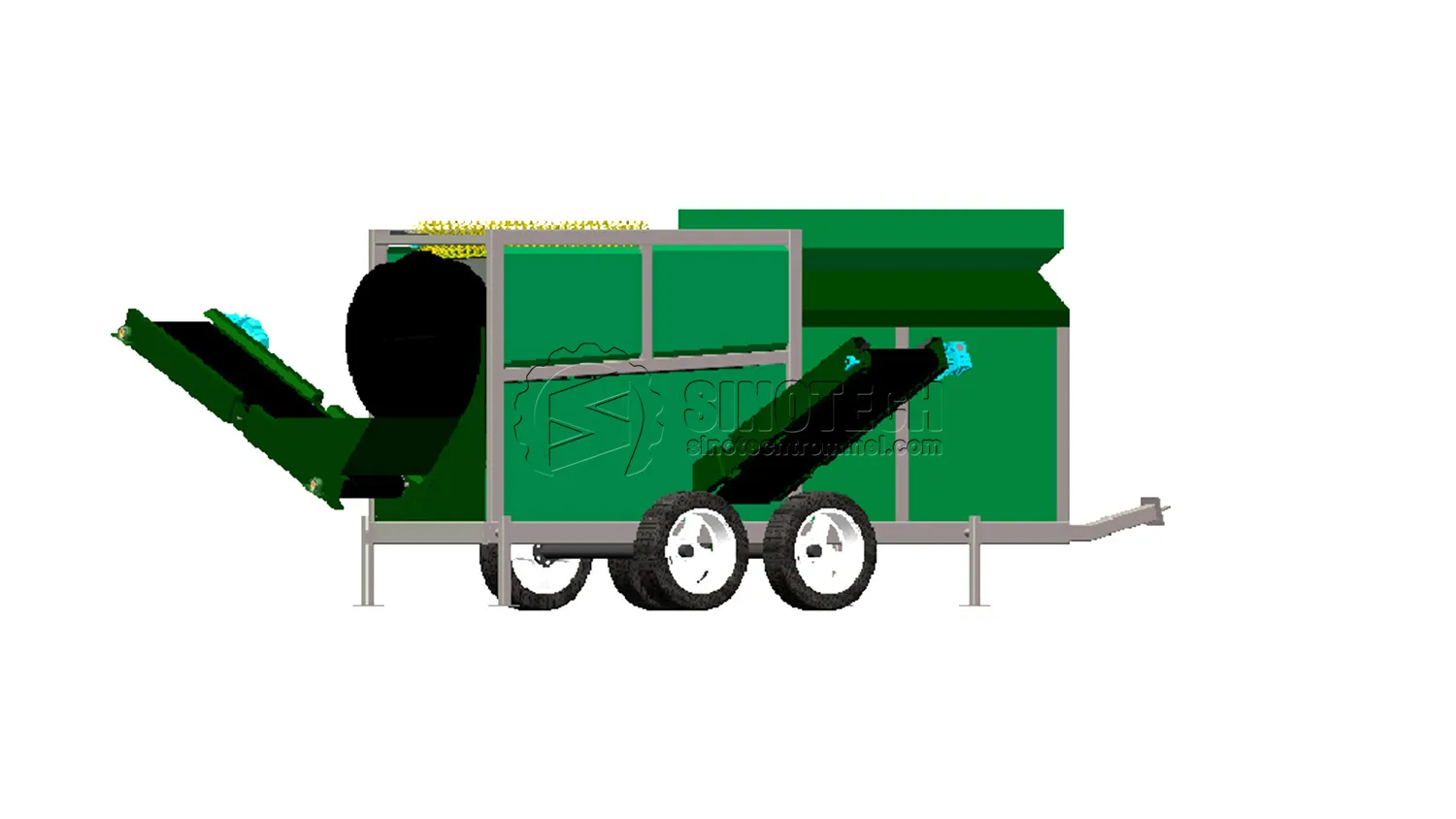

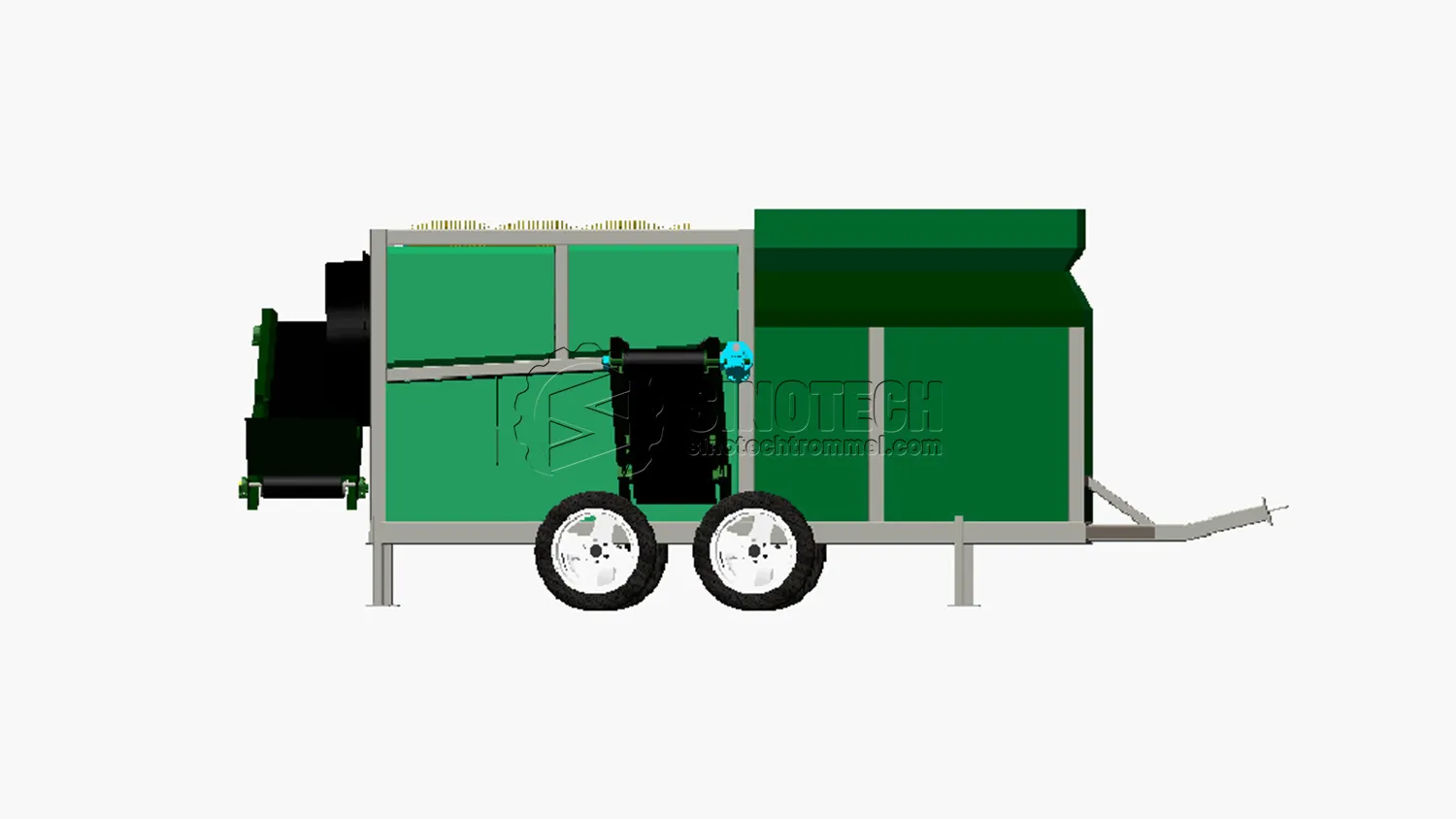

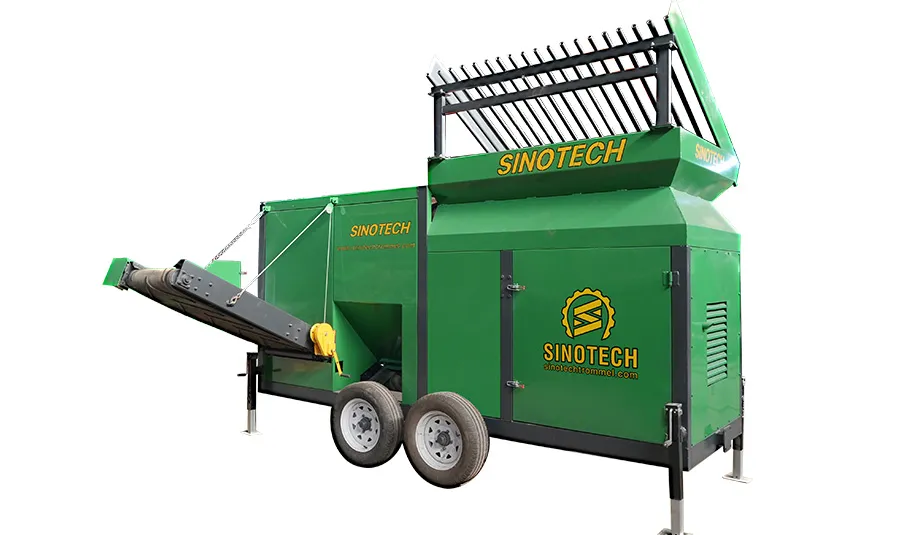

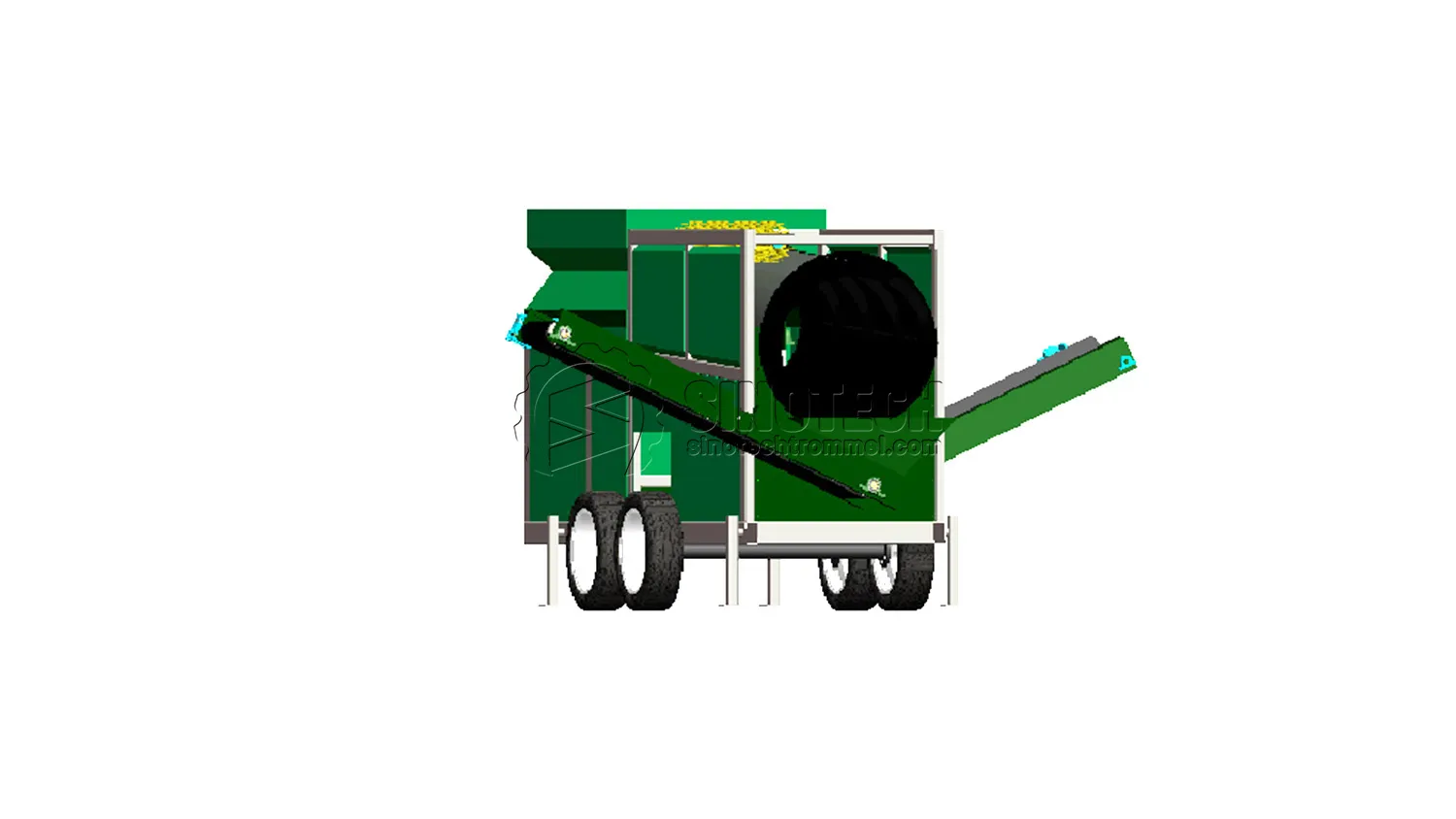

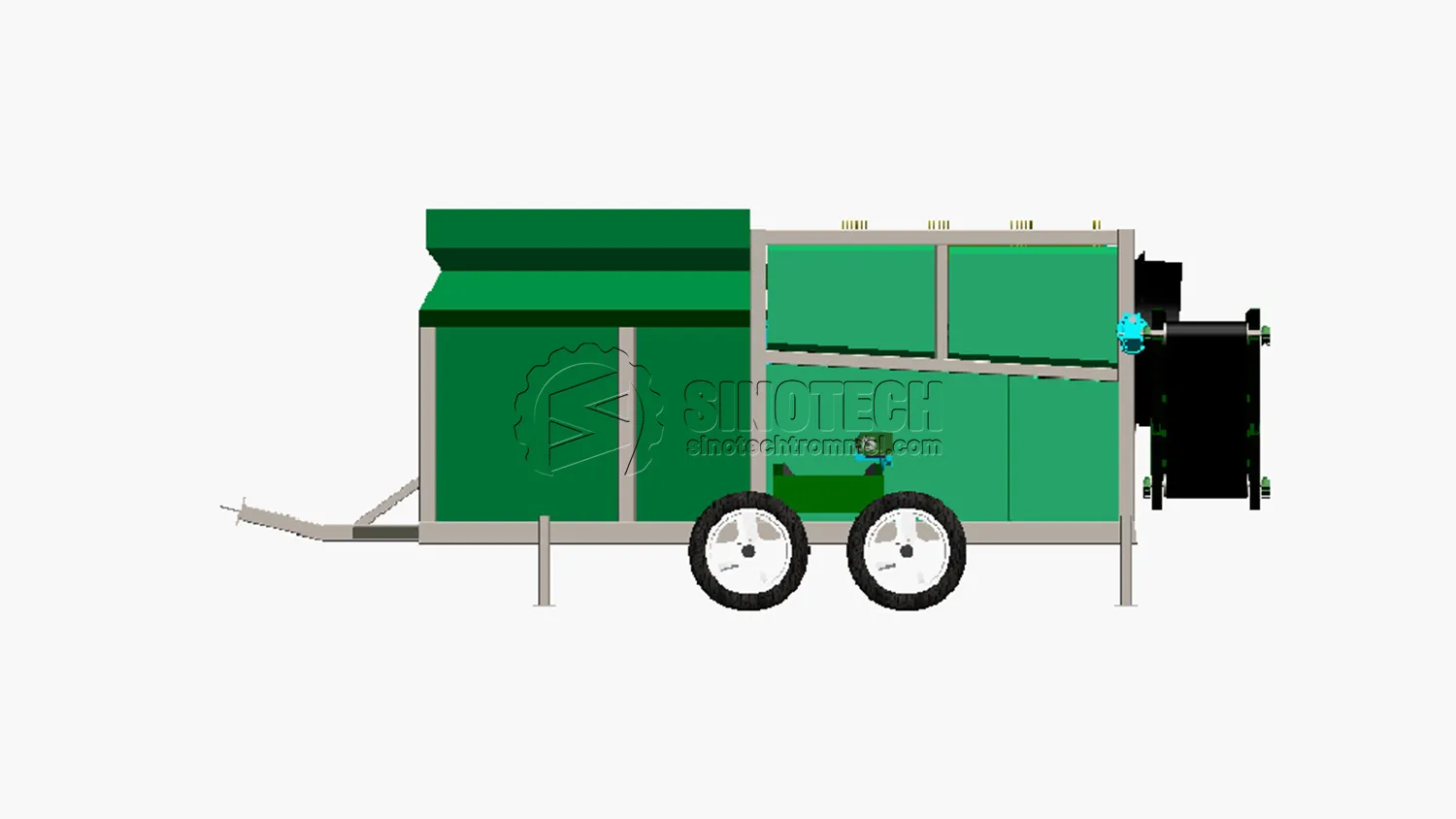

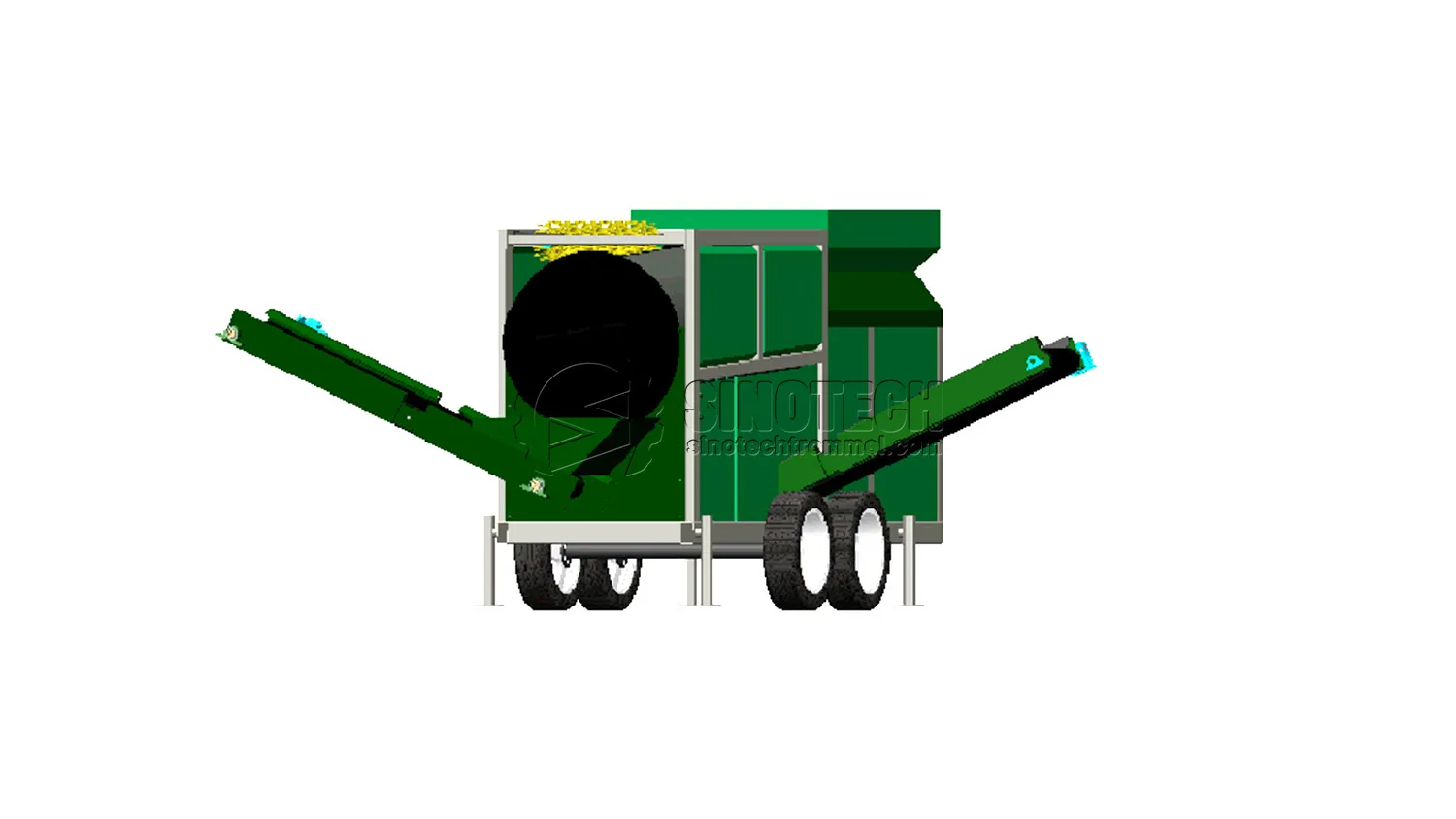

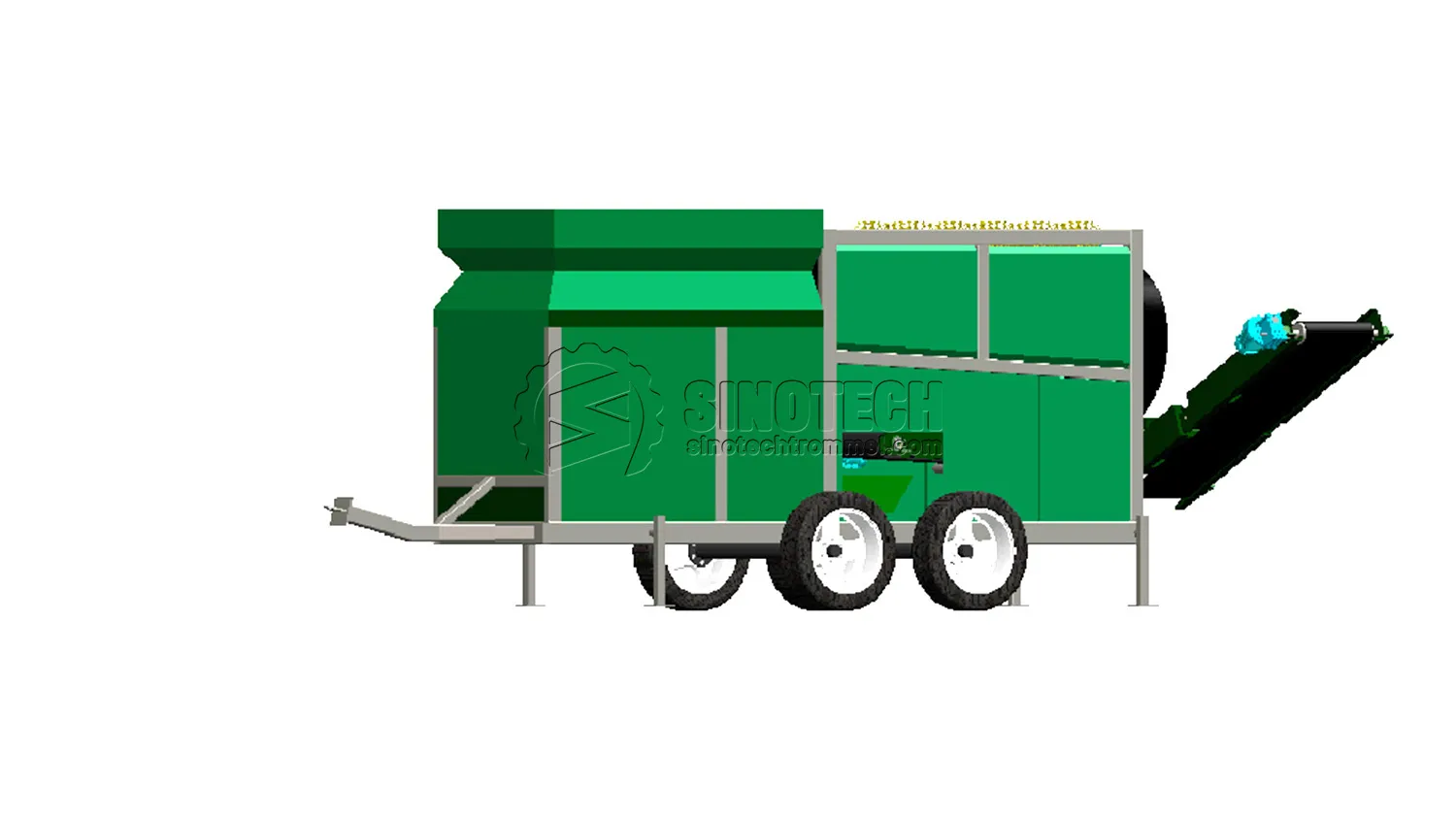

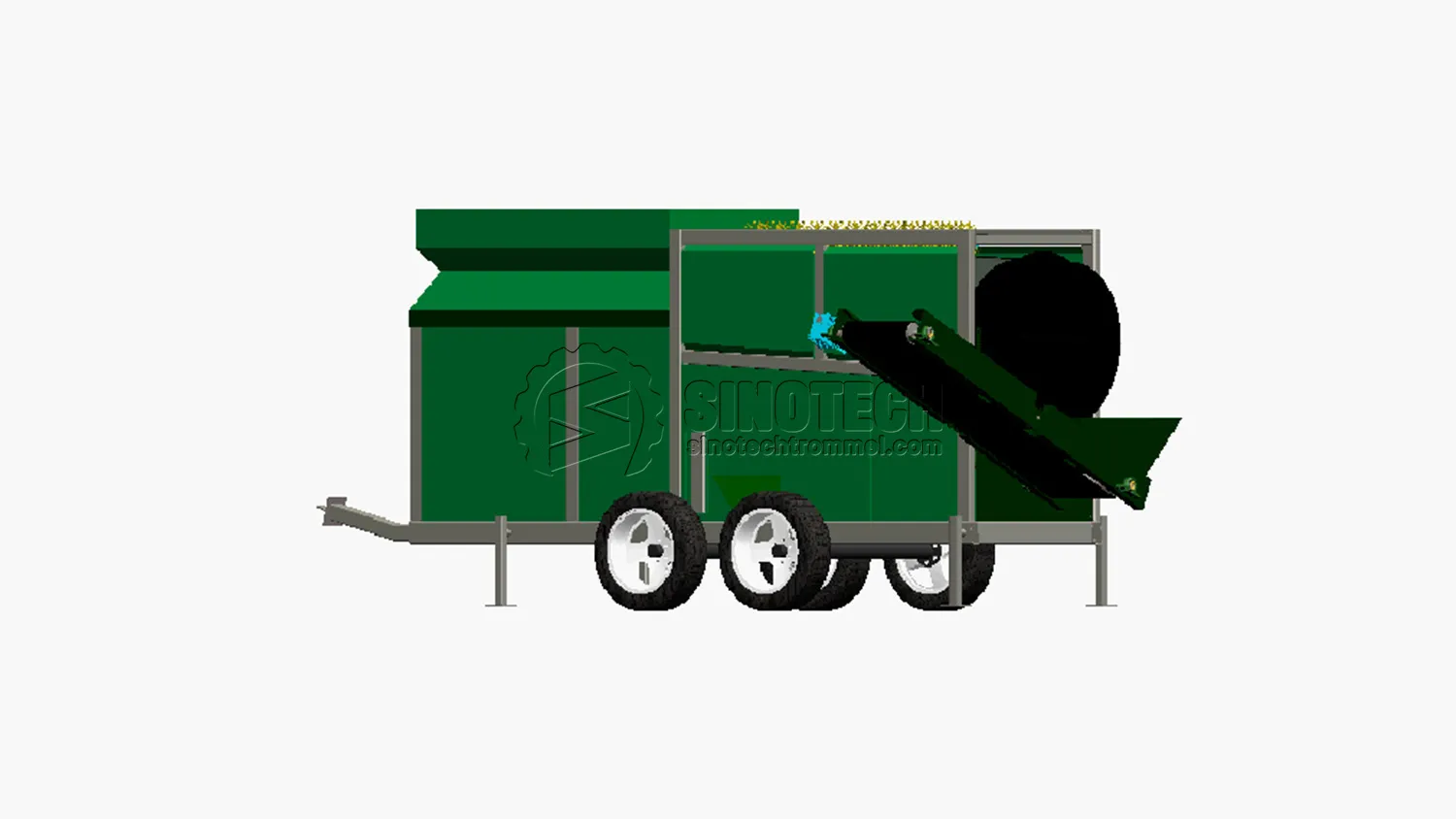

Versatile Drum Screen with Hardened Gear Reducer and Anti-Clogging Brush — Customizable Single or Double Layer Design.
The WTS1025 Rotary Screen is engineered to expertly separate materials by size, making it ideal for screening topsoil, compost, mulch, sand, gravel, and construction waste. Its rotating action efficiently drops fines while bulk materials move down the drum, designed to improve efficiency and simplify maintenance for your operation.
Featuring a substantial 1000mm diameter and 2500mm length drum, this machine delivers high throughput. It is equipped with a premium hardened gear reducer for low noise and extended service life. To ensure continuous operation, a top-mounted cleaning brush actively prevents the screen from clogging. The drum can be customized as a single or double layer screen, with mesh apertures tailored specifically to your material requirements.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 15-40m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1000 | |
| Trommel length (mm) | 2500 | |
| Screening area approximately (m²) | ≈5.7 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2000 |
| Feed hopper width (mm) | 1300 | |
| Volume (m³) | ≈1.46 | |
| Transportation dimensions | Transportation status length (mm) | 4650 |
| Transportation status width (mm) | 1580 | |
| Transportation status height (mm) | 2150 | |
| Weight (kg) | ≈3000 | |
Spiral Drum & Screen: A spiral interior design ensures material moves continuously forward, allowing for more even and effective screening.
Durable Construction: Made from a tough, steel plate punching screen, the unit is resistant to corrosion and built for a long service life.
Easy Mobility: Equipped with two tires, a universal wheel, and a front traction system, the machine can be effortlessly moved between job sites.
Smart Control: A dedicated frequency conversion control cabinet provides simple and precise control over the drum's speed and overall operation.
Efficient Conveyors: The side conveyor easily folds away for storage, while the discharge conveyor's herringbone belt improves friction for better material transport.
Self-Cleaning Brushes: High-quality nylon brushes automatically clean the screen as it rotates, preventing clogging and maintaining optimal performance.
