Lead Time: Approximately 30 business days
Capacity: 70-180m³/h
Screening surface: 42.88m²
Weight: max. 14000kg
Processed materials: Soil, Sand, Gravel, Stones, Compost, Woodchips, Green cuttings, Construction waste, Substitute fuels ,Slag, Coal, Glass, etc.
Factory Direct Shipping to Oceania, EU, and the US, Globally
The static trommel screen can effectively screen organic matter, including wood waste, mulch, compost and soil, etc. It can efficiently separate most organic matter into 2 or 3 sizes, can screen materials to the greatest extent, increase production, and is durable, versatile and efficient.

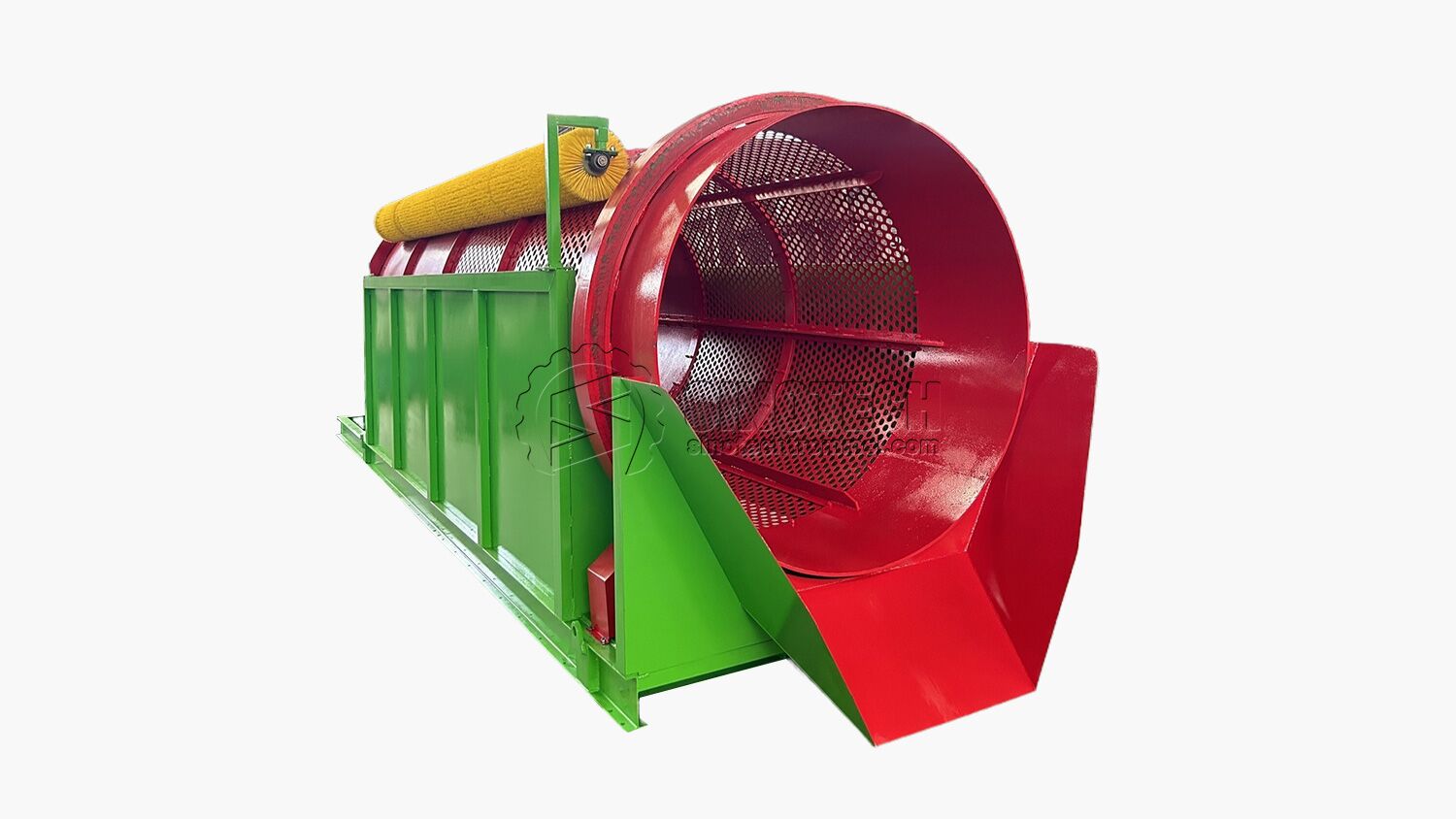

The TS2187 model features a drum length of 8,700mm and a diameter of 2,100mm. Its inclined feed hopper allows material to enter directly into the drum. Optional side and tail belt conveyors can be added to transport processed material to your preferred location. The screen is made of wear-resistant materials, ensures high efficiency and a long service life. It can be designed according to the material. The screen is easy to replace. The replaceable screen can handle materials of different types and sizes. Its simple design ensures ease of use, low maintenance, and long-term reliability. The machine has high reliability and is a one-time investment with low cost.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 70-180 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 2100 | |
| Trommel length (mm) | 8700 | |
| Screening area approximately (m²) | ≈42.88 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 1500 |
| Feed hopper width (mm) | 1300 | |
| Volume (m³) | ≈1.6 | |
| Transportation dimensions | Transportation status length (mm) | 10900 |
| Transportation status width (mm) | 2300 | |
| Transportation status height (mm) | 2550 | |
| Weight (kg) | ≈14000 | |
The static trommel screen is engineered with a spiral drum interior that guides materials forward for consistent and thorough separation.
A precision-punched steel plate screen provides excellent rust resistance, superior durability, and long-term reliability.
Front-mounted traction points and universal wheels enable quick relocation, making it well-suited for use across different job sites.
The integrated variable frequency control panel allows operators to fine-tune drum rotation speed for maximum efficiency.
Its foldable side conveyor with an ergonomic handle and ring-pattern herringbone belt ensures stable, slip-free material discharge.
Durable nylon brushes with advanced flocking technology actively clear debris during operation, keeping the screen free from blockages.
