Lead Time: Approximately 30 business days
Capacity: 60-175m³/h
Screening surface: 31.42m²
Weight: max. 8430kg
Processed materials: Compost, Gravel, Rock, Sand, Topsoil, Municipal waste, Wood, Woodchip.
Factory Direct Shipping to Oceania, EU, and the US, Globally
The static trommel screen can effectively screen organic matter, including wood waste, mulch, compost and soil, etc. It can efficiently separate most organic matter into 2 or 3 sizes, can screen materials to the greatest extent, increase production, and is durable, versatile and efficient.

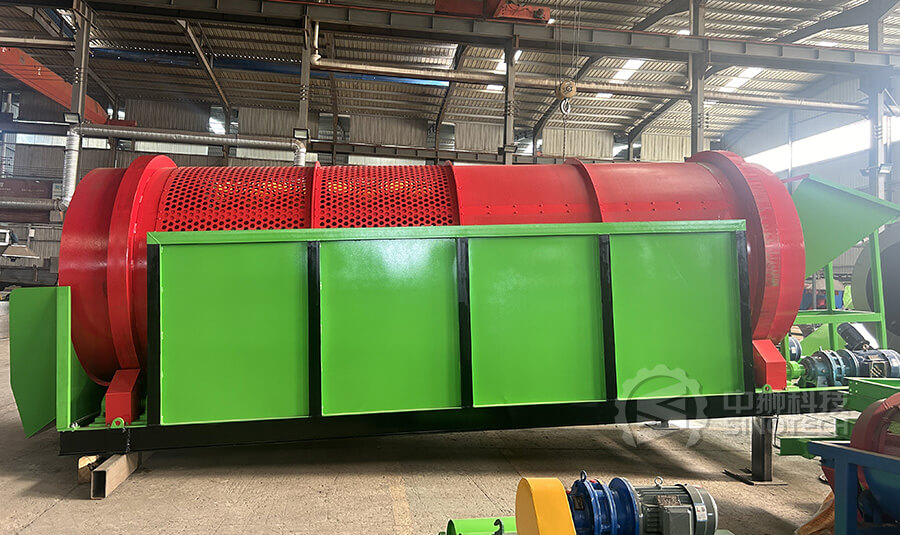

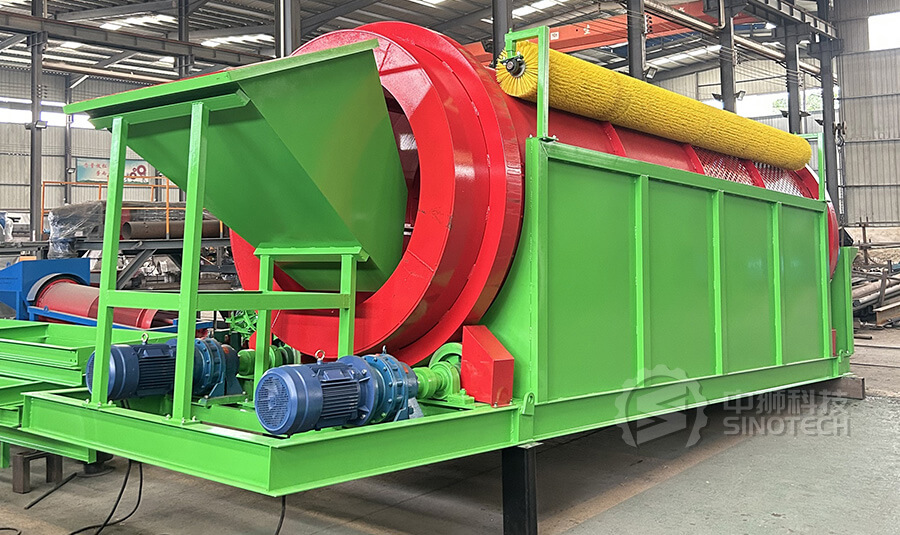

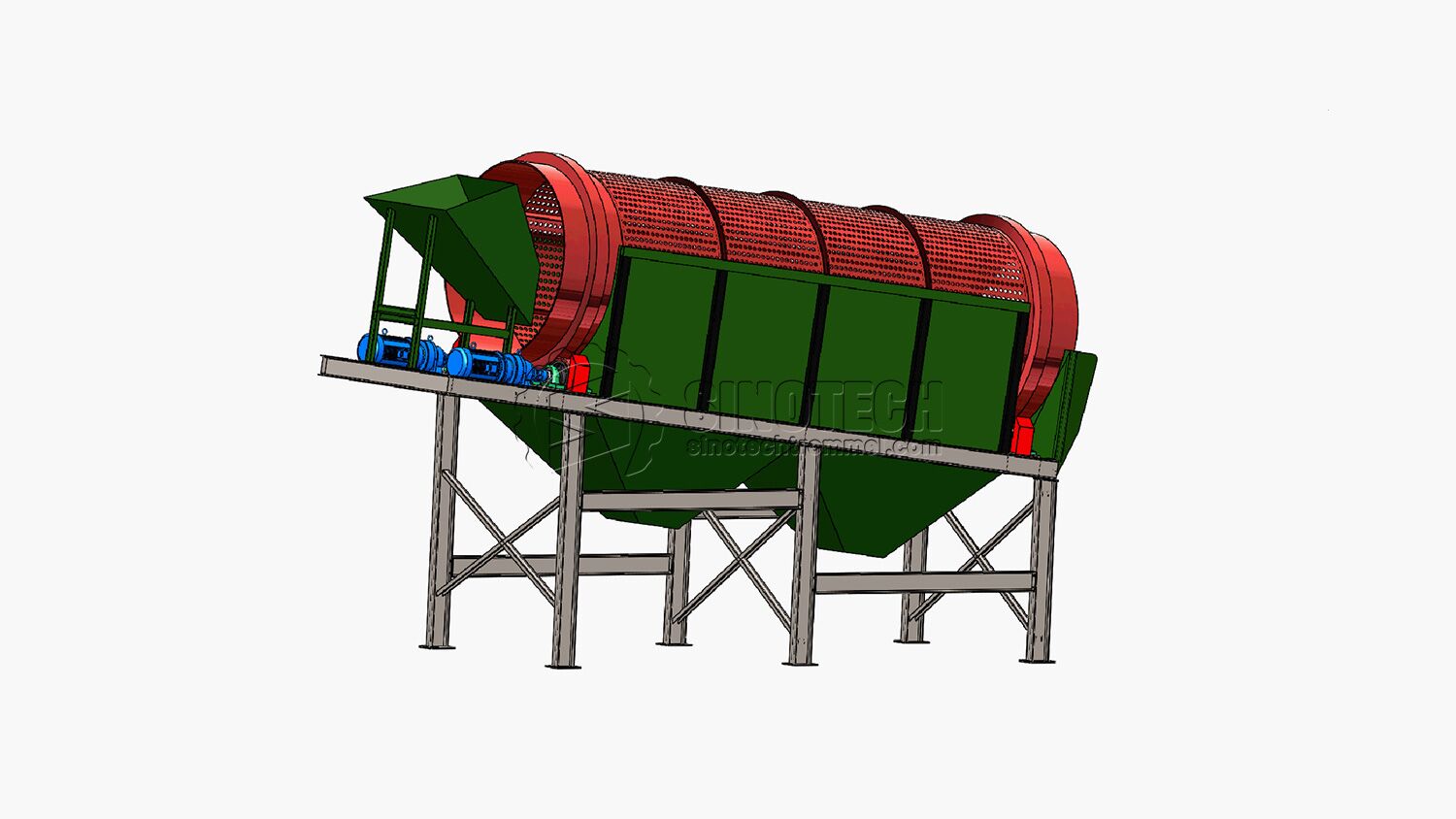

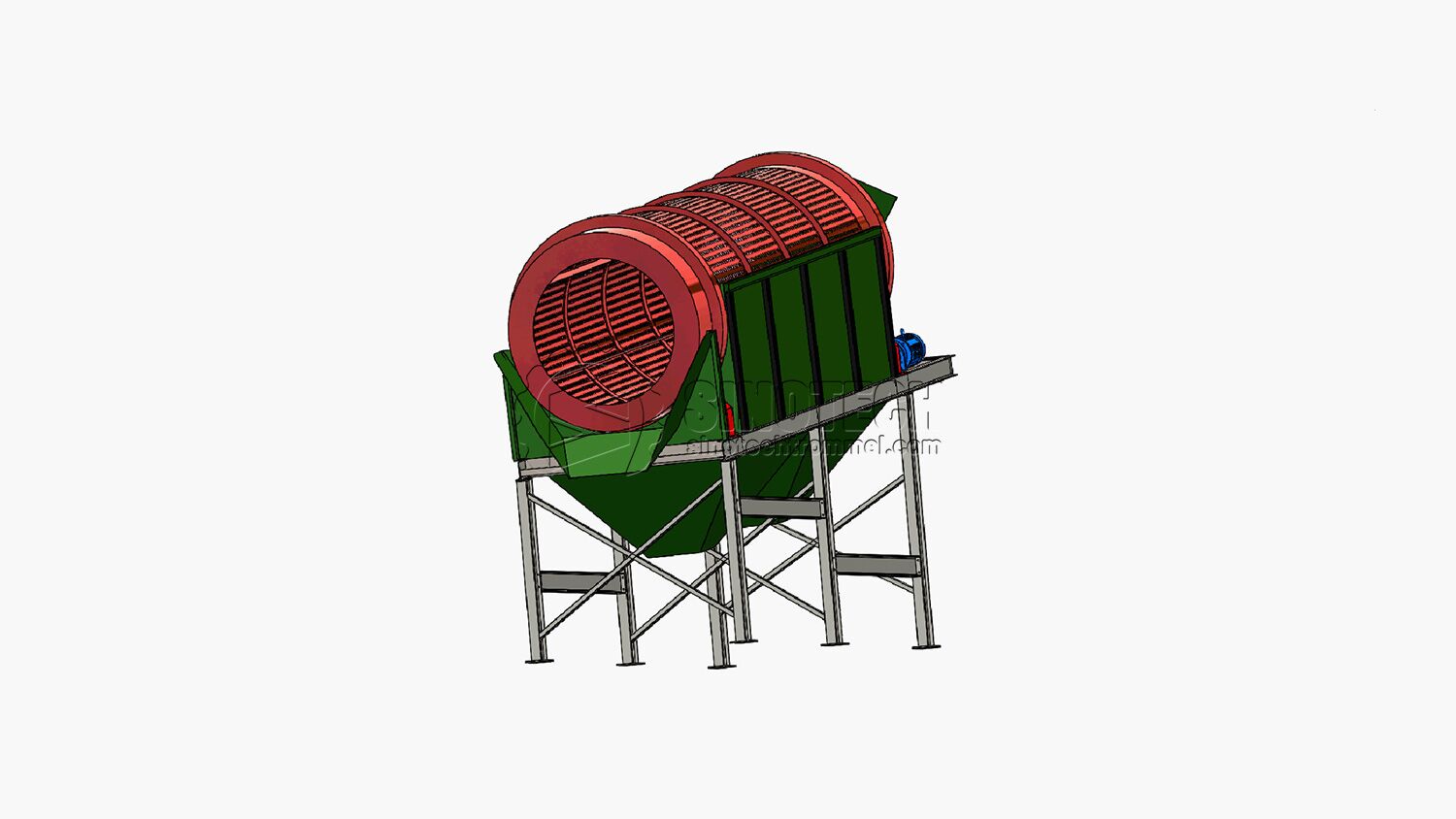

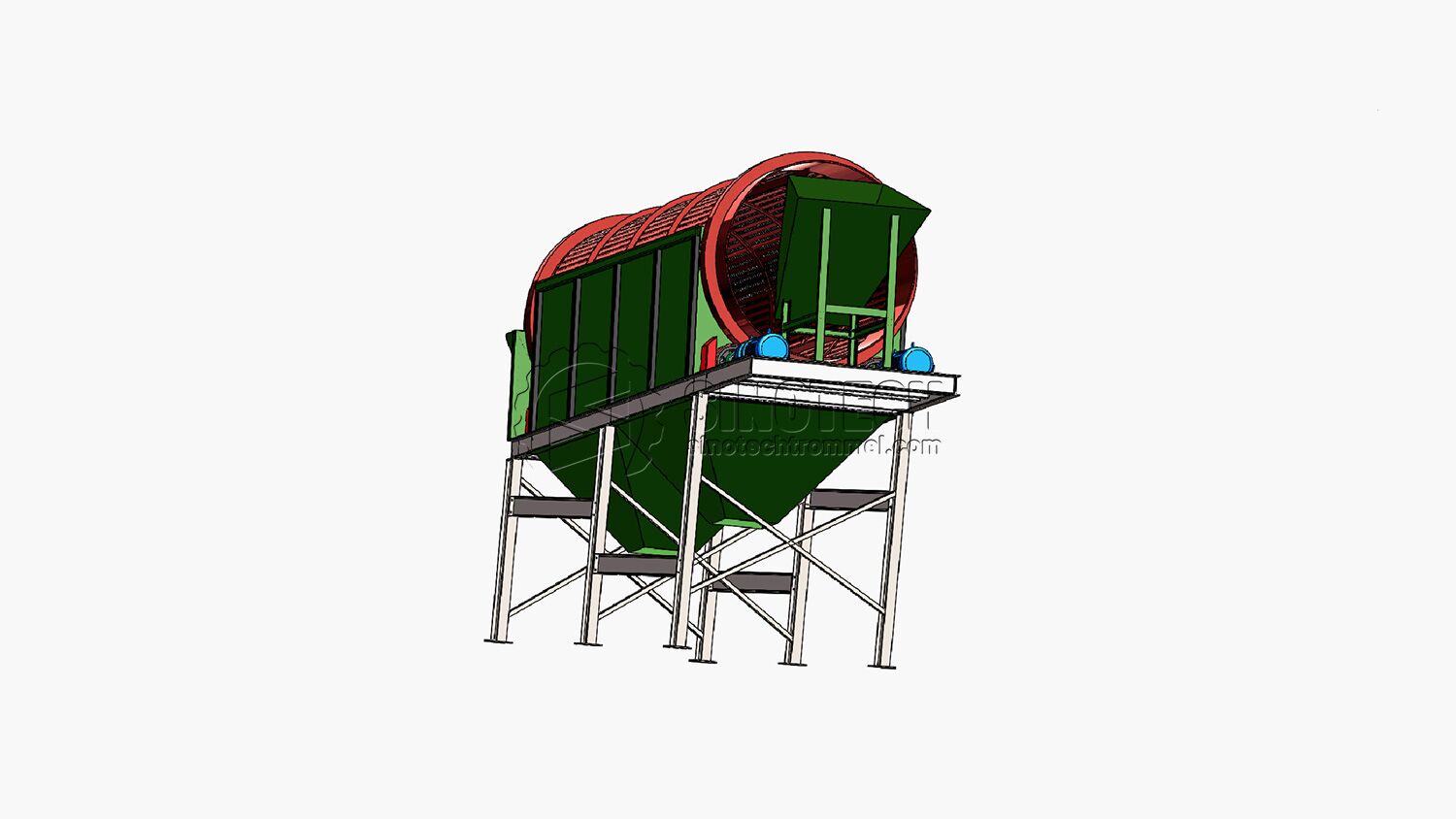

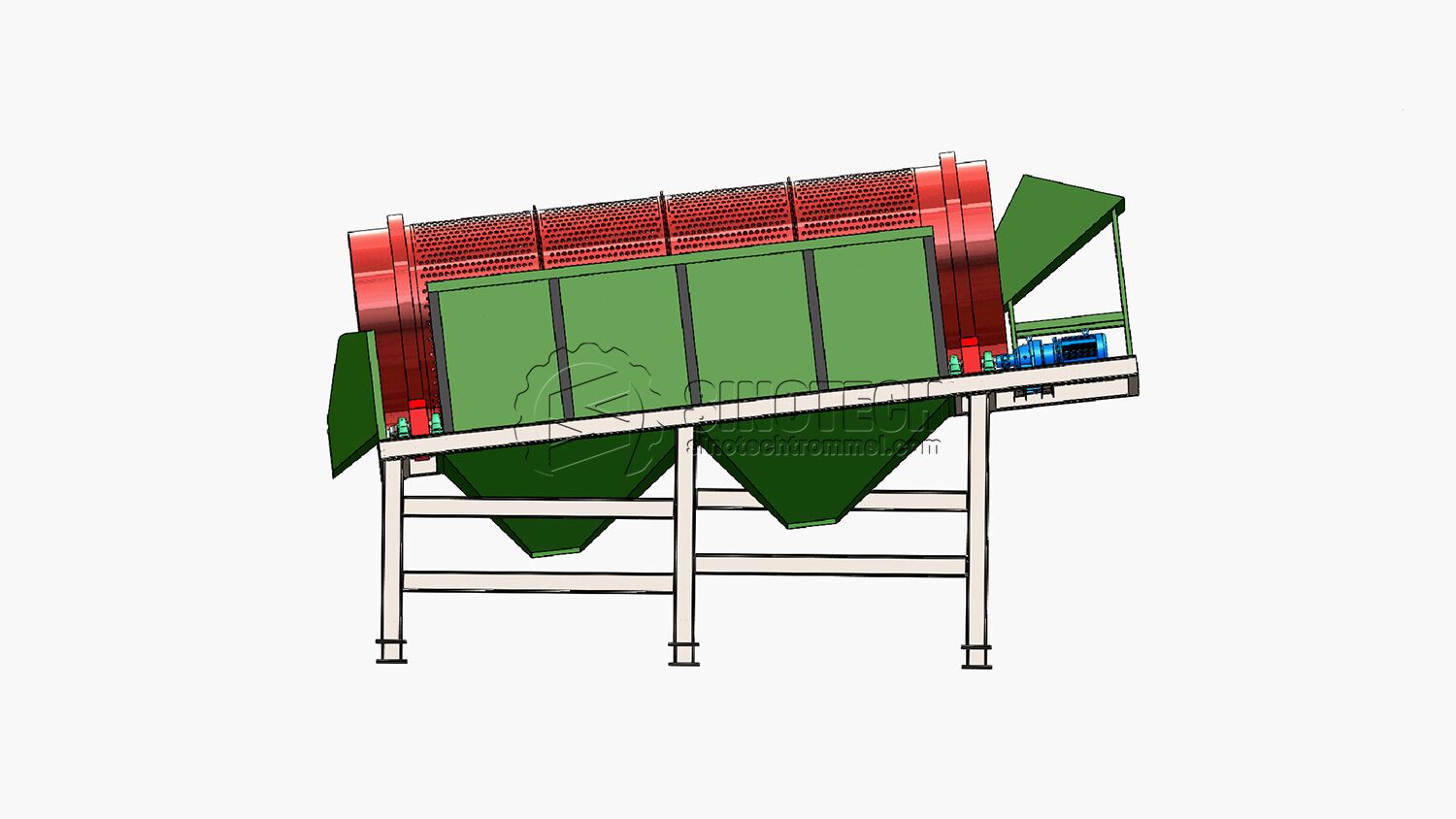

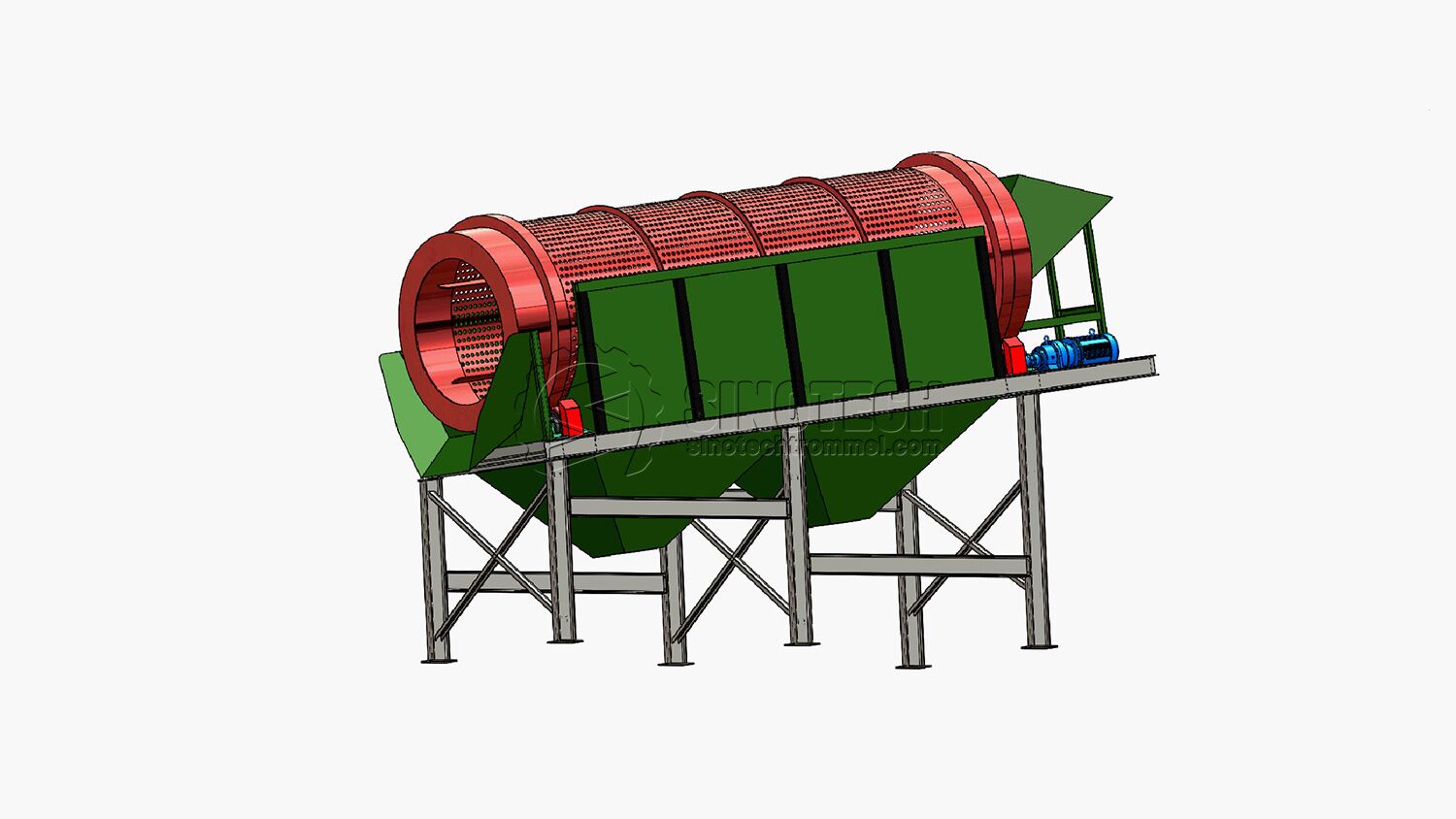

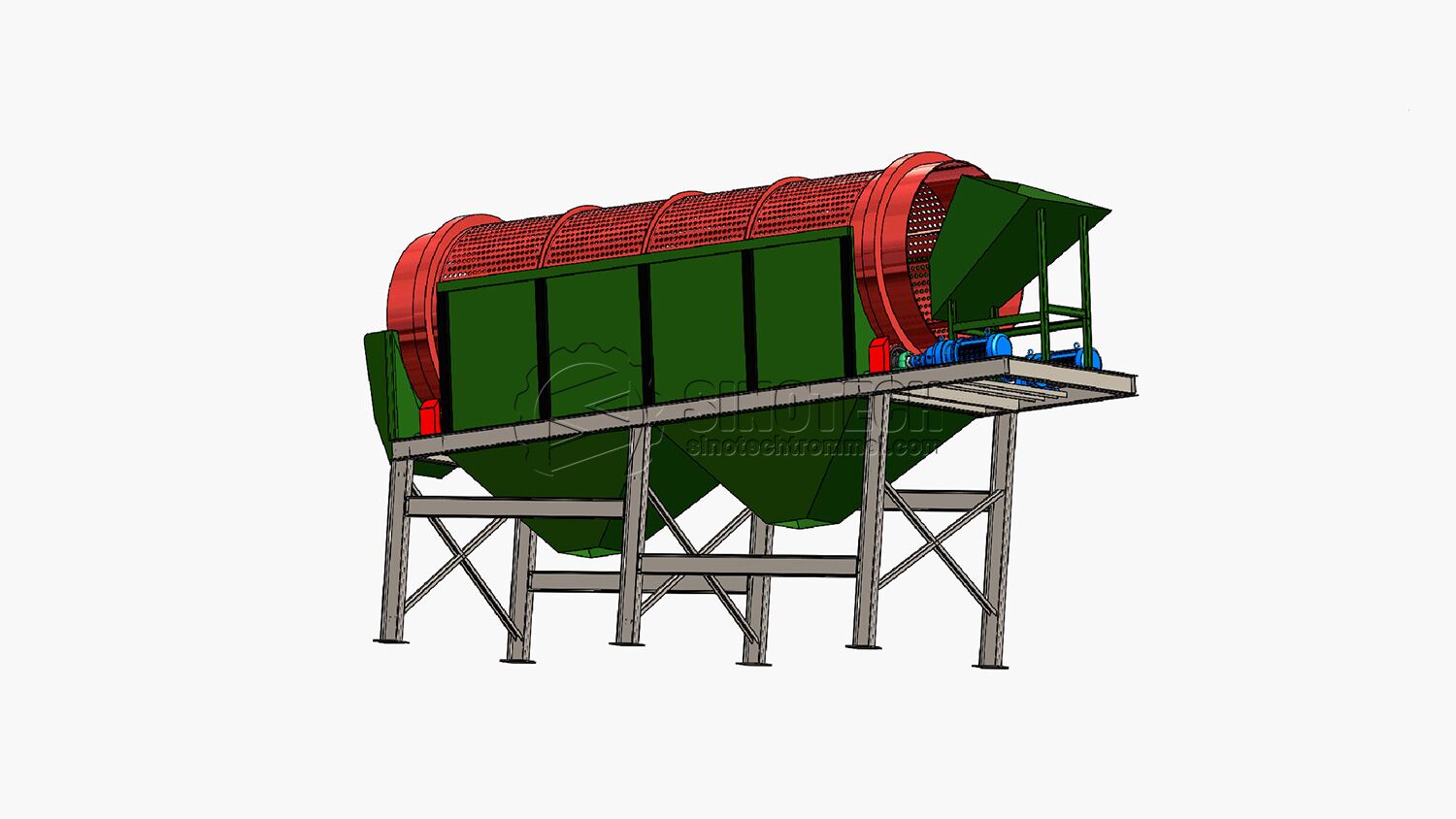

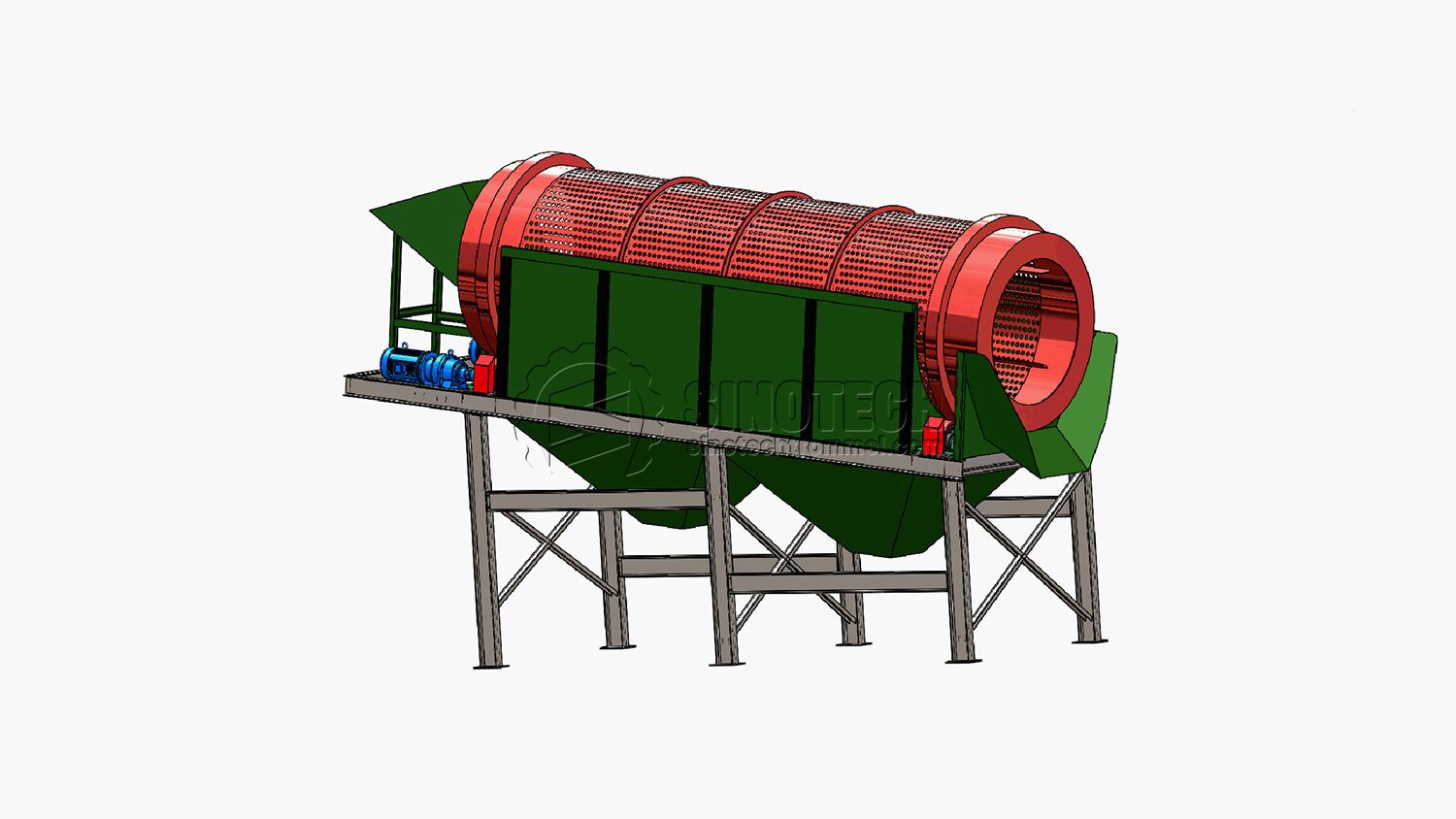

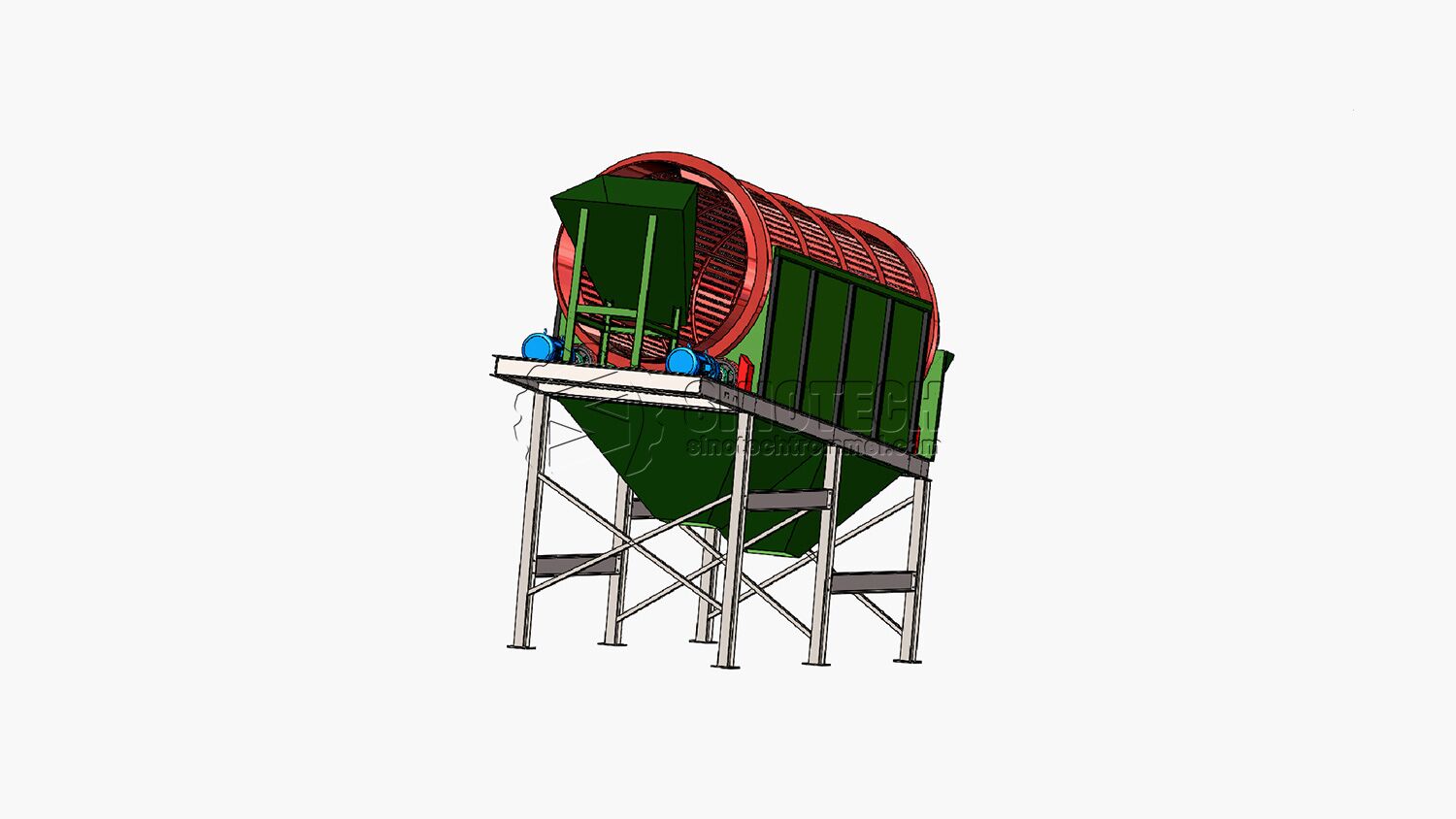

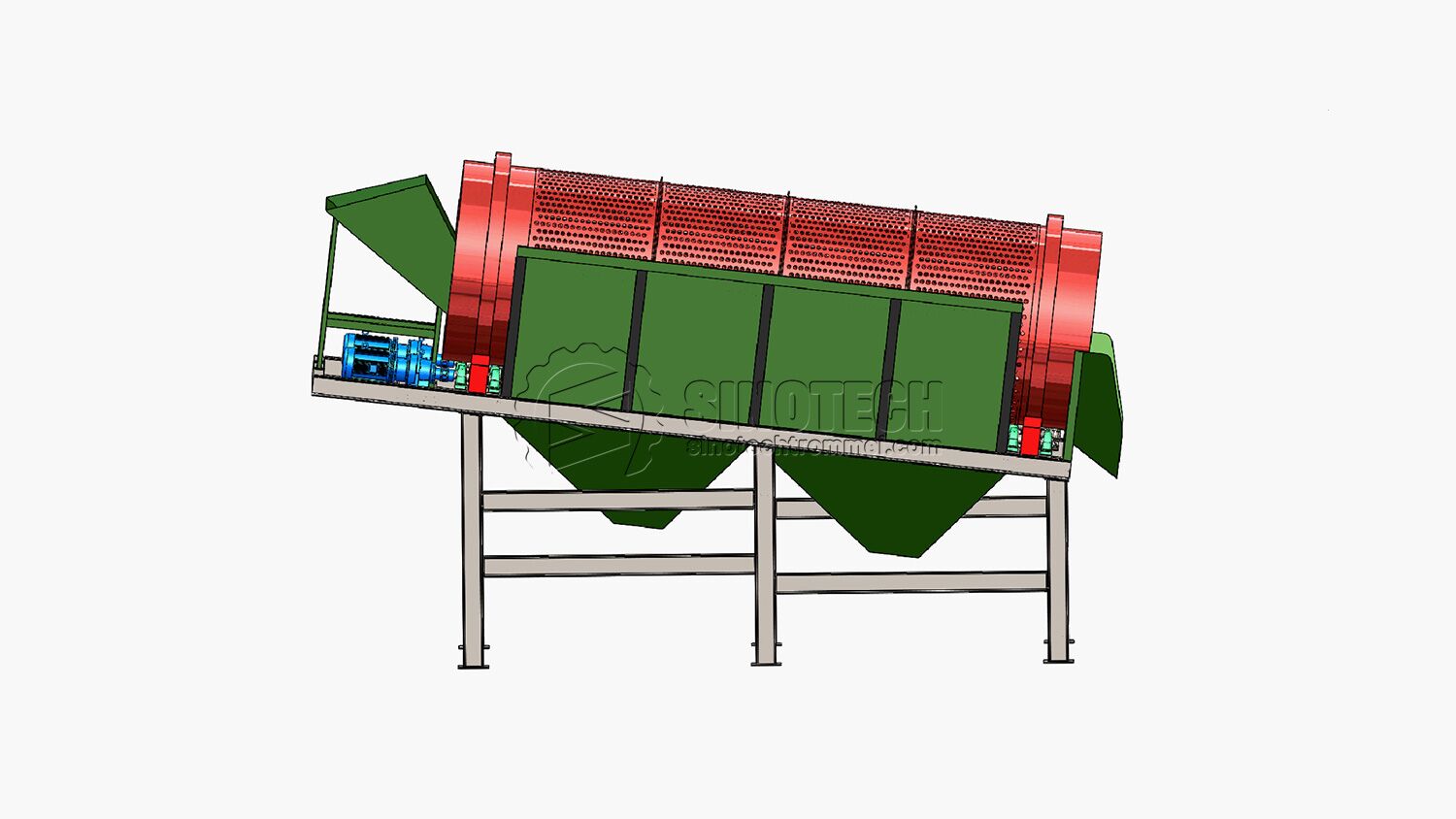

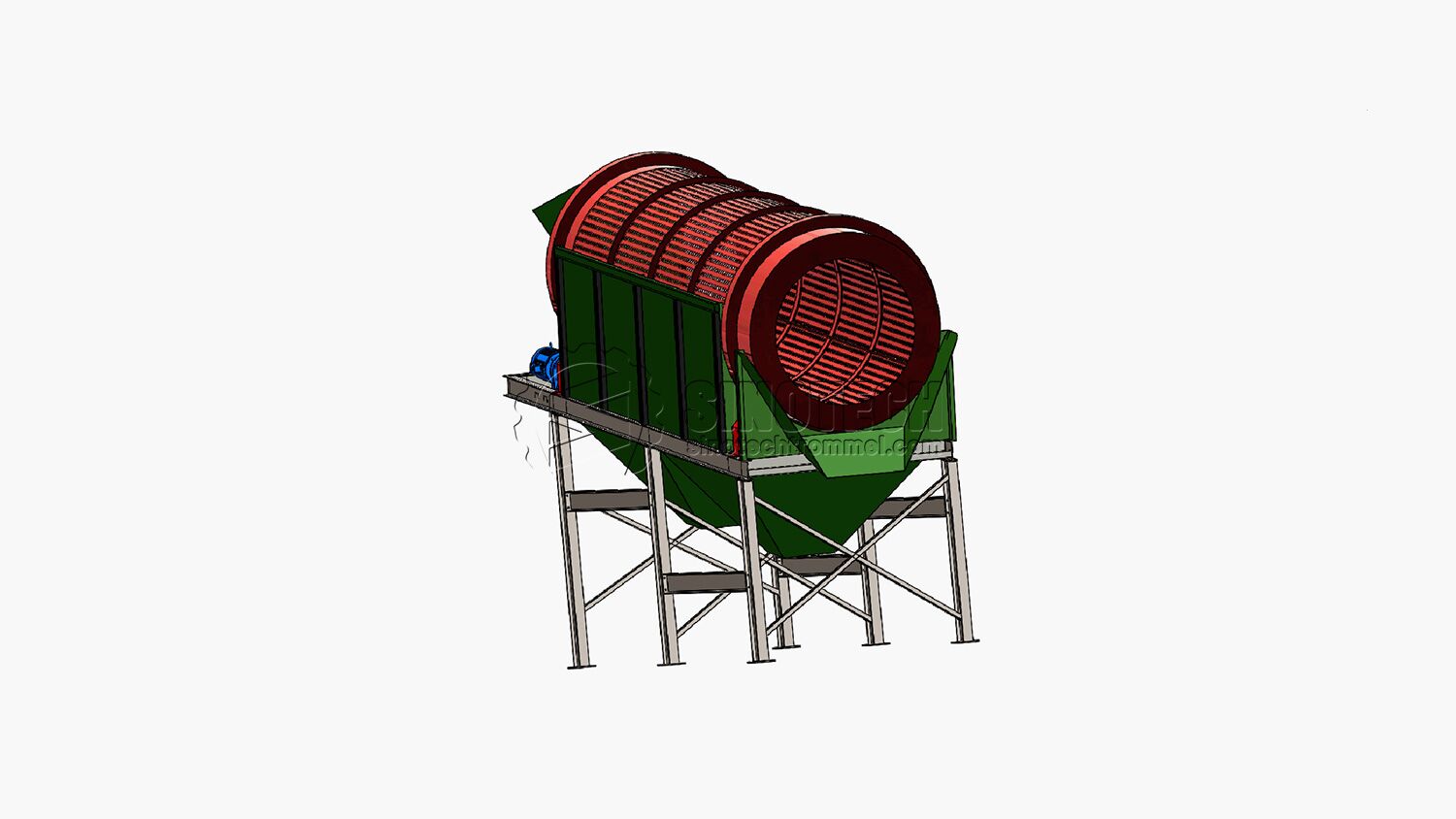

The TS2064 model features a drum length of 6,400mm and a diameter of 2,000mm. Its inclined feed hopper allows material to enter directly into the drum. Optional side and tail belt conveyors can be added to transport processed material to your preferred location. The screen is made of wear-resistant materials, ensures high efficiency and a long service life. It can be designed according to the material. The screen is easy to replace. The replaceable screen can handle materials of different types and sizes. Its simple design ensures ease of use, low maintenance, and long-term reliability. The machine has high reliability and is a one-time investment with low cost.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 60-175 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 2000 | |
| Trommel length (mm) | 6400 | |
| Screening area approximately (m²) | ≈31.42 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 1400 |
| Feed hopper width (mm) | 1030 | |
| Volume (m³) | ≈0.95 | |
| Transportation dimensions | Transportation status length (mm) | 8300 |
| Transportation status width (mm) | 2250 | |
| Transportation status height (mm) | 2540 | |
| Weight (kg) | ≈8430 | |
The static trommel screen features a spiral drum design that ensures materials move forward smoothly, achieving uniform and efficient screening results.
Its high-strength steel plate punching screen offers exceptional corrosion resistance, outstanding toughness, and a long service life.
Equipped with a front traction system and universal wheels, this trommel screen is easy to move and transport, making it ideal for multi-site operations.
The built-in frequency conversion control cabinet allows precise adjustment of drum speed, ensuring optimal performance for different materials.
A foldable side conveyor with a hand handle and a ring-shaped herringbone belt increases material friction for smoother, more reliable discharge.

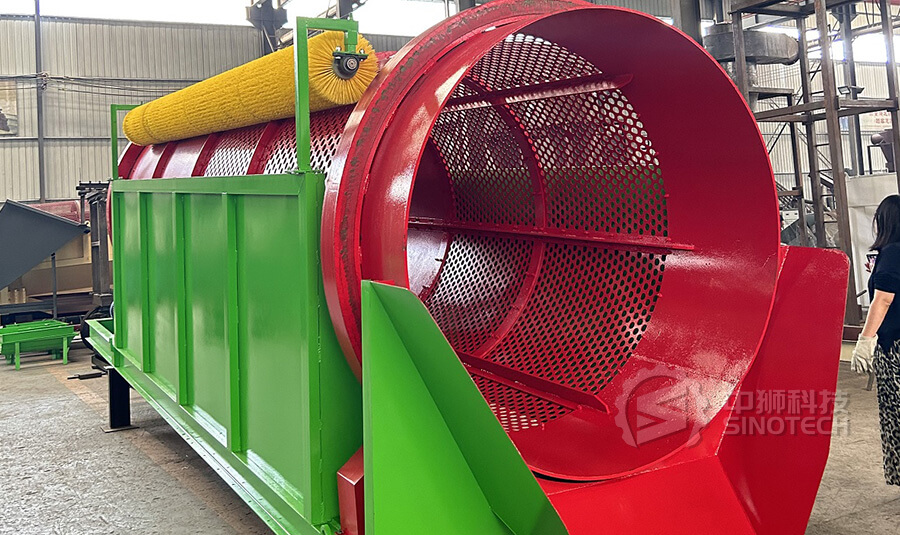

High-quality nylon flocked brushes keep the screen clean during operation, effectively preventing clogging and maintaining peak productivity.
