Lead Time: Approximately 30 business days
Capacity: 40-110m³/h
Screening surface: 21.21m²
Weight: max. 3927kg
Processed materials: Compost, Gravel, Rock, Sand, Topsoil, Municipal waste, Wood, Woodchip.
Factory Direct Shipping to Oceania, EU, and the US, Globally

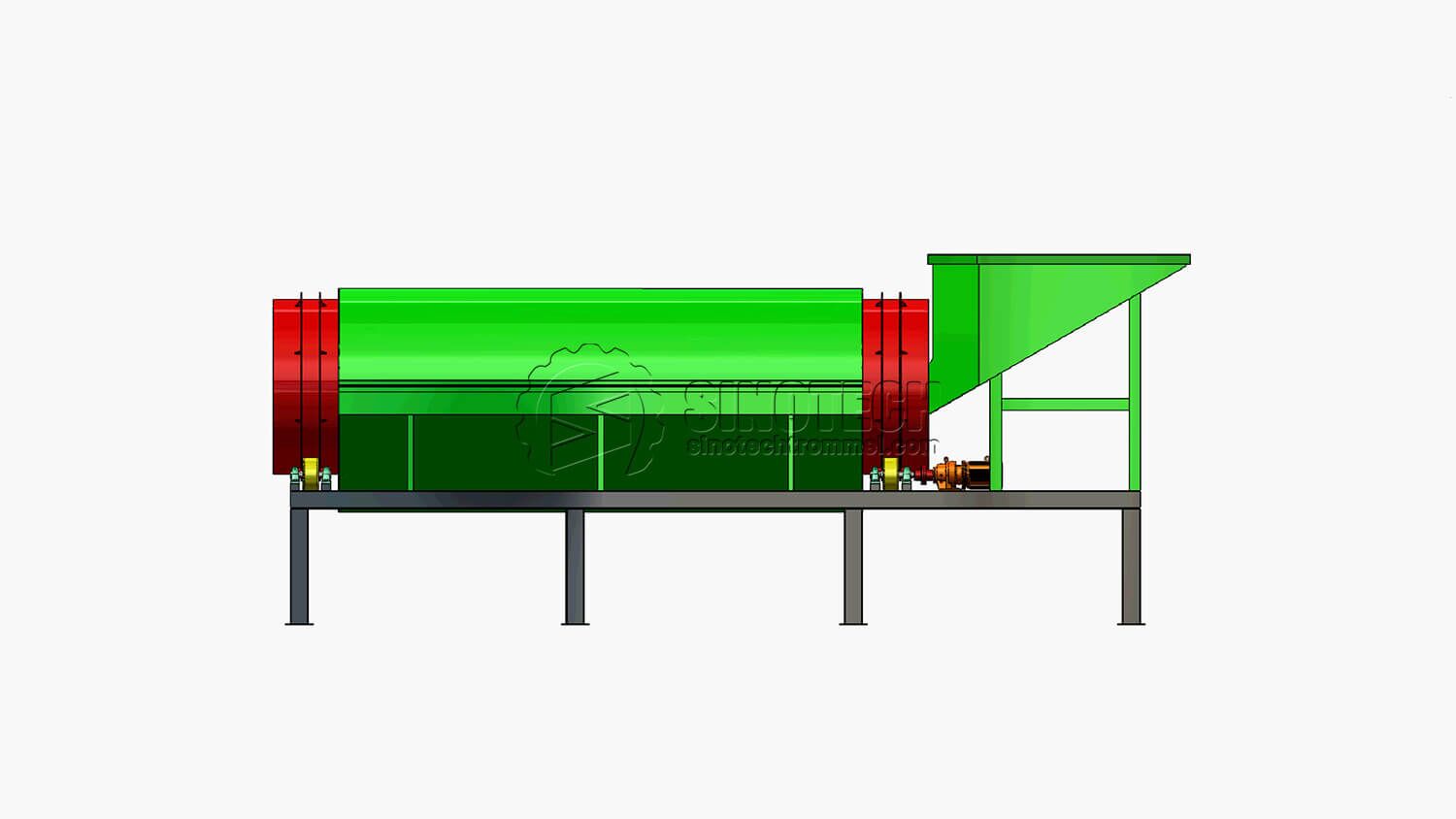

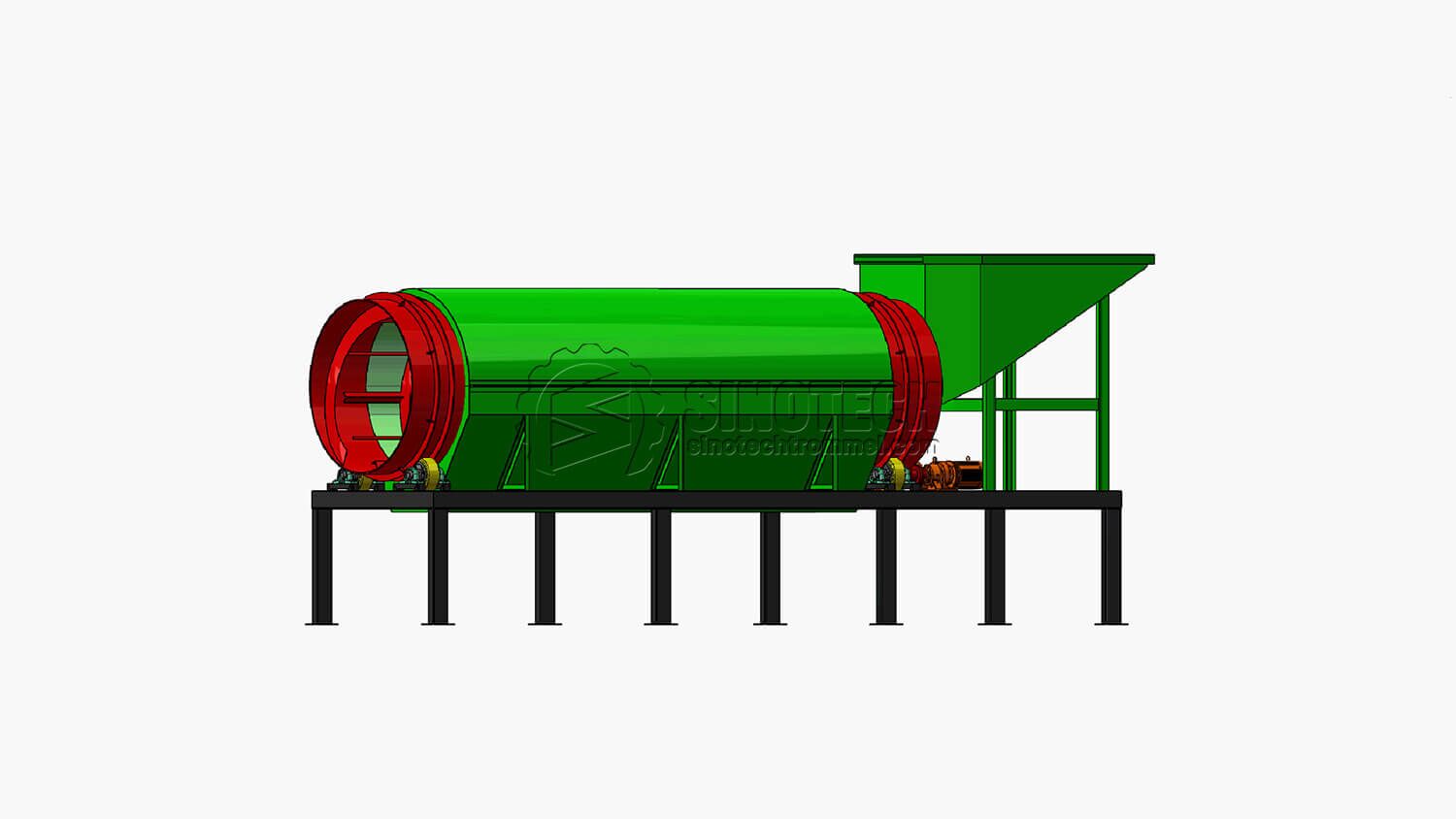

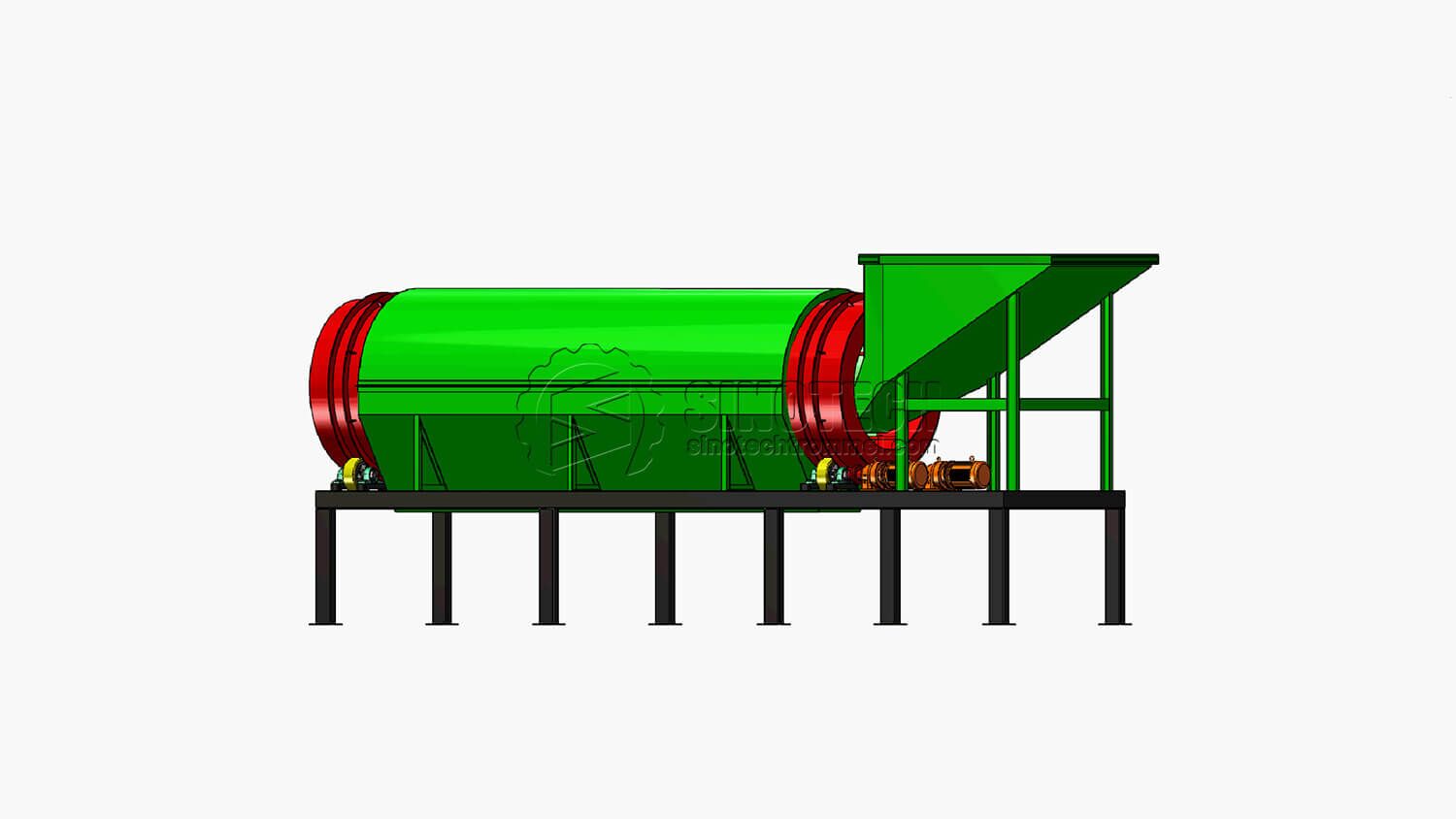

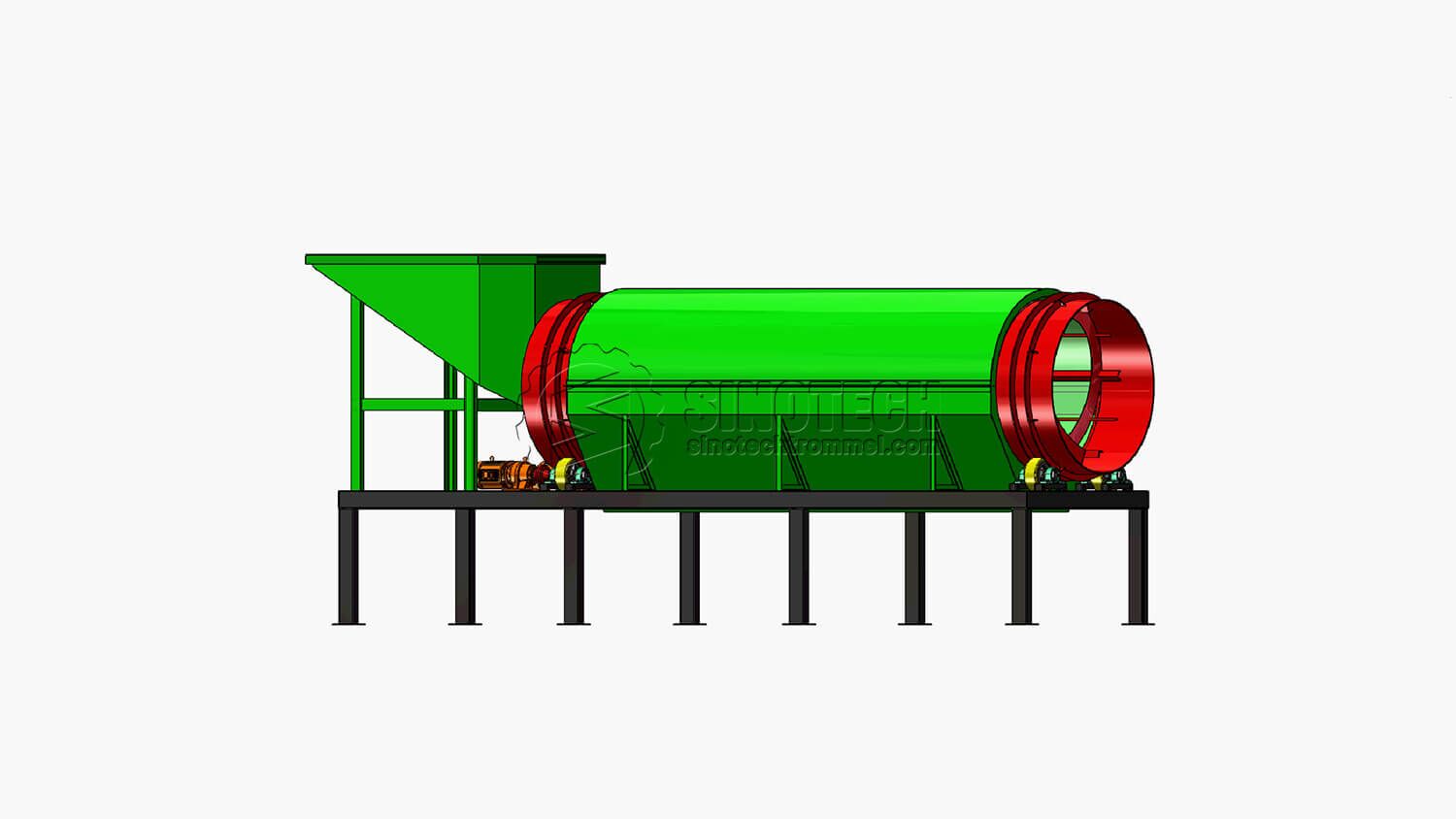

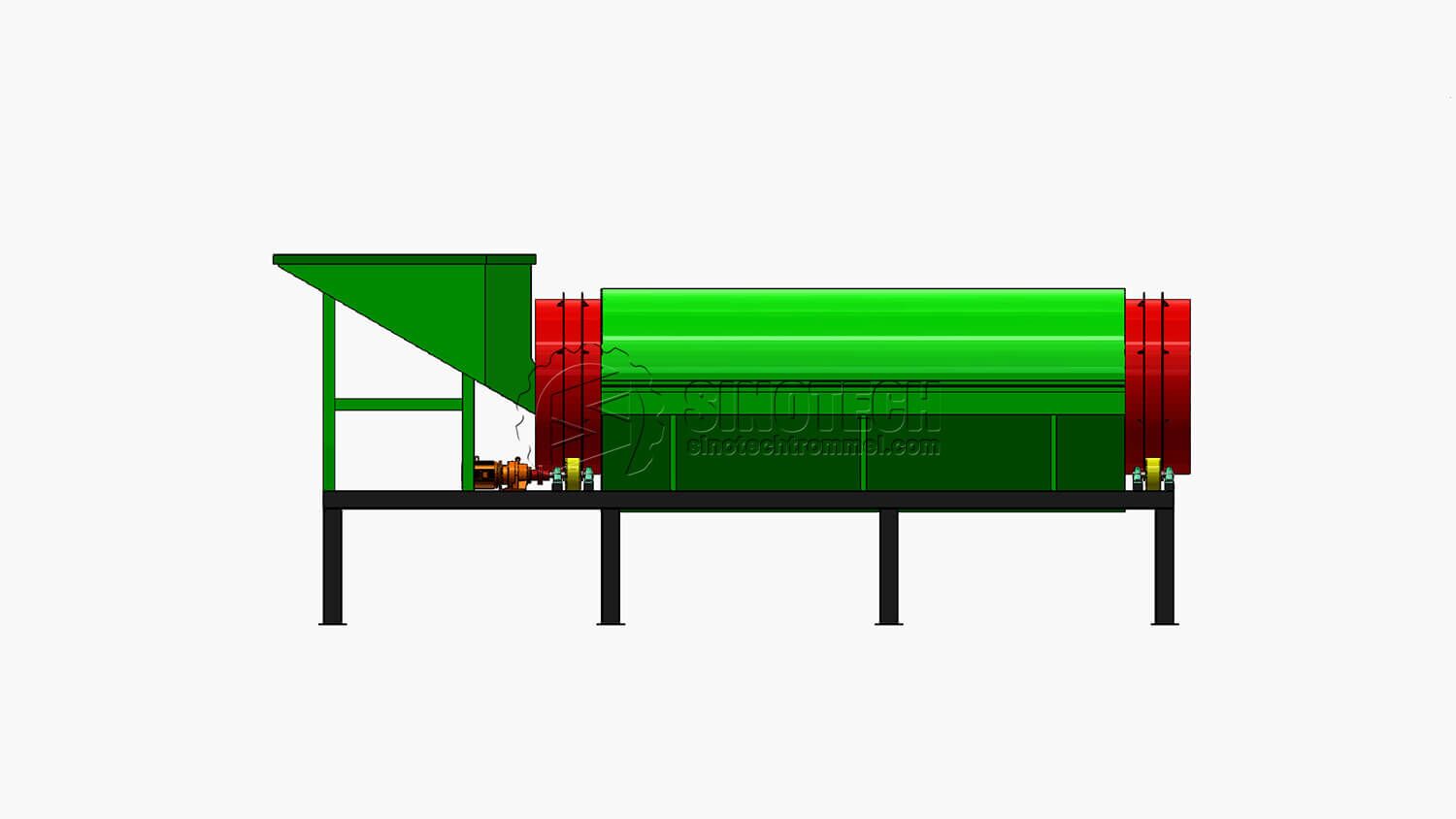

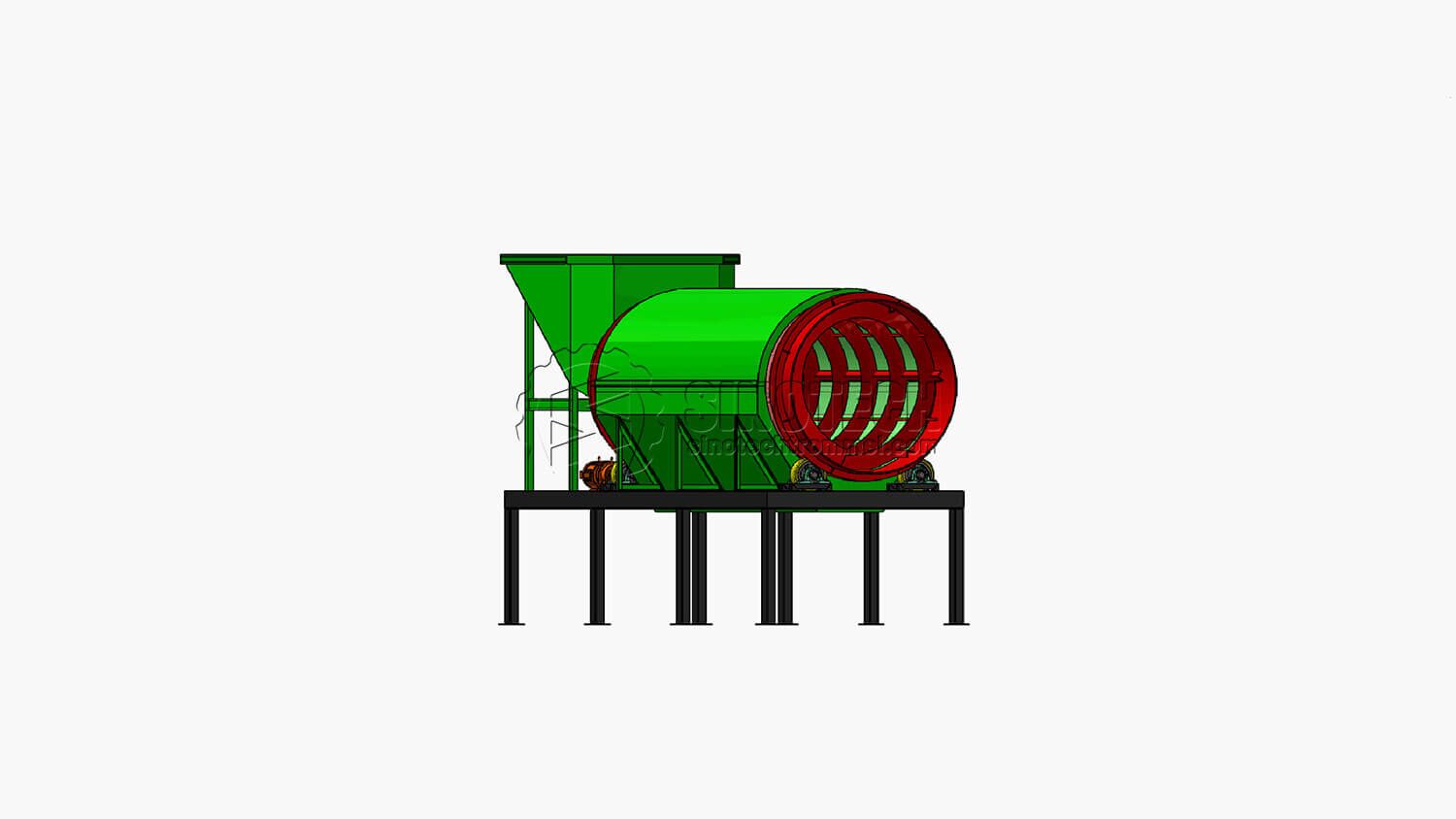

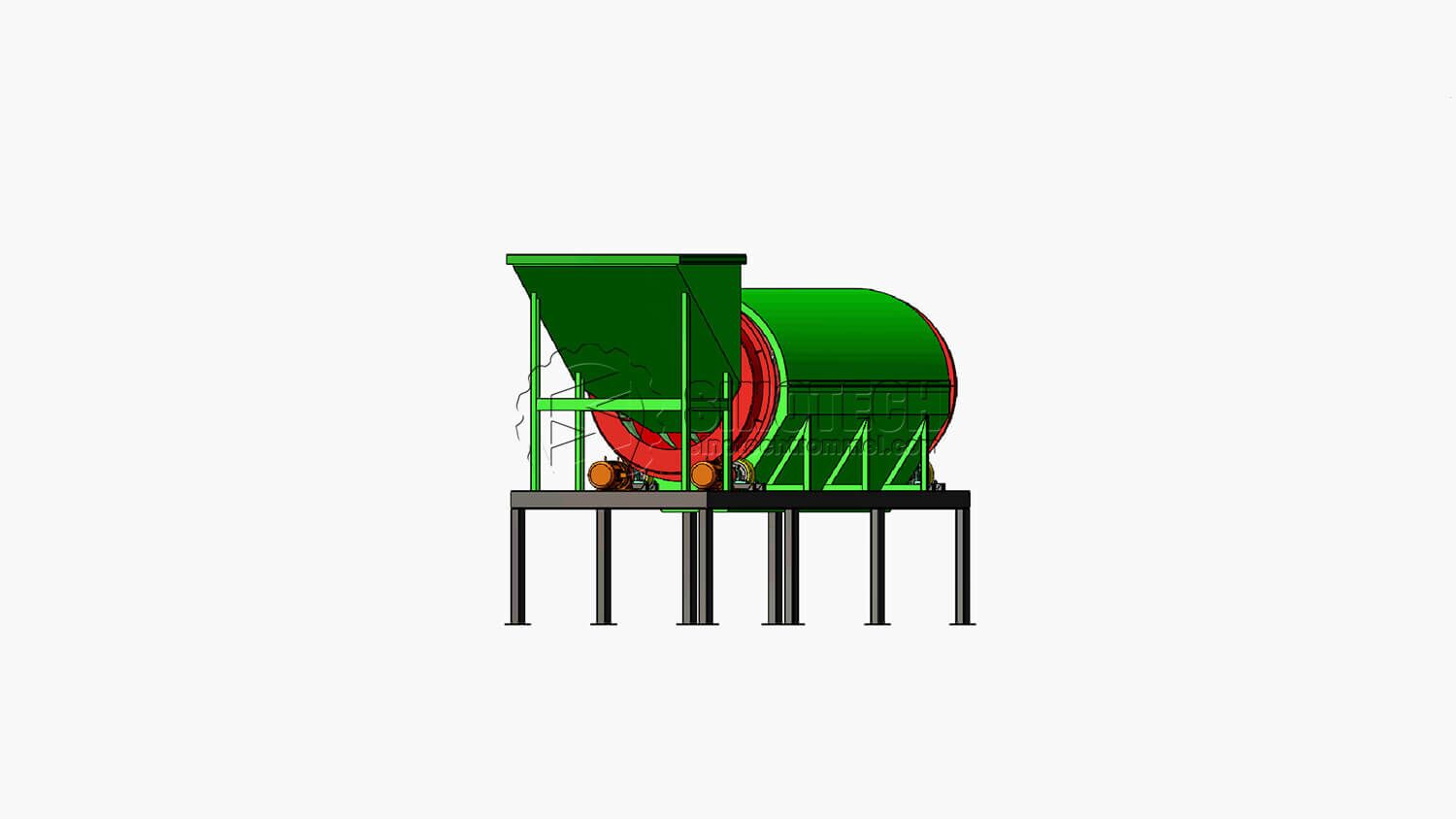

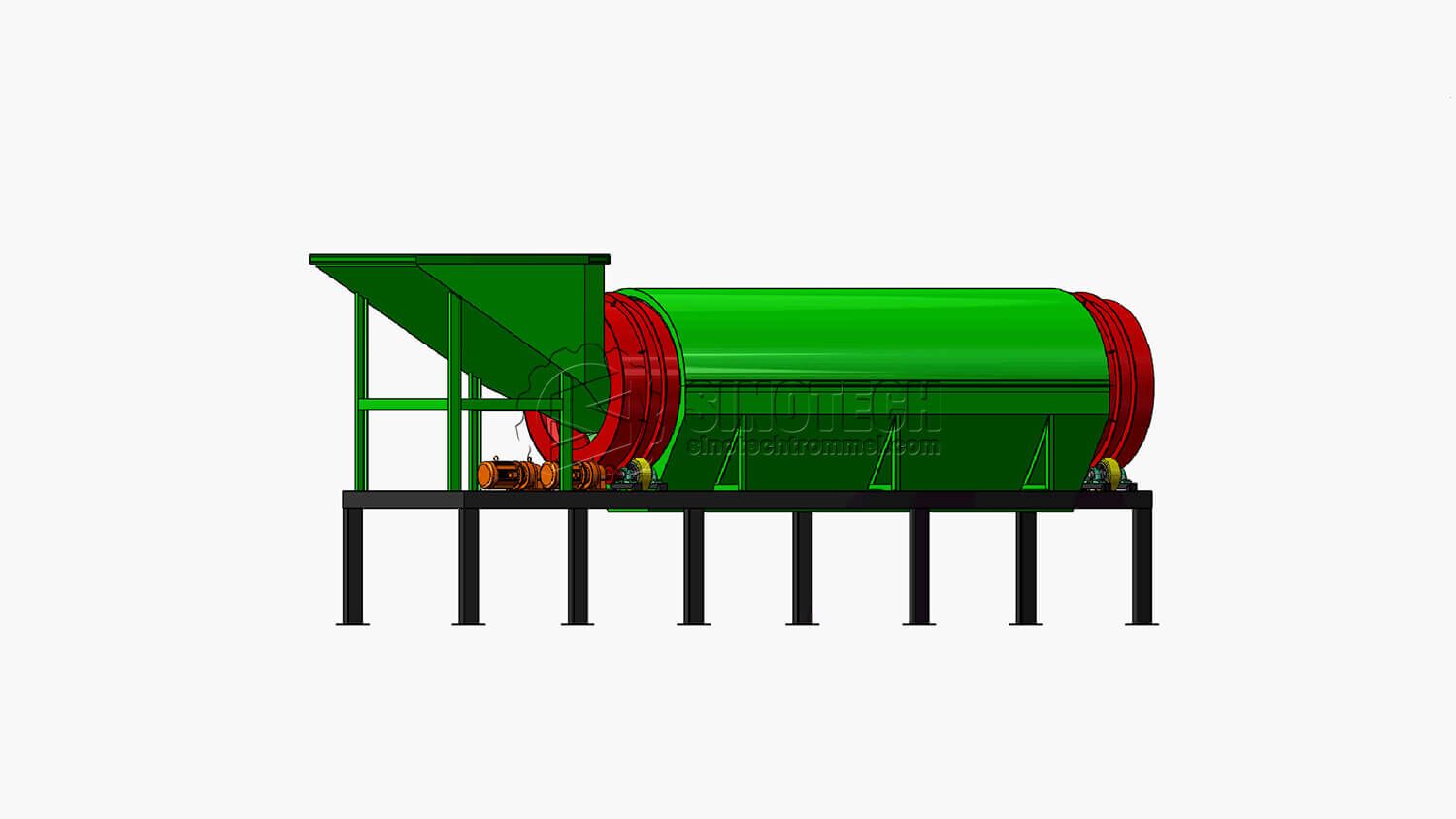

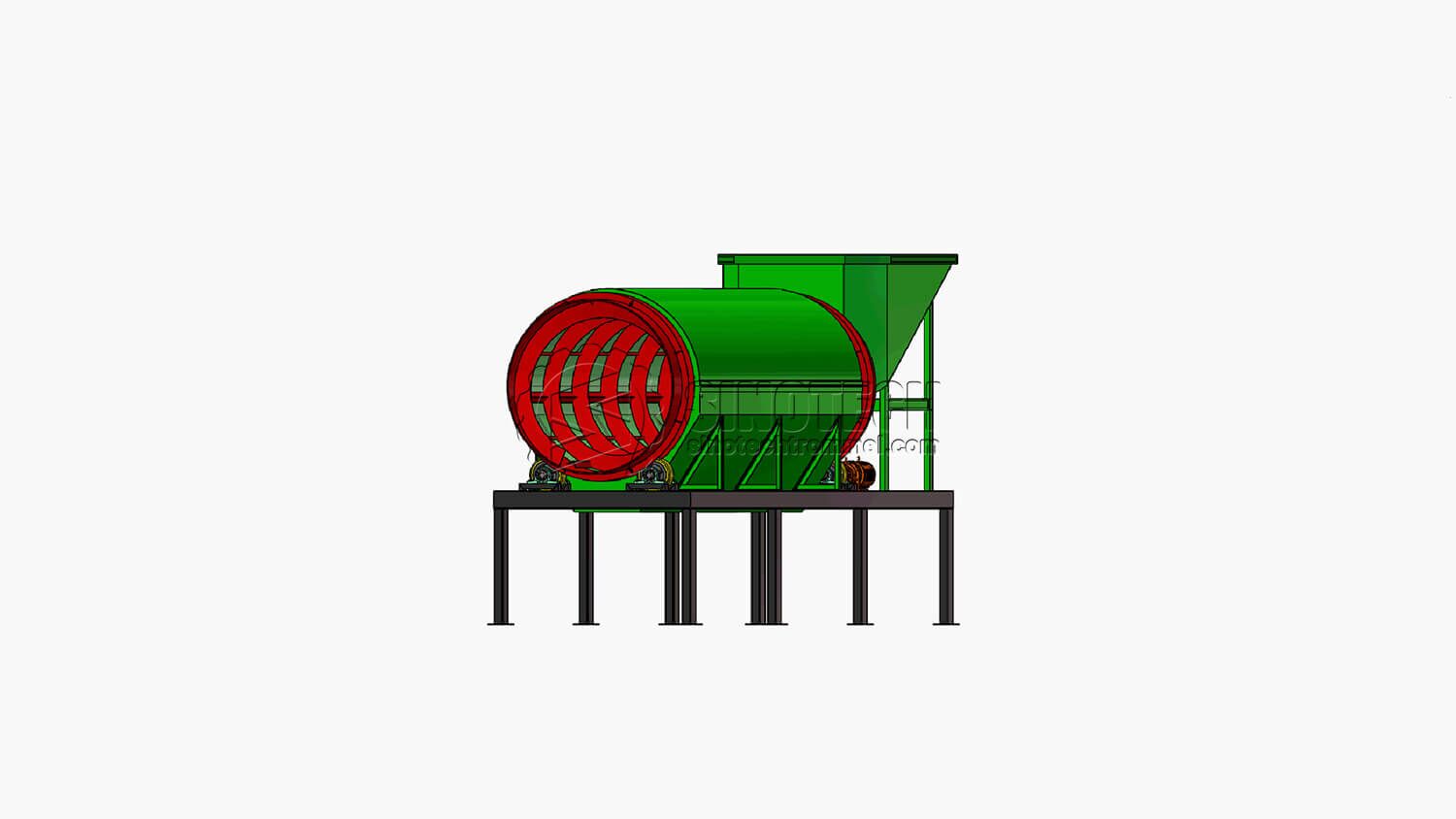

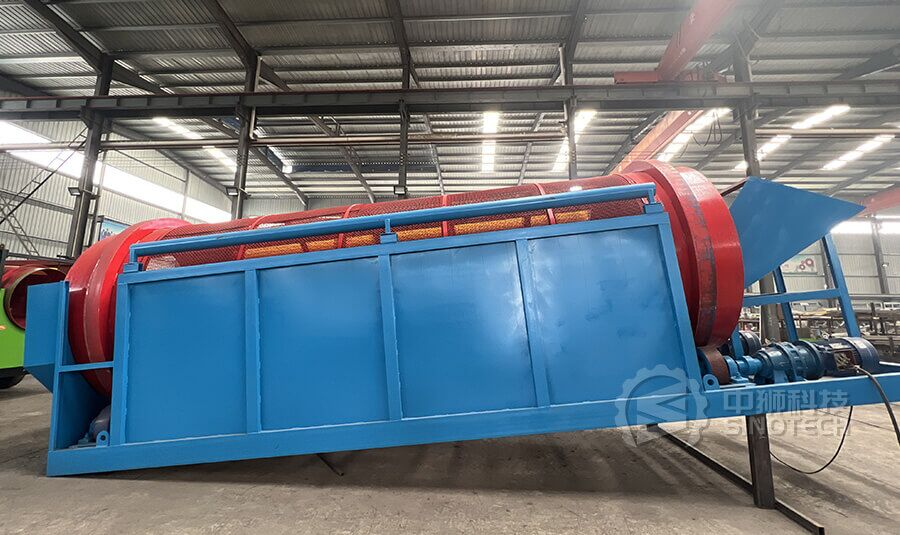

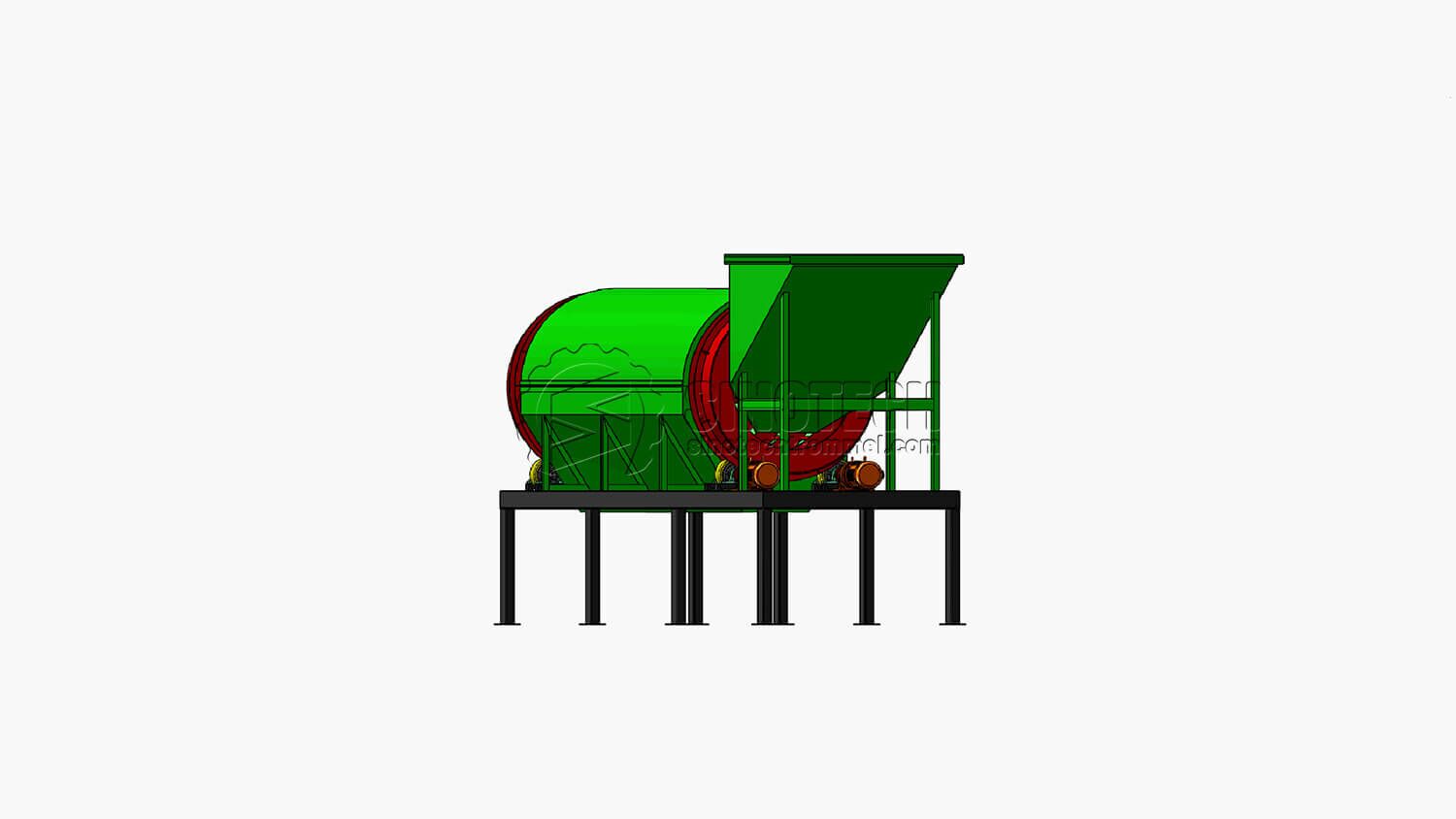

This static trommel screen is designed for fixed screening applications, ensuring precise separation of gravel and sand with minimal waste, catering to the needs of various construction and mining projects.offering a reliable and efficient solution for various industries such as manufacturing, construction, energy, and mining.，With a weight of 3200 kg and dimensions of 5800x1900x2100 mm, this product is built to last, providing a robust and sturdy performance.
Key benefits include with a 1-year warranty on core components, large processing capacity, adopting special screening mesh, with high screening efficiency and long service life，stable operation with low noise, equip the Nylon brush, mesh holes are not easily blocked, easy maintenance and easy to replace screen.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 40-110 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1500 | |
| Trommel length (mm) | 5700 | |
| Screening area approximately (m²) | ≈21.21 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2200 |
| Feed hopper width (mm) | 1500 | |
| Volume (m³) | ≈2.5 | |
| Transportation dimensions | Transportation status length (mm) | 7950 |
| Transportation status width (mm) | 1800 | |
| Transportation status height (mm) | 2200 | |
| Weight (kg) | ≈3927 | |
Compact & Efficient Design: Space-saving structure delivers excellent screening performance.
Lightweight & Portable: Easy to move for flexible use in different locations.
Low Investment Cost: Affordable solution for small-scale screening projects.
Perfect for Garden & Home Use: Ideal for soil, compost, and light aggregate processing.
Simple to Operate: User-friendly design allows quick startup with minimal training.
Easy Screen Replacement: Fast changeover keeps downtime to a minimum.
Latest Price List/Free Customized Solution/Maintenance & Installation Guide
Customize different models according to your needs (Small, medium, and large machine).
