Price: $10,500-13,500 Limited Time Offer: 8% OFF!
Lead Time: Approximately 30 business days
Capacity: 40-110 m³/h
Diesel or Electric Power
Screening surface: 11.13m²
Weight: max. 3200kg
Application areas: Efficiently process Firewood, Dirt, Topsoil, Gravel, Wood Chips, plus all Organic and Mineral Aggregates.
Factory Direct Shipping to Oceania, EU, and the US, Globally

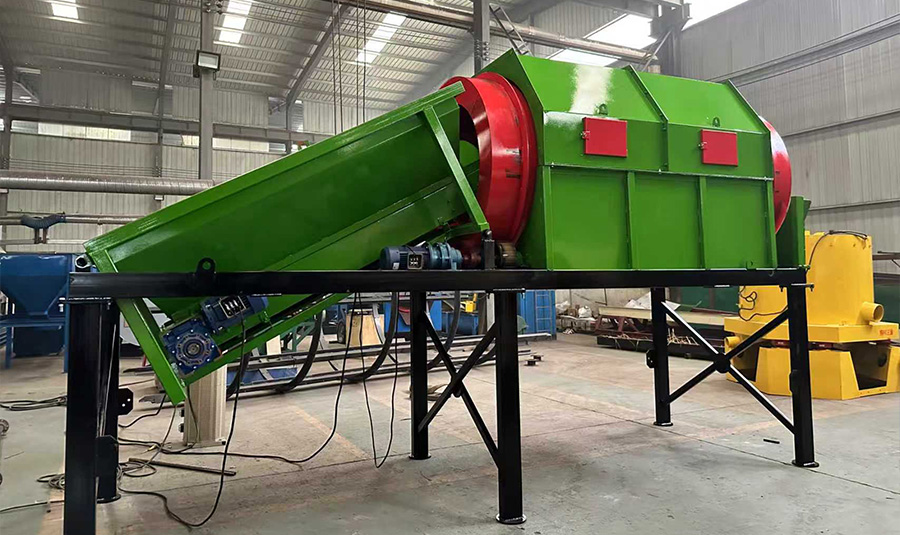

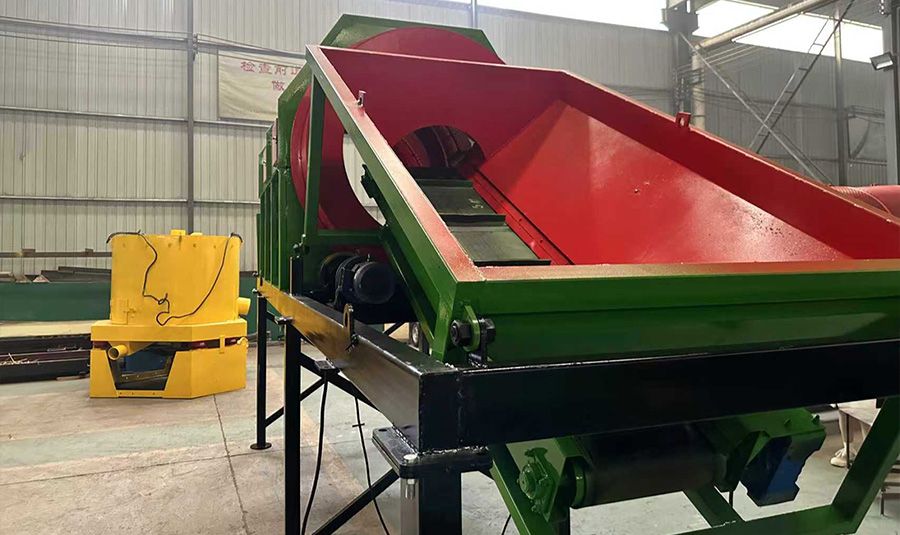

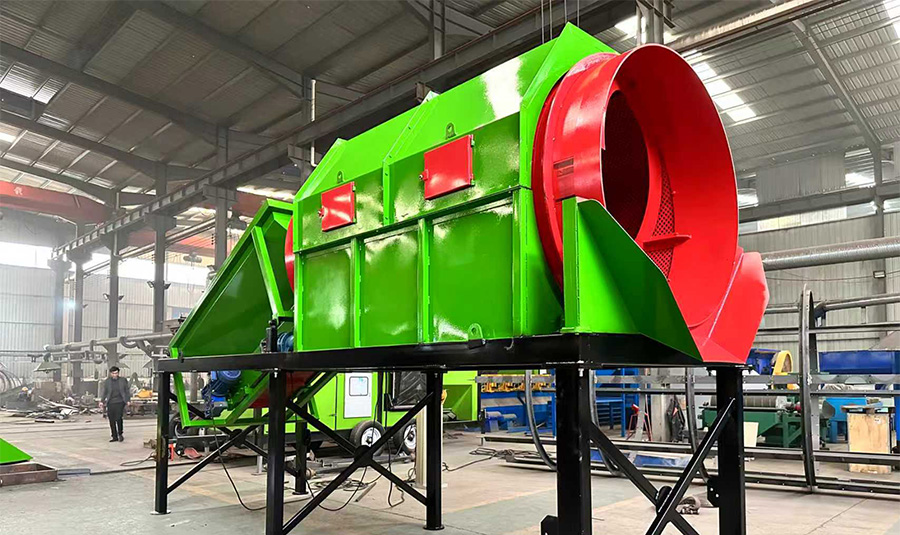

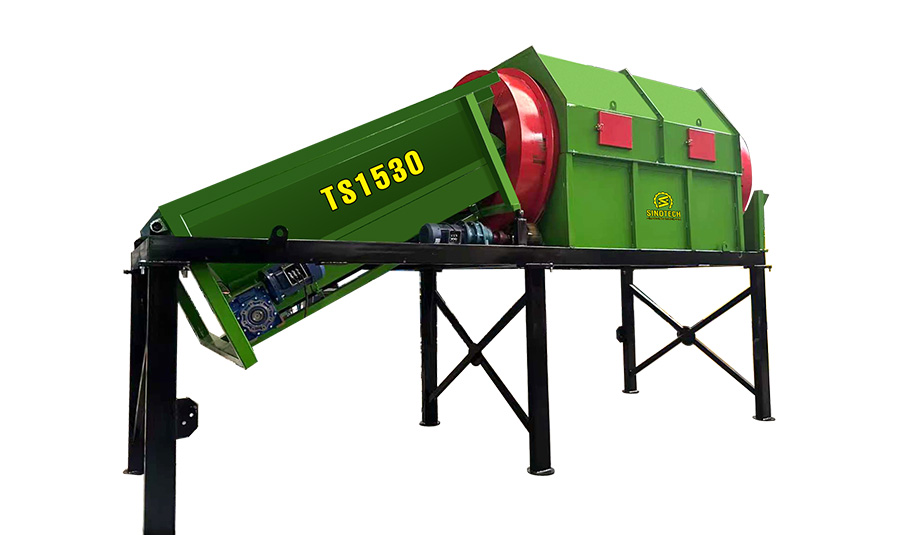

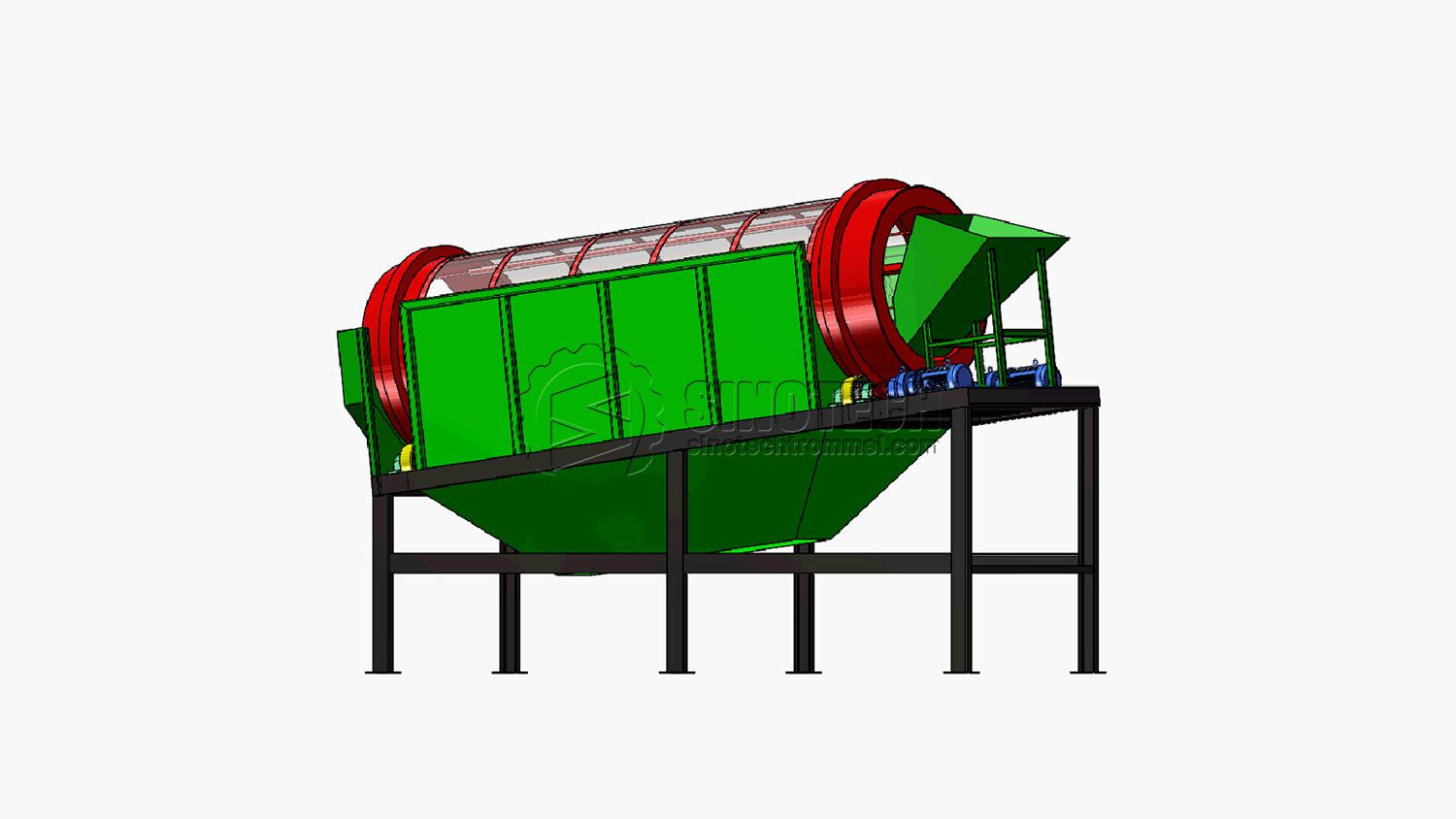

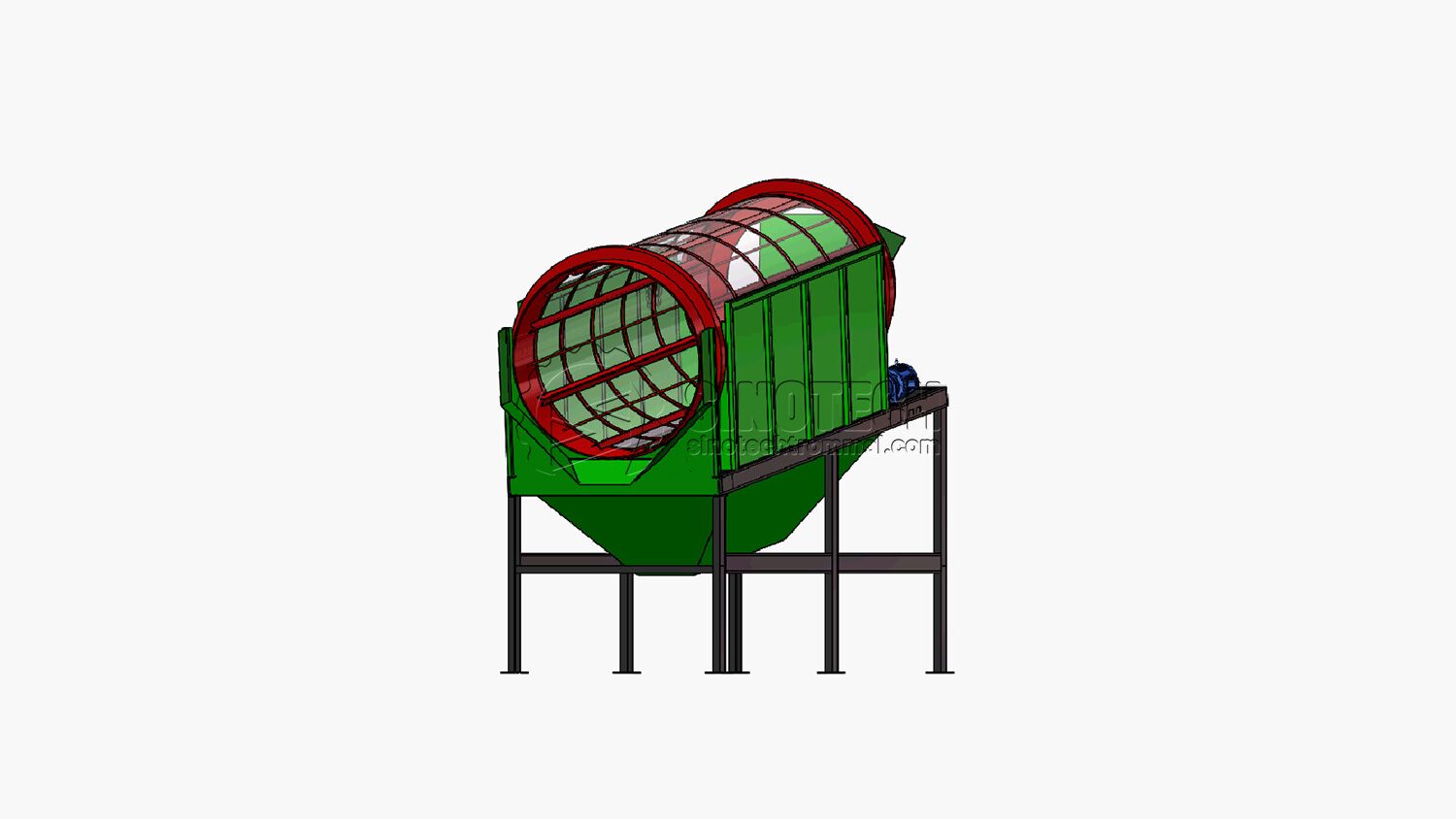

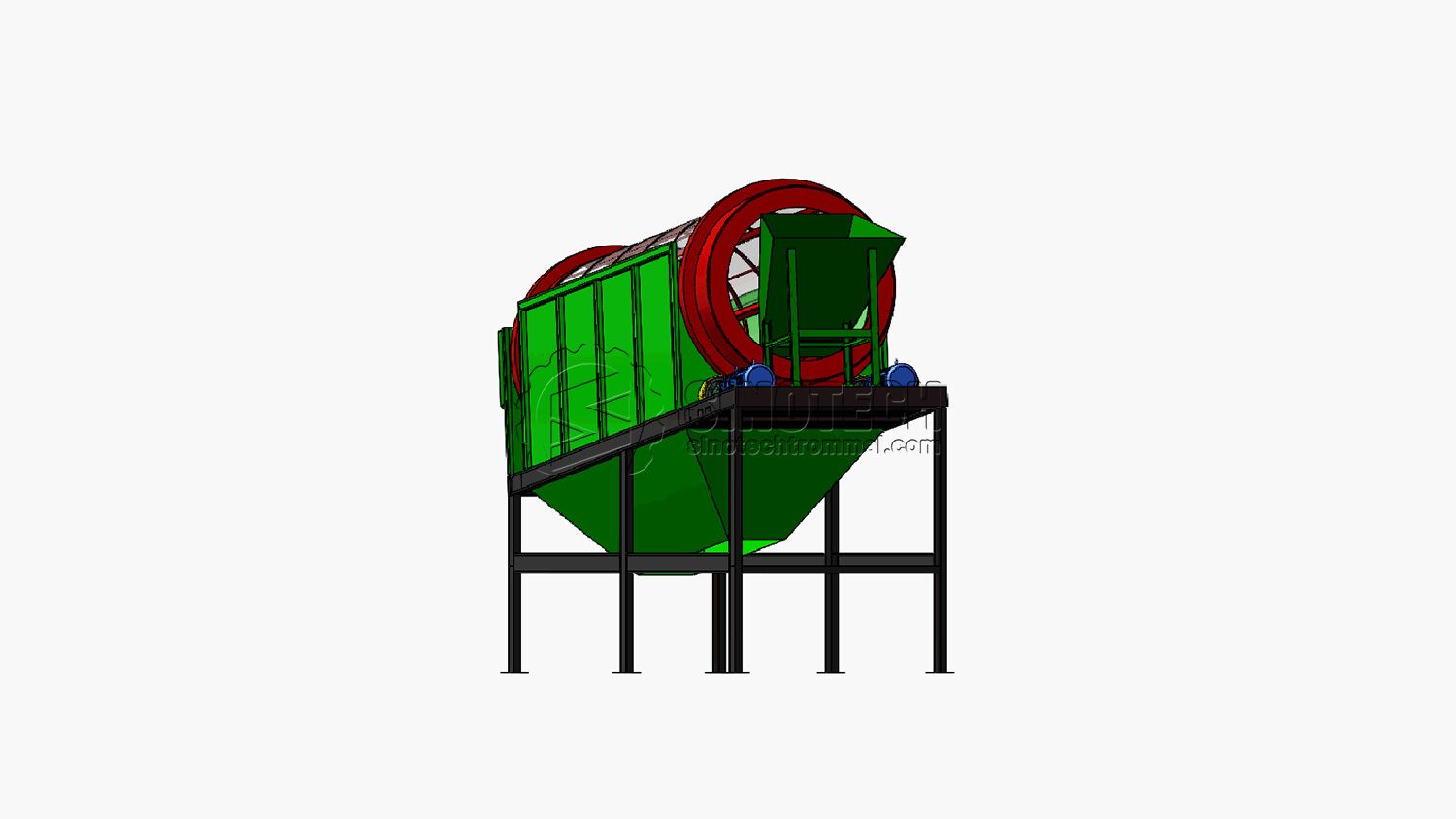

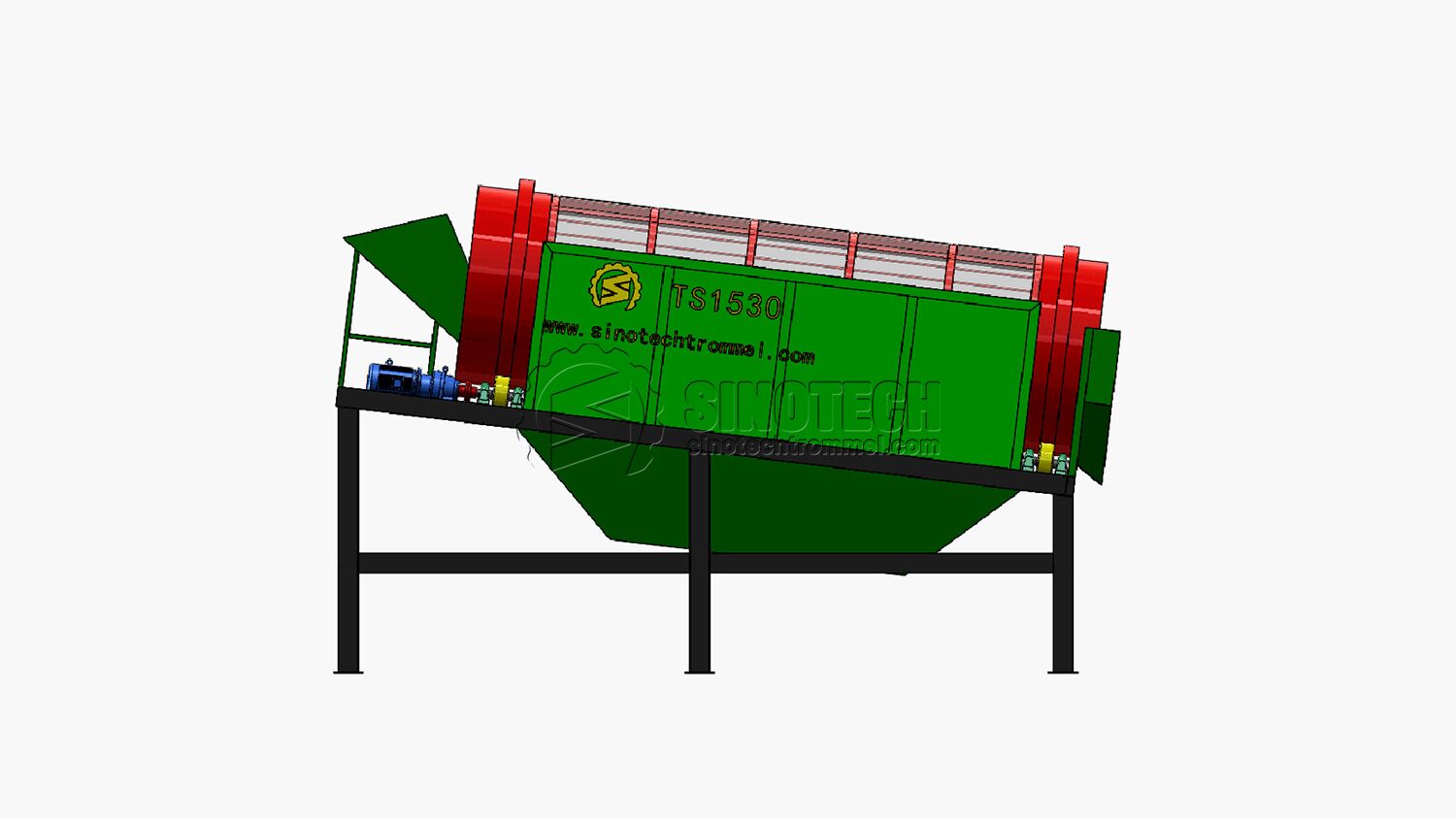

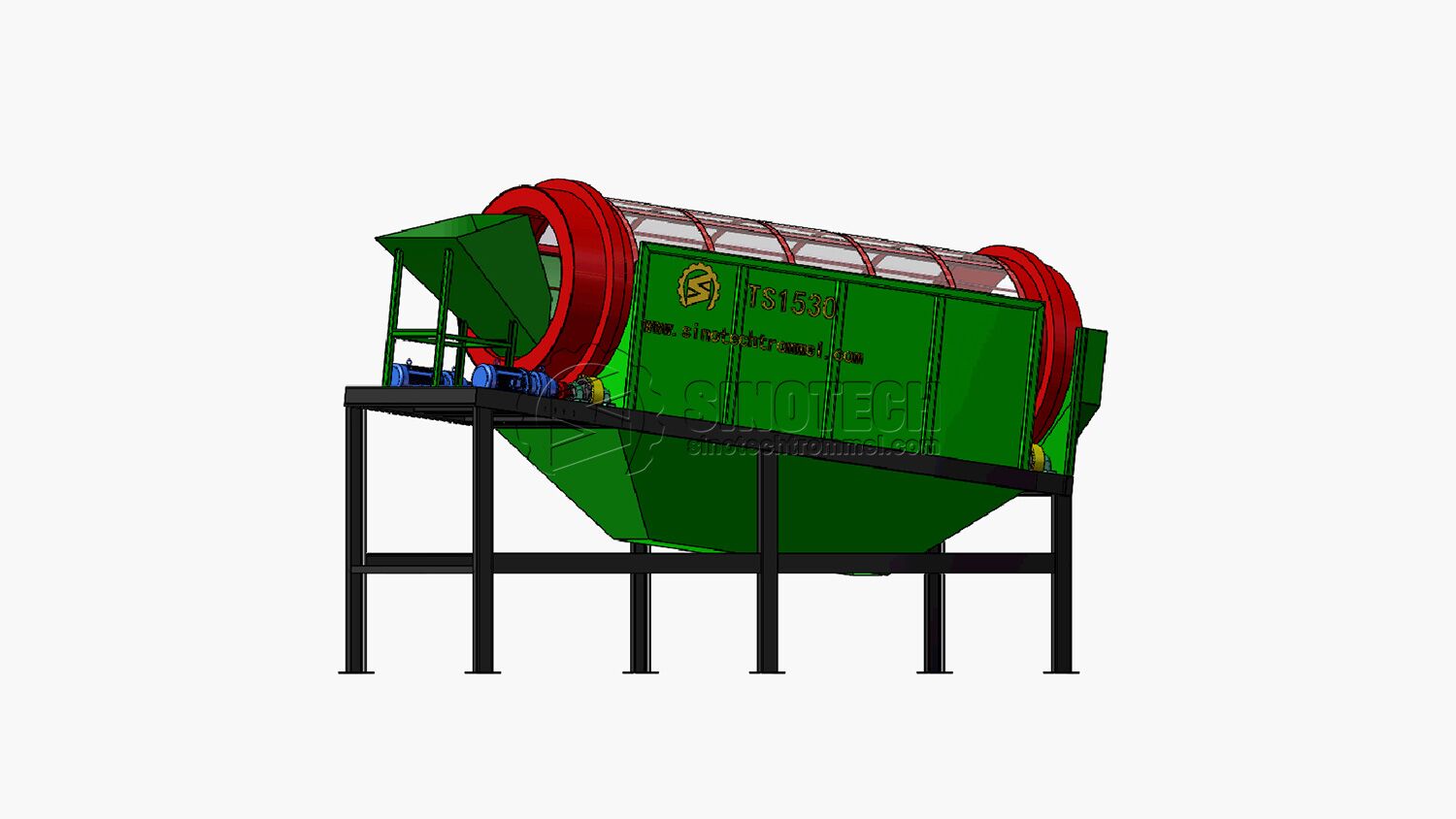

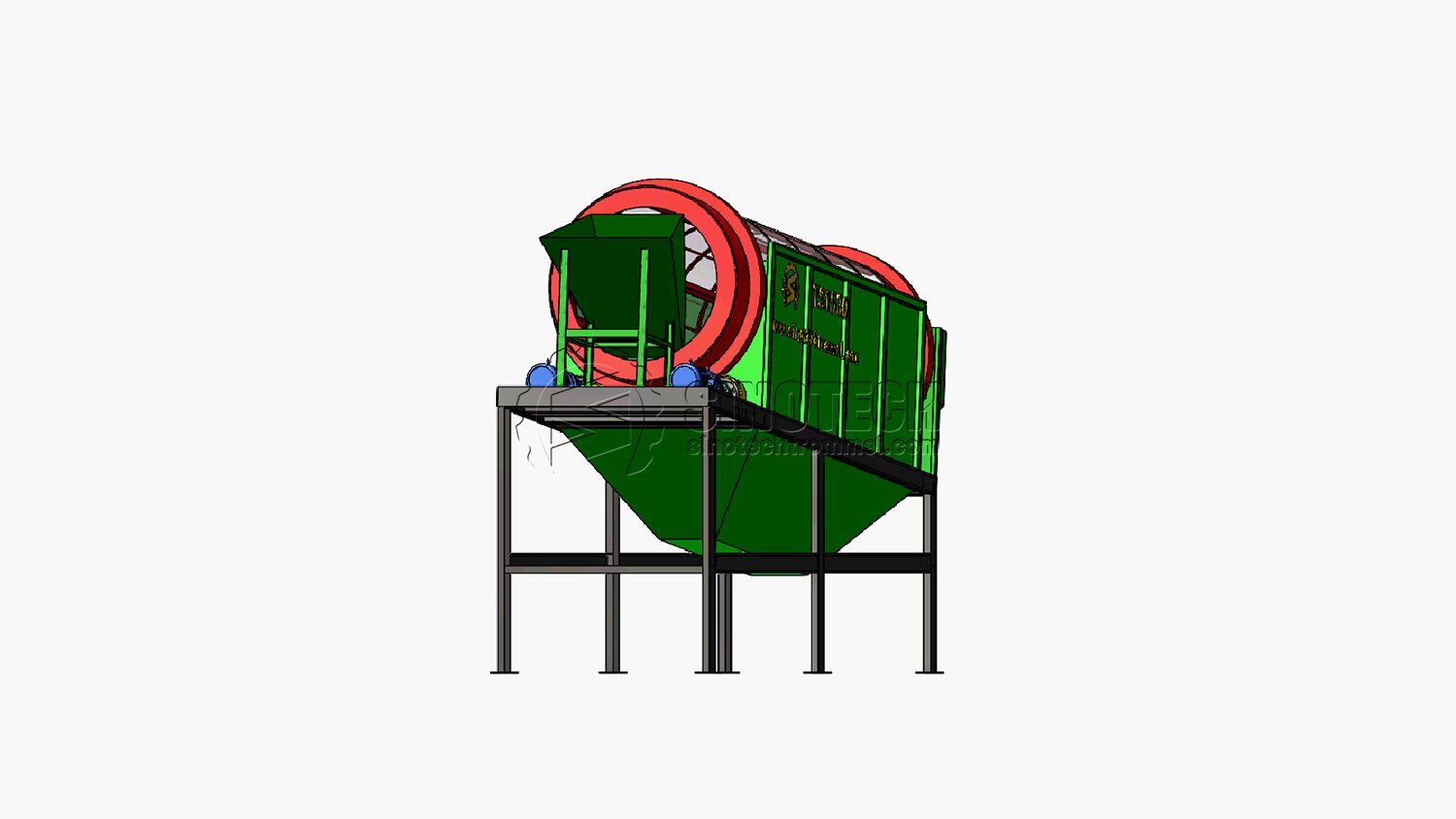

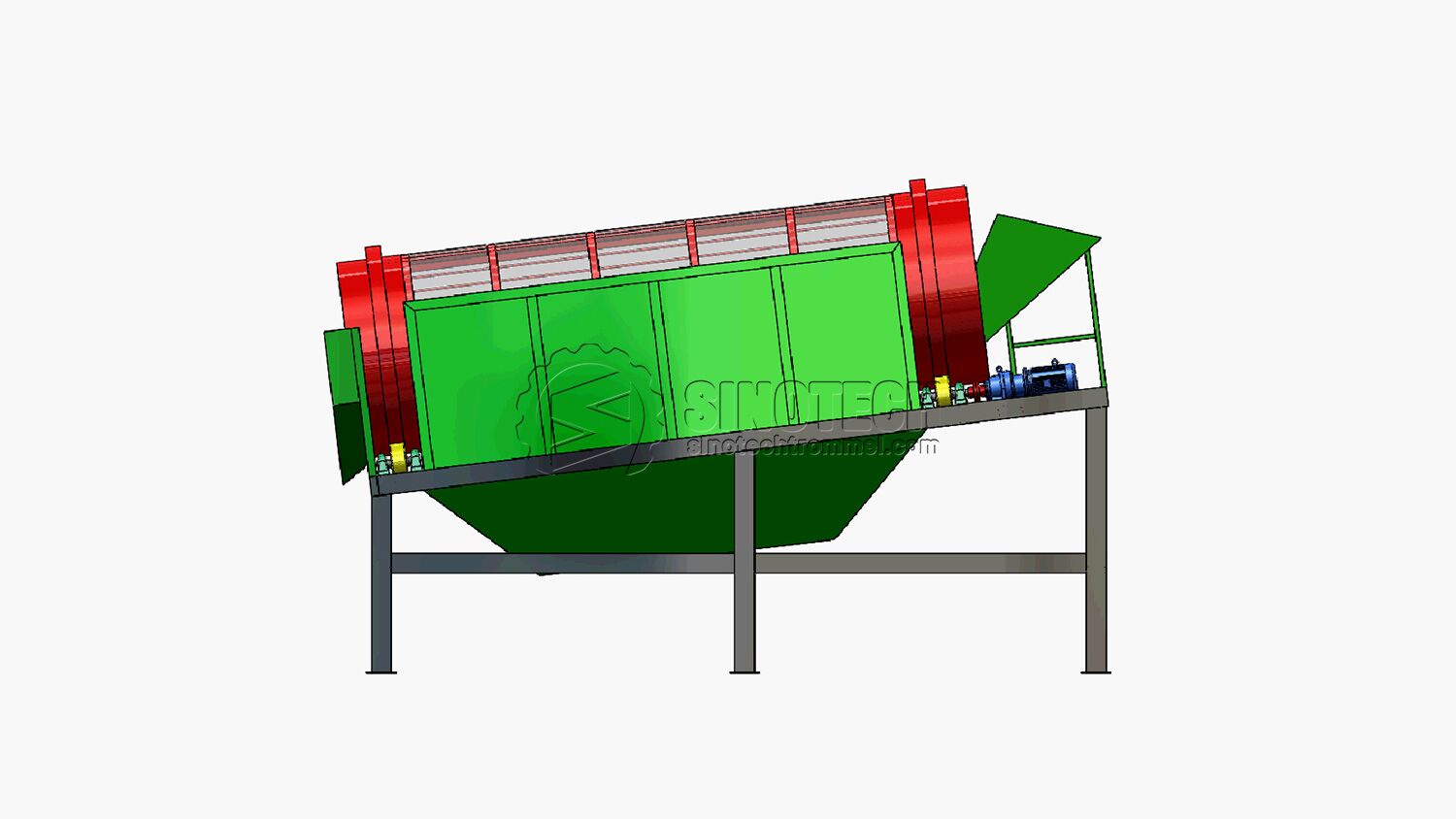

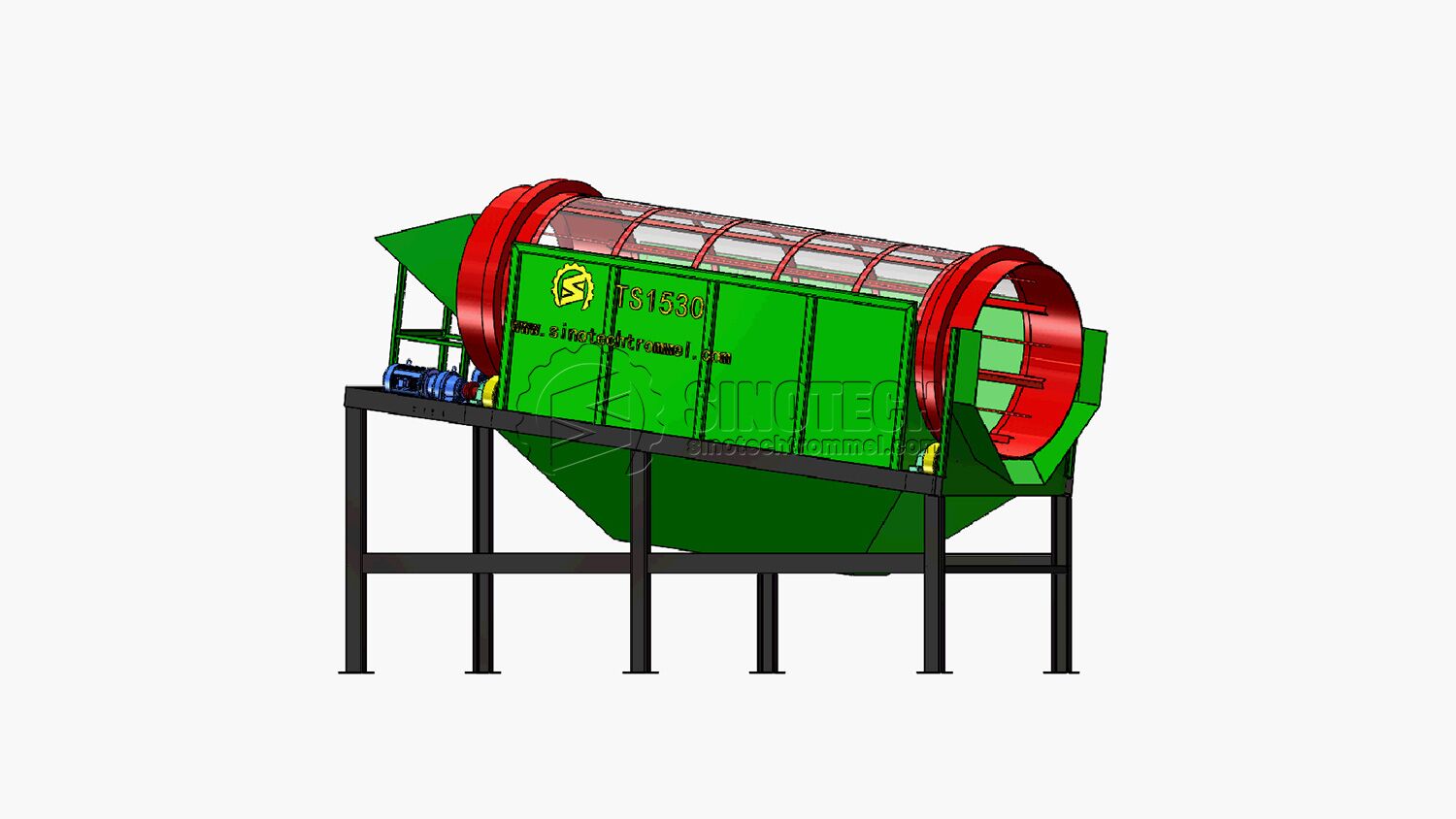

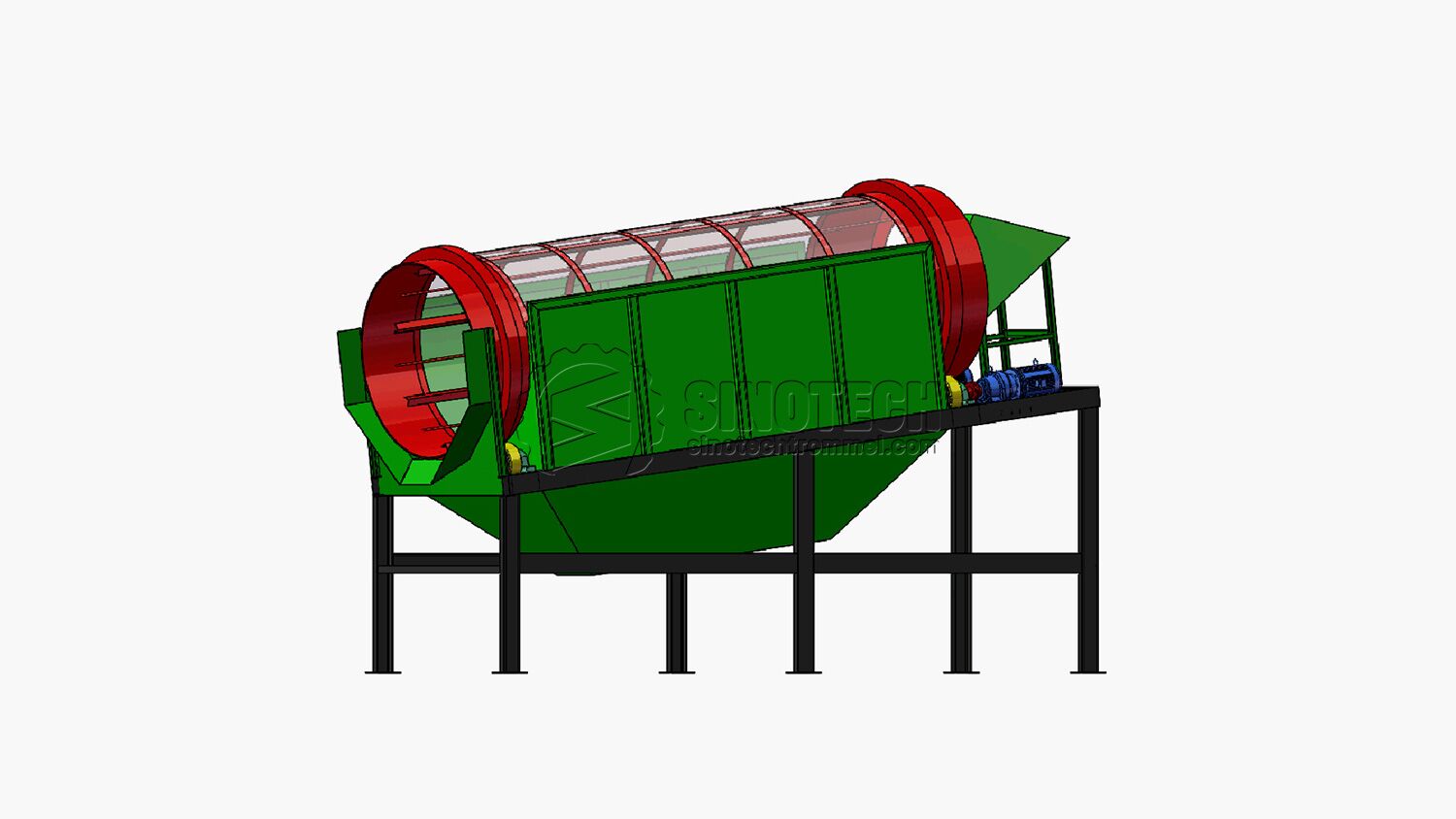

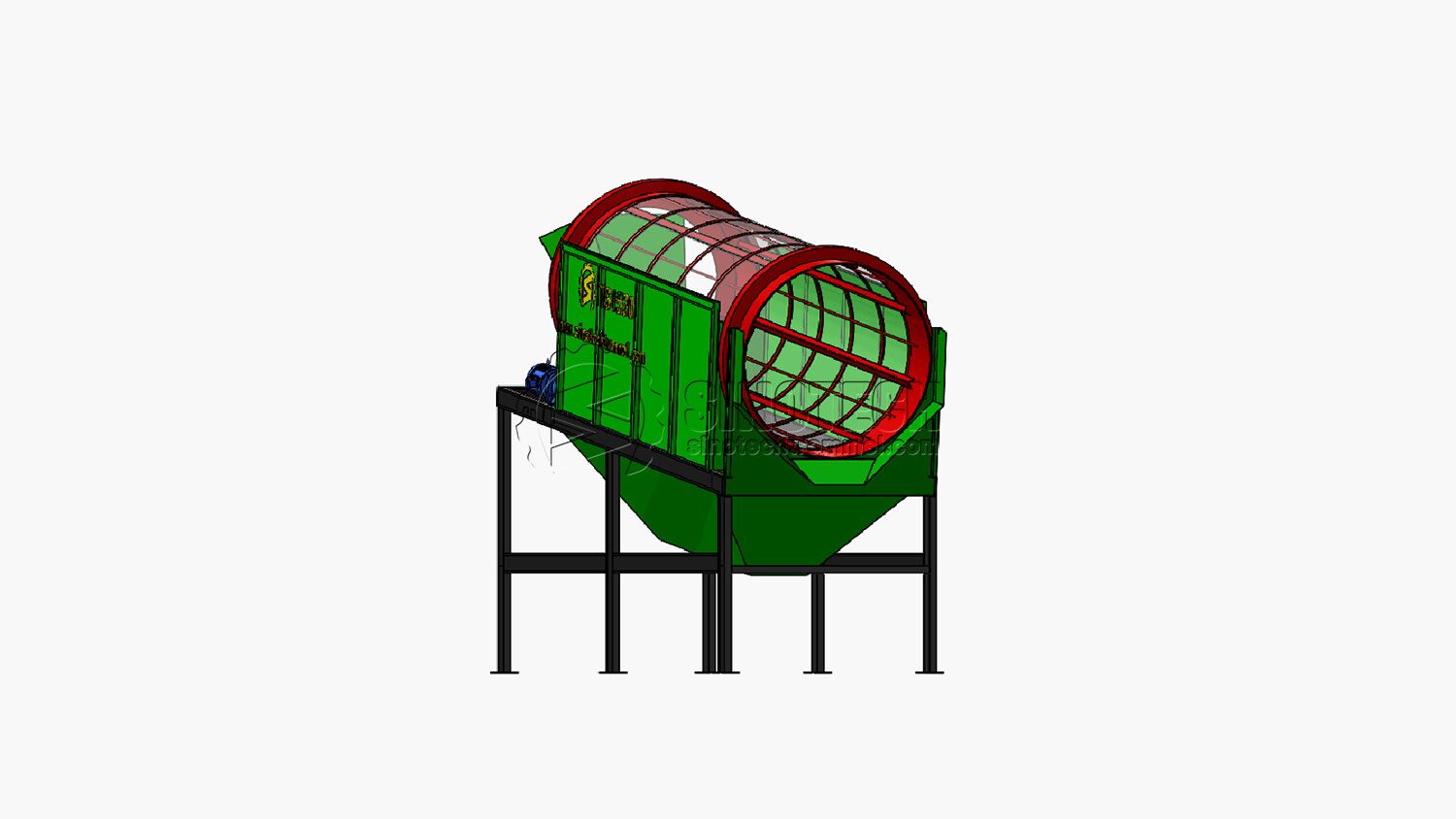

Static trommel screen TS1530(drum diameter 1500mm, drum length 3000mm) is supported by supporting rollers. The motor drives the reducer to provide power to the supporting rollers through the coupling to drive the rollers to rotate. The machine is made of carbon steel material.
The steel plate thickness and mesh size can be customized according to specific requirements, allowing for versatility and adaptability in screening various materials.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 40-110 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1500 | |
| Trommel length (mm) | 3000 | |
| Screening area approximately (m²) | ≈11.13 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2350 |
| Feed hopper width (mm) | 1750 | |
| Volume (m³) | ≈2.3 | |
| Transportation dimensions | Transportation status length (mm) | 5800 |
| Transportation status width (mm) | 1850 | |
| Transportation status height (mm) | 2200 | |
| Weight (kg) | ≈3200 | |
Simple Structure: Streamlined design for easy operation and quick setup.
Low Maintenance: Minimal upkeep reduces operating costs and downtime.
High Screening Efficiency: Delivers fast and precise separation for various materials.
Strong Adaptability: Operates with low noise and minimal environmental impact.
Clog-Resistant Mesh: Nylon brushes keep sieve holes clear for continuous performance.
Cost-Effective Reliability: Durable build ensures long-term use with low initial investment.
