Price: $8,000-10,500 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: 30-70 m³/h
Diesel or Electric Power
Screening surface: 8.93m²
Weight: max. 2560kg
Application areas: Efficiently process Firewood, Dirt, Topsoil, Gravel, Wood Chips, plus all Organic and Mineral Aggregates.
Factory Direct Shipping to Oceania, EU, and the US, Globally

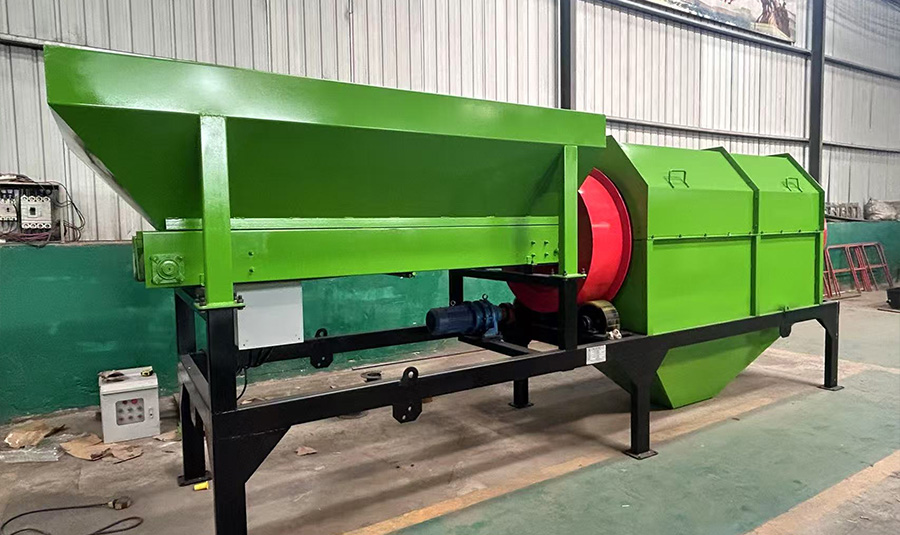

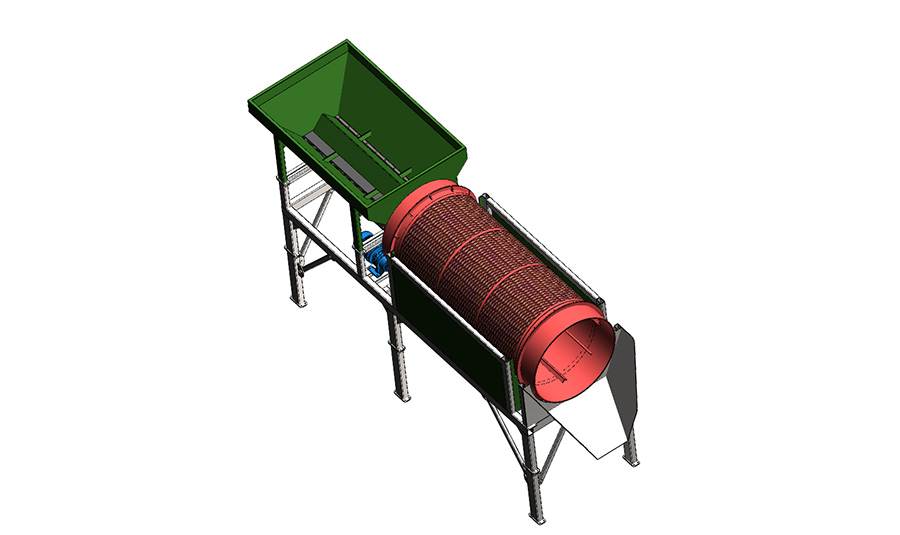

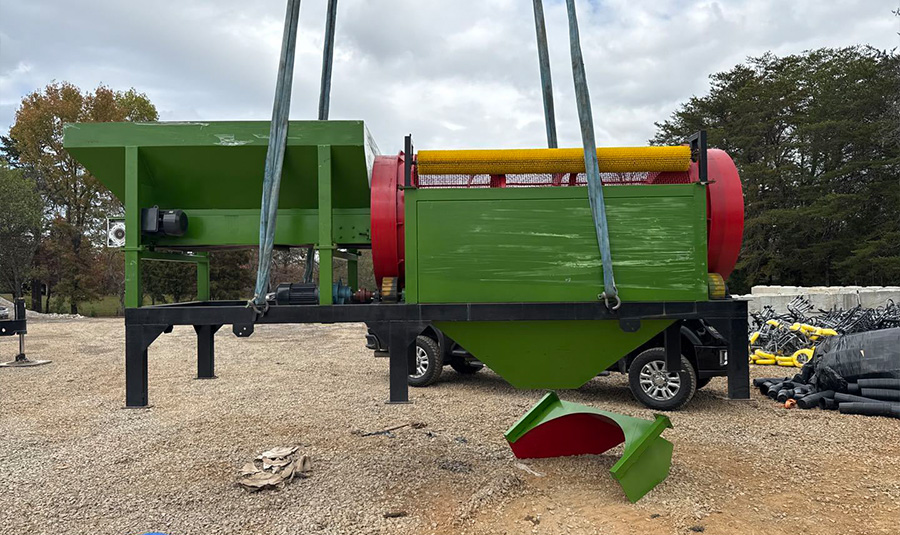

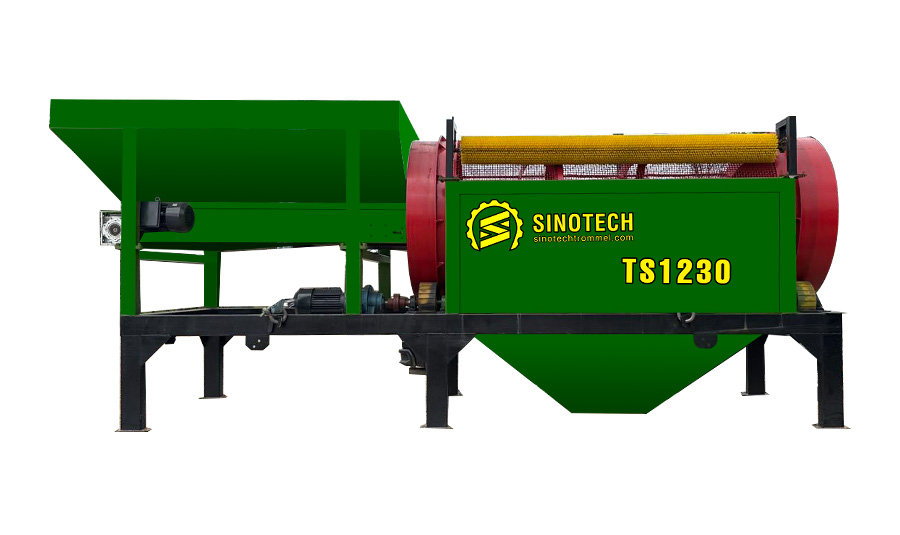

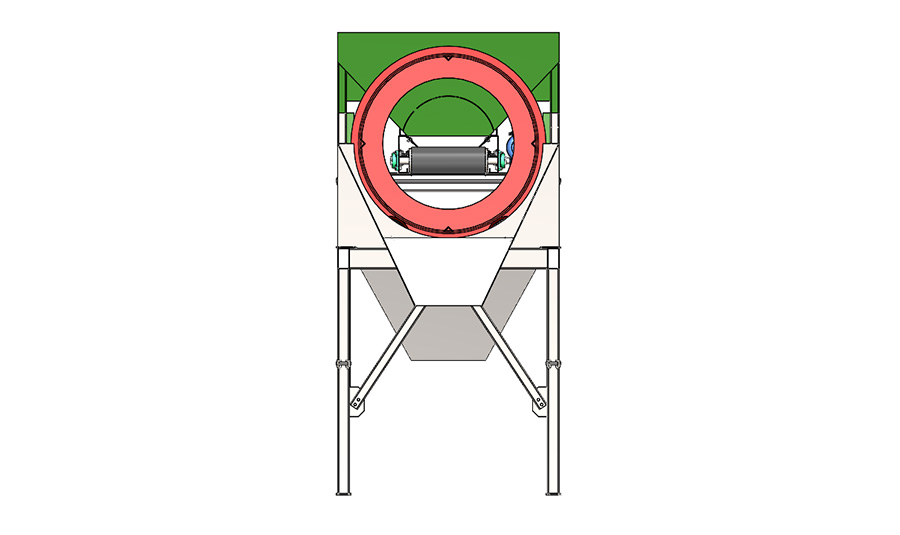

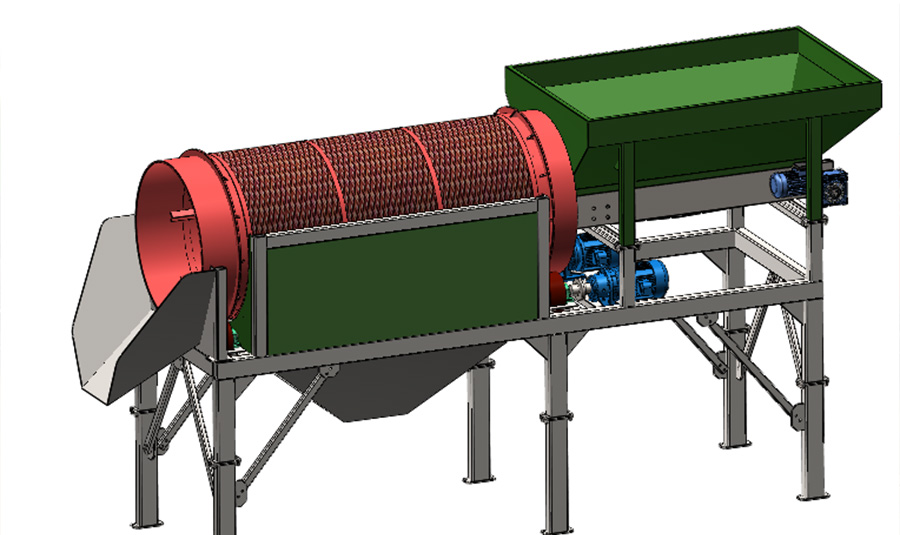

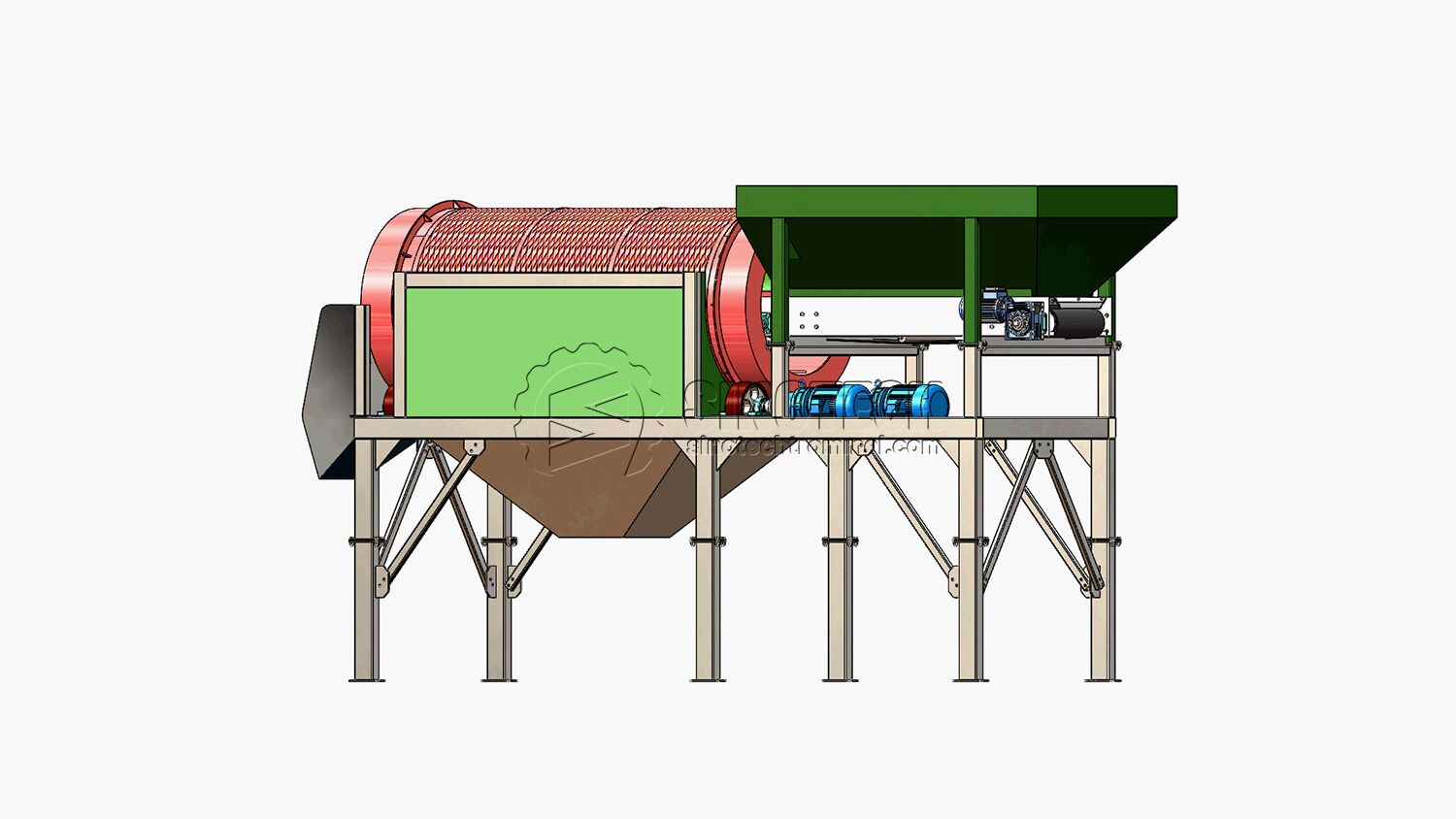

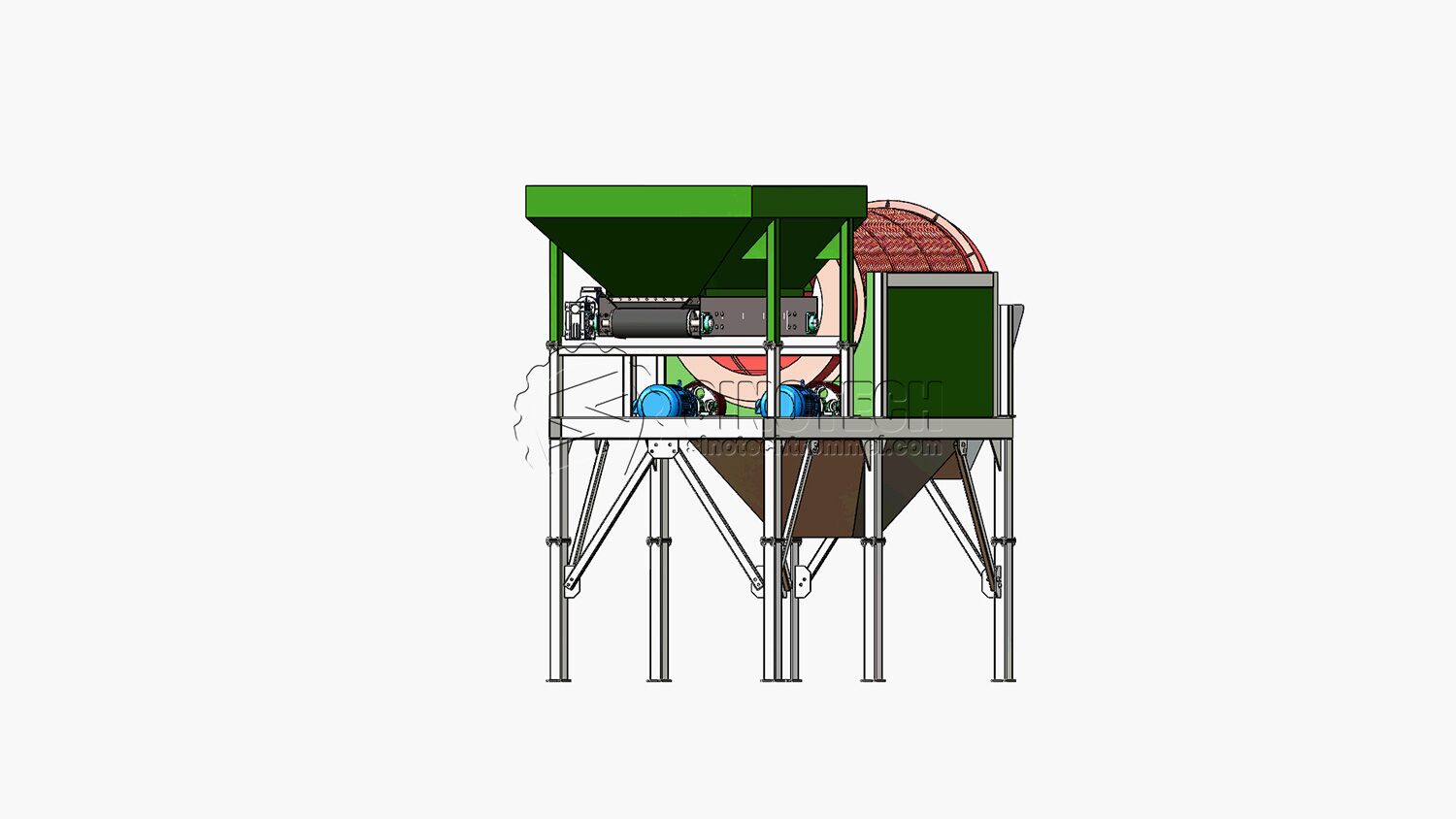

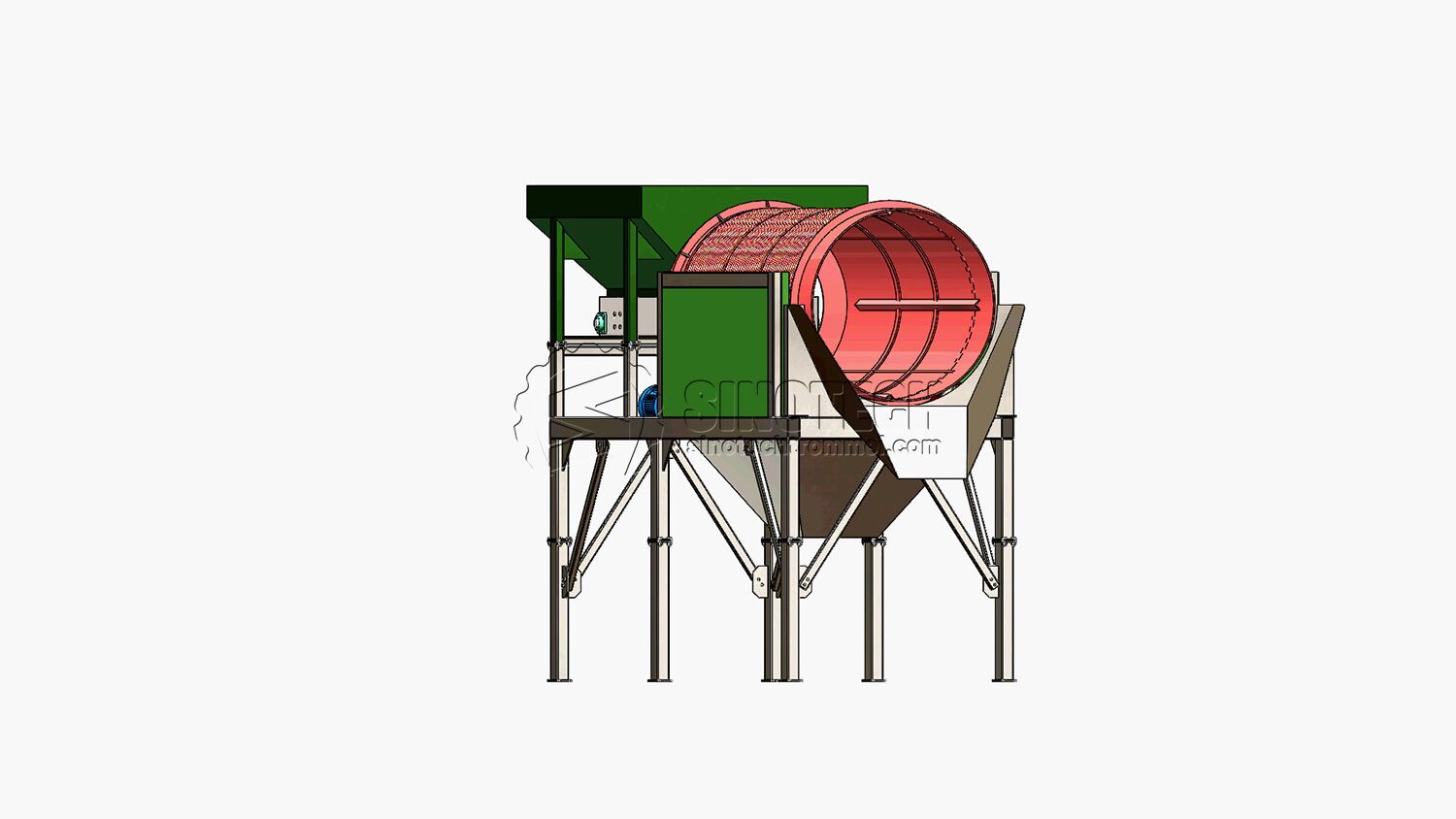

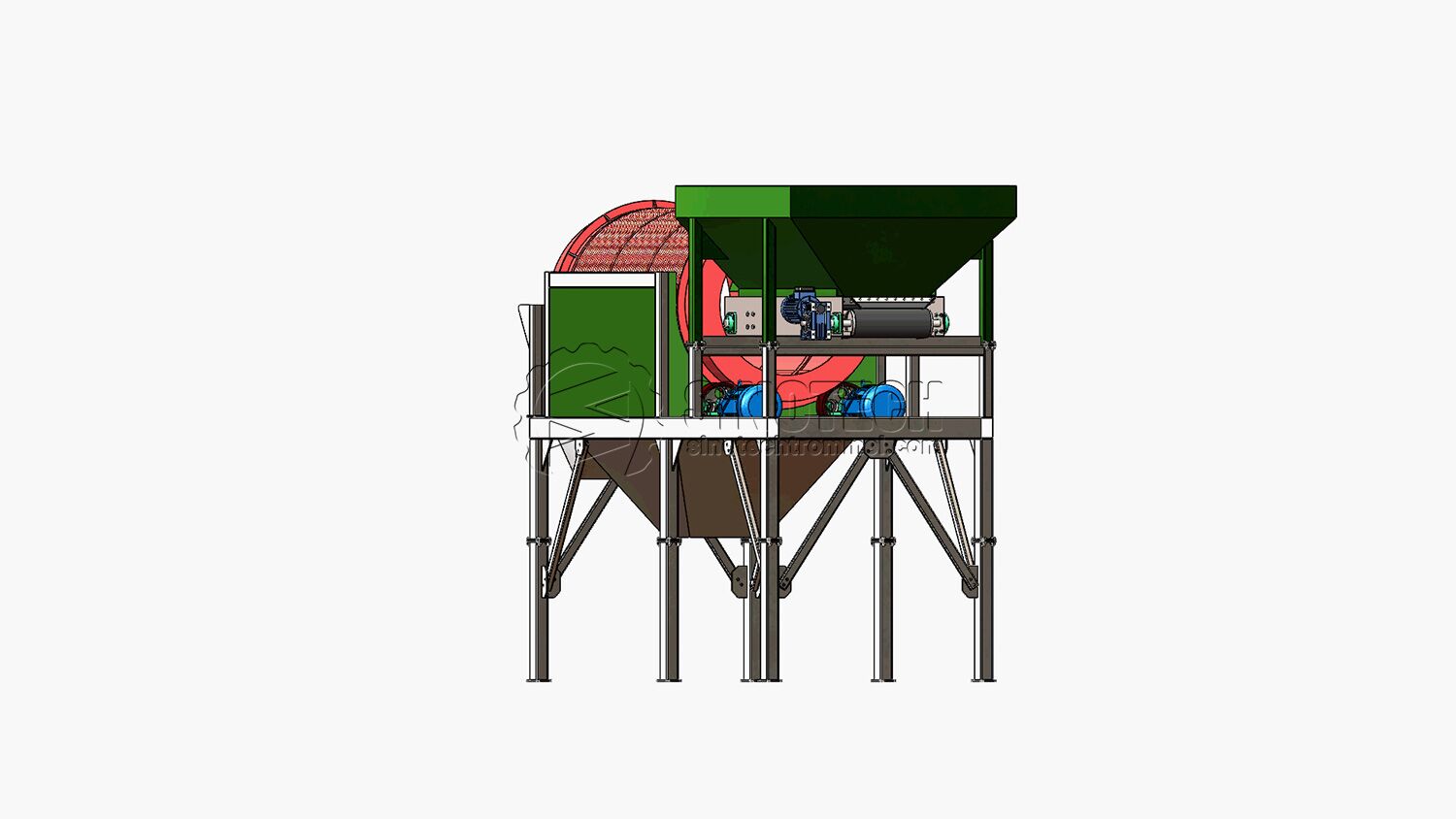

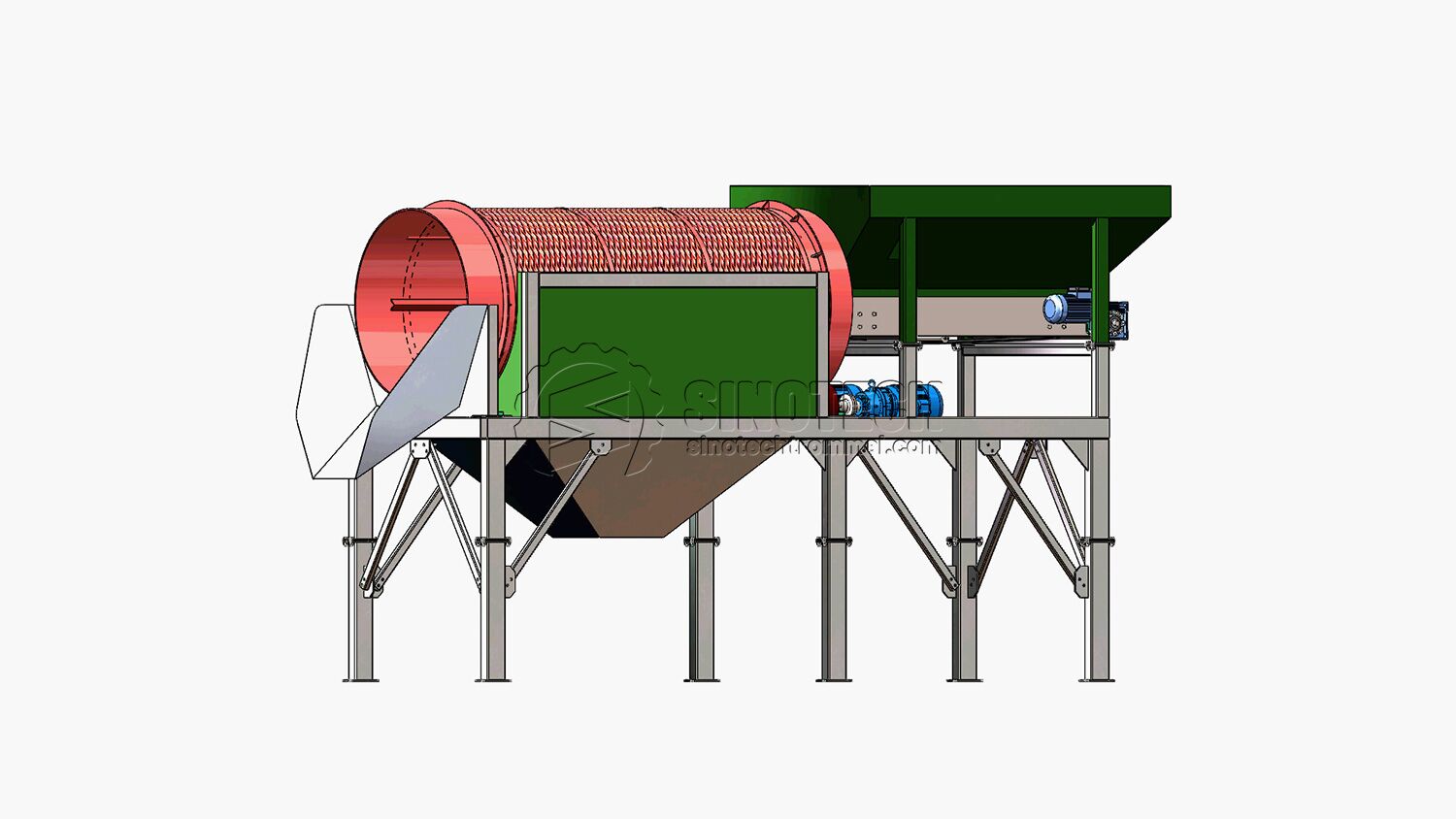

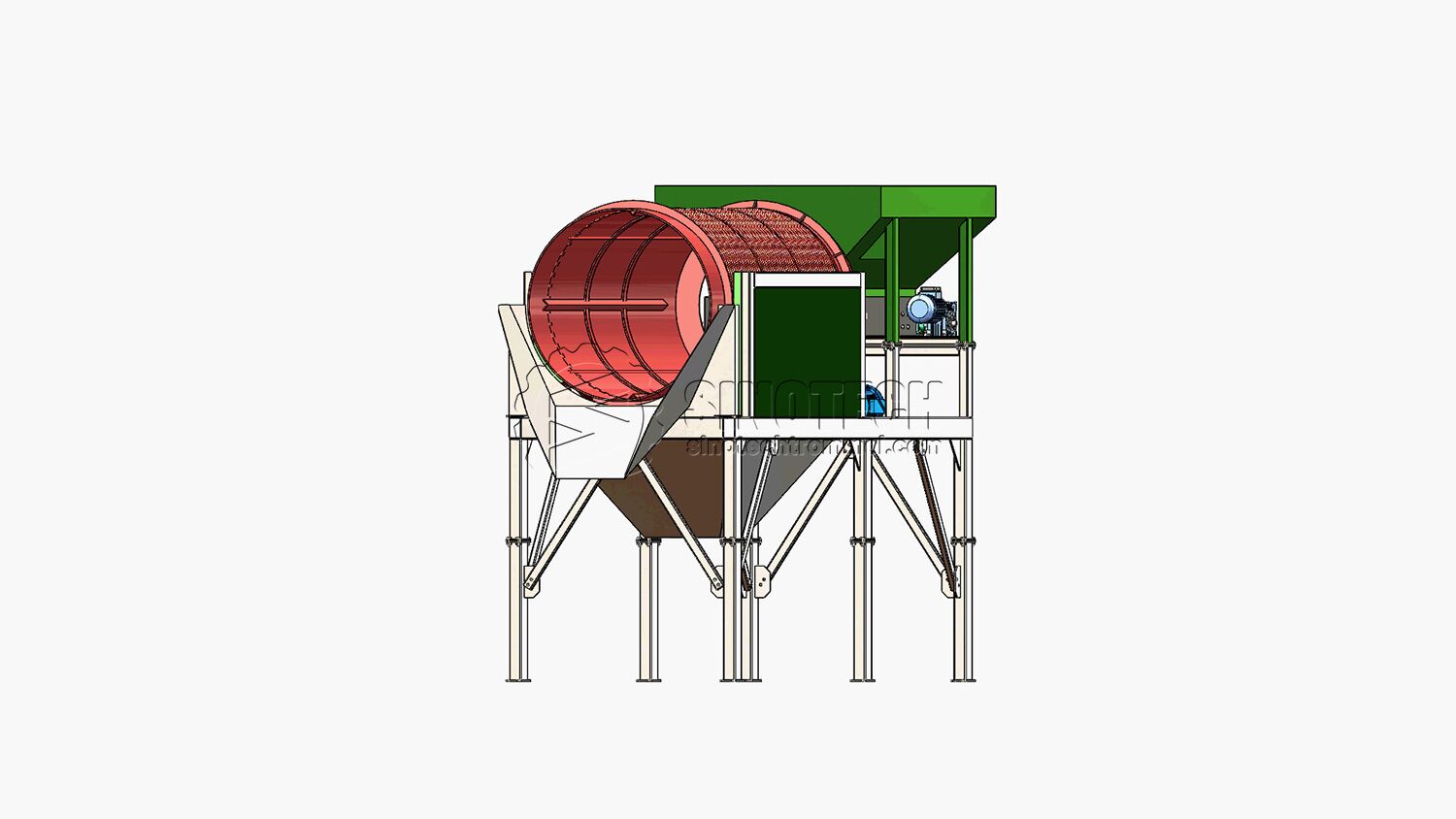

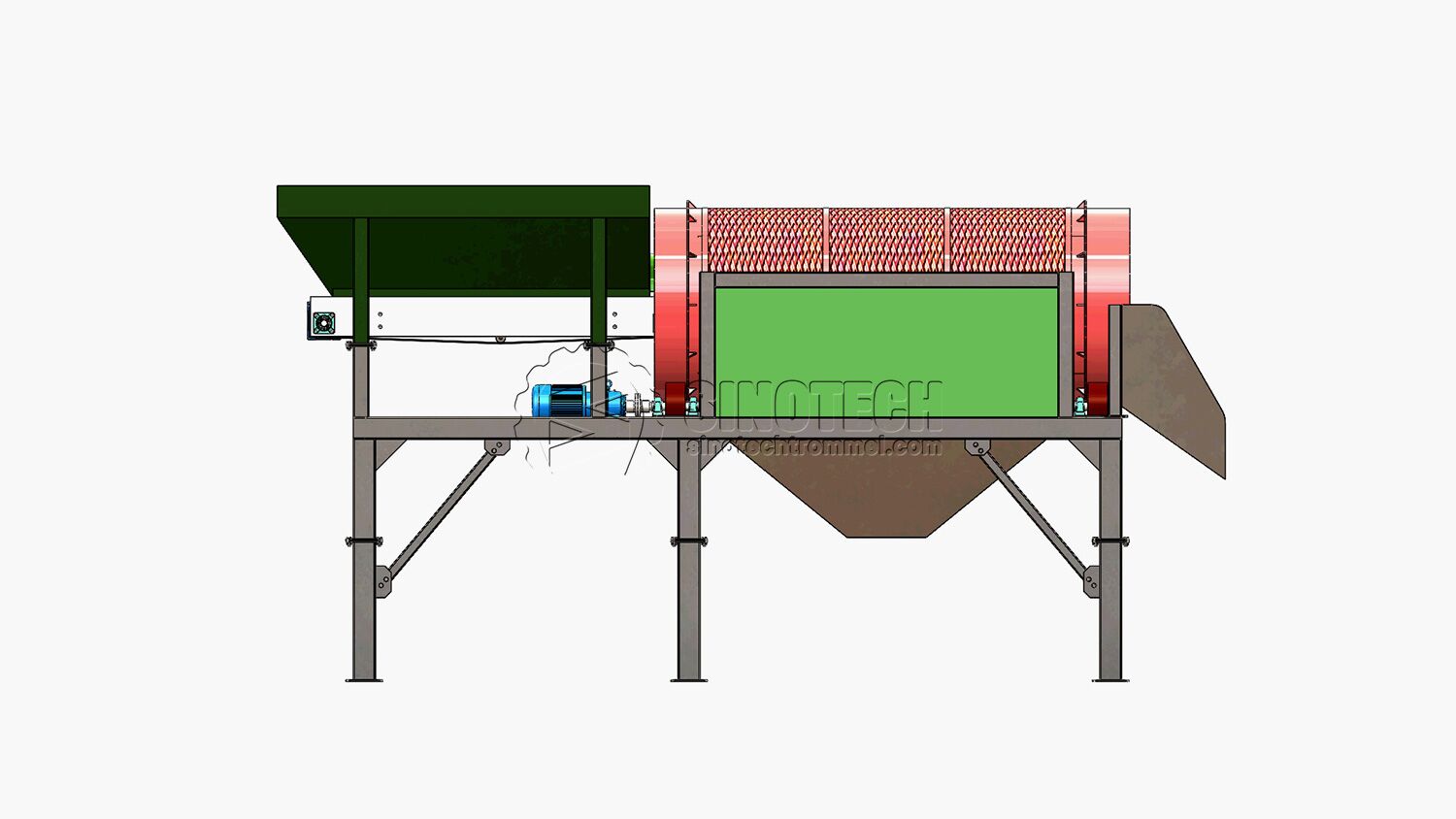

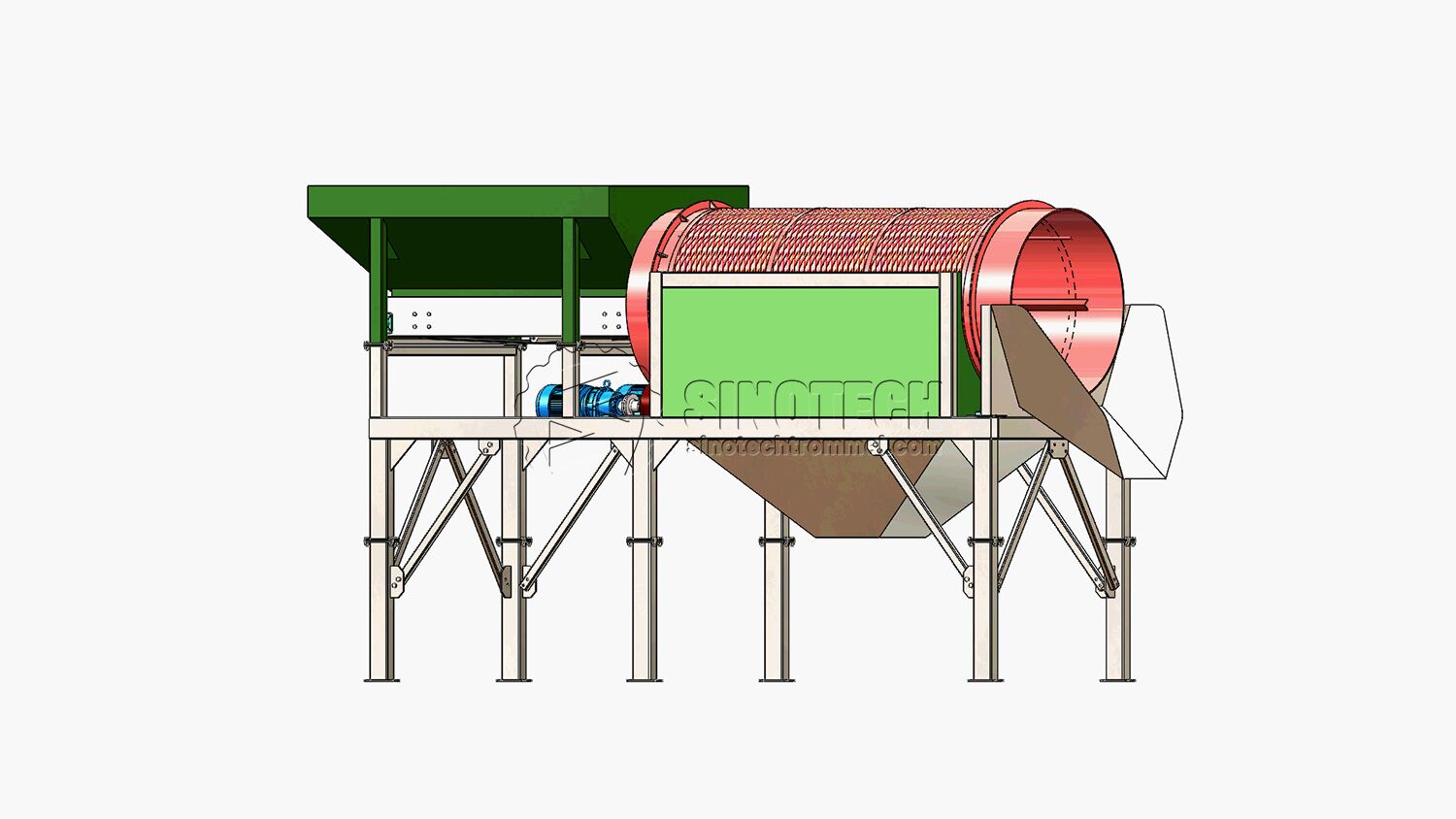

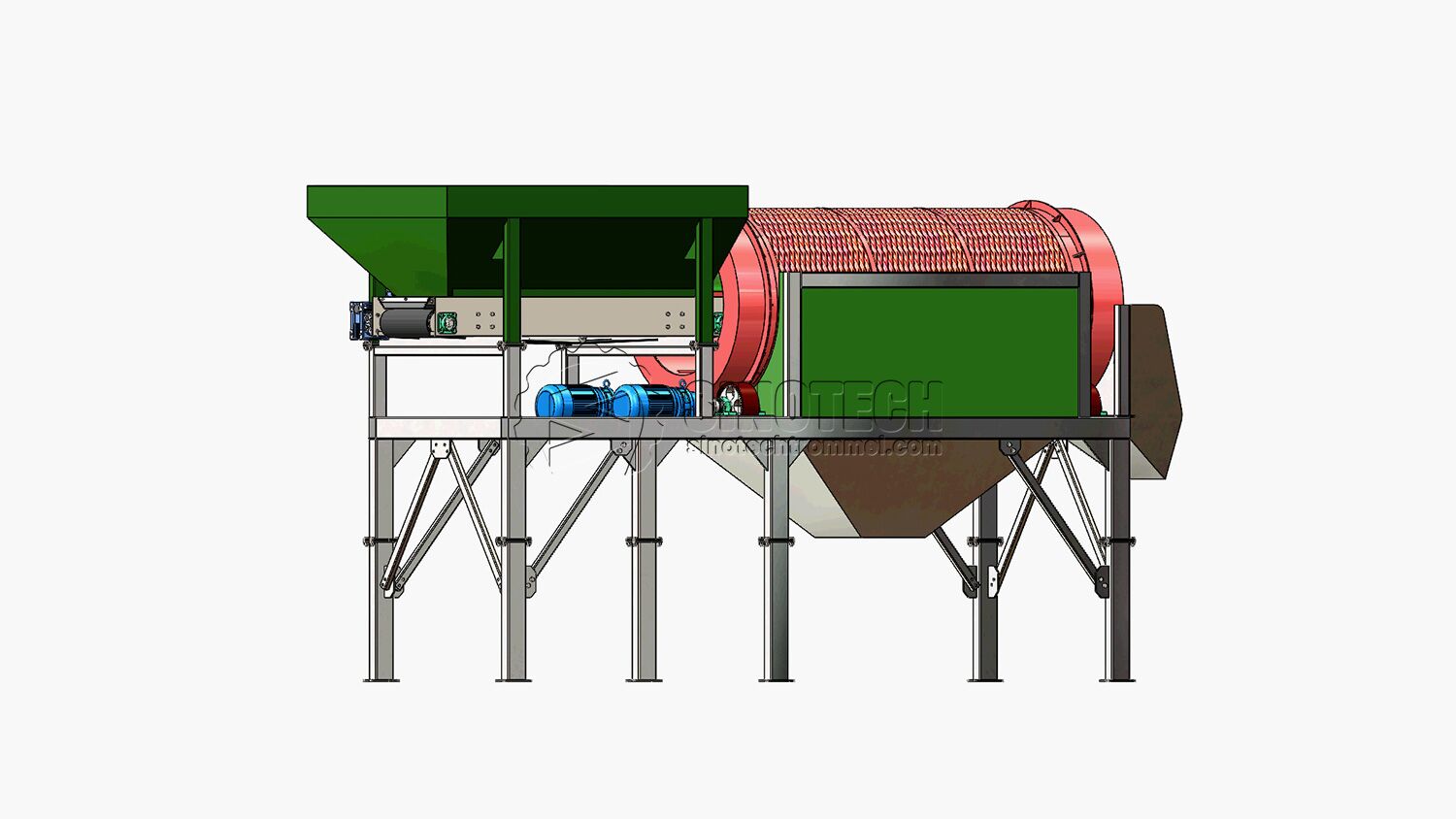

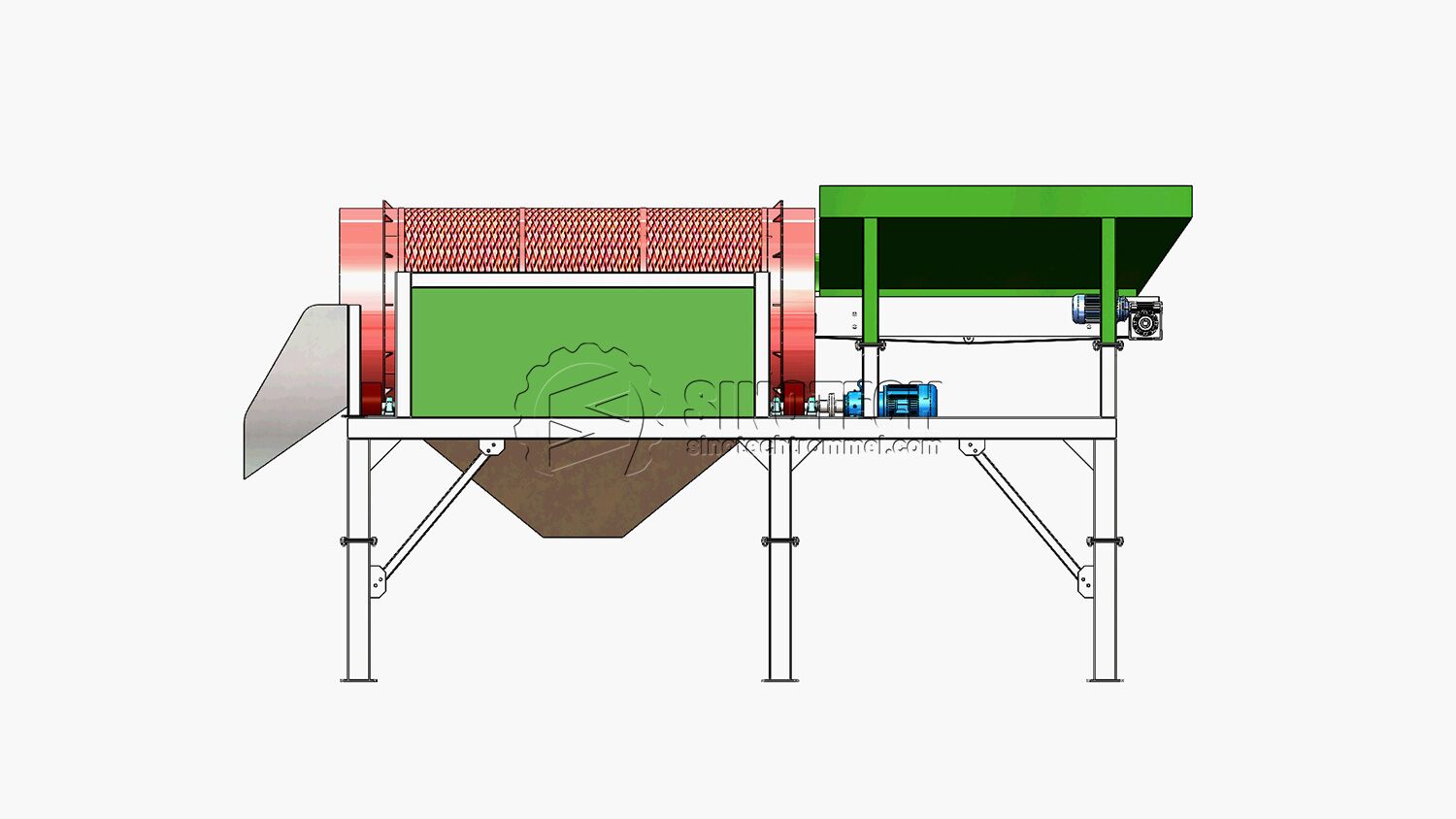

Static trommel screen model TS1230 (drum diameter 1200mm, drum length 3000mm) is developed for users in private gardens, farms, construction, etc. The lightweight and compact design makes it easy to transport and use on a variety of sites.

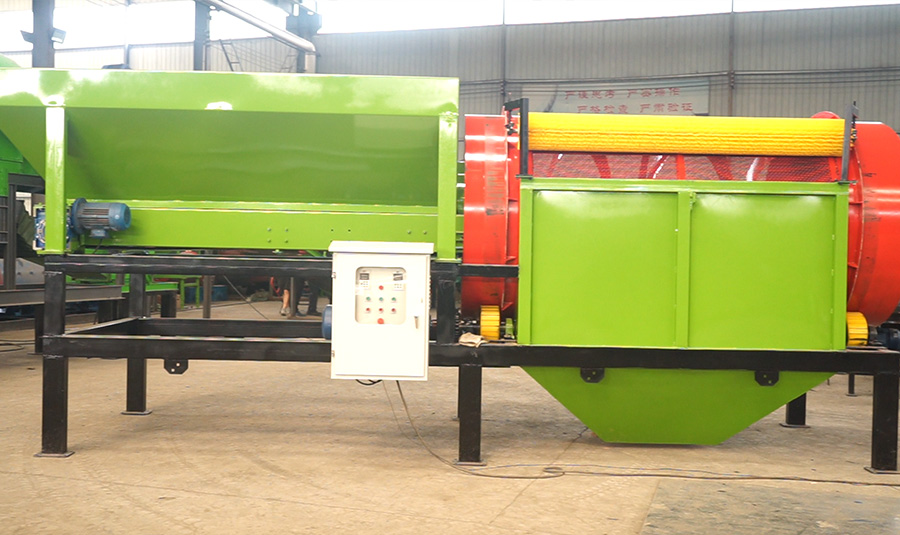

The side uses nylon brushes to prevent materials from sticking to the drum and improve screening efficiency. Manganese wire woven screens and steel plate punching screens can be selected according to the material.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 30-70 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1200 | |
| Trommel length (mm) | 3000 | |
| Screening area approximately (m²) | ≈8.93 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2350 |
| Feed hopper width (mm) | 1500 | |
| Volume (m³) | ≈1.94 | |
| Transportation dimensions | Transportation status length (mm) | 5380 |
| Transportation status width (mm) | 1520 | |
| Transportation status height (mm) | 2250 | |
| Weight (kg) | ≈2560 | |
High Processing Capacity: Handles large volumes of material with ease.
Special Screening Mesh: Delivers high efficiency and extended service life.
Consistent Performance: Runs smoothly with minimal noise for a better work environment.
Clog-Resistant Design: Mesh holes stay clear for continuous operation.
Low Maintenance Needs: Simple structure makes upkeep fast and hassle-free.
Built for Reliability: Engineered for stable, long-term screening performance.
