Price: $9600-10700 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 15-40 m³/h
Diesel or Electric Power
Screening surface: 4.83 m²
Weight: approx. 2750 kg
Processed materials: Efficiently process Firewood, Dirt, Gravel, Soil, Topsoil, Sand, Rock, Wood Chips, plus all Organic and Mineral Aggregates.
Factory direct shipping to Oceania, EU, and the US, globally
Innovative Shaftless Design with Foldable Conveyors for Easy Transport — High Throughput & Anti-Clogging System.

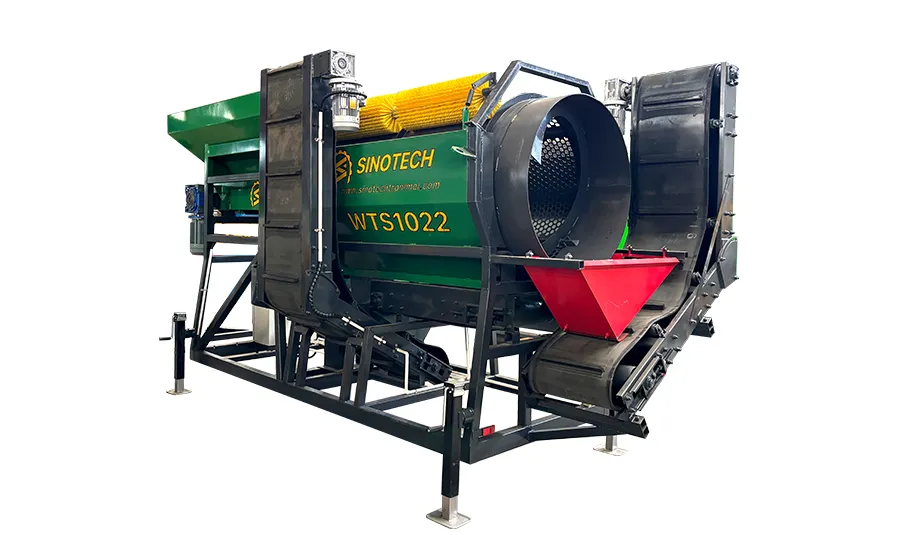

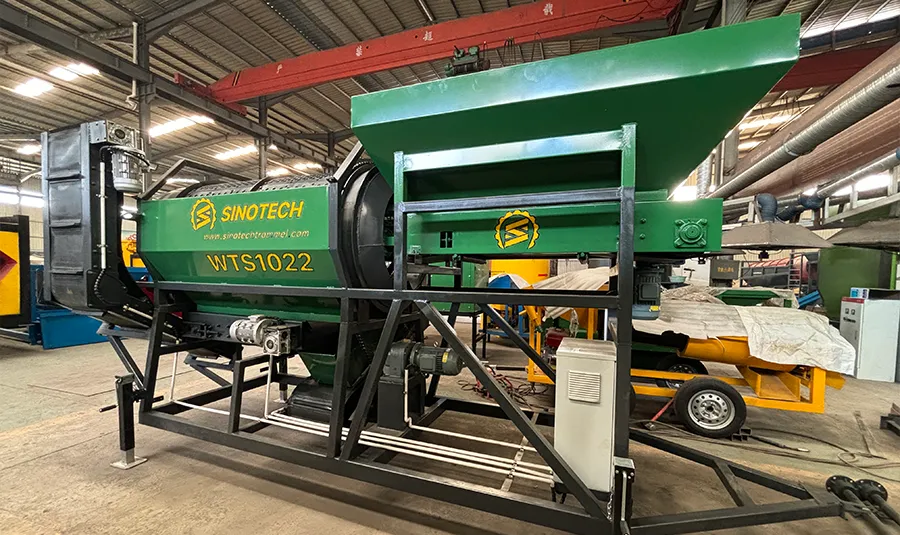

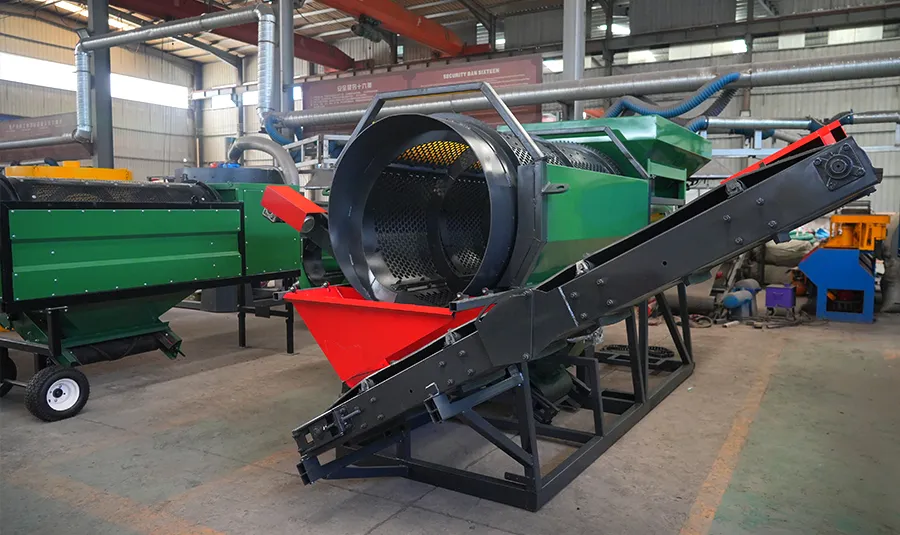

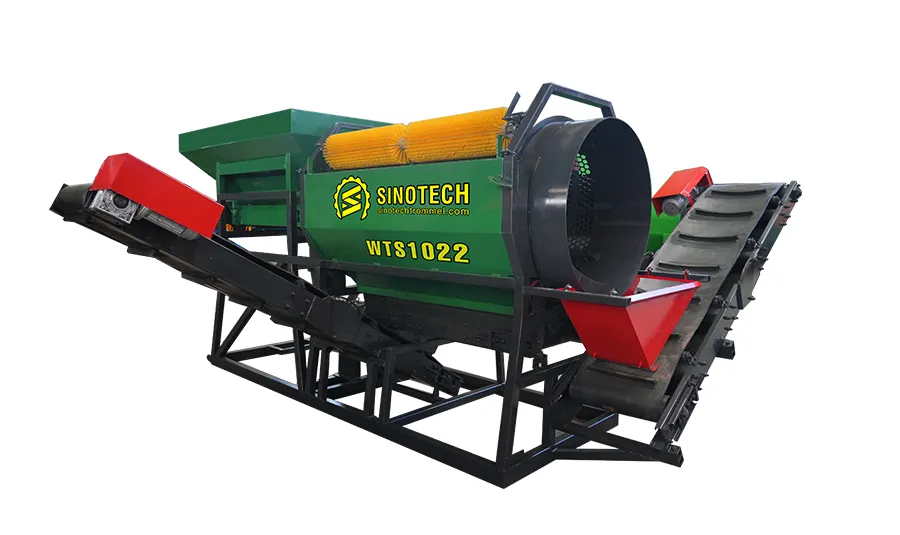

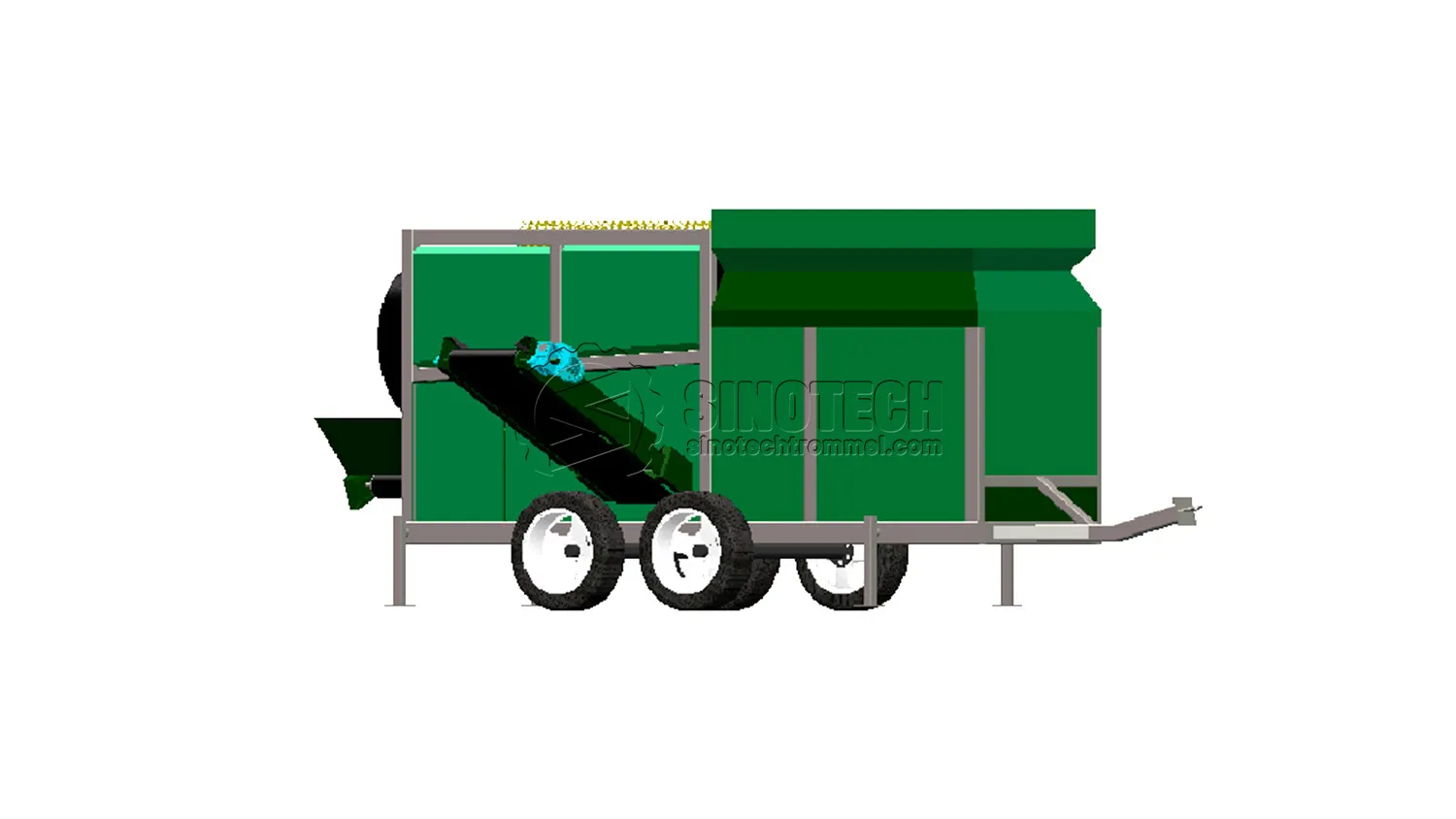

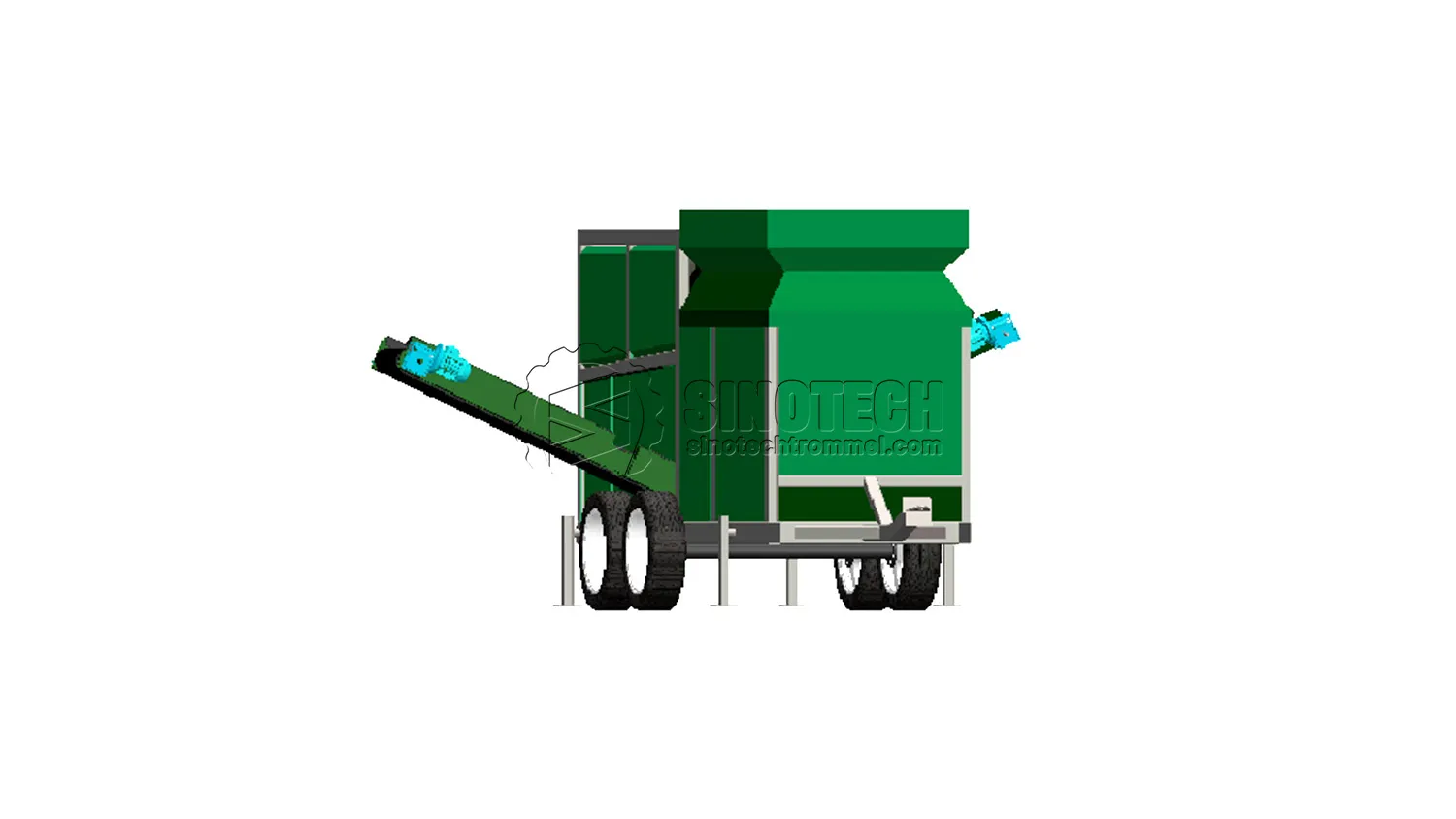

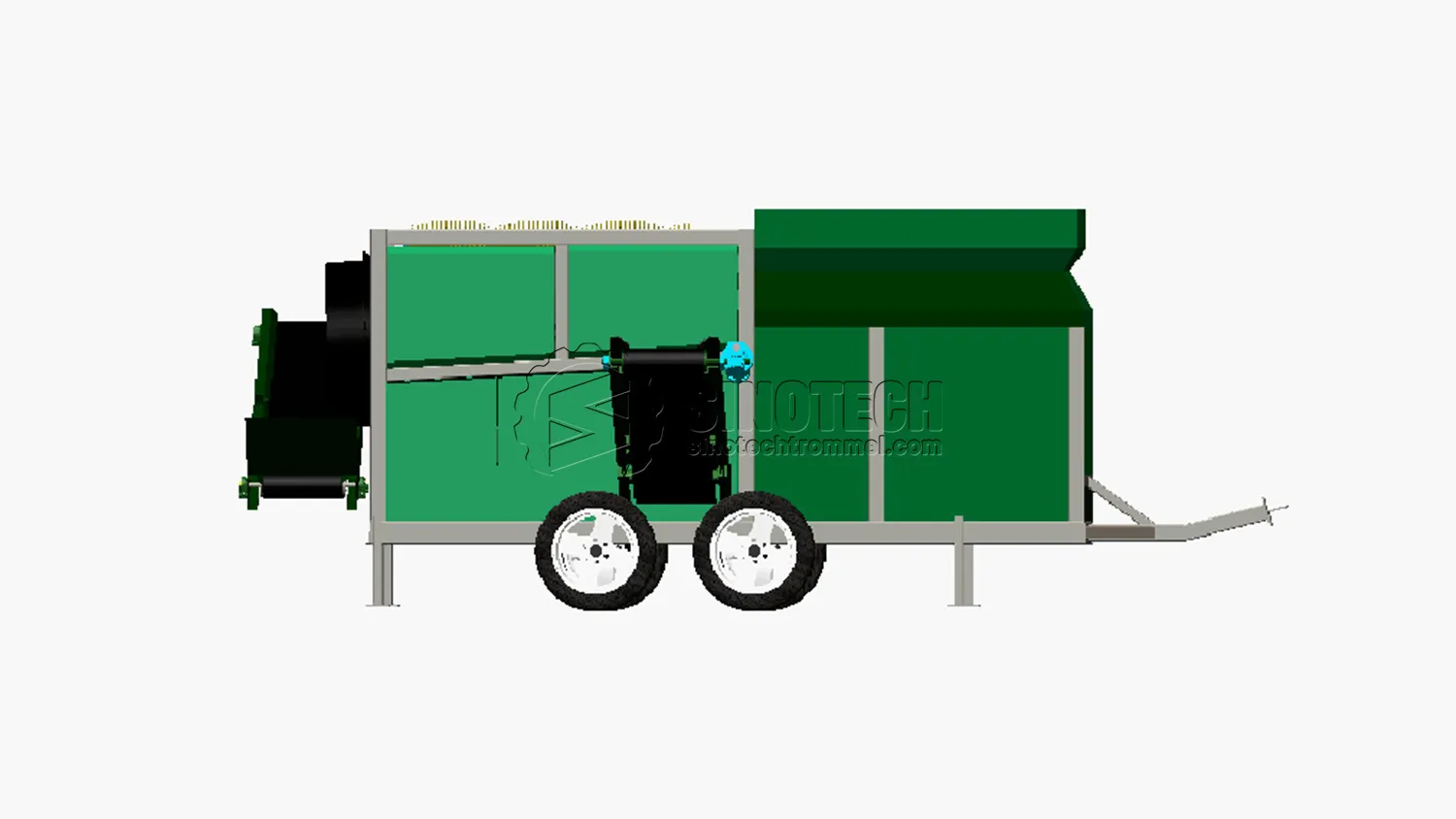

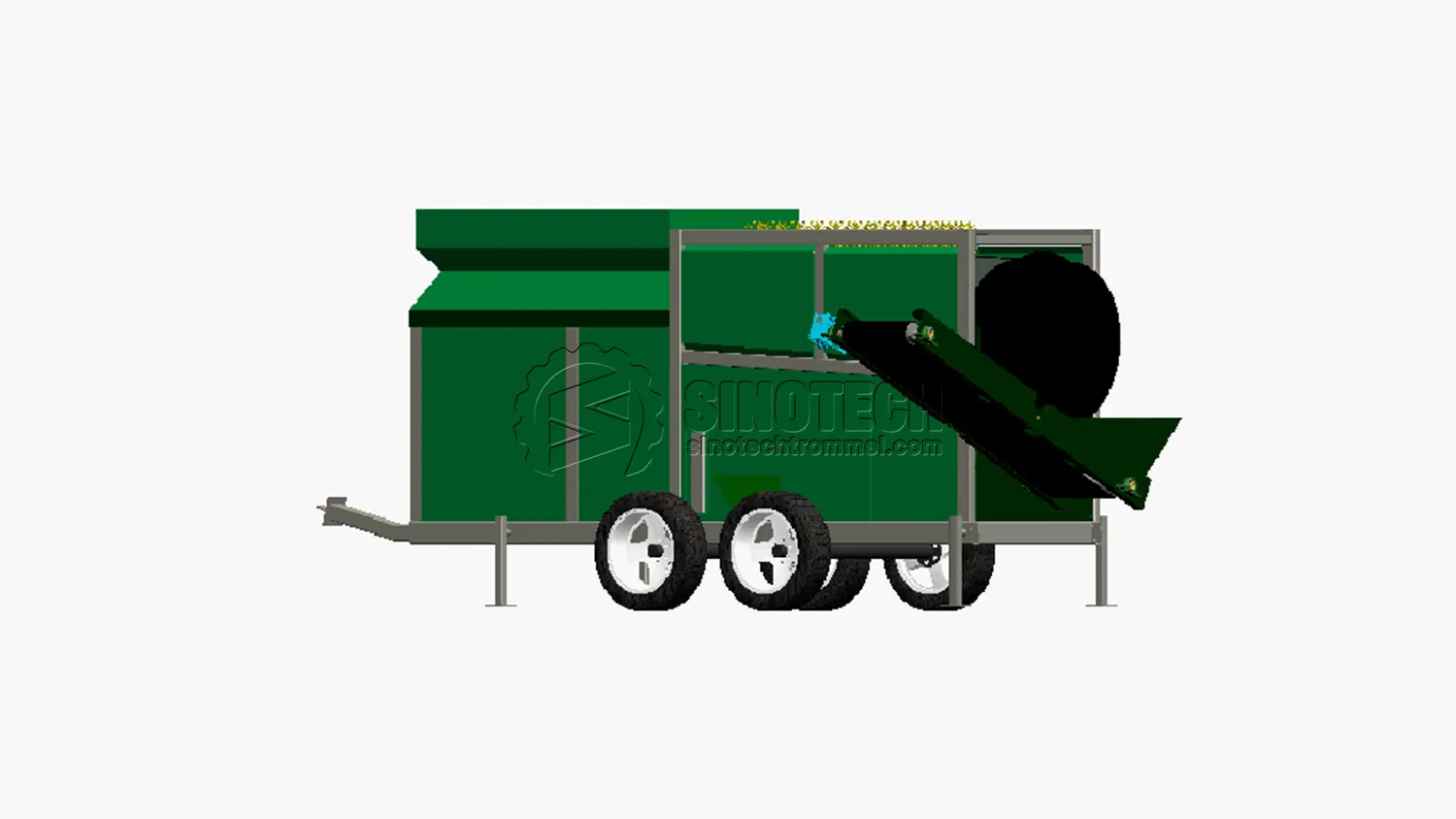

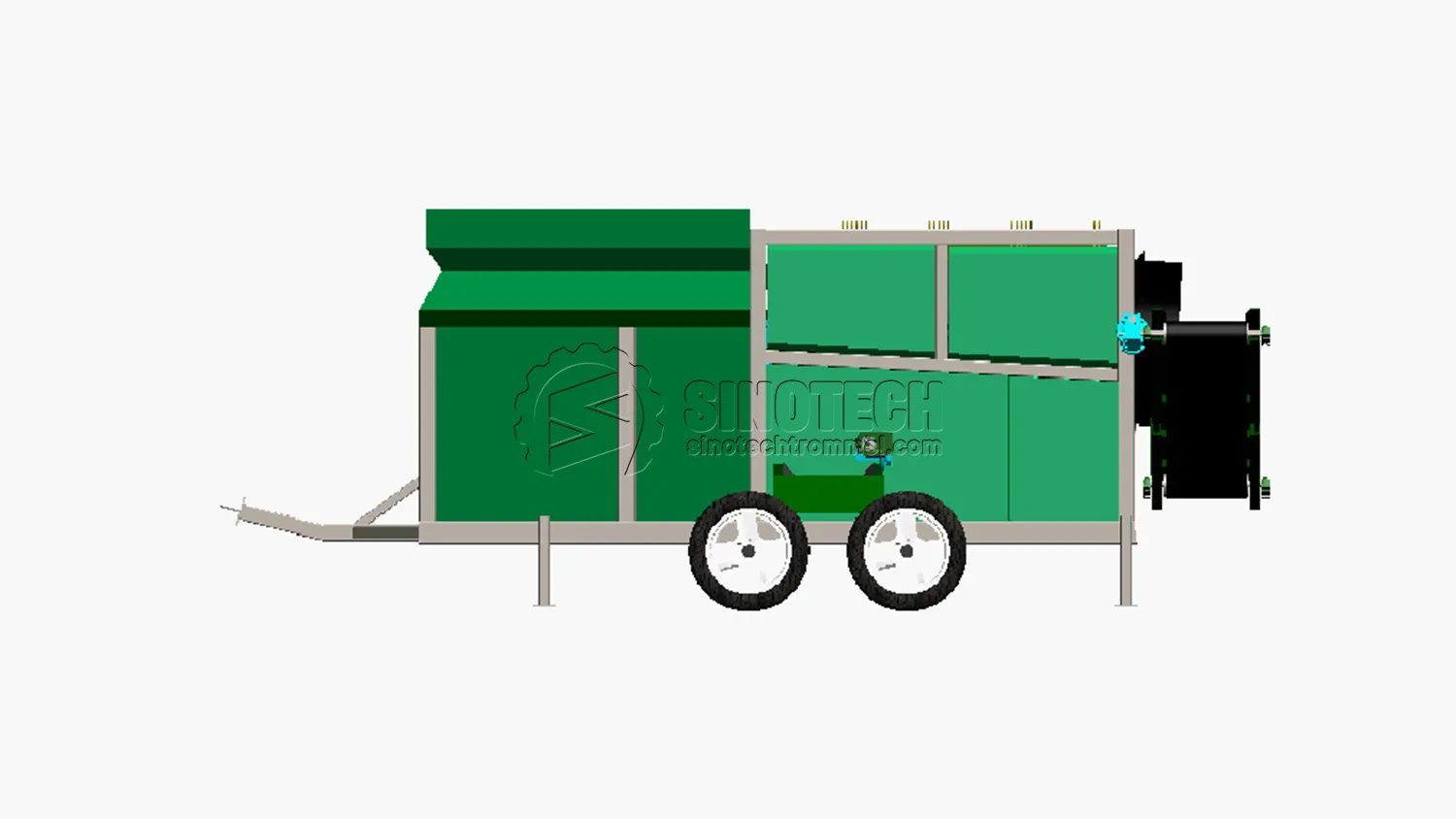

The WTS1022 Shaftless Trommel Screen is engineered for superior material processing. Its innovative shaftless design effectively prevents blockages when handling bulky materials like gravel and construction waste, while delivering high-purity classification for finer materials like topsoil and compost. Built with a durable, low-noise hardened gear reducer, this machine guarantees reliable performance and maximum throughput.

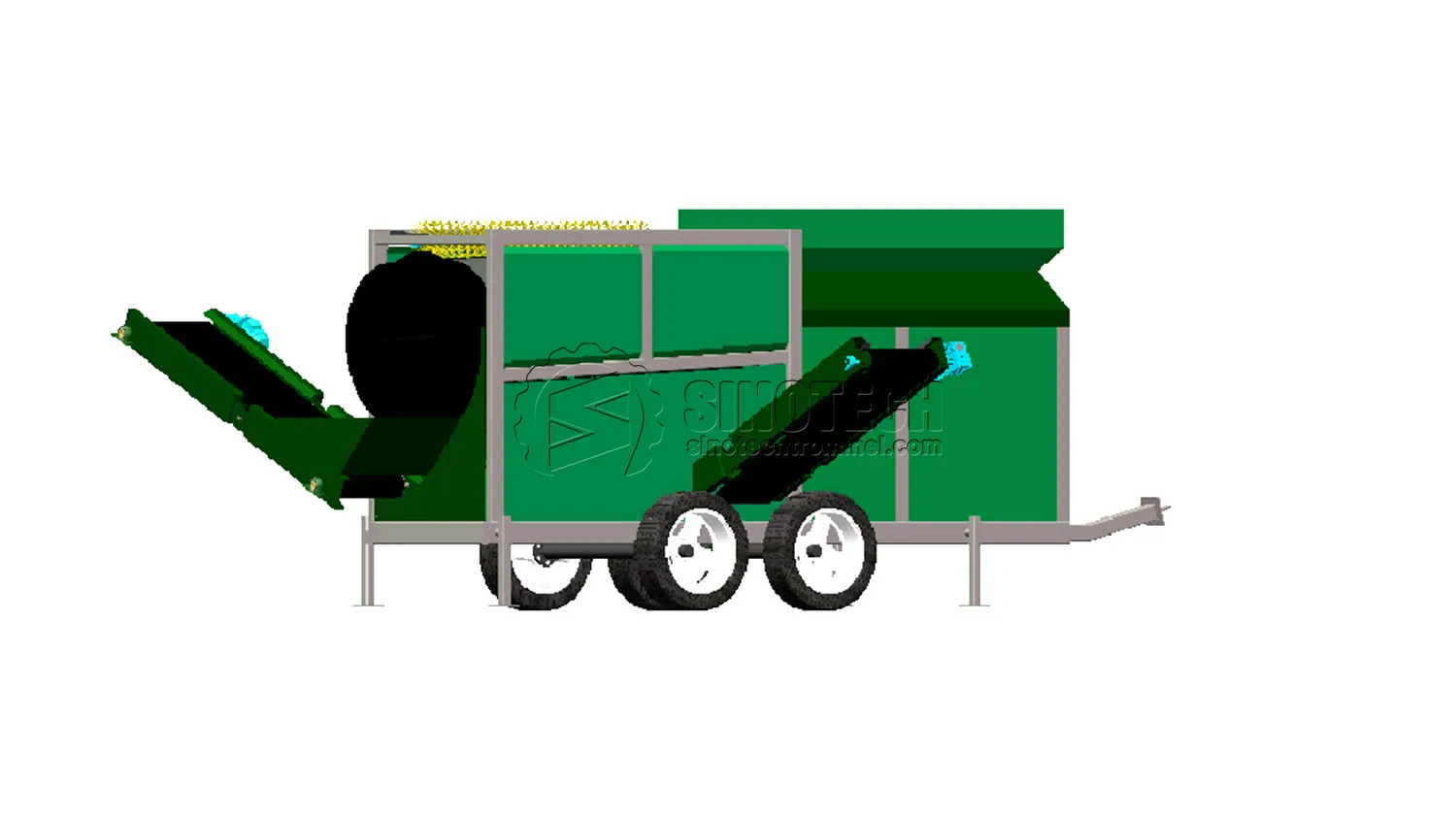

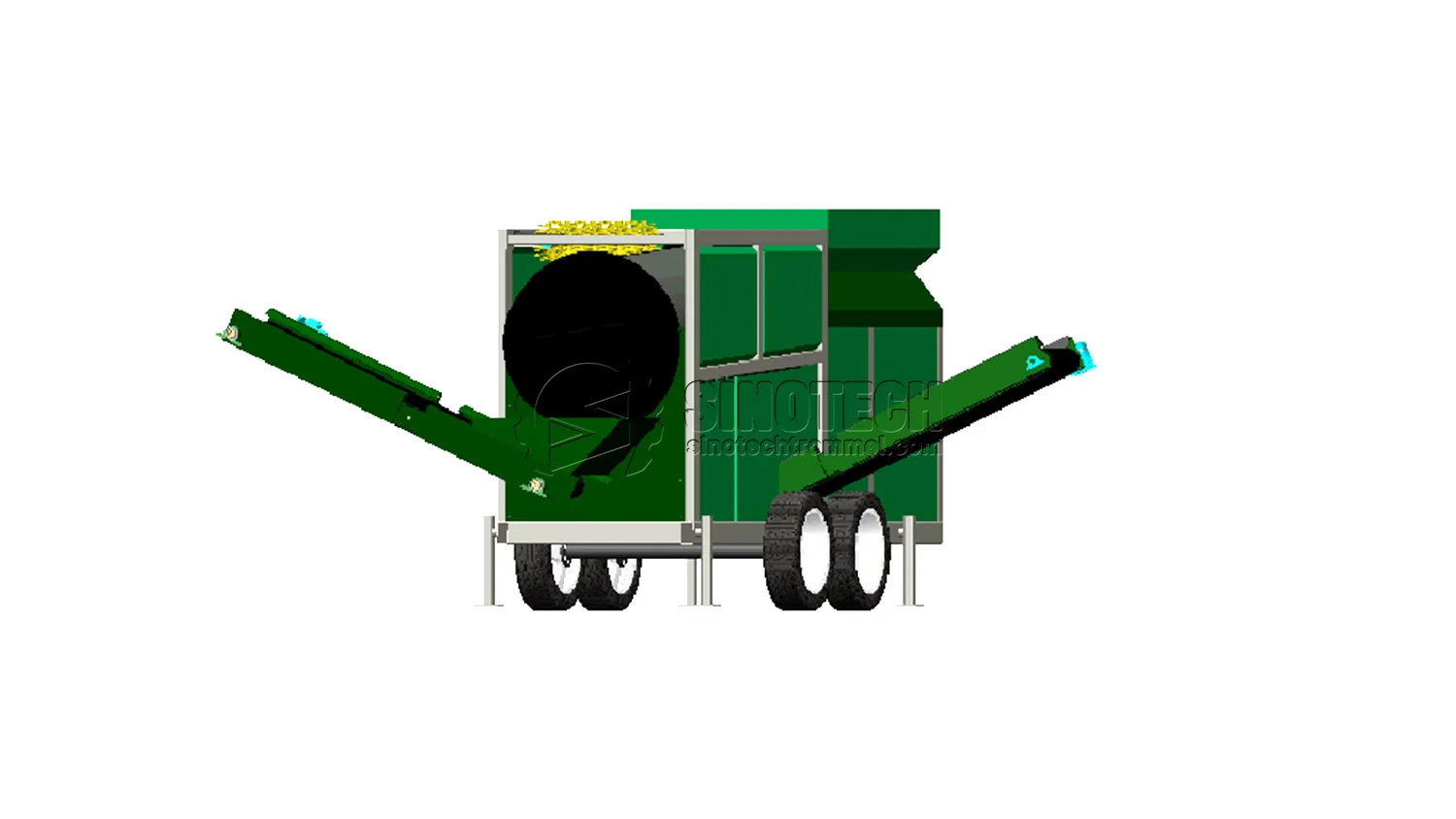

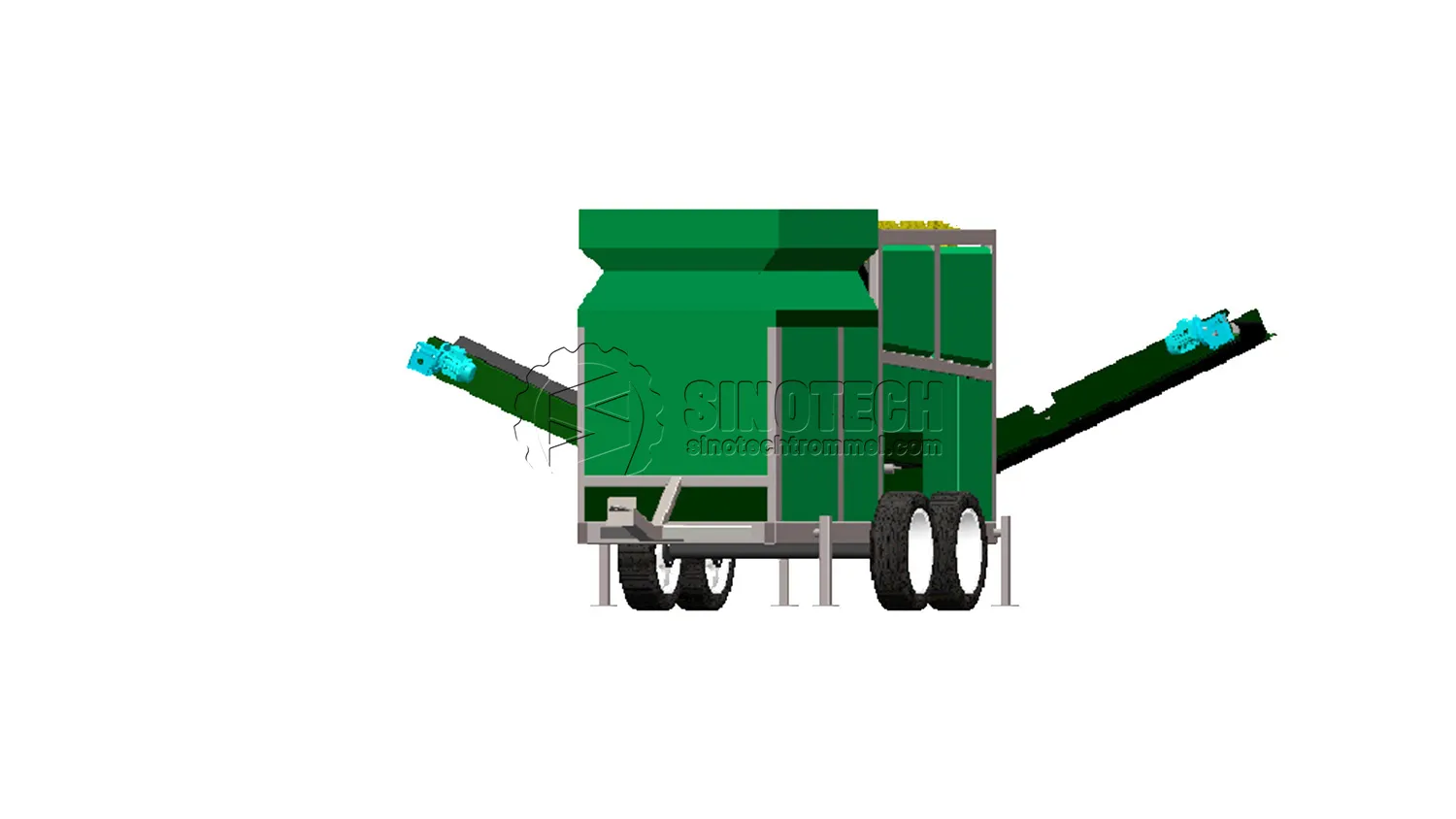

Designed for ultimate convenience, the WTS1022 features two fully foldable conveyor belts, significantly simplifying transport and enabling rapid on-site setup. Operational efficiency is further enhanced by an integrated anti-clogging brush system, ensuring continuous, stable running and minimal maintenance interruptions.
The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 15-40m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1000 | |
| Trommel length (mm) | 2200 | |
| Screening area approximately (m²) | ≈4.83 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2000 |
| Feed hopper width (mm) | 1320 | |
| Volume (m³) | ≈1.24 | |
| Transportation dimensions | Transportation status length (mm) | 4330 |
| Transportation status width (mm) | 1920 | |
| Transportation status height (mm) | 2150 | |
| Weight (kg) | ≈2750 | |
Shaftless Design: The innovative shaftless structure prevents material blockages, ensuring unhindered processing of bulky and high-volume materials.
Foldable Conveyors: Equipped with two foldable conveyor belts to minimize transportation size and simplify quick on-site deployment.
Integrated Anti-Clogging Brush: A specialized brush system automatically cleans the screen, ensuring stable operation and maximum uptime.
Multi-Material Versatility: Efficiently screens materials ranging from topsoil, compost, and wood chips to heavy gravel and construction aggregates.
Durable Low-Noise Drive: Features a hardened gear reducer for a longer service life and quieter, more reliable performance.
Customizable Screen Precision: Offers single or double-layer configurations with customizable aperture sizes to meet exact sizing requirements.
