Price: $11,000-12,700 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 14-40 m³/h
Diesel or Electric Power
Screening surface: 7.09 m²
Weight: approx. 3450 kg
Processed materials: Compost, Concrete, Demolition Waste, Gravel, Rock, Sand, Soil, Stone, Topsoil
Factory Direct Shipping to Oceania, EU, and the US, Globally
Eco-Friendly Electric Screener with SEW-Geared Motors and Load-Sensing Control — High Efficiency & Low Noise.

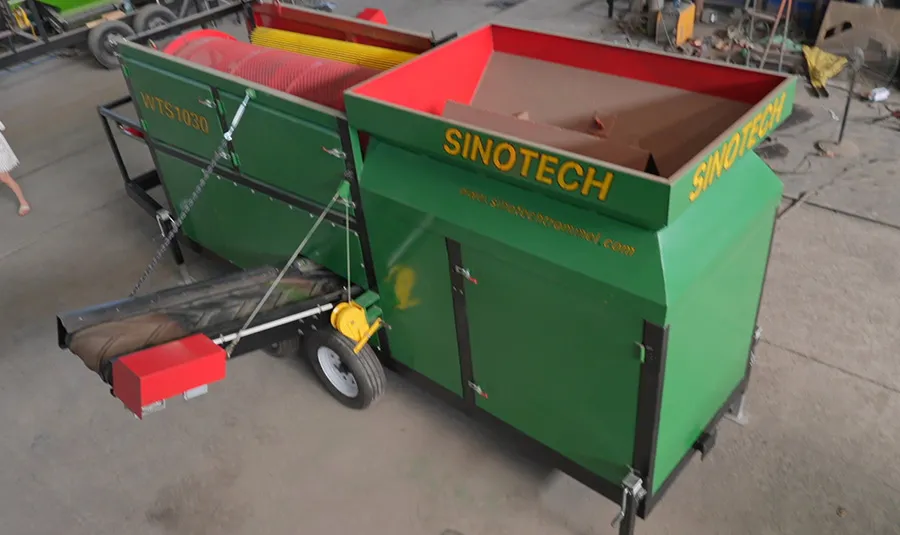

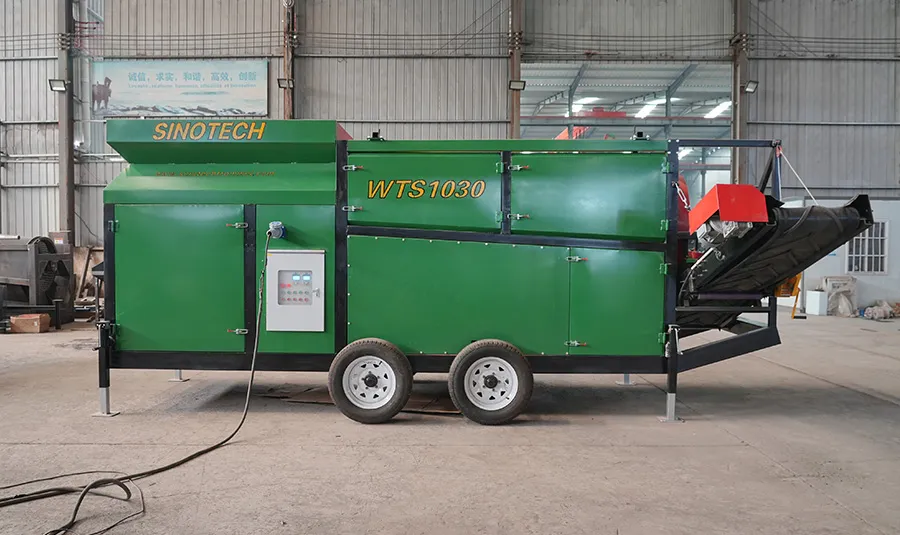

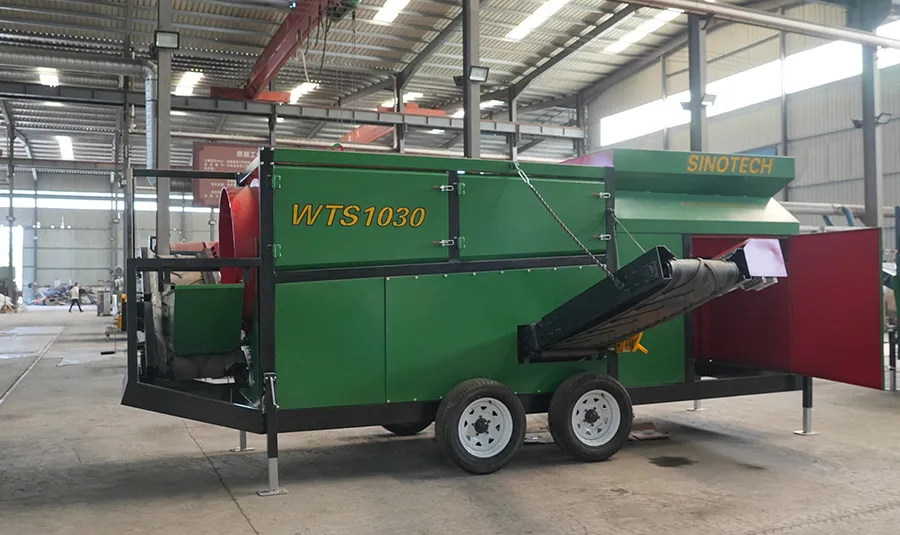

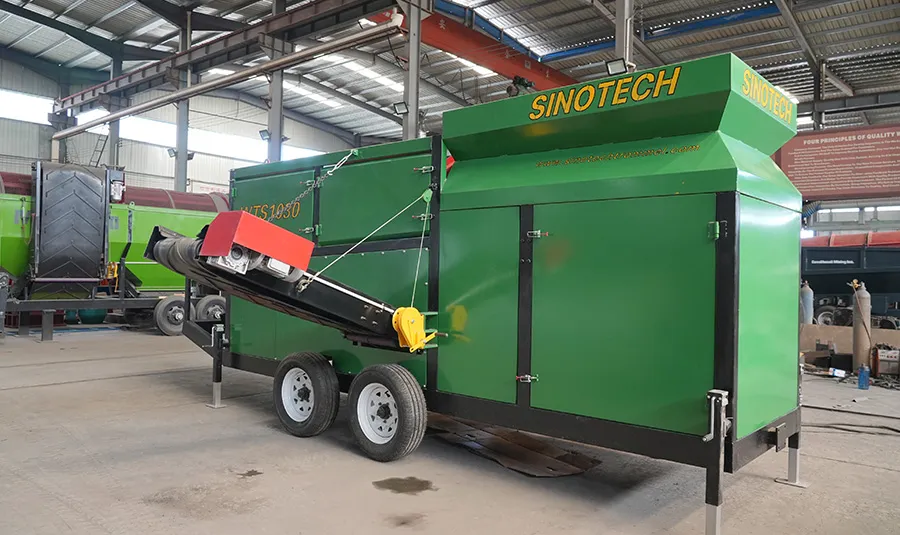

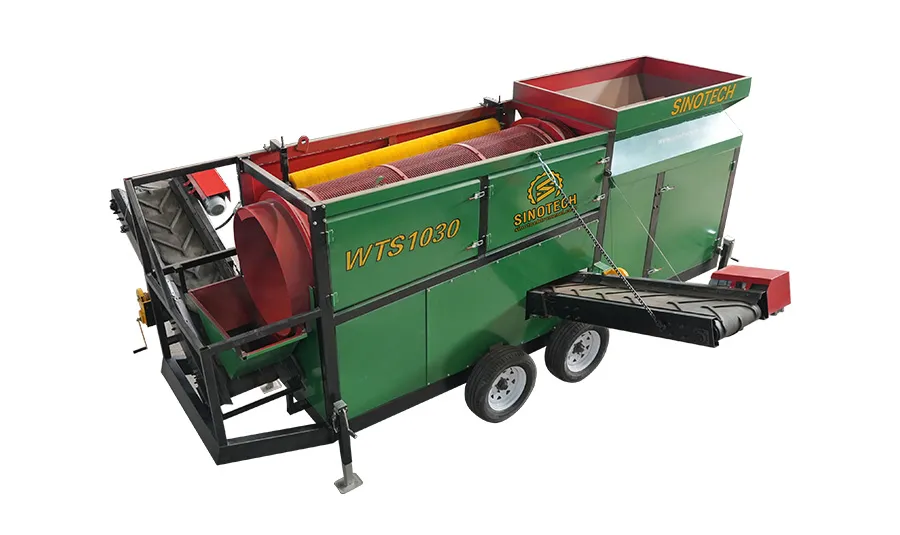

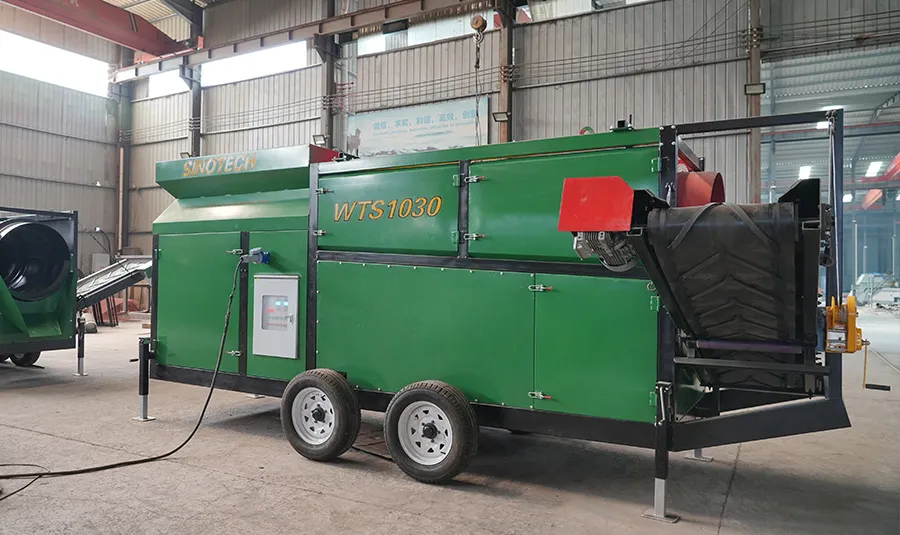

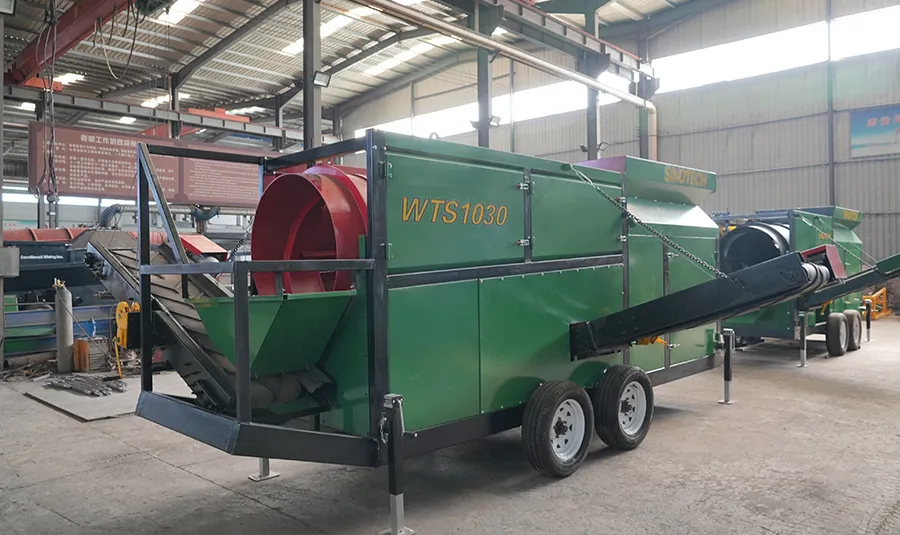

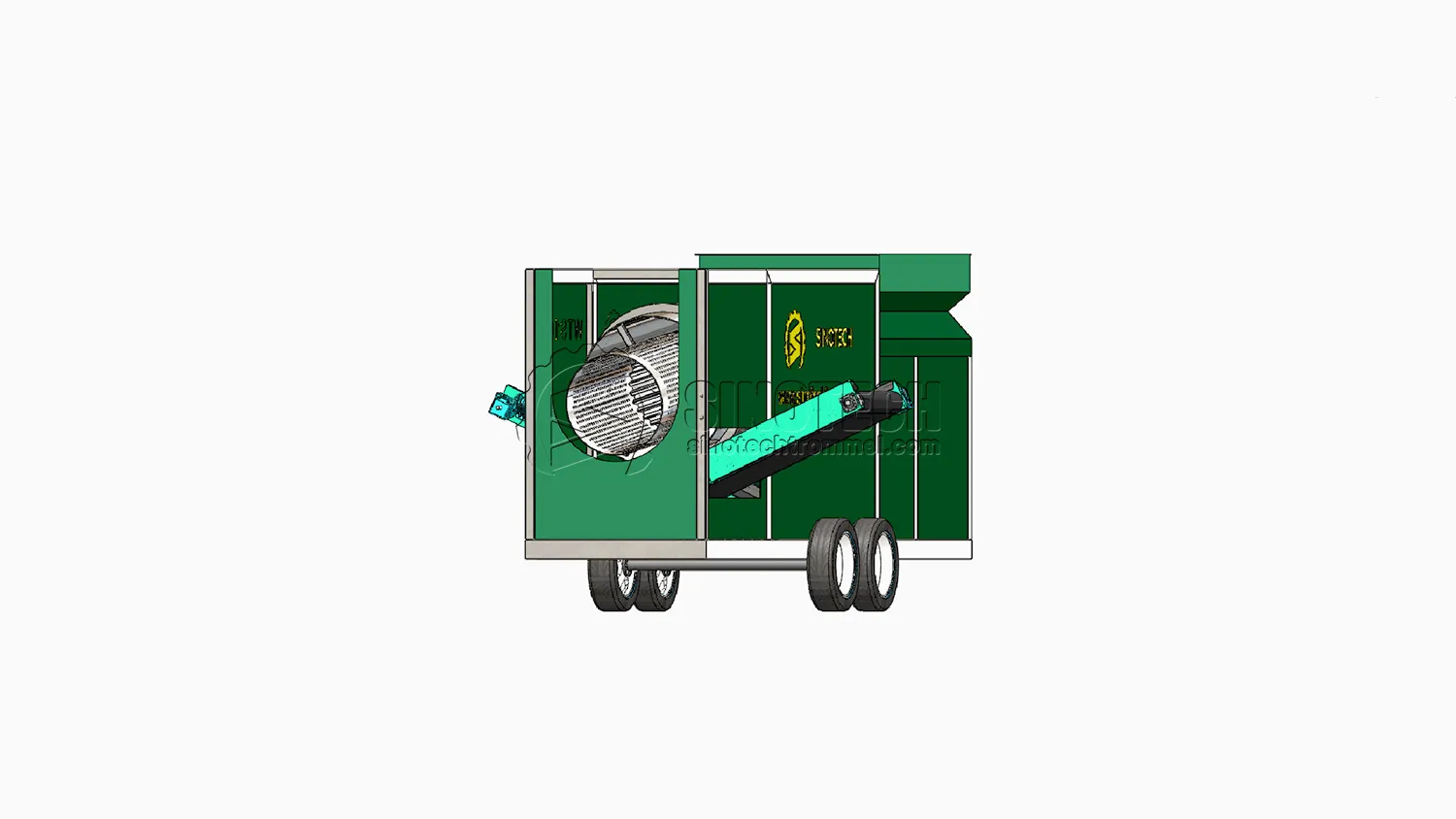

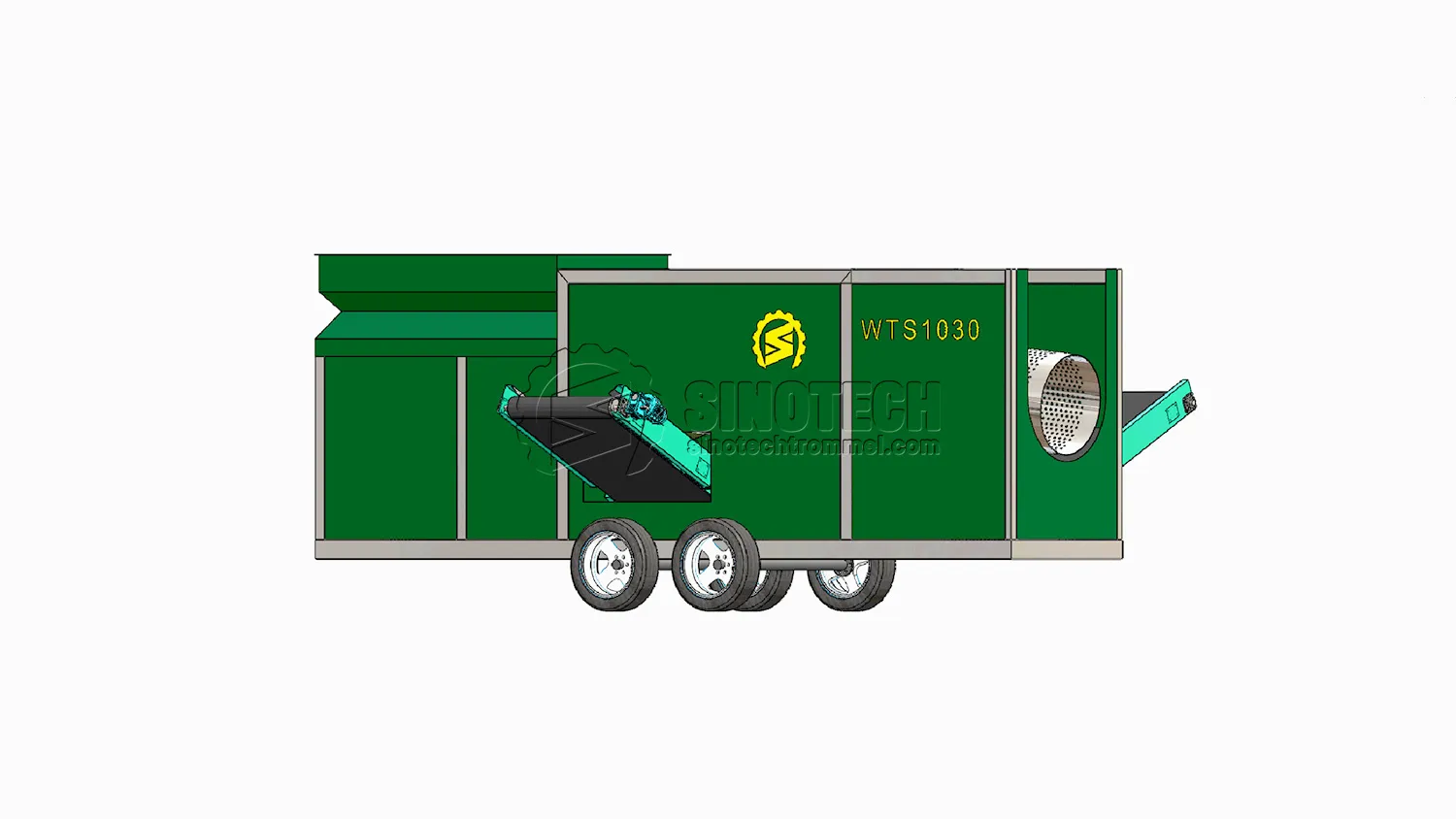

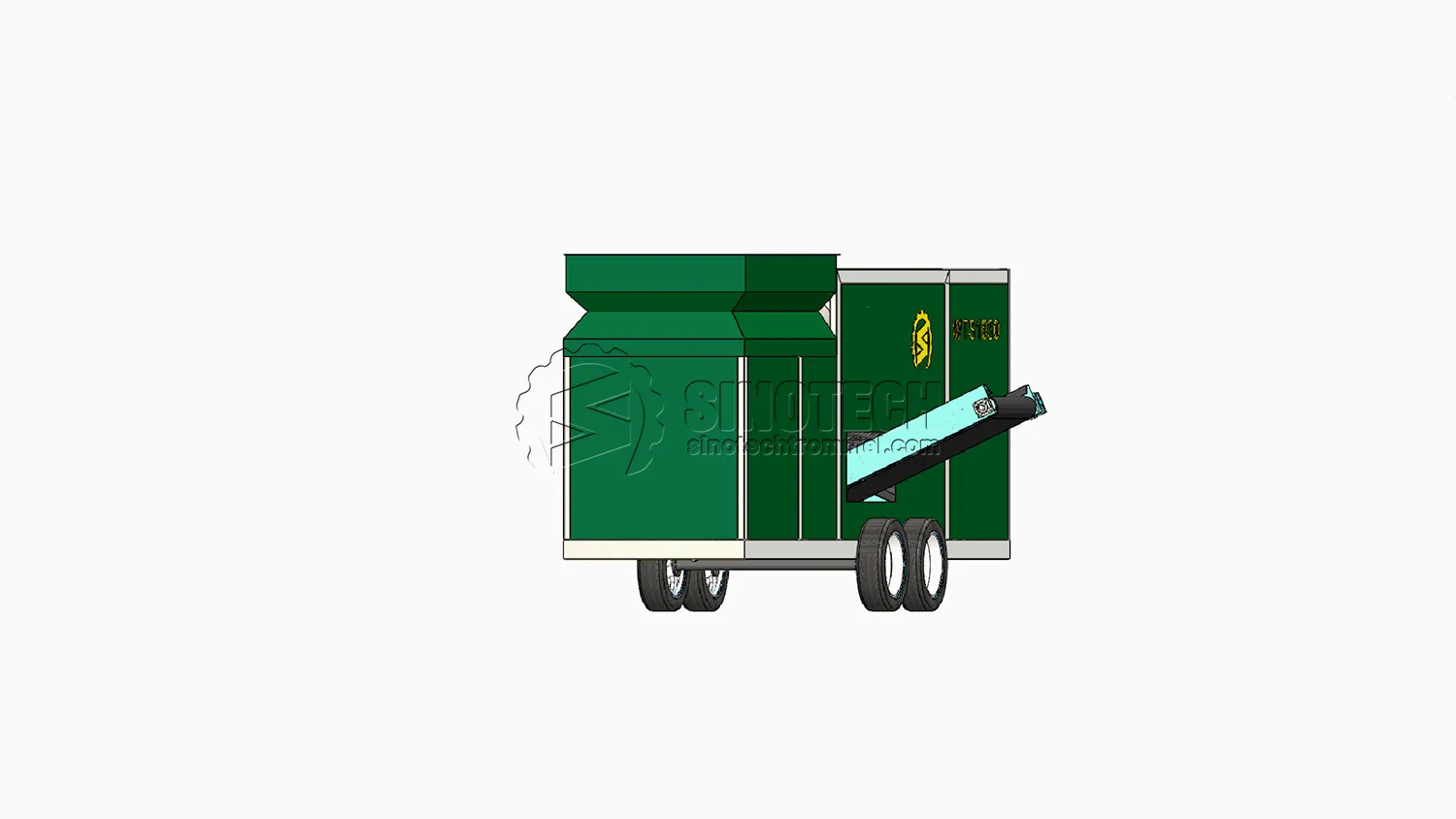

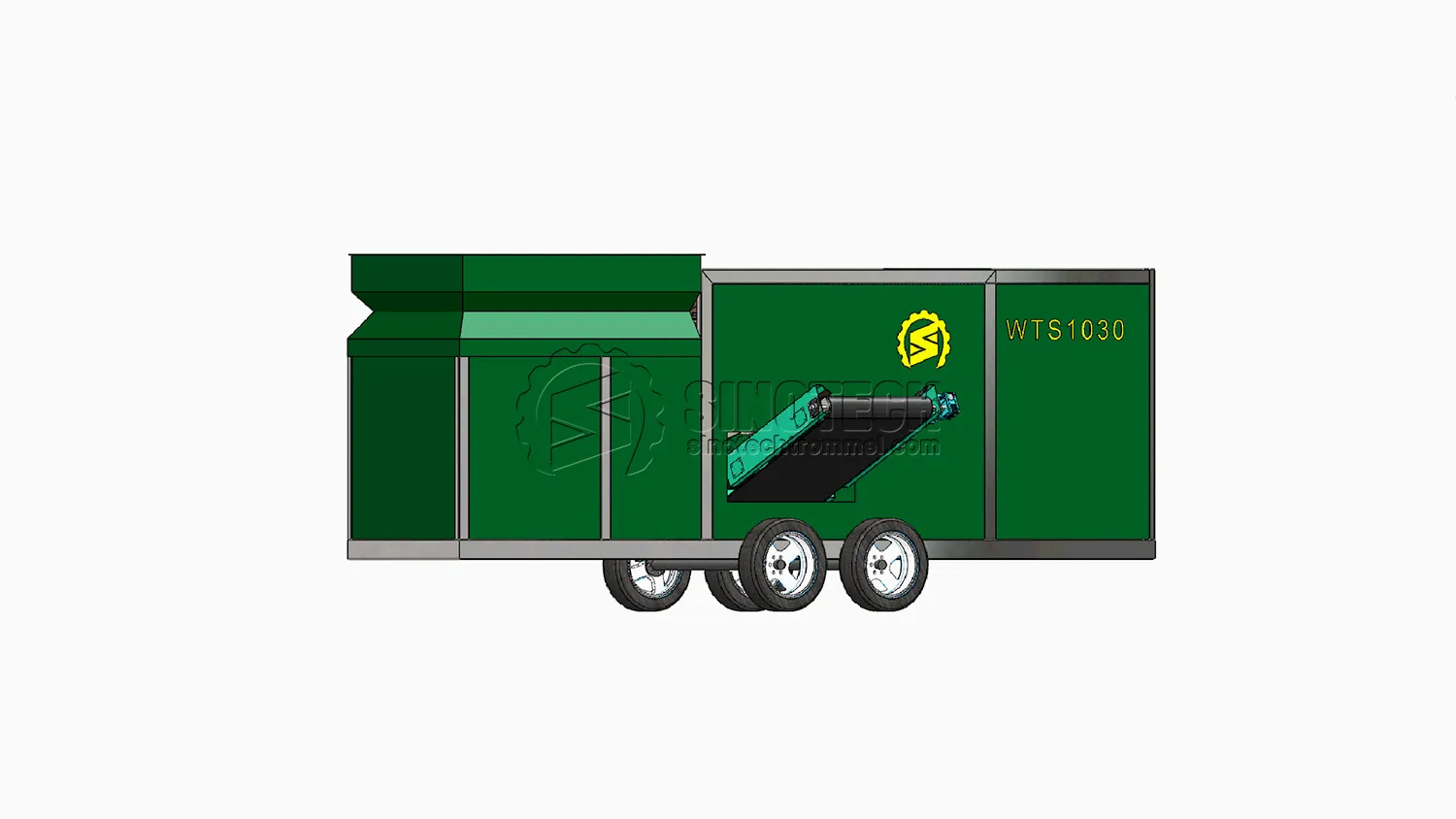

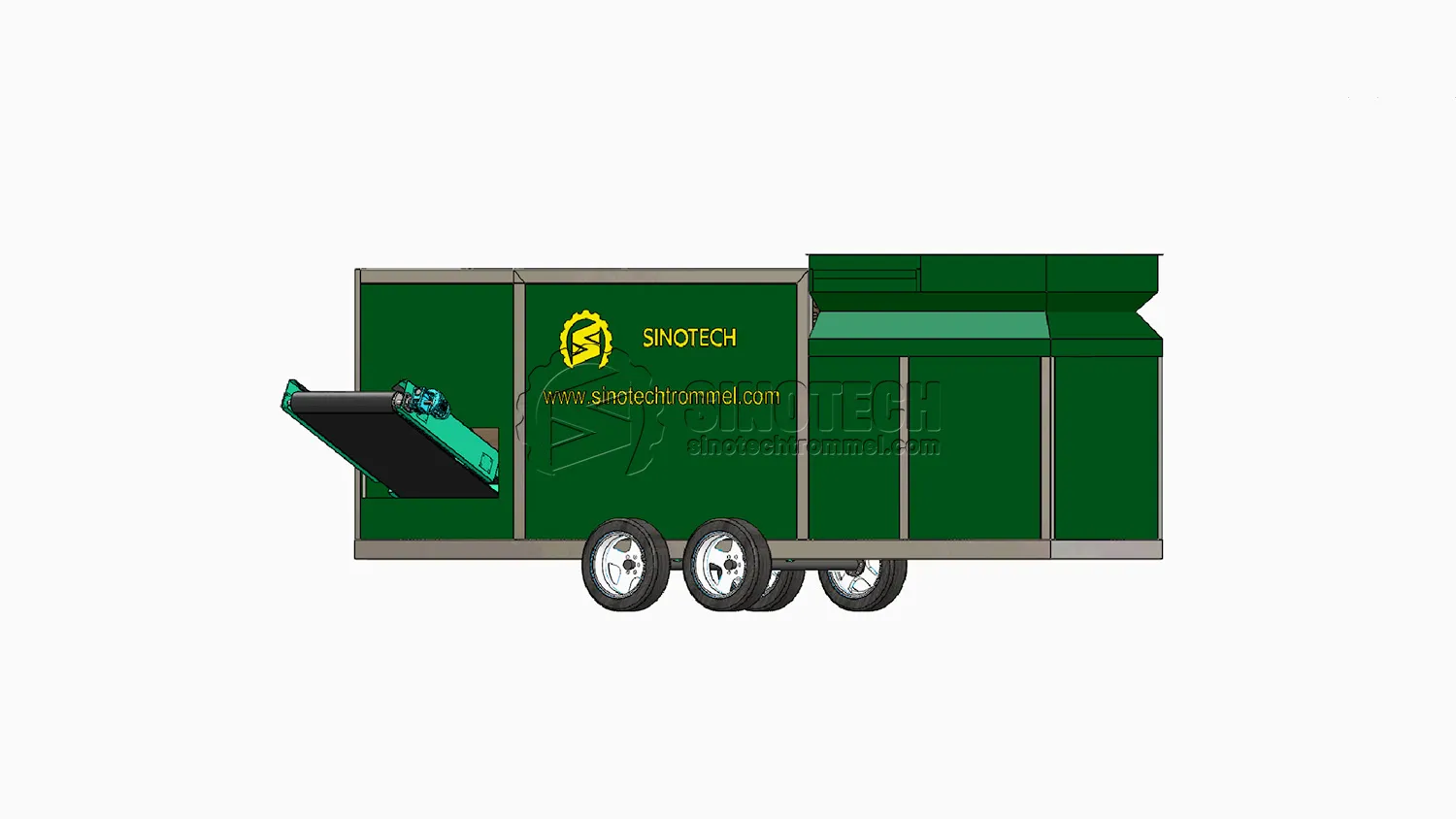

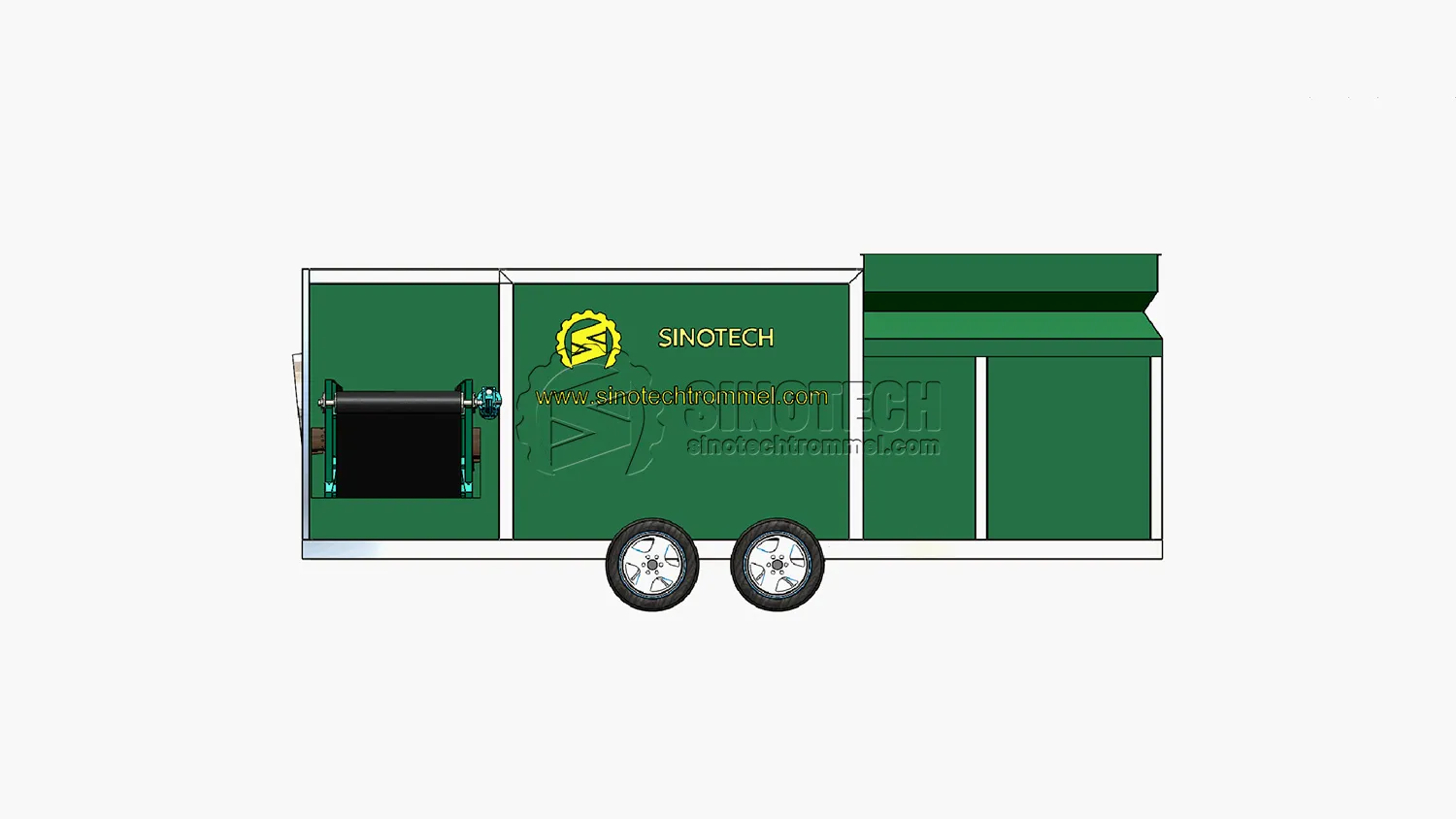

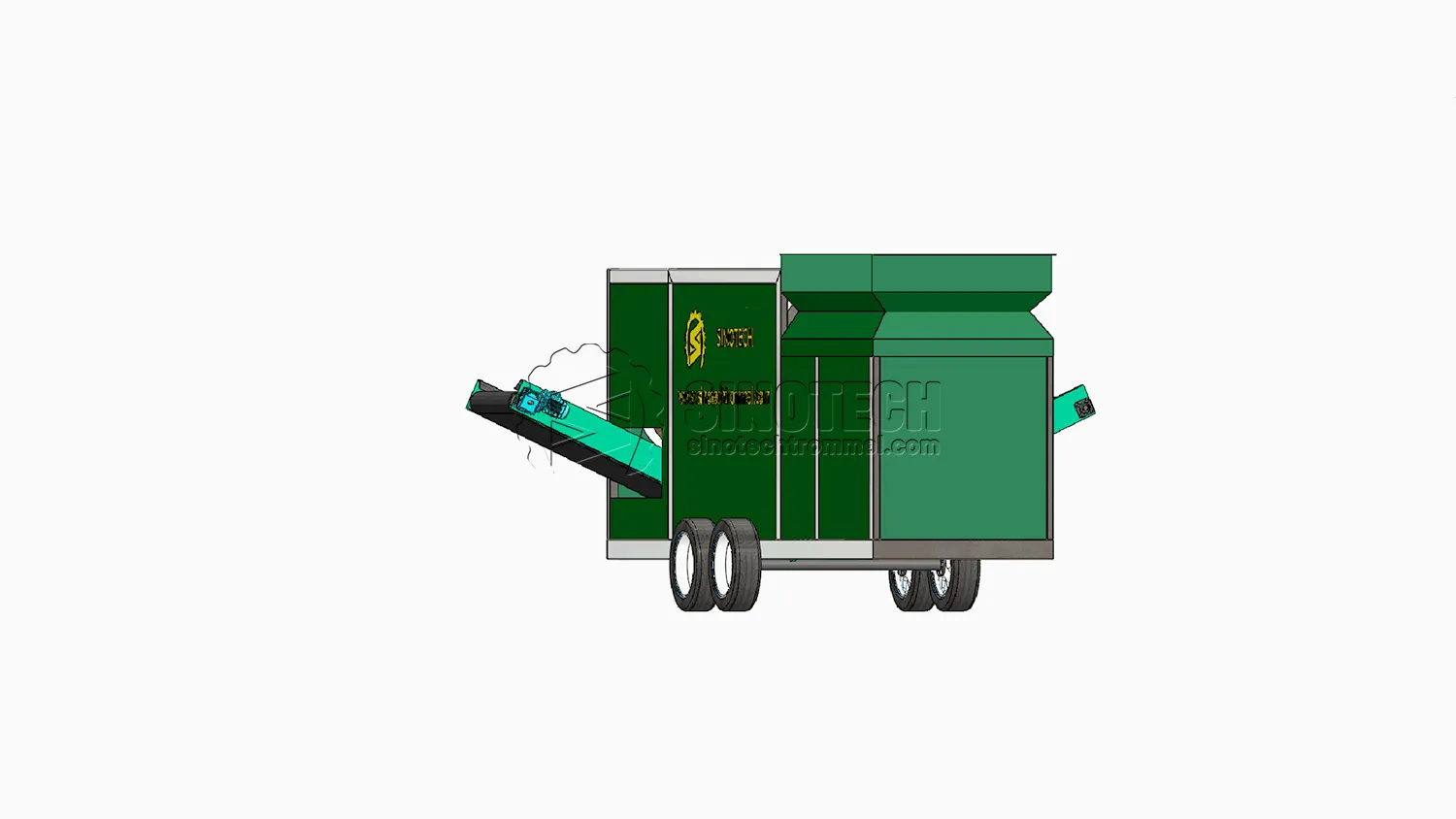

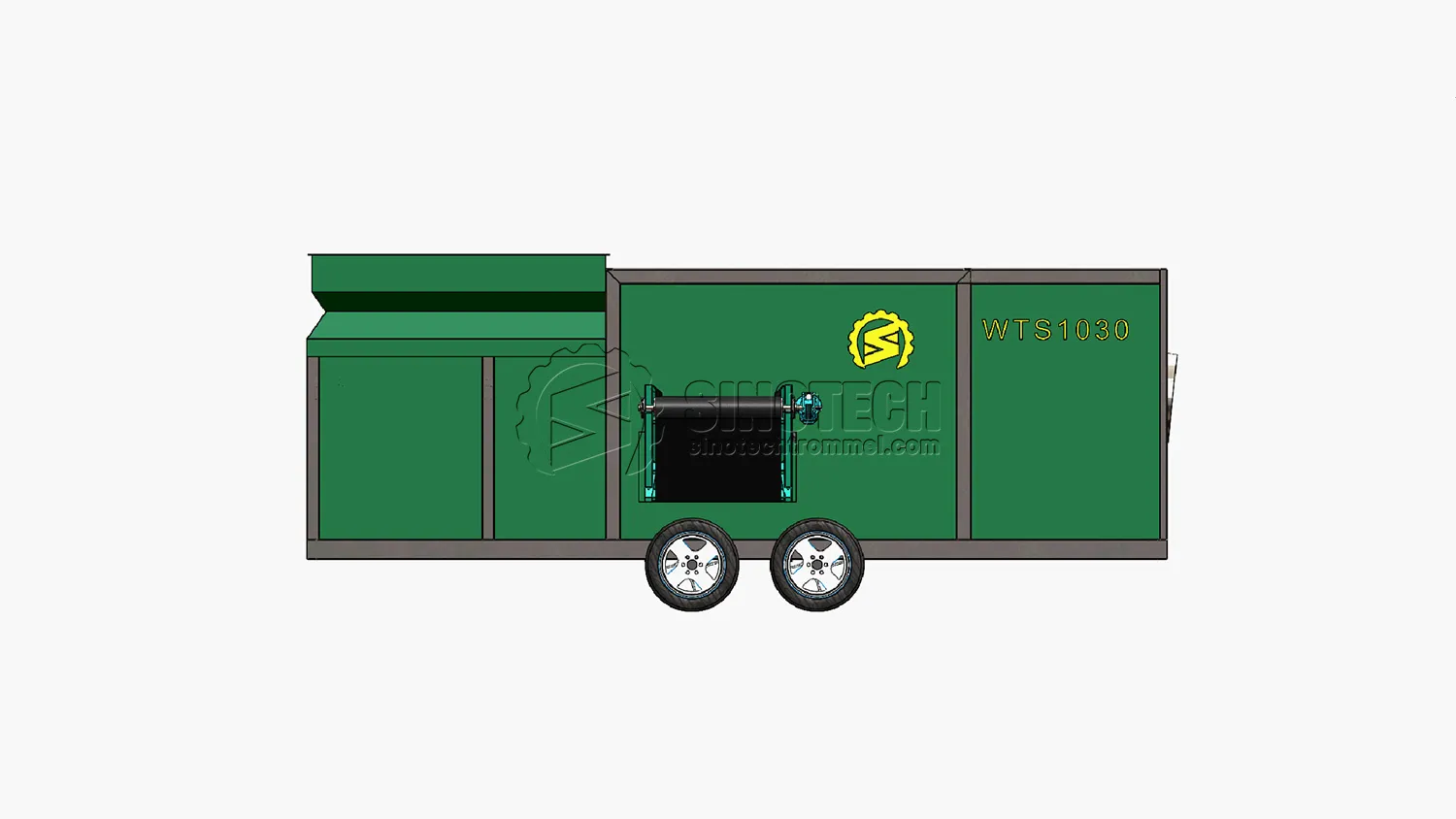

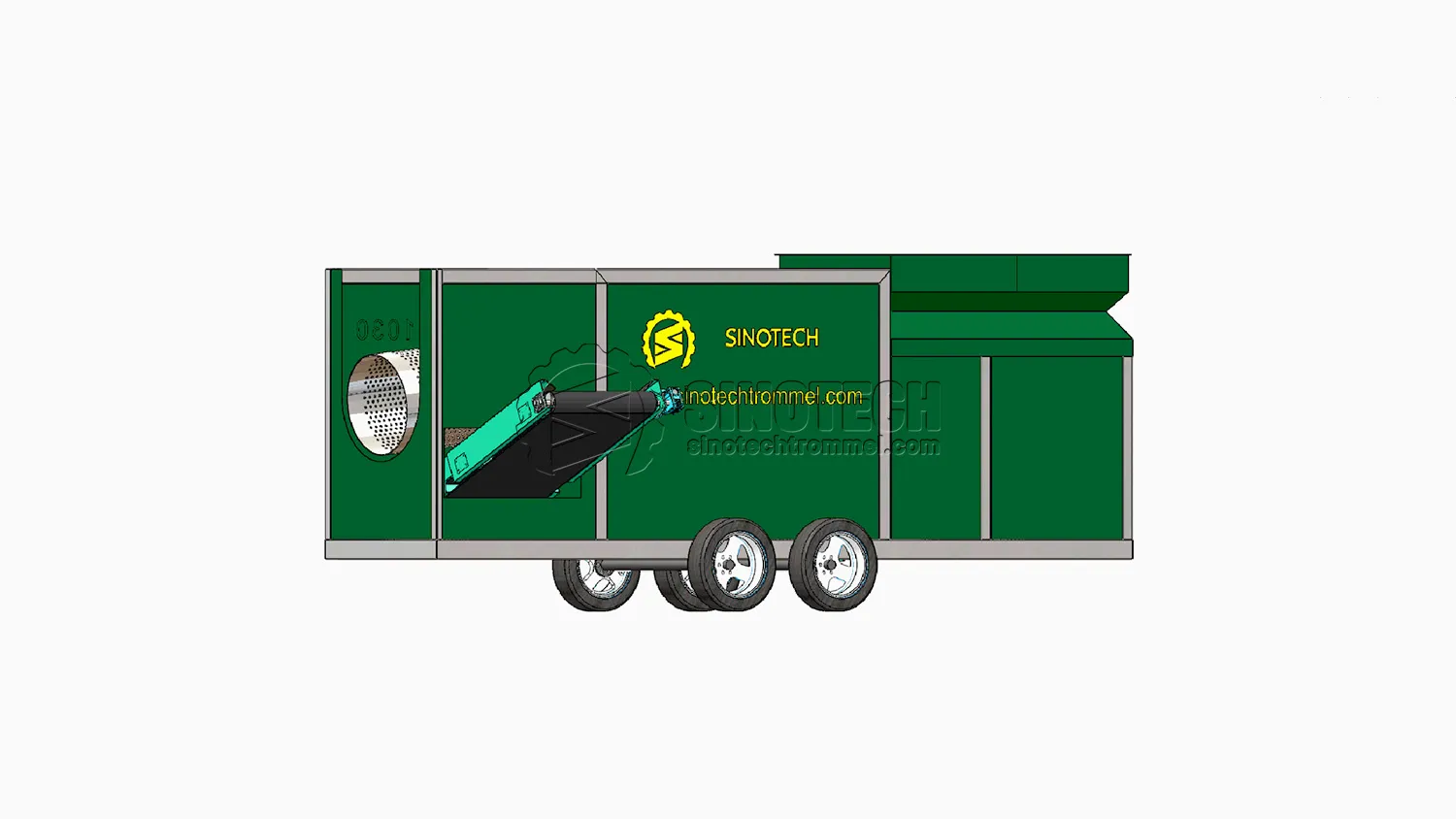

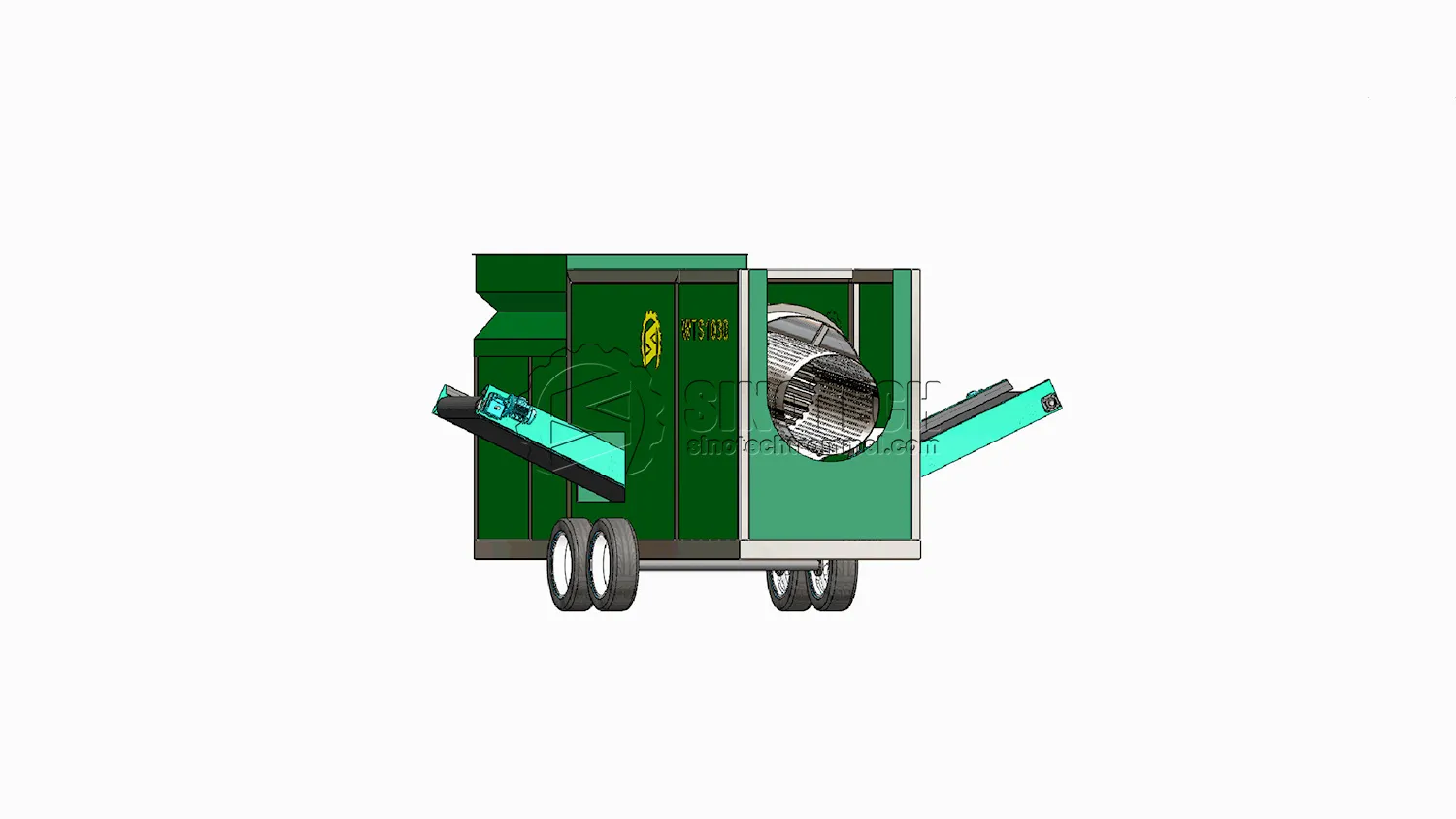

The WTS1030 trommel is an efficient screening powerhouse that is as kind to the earth as it is robust. Equipped with a pure electric drive, this screener weighs just 3.45 tons, making it exceptionally easy to load, transport, and set up for quick deployment on any job site.
Engineered for smart operation, the WTS1030 features electronic load-sensing control to continuously optimize productivity. It is driven by powerful SEW-geared motors and features adjustable support feet to ensure stability across demanding conditions. With its easy-change screens, you can quickly tailor the machine to your specific needs.
This unit is the ideal solution for construction companies, waste management professionals, and landscapers. It successfully processes materials ranging from excavated soil and stone to rubble, offering a remarkable screening capacity of up to 40 m³/h.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 15-40m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1000 | |
| Trommel length (mm) | 3000 | |
| Screening area approximately (m²) | ≈7.09 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2000 |
| Feed hopper width (mm) | 1320 | |
| Volume (m³) | ≈1.24 | |
| Transportation dimensions | Transportation status length (mm) | 5850 |
| Transportation status width (mm) | 1990 | |
| Transportation status height (mm) | 2180 | |
| Weight (kg) | ≈3450 | |
High-Capacity Hopper: The unit comes standard with a 1.24 m³ (1.62 yd³) hopper, and extensions are available to significantly boost operational efficiency.
High Stockpiling: A radial conveyor provides a 4.5 m (14' 9") stockpile height, making material management and storage easier.
Easy Maintenance: Ground-level adjustable brushes keep the screen clean during operation and can be rotated away for quick drum changes.
Excellent Mobility: The machine's chassis is equipped with two single axles, giving it outstanding mobility for easy transport between sites.
Flexible Drum: The core trommel features a 5' x 12' steel drum, with numerous drum and screen options available to suit your needs.
Customizable Solutions: A wide range of drum and screen options are available, allowing you to meet specific screening requirements for various materials.
