Price: $5,000 - 45,000 Limited Time Offer: 8% OFF!
Lead Time: Approximately 30 business days
Capacity: 20 - 260 m³/h
Weight: max. 13,000 kg
Processed materials: Municipal Solid Waste (MSW), Construction & Demolition (C&D) Waste, Landfill Reclamation, Industrial Solid Waste, Green Waste & Compost.
Factory Direct Shipping to Oceania, EU, and the US, Globally
Advanced Comprehensive Solid Waste Sorting Equipment Line — Safe, Fast, and Highly Profitable MSW Recycling.
The Municipal Solid Waste (MSW) sorting machine, also known as an MSW sorting plant, is the ultimate solution for modern solid waste disposal challenges, showing immense and growing market value day by day.

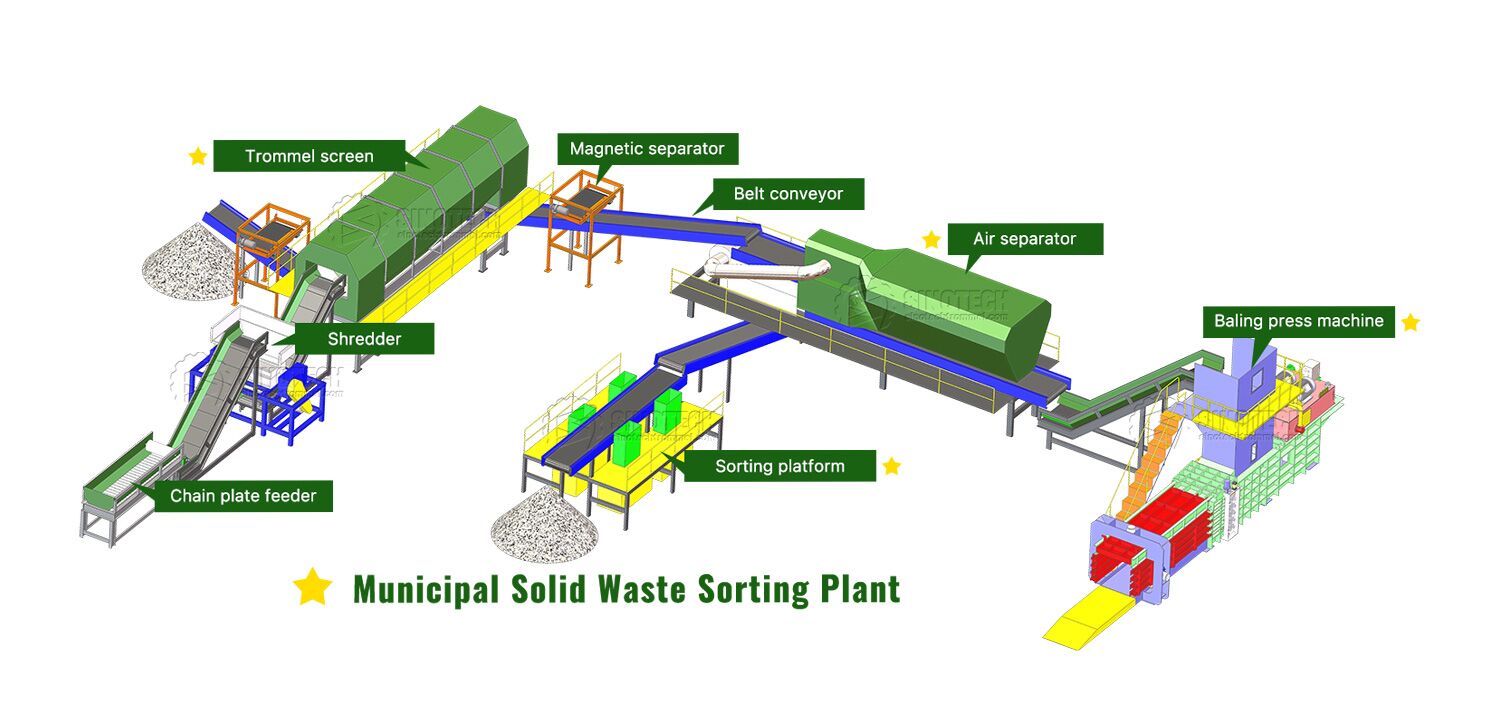

SINOTECH® adopts high-end techniques and highly reasonable structural designs in this industrial-grade sorting machine. As a comprehensive solid waste sorting equipment line, it consists of two main stages: a core waste sorting system and follow-up processing.
Initially, the waste is efficiently separated by various specialized sorting devices. Subsequently, the sorted materials can be sent to follow-up reprocessing plants for maximum resource recovery. The entire recycling procedure is safe, fast, and highly reliable, making large-scale MSW recycling much easier and more efficient.
| Technical data | ||||||
| Model | Trommel diameter(mm) | Trommel length(mm) | Capacity(m³/h) | Power（kw) | Dimension(LXWXH)(mm) | weight(t) |
| TS1230 | 1200 | 3000 | 20-60 | 4 | 4100x1500x3000 | 1.8t |
| TS1550 | 1500 | 5000 | 40-90 | 11 | 6300x1900x3800 | 4.2t |
| TS1860 | 1800 | 6000 | 50-130 | 15 | 7500x2150x4500 | 5.8t |
| TS2080 | 2000 | 8000 | 60-160 | 30 | 9700x2250x4950 | 8t |
| TS2580 | 2500 | 8000 | 150-240 | 40 | 11000x2900x5500 | 12t |
| TS2510 | 2500 | 10000 | 85-260 | 44 | 12000x2900x5500 | 13t |
| Any change of technical date shall not be advised additionally. | ||||||
The SINOTECH municipal sorting facility adopts an advanced design that significantly boosts throughput. The sorting accuracy can reach up to 90%.
With a rigorous attitude towards quality, SINOTECH equips the plant with top-tier parts, including anti-corrosive stainless steel and international-grade welding.
Our waste sorting systems feature smart automation, requiring minimal manual intervention, dramatically reducing long-term labor costs.
All mechanical equipment is enclosed with noise-dampening outer covers, effectively controlling operating noise to strictly under 80dB.
When designing this waste sorting plant, we integrated multiple safety shields and ergonomic features to ensure a highly secure working environment.
We offer flexible, modular configurations that can be seamlessly tailored to your specific site dimensions, material types, and target capacity.
