Price: $30,200-31,750 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 40-110 m³/h (52-144 yd³/h)
Diesel or Electric Power
Screen Aperture: 2-120 mm (0.08-4.75 in, Custom drum)
Weight: approx. 9600 kg (21,160 lbs)
Comprehensive 1-year global warranty & lifetime online technical support.
Processed materials: Sand, Palm Trees, Compost, Municipal Waste, Wood, Woodchip, Topsoil, Soil, Gravel, Rock
Factory Direct Shipping to Oceania, EU, and the US, Globally
Streamline Your Workflow with a High-Capacity Screener Designed for Clean, High-Quality Material Output.

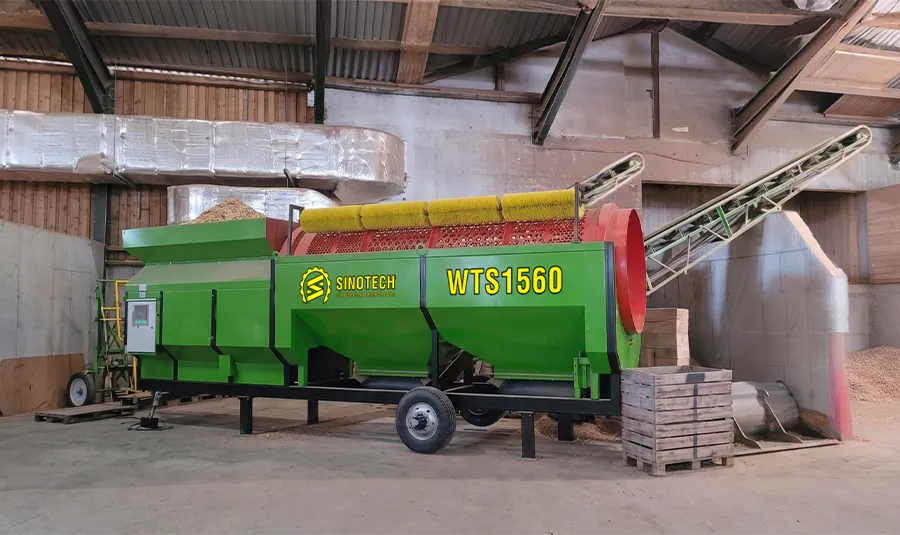

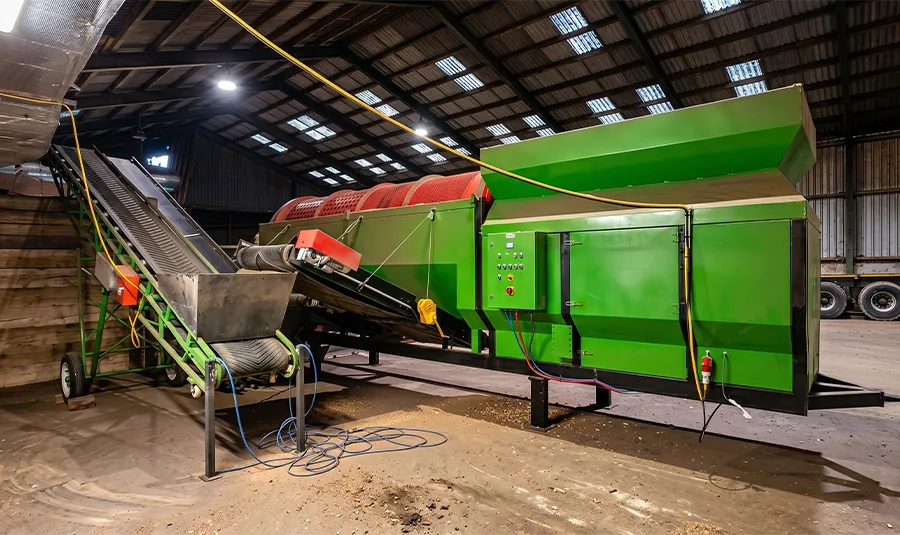

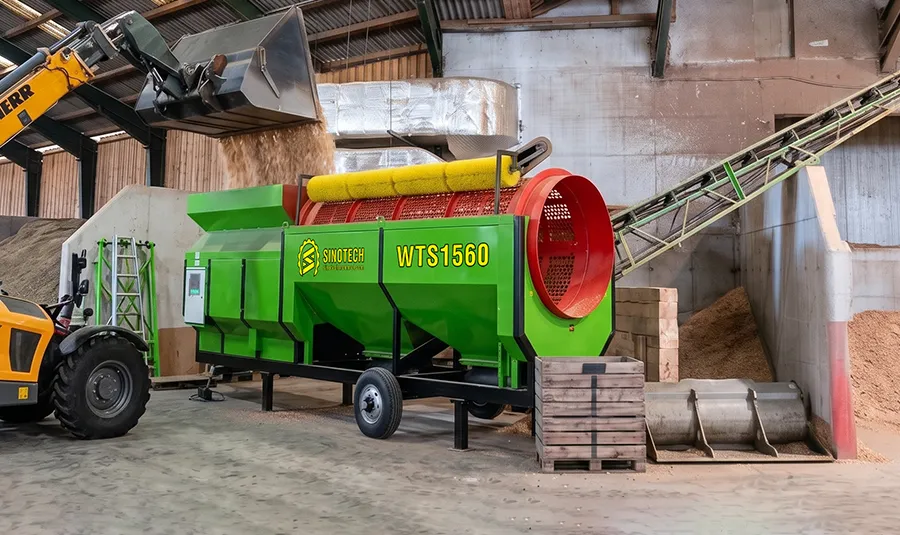

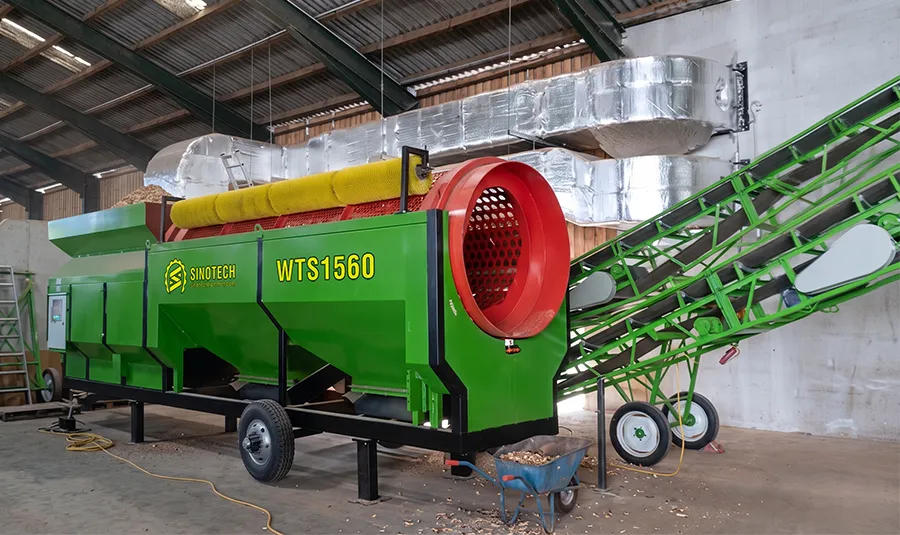

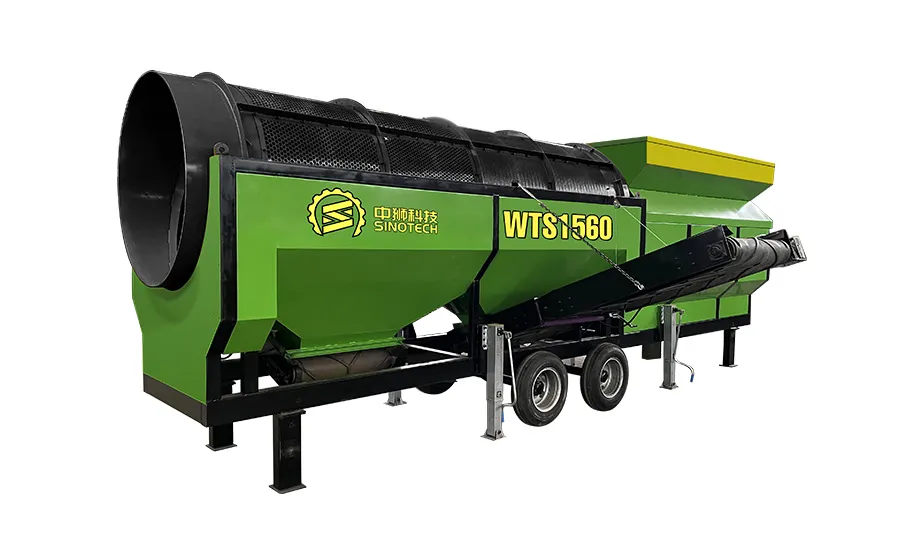

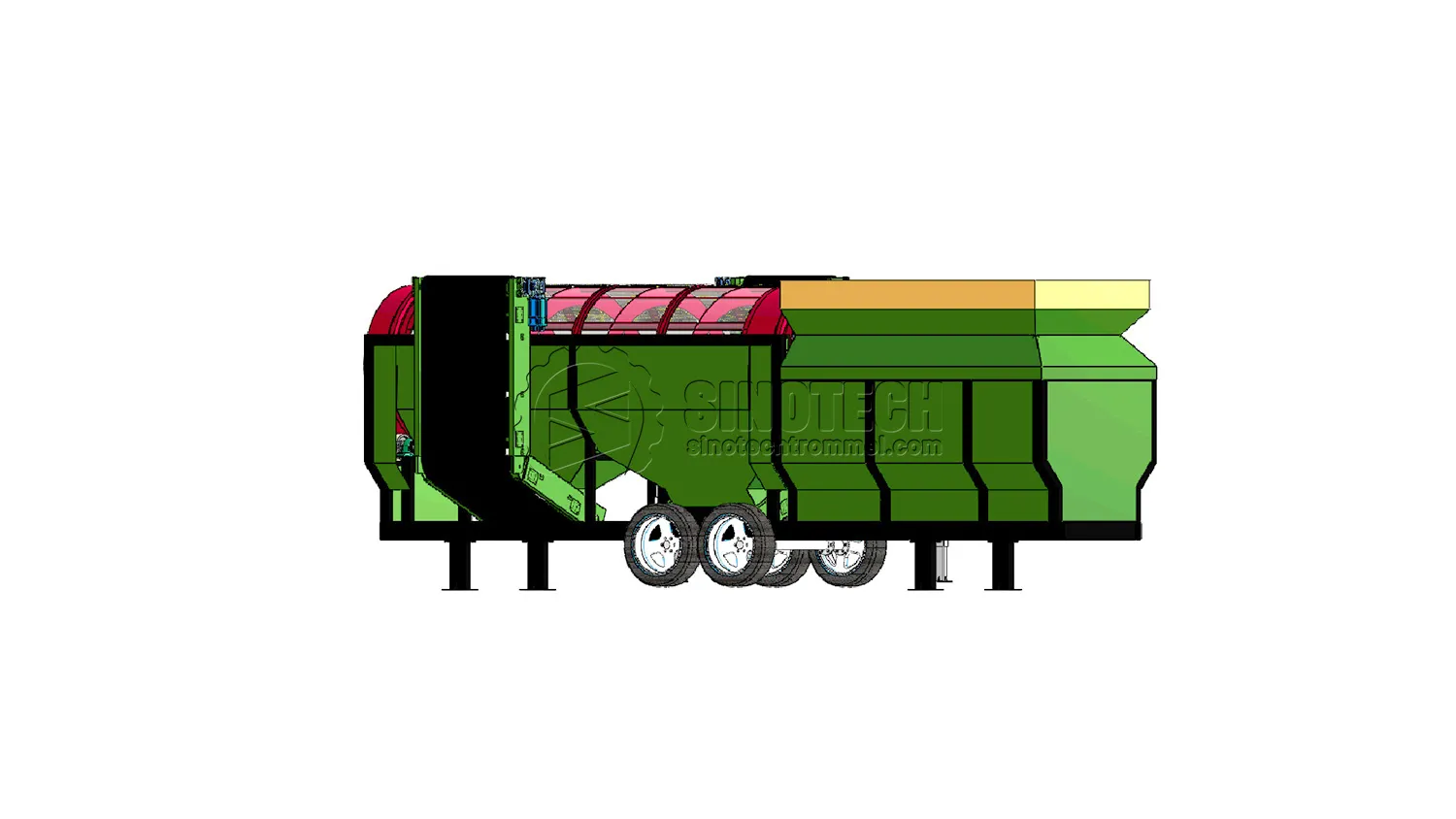

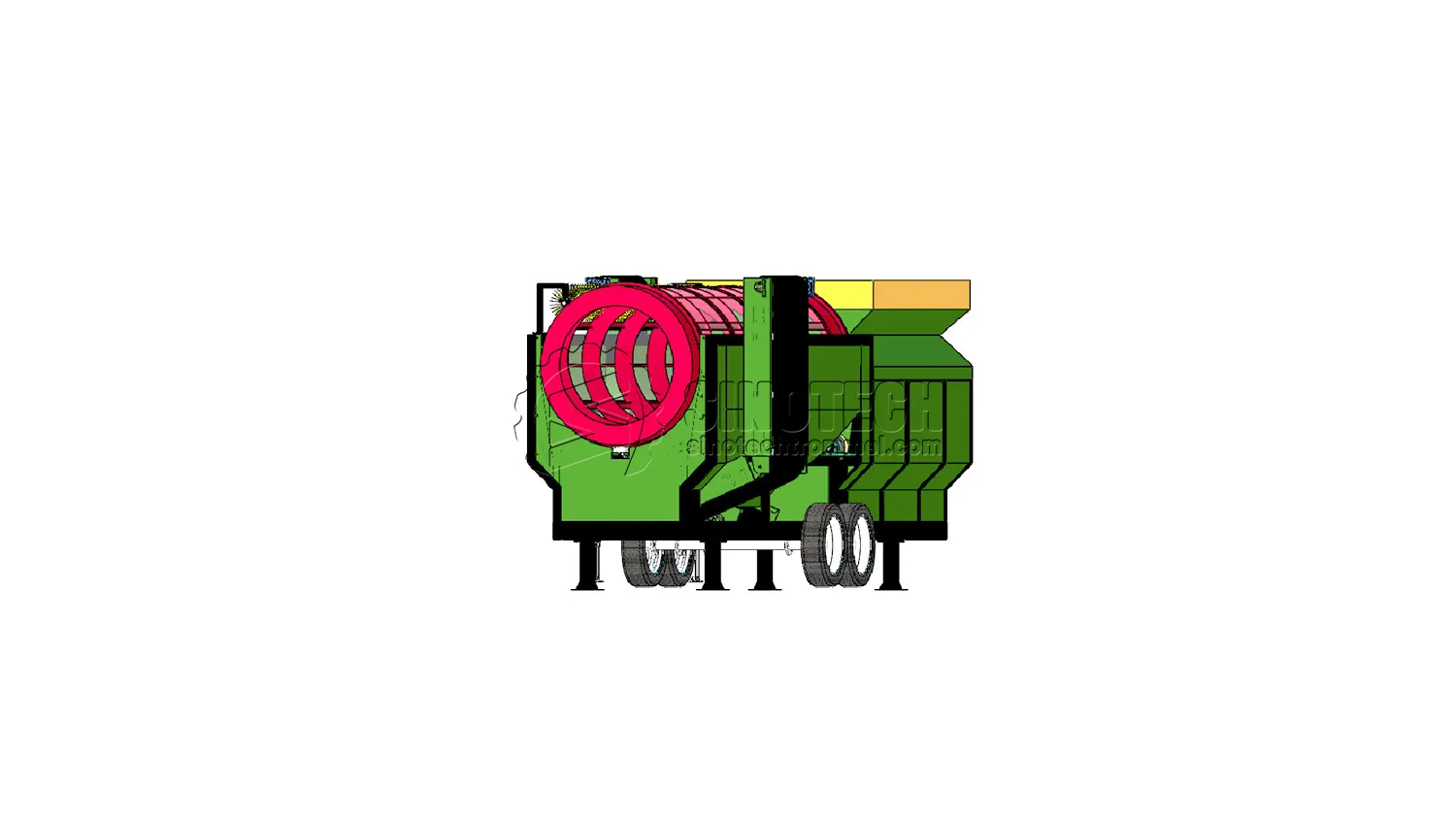

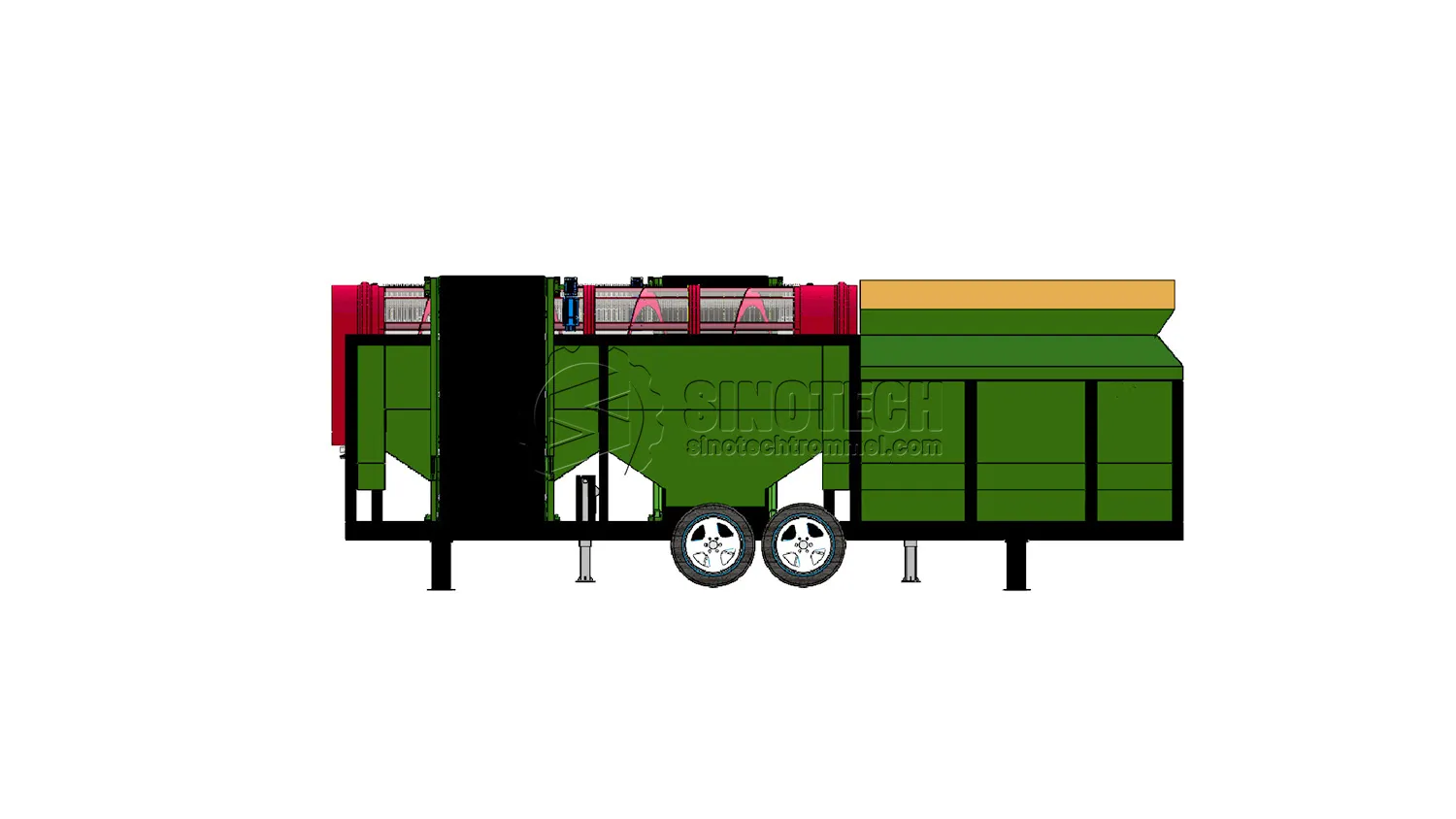

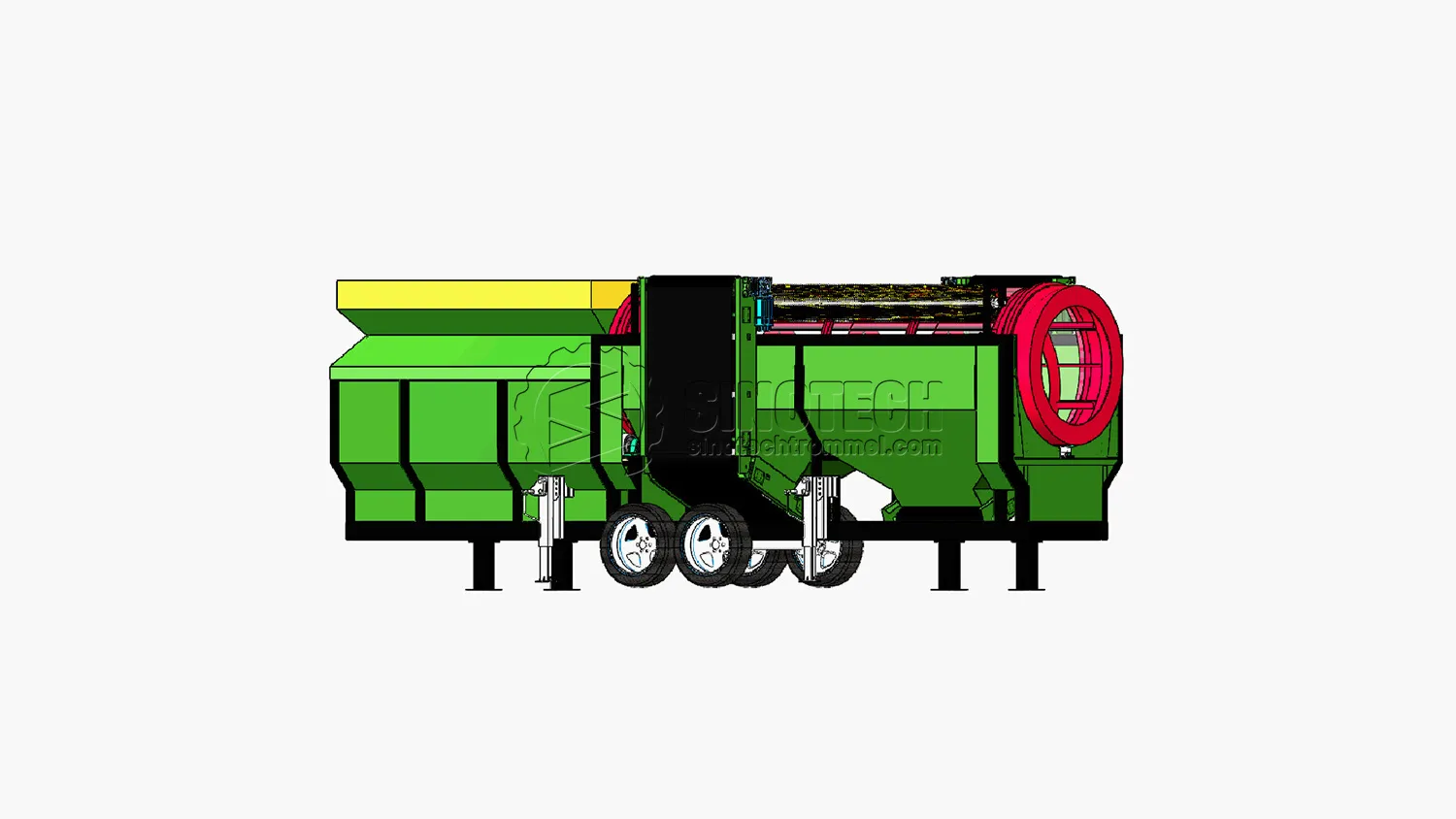

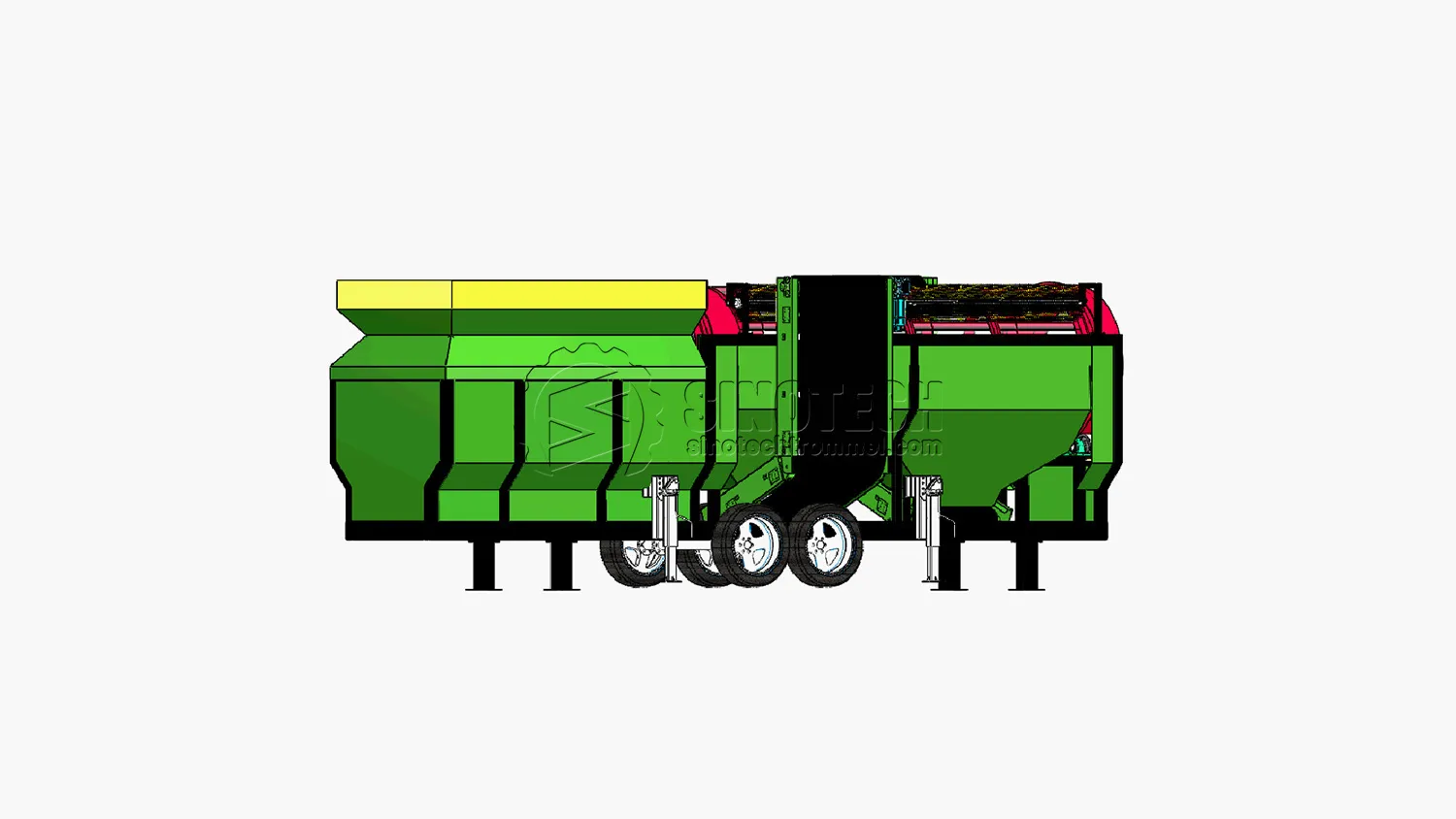

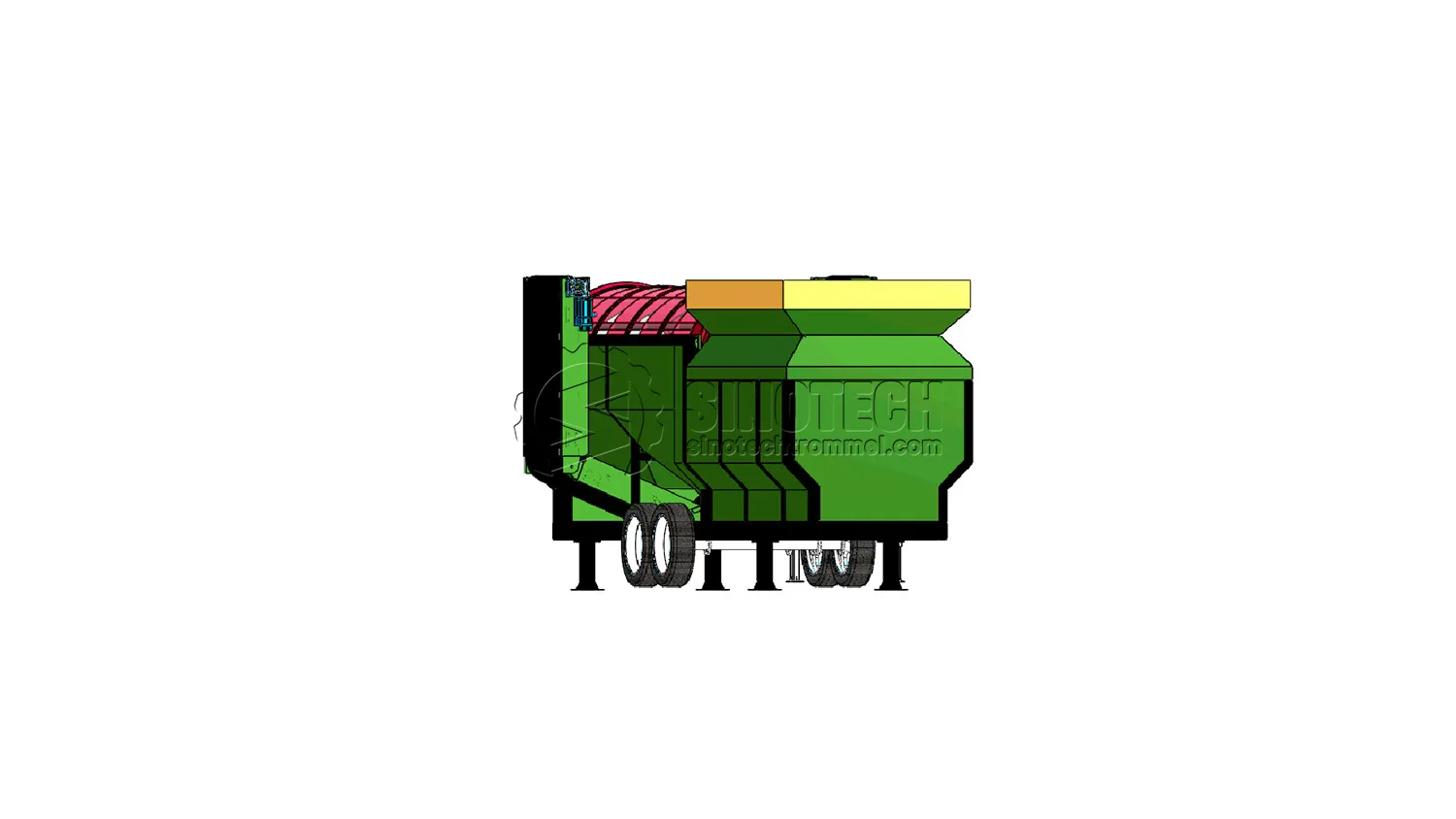

The WTS1560 Compost Trommel Screen is built to handle everything from landscaping projects to large-scale composting operations. Capable of processing compost, topsoil, gravel, and mulch, this machine dramatically increases throughput and provides clean, sorted material ready for resale or reuse. Whether you need a standalone unit or a complete material handling system with conveyors, SINOTECH has you covered.
Engineered for durability, the WTS1560 features an upgraded hardened gear reducer for high torque and low noise. The quick-change screen design (screw and nut fixing) allows for easy maintenance and customizable sizing. Best of all, we offer fast, flexible financing tailored to your company, so you can get the equipment you need without delay.

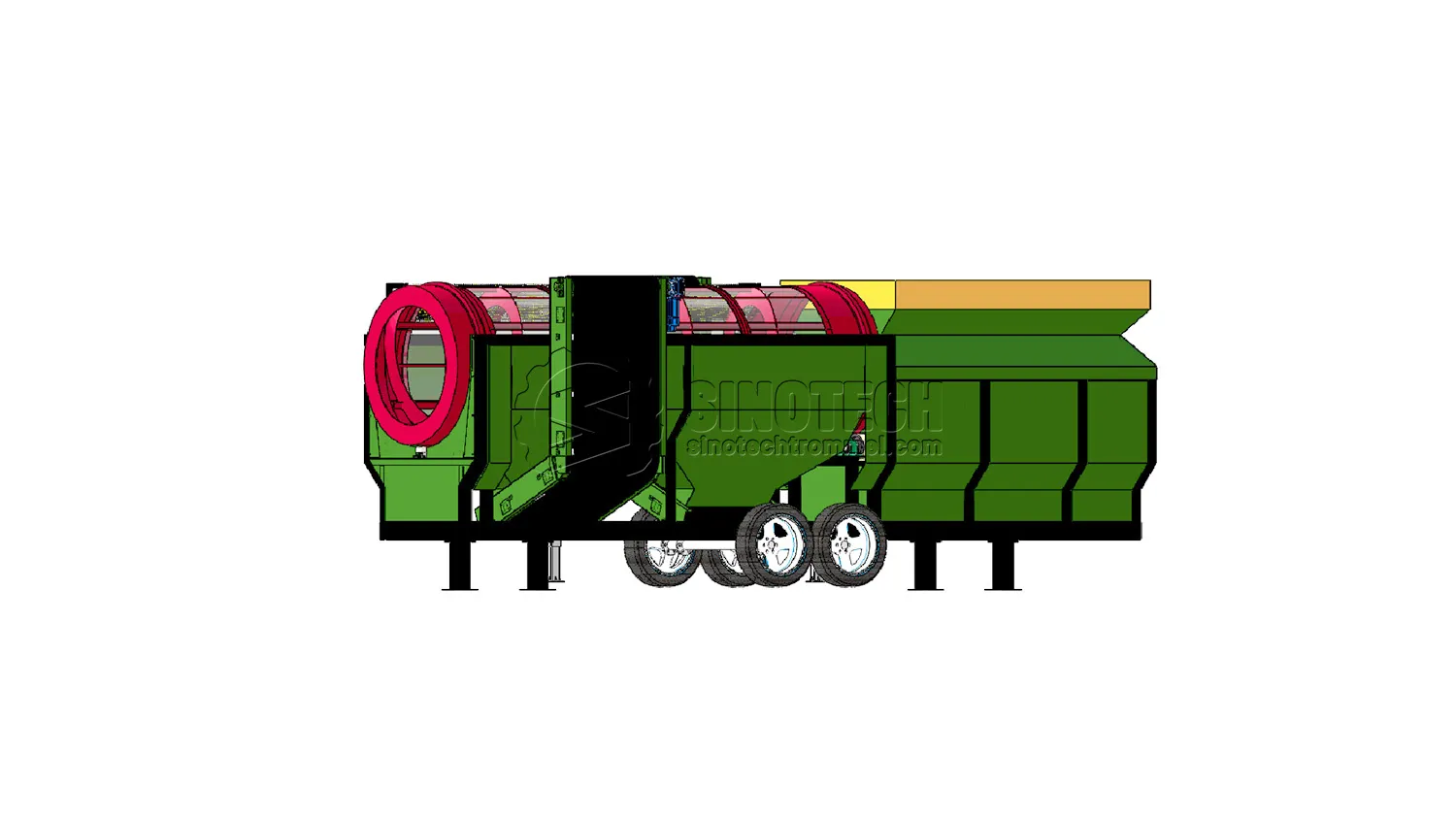

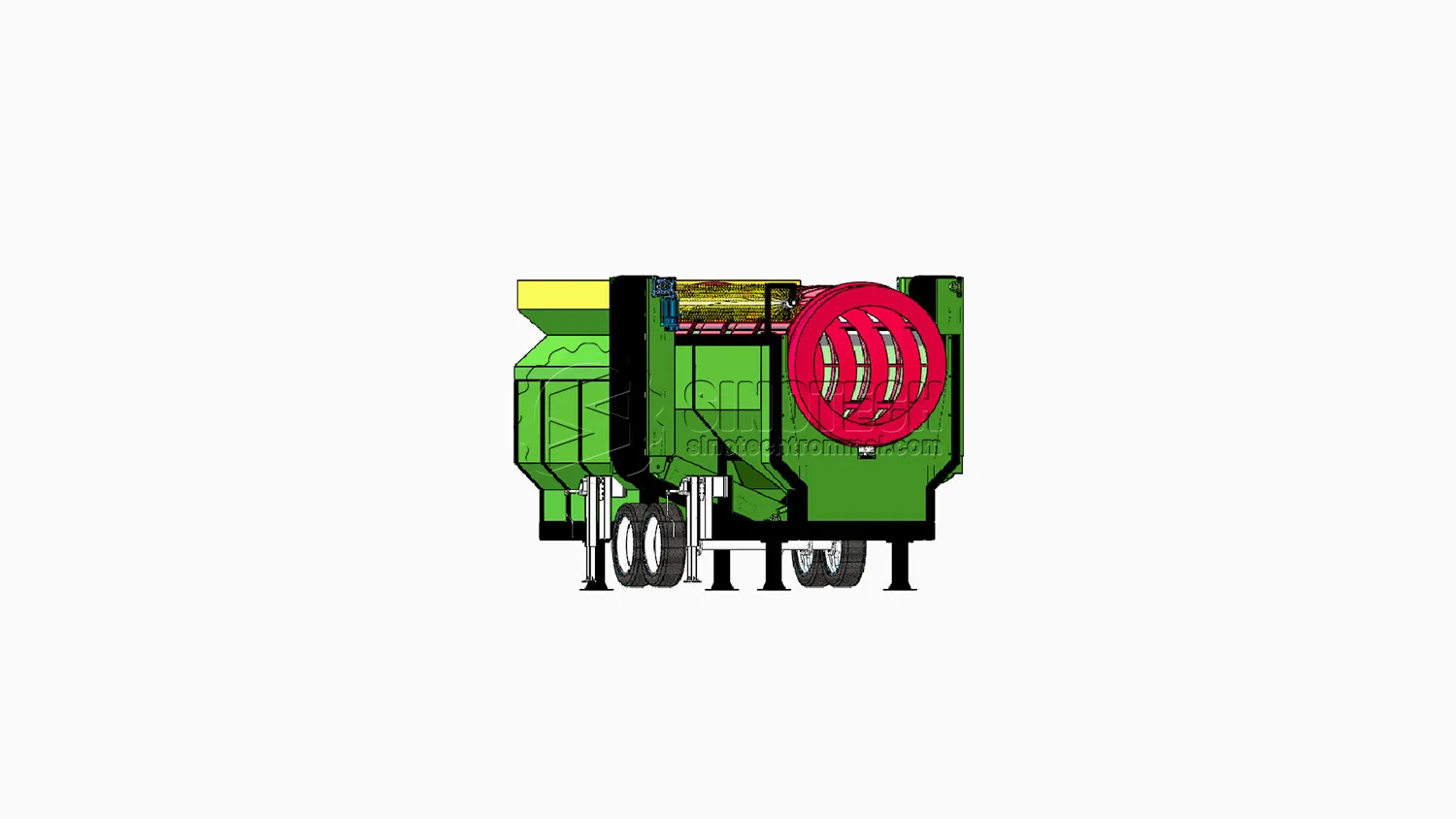

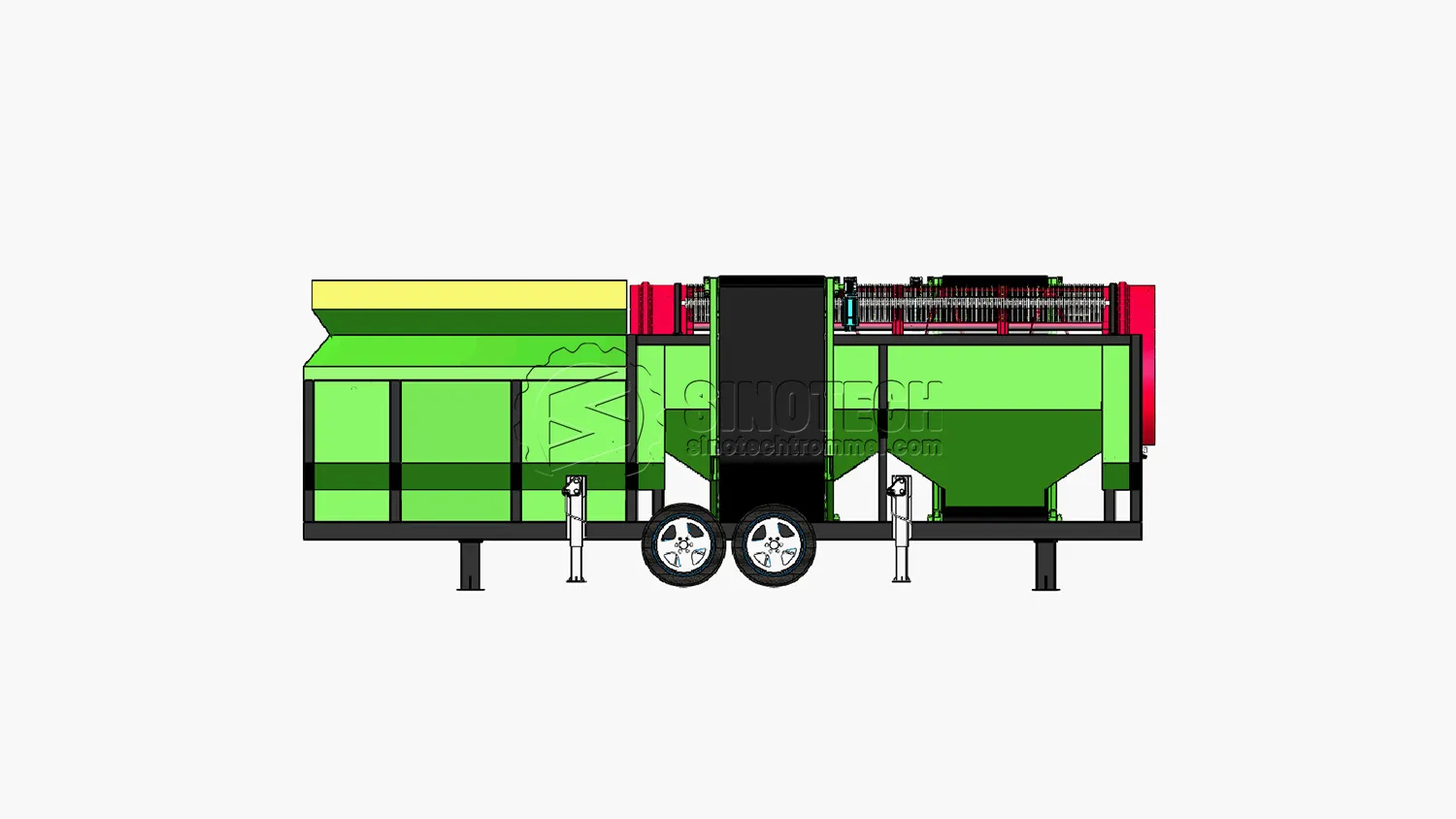

The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 40-110 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1500 | |
| Trommel length (mm) | 6000 | |
| Screening area approximately (m²) | ≈23.1 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 3000 |
| Feed hopper width (mm) | 1870 | |
| Volume (m³) | ≈3.56 | |
| Transportation dimensions | Transportation status length (mm) | 9110 |
| Transportation status width (mm) | 2270 | |
| Transportation status height (mm) | 2540 | |
| Weight (kg) | ≈9600 | |
Large-Capacity Hopper: 3.56 m³ (4.66 yd³) hopper with optional extensions, allowing the mobile trommel screen to process more material with fewer refills, boosting productivity for soil, compost, and aggregate screening.
High-Stockpile Conveyor: Radial conveyor design achieves a 4.5 m (14’ 9”) stockpile height, helping this portable screening plant reduce loader cycles and maximize on-site efficiency.
Self-Cleaning Brush System: Ground-level adjustable brushes keep the drum screen clean during operation and swing away quickly for hassle-free drum changes, ideal for soil screener and compost applications.
Easy-Transport Mobility: Fitted with two heavy-duty single axles, this portable trommel screen can be towed easily between job sites and set up in minutes.
Heavy-Duty Trommel Drum: Durable 5’ x 12’ steel drum designed for high-performance screening, with multiple screen and drum configurations to suit aggregates, topsoil, wood chips, and more.
Built for Results: Engineered as a versatile trommel screening machine for high throughput, minimal downtime, and reliable performance across construction, landscaping, and recycling projects.
